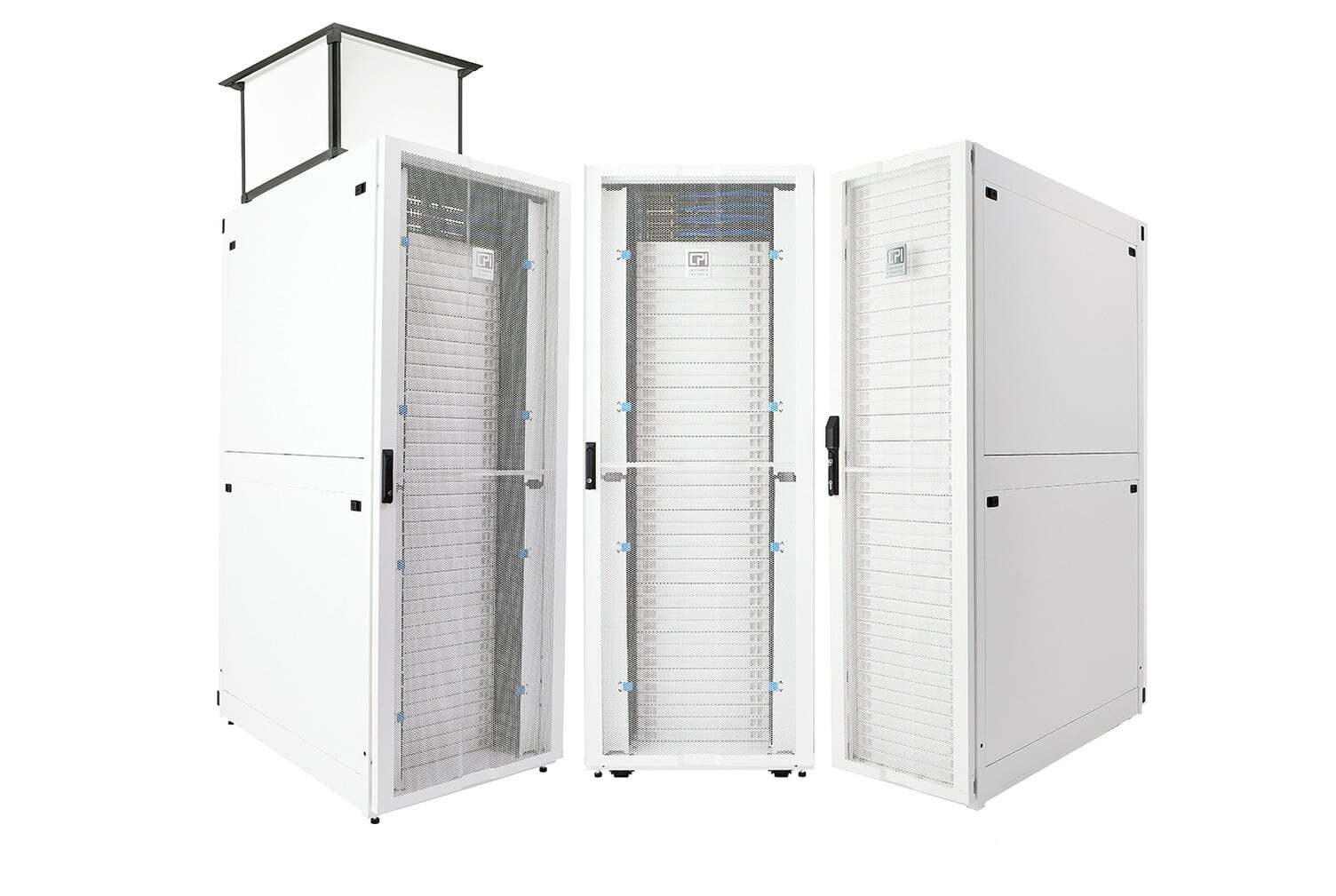

ZetaFrame™ Cabinet System Overview
 |
Speedy Deployment
|
 |
Fast Selection and Customization – Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements. |
 |
Future-Proof Strength – Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads |
 |
Integrated Bonding – Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components |
 |
Enhanced Cable Management – ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications |
 |
Integrated Airflow Management – Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling Specifications: Height:
84.6" (2149 mm) 45U
Width:
31.5" (800 mm)
Depth:
47.2" (1200 mm)
Doors:
Perf Front Door/Solid Rear Door
Top Panel:

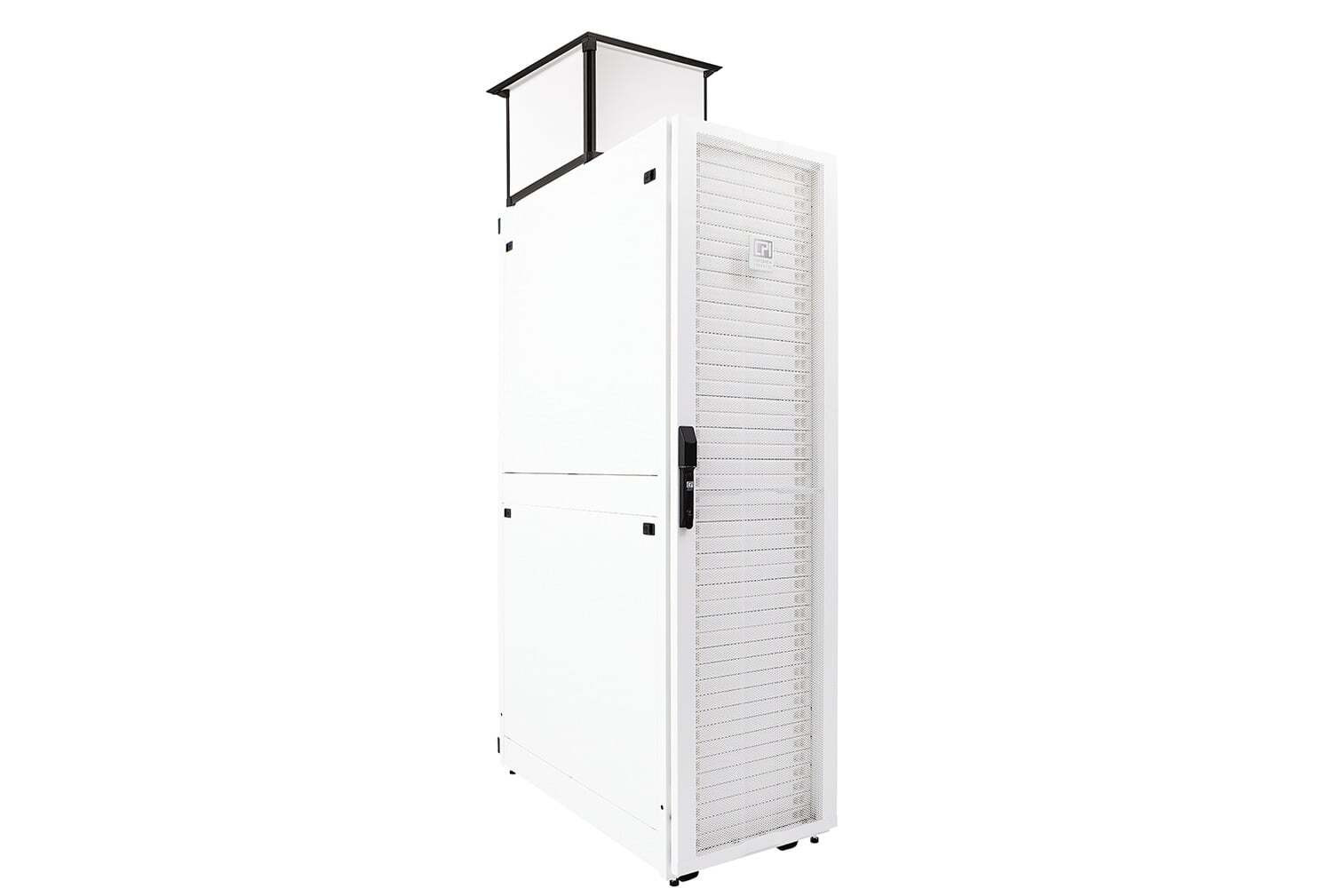

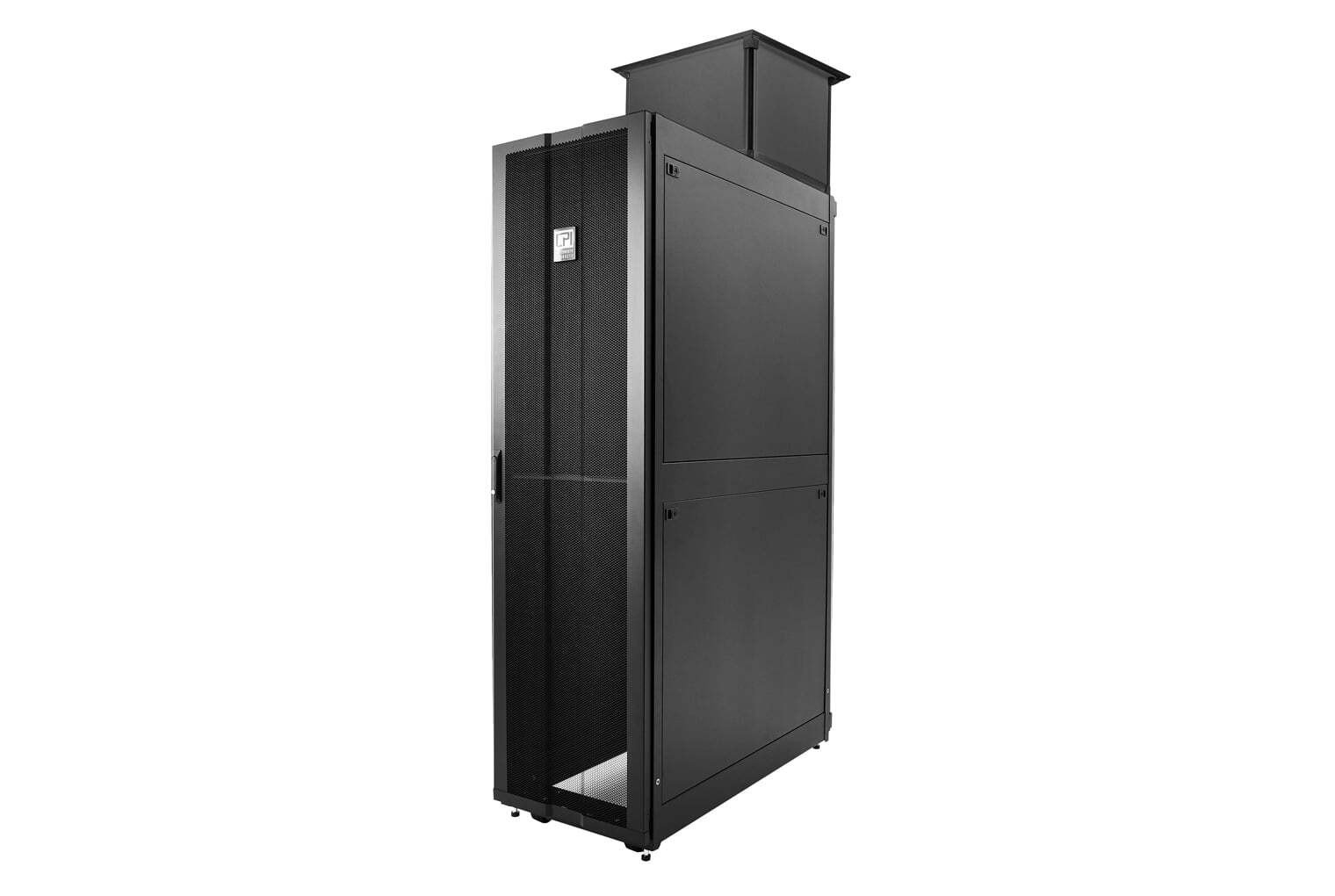

Vertical Exhaust Duct 12”H-20”H (305 mm – 508 mm)
Side Panels:
Two Side Panels
Bottom Panel:
Bottom Panel
Thermal Management:
Air Dam ; Grommets To Seal Cable Openings
Color:
Black
|
