Black Box

Regular Price $934.50
Discount Price: $880.00
Product Overview:

SE DVI KVM-over-IP Matrix Switch Receiver - Single Head, Full HD DVI, VUSB 2.0, Serial, Audio - 1 Computer(s) - 1 Remote User(s) - 328.08 ft Range

Adding to cart… The item has been added

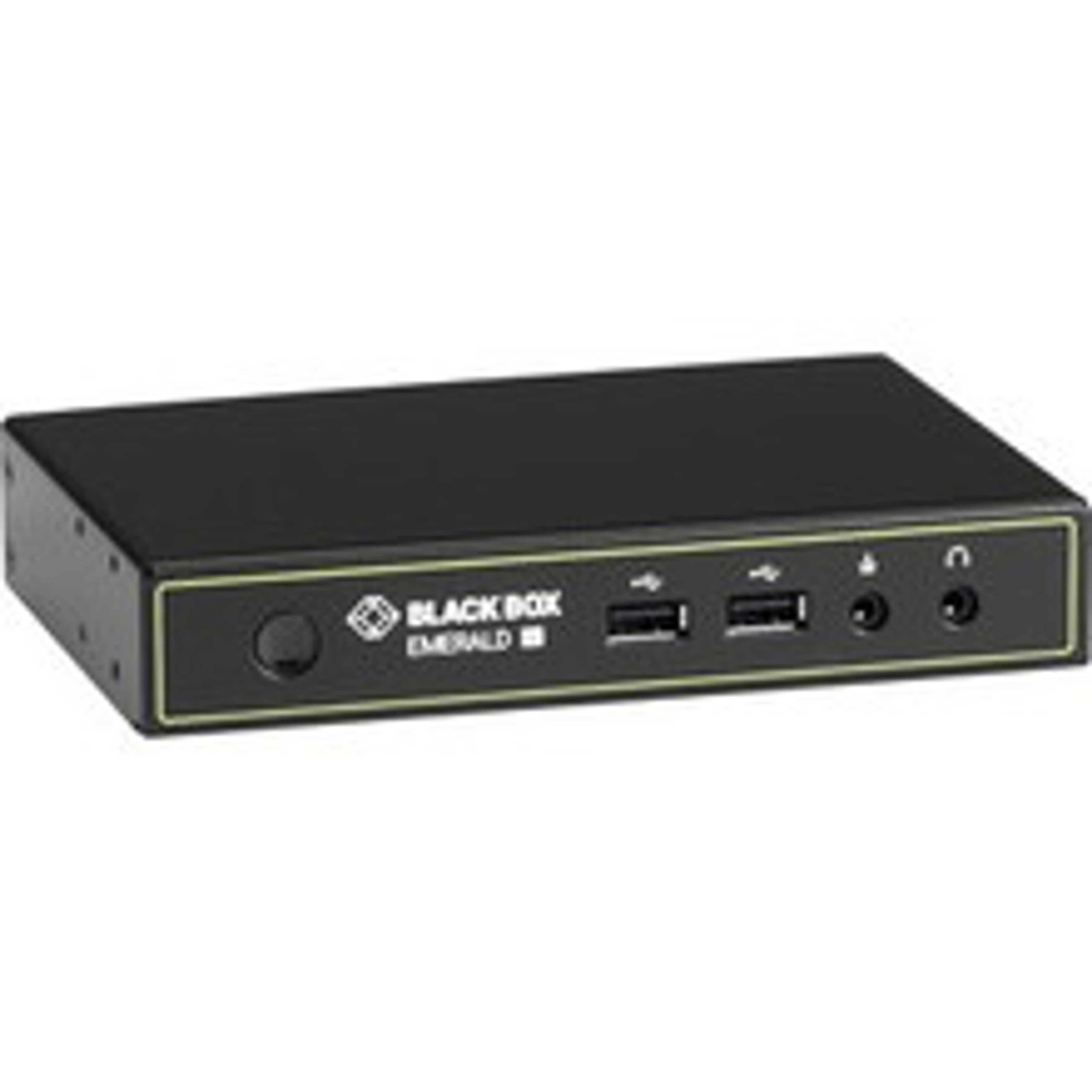

Black Box Emerald™ SE DVI KVM-over-IP Matrix Switch Receiver - Single Head, Full HD DVI, VUSB 2.0, Serial, Audio - 1 Computer(s) - 1 Remote User(s) - 328.08 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 1 x Network (RJ-45) - 4 x USB - 1 x DVI - 120 V AC, 240 V AC Input Voltage - Desktop - For PC, Linux, Mac - TAA Compliant

High-performance KVM
Emerald SE provides users with a seamless desktop experience anywhere on a TCP/IP network while allowing the actual hardware to be housed in a corporate data center or in the cloud. The performance of Emerald SE allows easy deployment on standard corporate networks and even across WANs. The solution enables the same experience of a desktop PC even for media-rich applications, like video and photo editing.

Emerald SE provides Full HD DVI-D with resolutions up to 1920 x 1200, transparent USB 2.0, and bi-directional analog audio. Link them in a point-to-point KVM extension over CATx up to 328 ft./100 m or even further using an IP or WAN connection. Or Connect multiple transmitters and receivers to an Emerald or IP switch to create a matrix switching setup.

Virtualization support
Emerald SE simplifies access to both physical and virtual servers with high-performance connectivity to virtual machines, supporting VMware®, Microsoft® HyperV®, and Citrix®, using RDP 8.1/RemoteFX.

Limitless scaling
Your Emerald KVM network may start small, but scalable to meet your future needs just by adding endpoints. Connect up to 32 endpoints, no additional KVM management appliance, cards or chassis required. For larger deployments, use our Boxilla KVM management solution.

A welcome addition to the Emerald product family
Emerald SE works seamlessly with the rest of the Emerald product family and these popular Black Box KVM product families:

  • DKM proprietary, direct-connect KVM system
  • Freedom II Multi-Monitor Switch with Glide-and-Switch technology
  • ControlBridge our system for one-touch, multisystem control
  • Boxilla KVM manager


  • Next-generation KVM extension and matrix switching simplifies access to both physical and virtual servers
  • Visually lossless full HD DVI video up to 1920x1200
  • Low IP bandwidth requirements with less than 40-Mbps required for 1080p video
  • Supports USB HID, transparent USB 2.0 and audio
  • Manage bandwidth and user access, deploy new endpoints, update firmware and more from the receiver's OSD


Limited Warranty 2 Year
Maximum Video Resolution 1920 x 1200
Graphic Mode WUXGA
Physical Characteristics
Form Factor Desktop
Receiver Height 1.15"
Receiver Width 6.20"
Receiver Depth 4.20"
Receiver Weight (Approximate) 1.18 lb
Power Description
Input Voltage 240 V AC
  120 V AC
Frequency 60 Hz
  50 Hz
Power Consumption 6.50 W
Input Voltage Range 100V AC to 240V AC
Technical Information
Connectivity Technology Wired
Maximum Operating Distance 328.08 ft
KVM Technology Digital
Number of Computers Supported 1
Number of Remote Users Supported 1
Device Type KVM Extender
Microphone Yes
Headphone Yes
Number of Network (RJ-45) Ports 1
Network (RJ-45) Yes
Number of USB Ports 4
Number of DVI Ports 1
Package Contents
  • Emerald SE EMD2000SE-R Digital KVM Extender Receiver
  • 1 x 5VDC Power Supply with Power Cord
Platform Supported PC
Certifications & Standards
  • FCC
  • CE
Country of Origin Ireland
Environmentally Friendly Yes
TAA Compliant Yes
General Information
Product Type KVM Extender Receiver
Manufacturer Part Number EMD2000SE-R
Manufacturer Website Address
Packaged Quantity 1
Manufacturer Black Box Corporation
Product Model EMD2000SE-R
Product Name Emerald SE EMD2000SE-R Digital KVM Extender Receiver
Product Line Emerald SE
Brand Name Black Box
