Regular Price $535.00
Discount Price: $488.00
Product Overview:

8-button Control Pad (US, 1 Gang) - Wired

Adding to cart… The item has been added

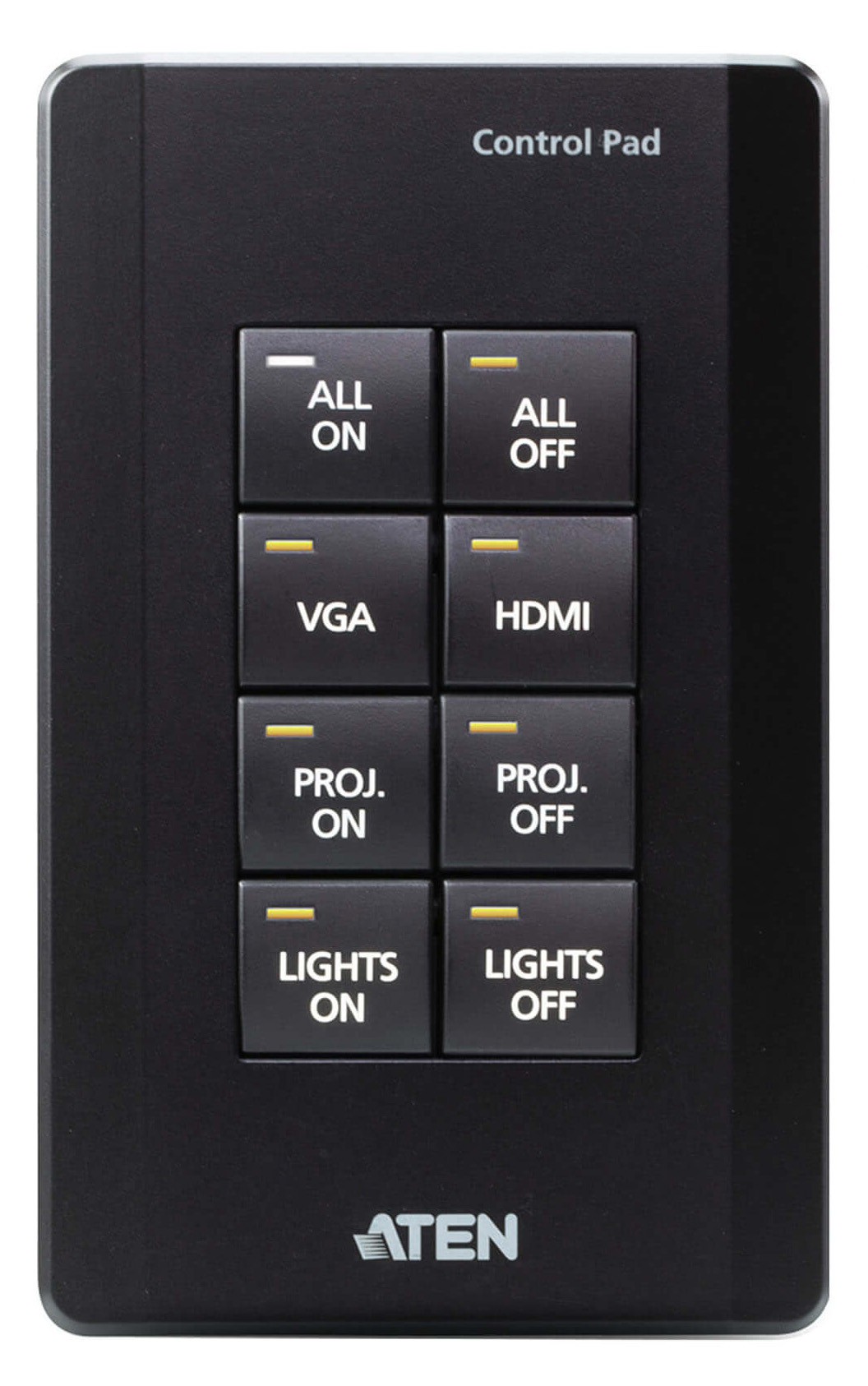

ATEN VK0100 8-button Control Pad (US, 1 Gang) - Wired
The VK0100 is a fully-customizable 8-button Control Pad that integrates a controller with a keypad as an all-inone solution. Aimed for small/medium meeting room or classroom control, the VK0100 offers a ready-to-use solution that easily connects the devices, configures via the intuitive VK6000 Configurator Software, and flexibly customizes keypad button functions and layout to fulfill most applications.

The ATEN Control System is an Ethernet-based management system that connects all the hardware devices found in a room for centralized control effortlessly. The VK0100 Control Pad not only plays the role as the main controller that connects the hardware devices, but also acts as a control interface with customizable buttons and layout. Created with flexibility in mind, the one-gang Control Pad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego's. By connecting to the local network, users will find it's effortless using VK6000 software to configure the desired control of any connected device from the Control Pad. With the ready-to-go combo Control Pad, you have instant and smart control of the facilities from a Control Pad that can manage any device in the room.


Technical Information
Connectivity Technology Wired
Additional Information Keypad Layout
  • 4~8 buttons customizable in 14 keypad layouts
  • 2 x Bi-directional RS-232 Port
  • (2 x 3-Pole Terminal Block Connector);
  • Baud Rate: 300 to 115200 (default: 9600);
  • Data Bit: 8 (default) or 7;
  • Stop Bit: 1 (default) or 2;
  • Parity: None (default), even or odd
  • 2 x Relay Channel (2 x 2-Pole Terminal Block Connector);
  • Normally open, isolated Relays;
  • Contact Rating: Max 24 VDC, 1A
  • 1 x Digital Input Channel
  • (1 x 2-Pole Terminal Block Connector);
  • - VDC Mode
  • Input Voltage Range: 0 to 5 VDC;
  • Programmable Range: 1 to 5 VDC;
  • - Dry Contact Mode
  • Pull-up 2k ohms to + 5 VDC
  • 1 x RJ-45 Female, 10/100Base-T
  • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
  • DHCP-enabled. The following default IP settings will be used if no IP is assigned within
  • 30 seconds:
  • IP:
  • Subnet Mask:
Country of Origin Taiwan
Physical Characteristics
Weight (Approximate) .5 oz
Form Factor Wall Mountable
Height 1.9"
Width 1.6"
Product Material Plastic
General Information
Product Type A/V Control Panel
Manufacturer Part Number VK0100
Manufacturer Website Address
Manufacturer ATEN Technology, Inc
Product Model VK0100
Product Name VK0100 8-button Control Pad (US, 1 Gang)
Brand Name ATEN
