Aten VS1204T VanCryst Video Extender-TAA Compliant

Aten

MSRP: $270.00
$171.44
(You save $98.56 )
UPC:
672792002656
Product Overview:

Video Extender-TAA Compliant - 1 Input Device - 5 Output Device - 1000 ft Range

MFG#:
VS1204T
Product Category:
Video Splitters
Manuals Brochures and Guides:
Adding to cart… The item has been added

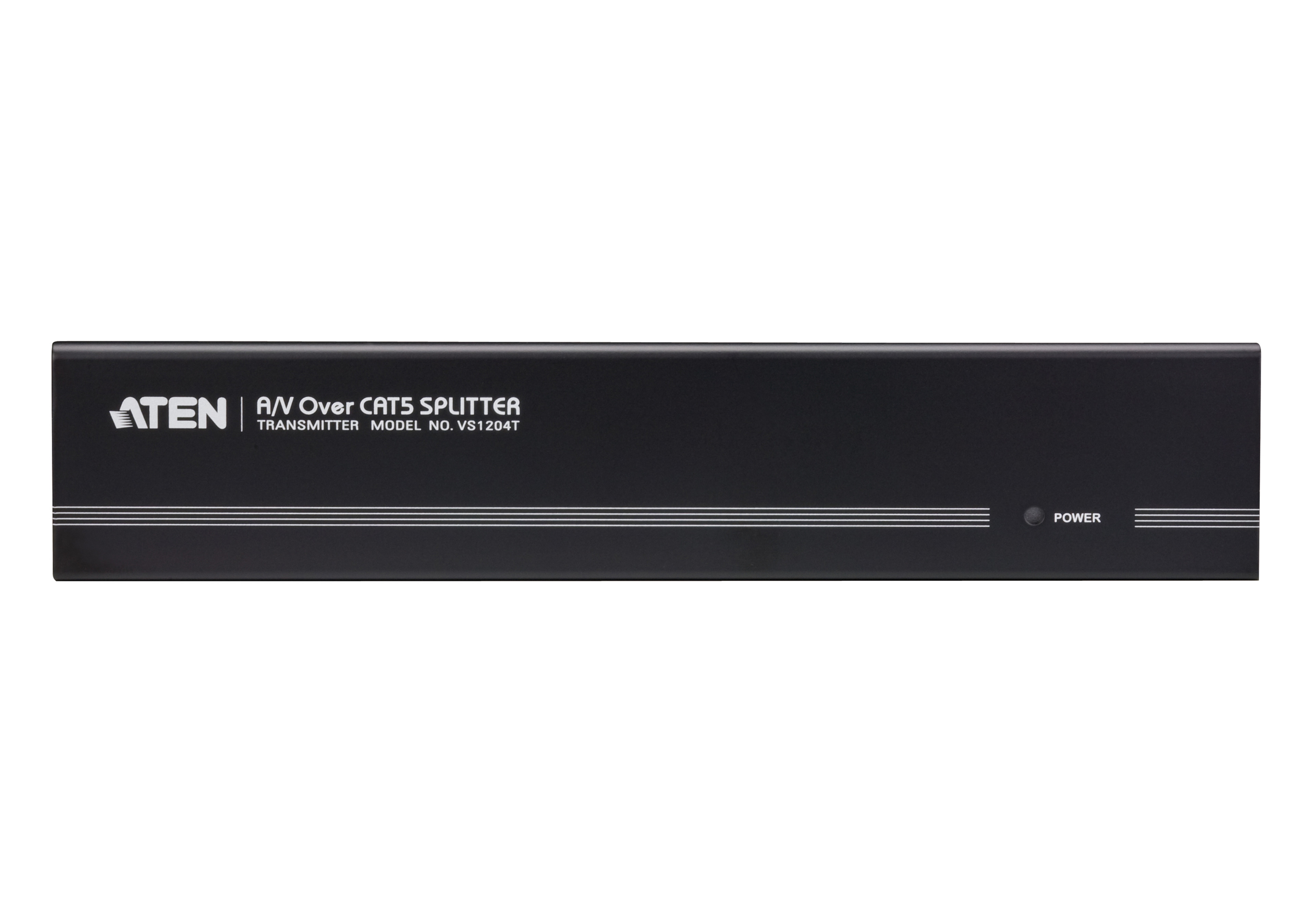

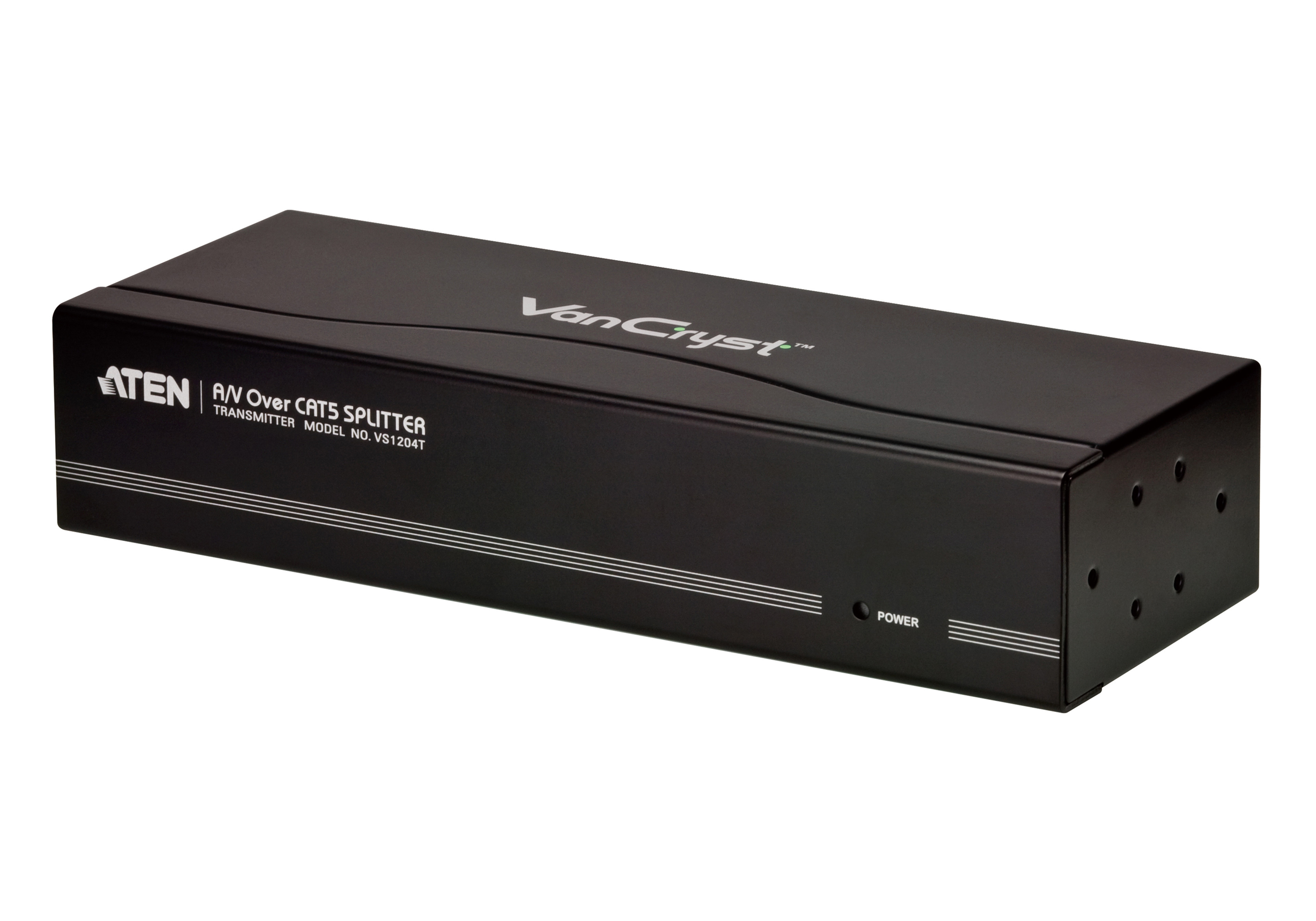

Aten VS1204T VanCryst Video Extender

The VS1204T A/V Over Cat 5 Splitter by ATEN is the perfect solution for connecting one source to four displays over long distances. Ideal for professional A/V installations, this splitter allows multimedia content to be delivered to multiple destinations located up to 300 meters away from the source.

Key features include:

  • One audio/video input to four audio/video outputs via Cat 5e cable
  • Support for local display plus four remote displays
  • Bandwidth support of up to 225 MHz
  • Superior video quality of up to 1920 x 1200@60Hz
  • Audio enabled (mono)
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable design

For optimal performance, it is recommended to use compatible receivers such as the VE170R, VE170RQ, or VE172R.

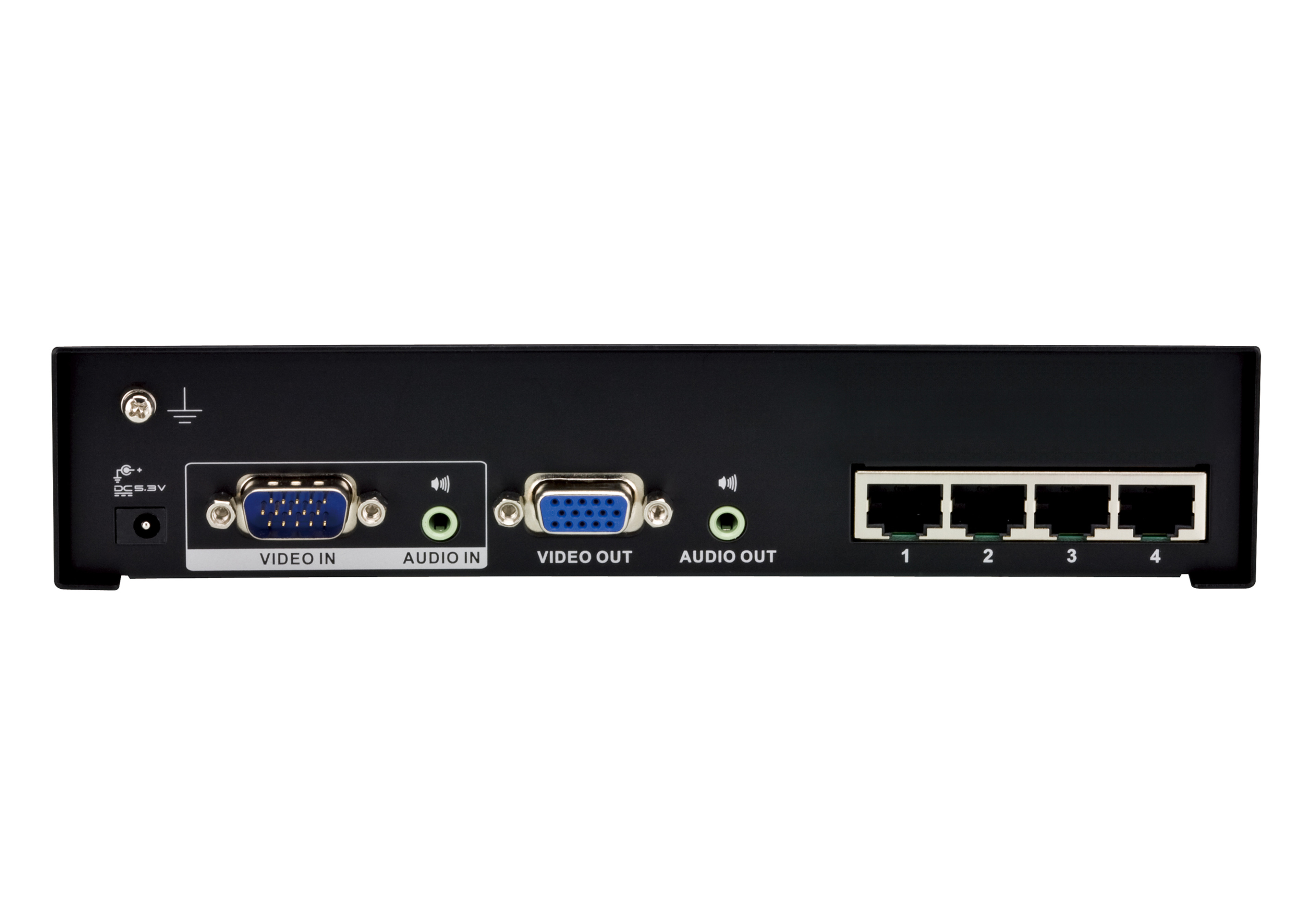

Ports & interfaces

Video port typeVGA
Video outVGA
Ethernet LAN (RJ-45) ports4
Video ports quantity2
Audio ports quantity2
Connector(s)HDB-15, Mini Audio, RJ-45, DC-in
DC-in jack✓

Features

Product colorBlack
Maximum resolution1920 x 1200 pixels
Full HD✓
Maximum operating distance11811" (300 m)
Bandwidth225 MHz
Supported graphics resolutions1920 x 1200 (WUXGA)
Power LED✓
Plug and Play✓
CertificationRoHS

Network

Ethernet LAN✓
Cable types supportedCat5e

Power

AC input voltage5 V
Power consumption (typical)1.33 W

Weight & dimensions

Dimensions (WxDxH)2.93 x 7.87 x 1.65" (74.5 x 200 x 42 mm)
Weight20.8 oz (590 g)

Packaging content

User guide✓

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Logistics data

Harmonized System (HS) code85176990
