Aten VE803 HDMI USB Extender - 1 Input Device - 1 Output Device

Aten

MSRP: $168.00
Regular Price $142.95
Discount Price: $118.95
(You save $49.05 )
UPC:
672792004285
Product Overview:

HDMI USB Extender - 1 Input Device - 1 Output Device - 131.23 ft Range

MFG#:
VE803
Product Category:
AV Extenders
Adding to cart… The item has been added

Description:

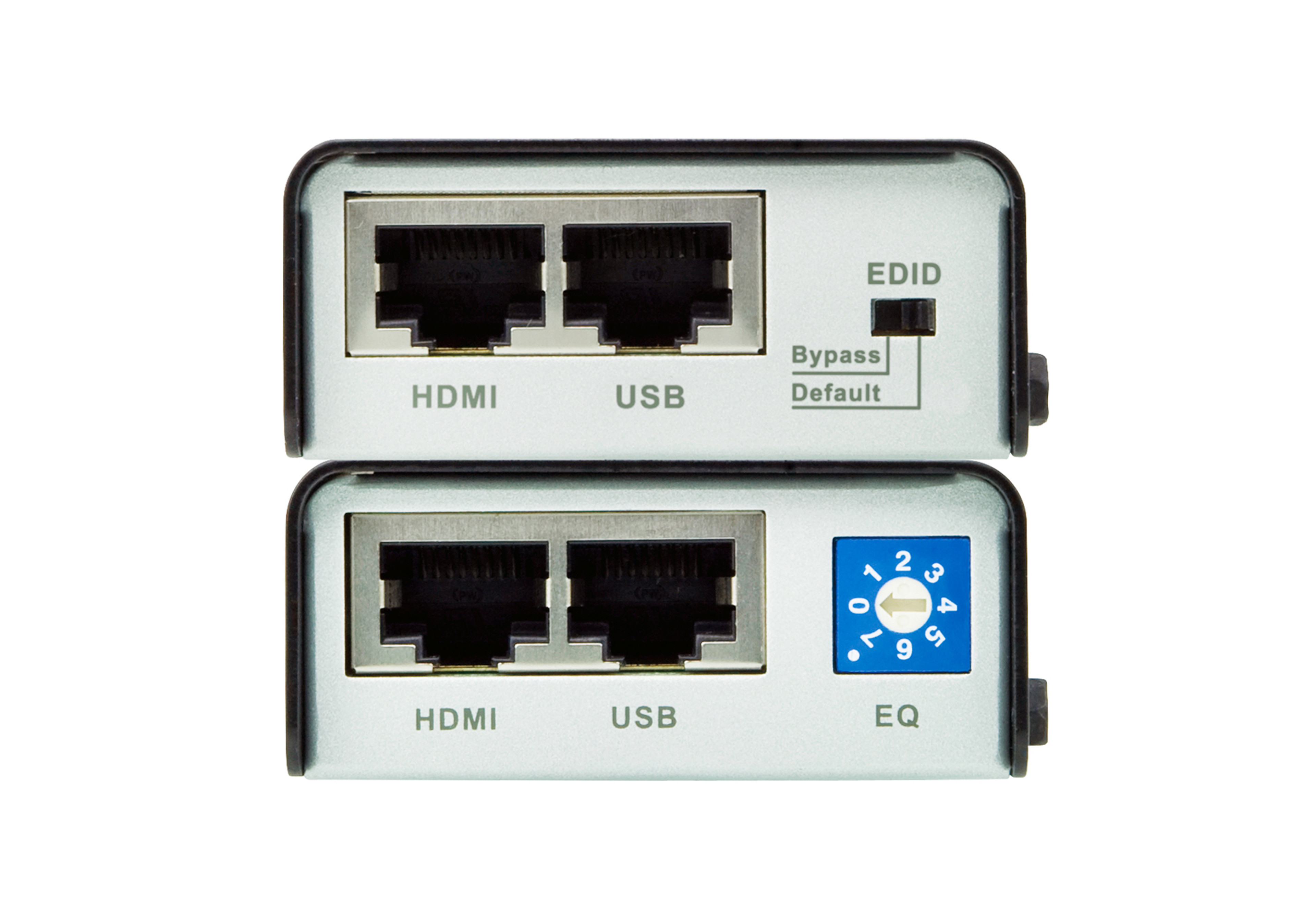

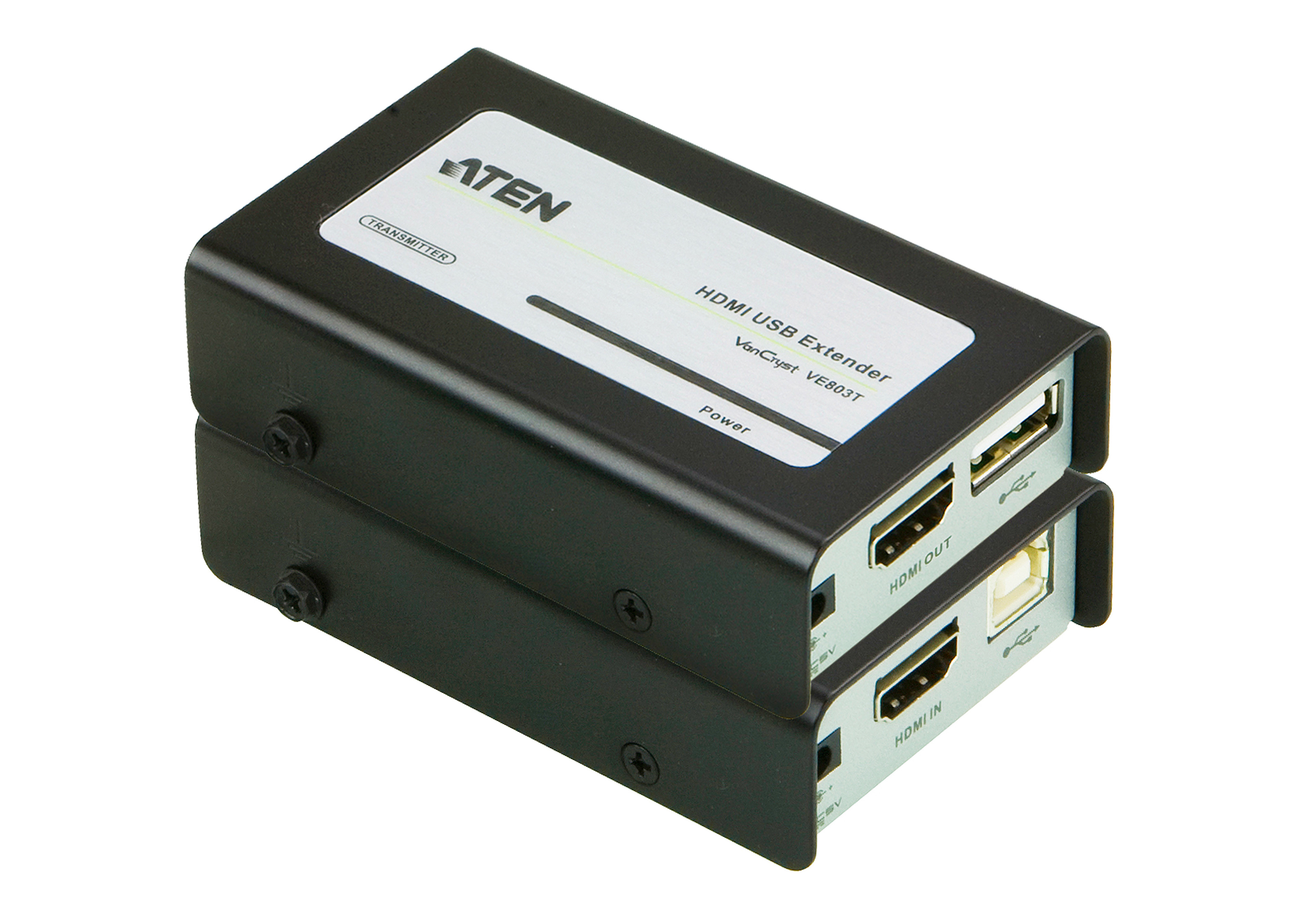

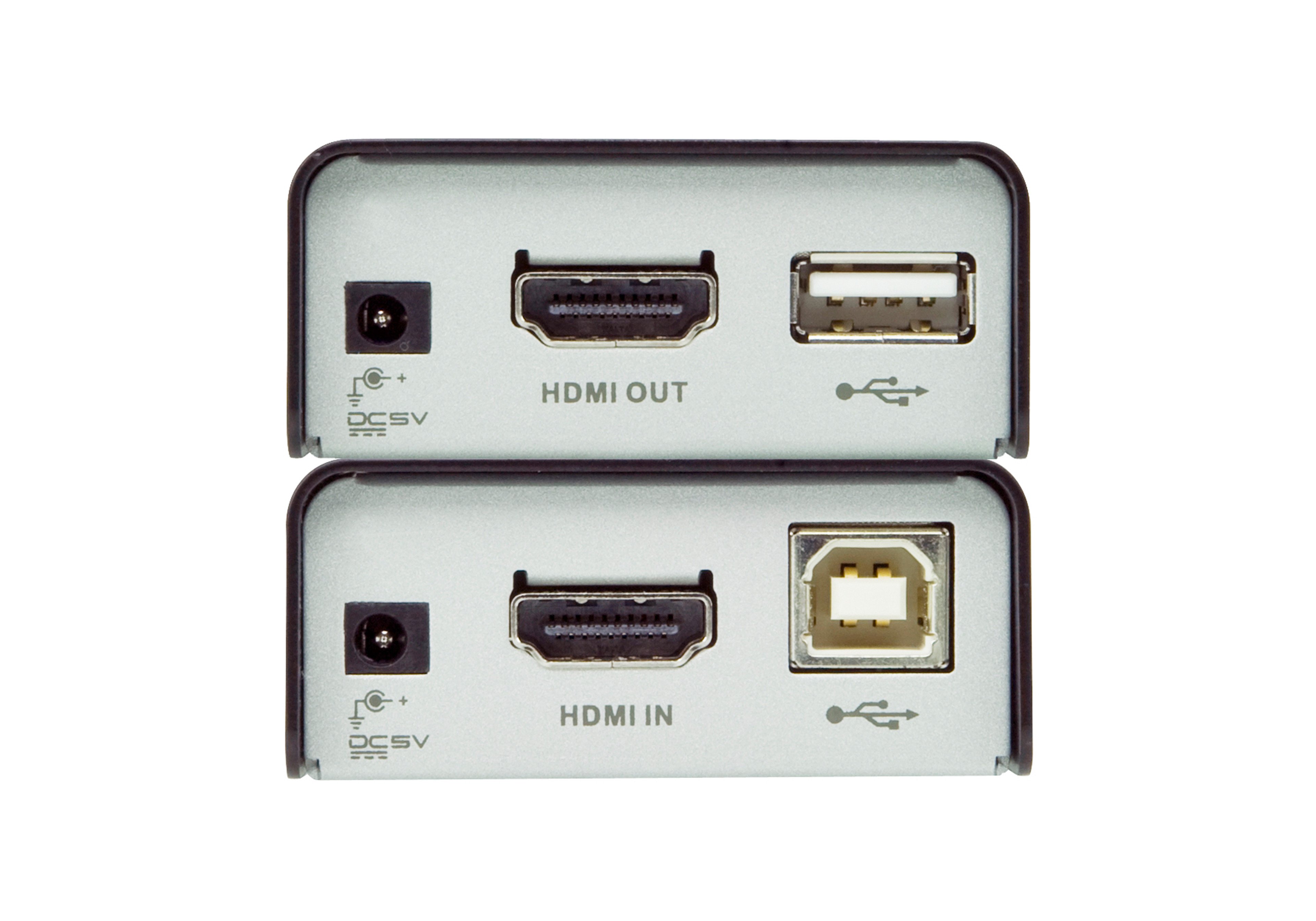

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters. The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.

The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application

Specifications:

Product Type: Video Extender Transmitter/Receiver
Connectivity Technology: Wired
Brand Name: ATEN
Maximum Operating Distance: 131.23 ft
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 2
Number of HDMI Inputs: 1
Media Type Supported: Twisted Pair
Number of Output Devices Supported: 1
Number of Input Devices Supported: 1
General Information
Product Type: Video Extender Transmitter/Receiver
Manufacturer Part Number: VE803
Manufacturer Website Address: http://www.aten-usa.com
Manufacturer: ATEN Technology Inc
Product Name: HDMI USB Extender
Brand Name: ATEN
Interfaces/Ports
USB: Yes
Number of Network (RJ-45) Ports: 2
Network (RJ-45): Yes
Number of USB Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
HDMI In: Yes
HDMI Out: Yes
Media & Performance
Twisted Pair Cable Standard: Category 5e
Media Type Supported: Twisted Pair
Miscellaneous
Package Contents:
  • 1 x VE803T HDMI USB Extender
  • 1 x VE803R HDMI USB Extender
  • 1 x Power Adapter
  • 1 x USB Cable (1.8 m)
  • 1 x Mounting Kit
  • 1 x User Instructions
Environmentally Friendly: Yes
Environmental Certification: RoHS
WEEE
Physical Characteristics
Material: Metal
Length: 2.8"
Transmitter Height: 0.91"
Transmitter Width: 1.24"
Transmitter Weight (Approximate): 5.64 oz
Power Description
Input Voltage: 5 V DC
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 131.23 ft
Number of Output Devices Supported: 1
Number of Input Devices Supported: 1
Video
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
