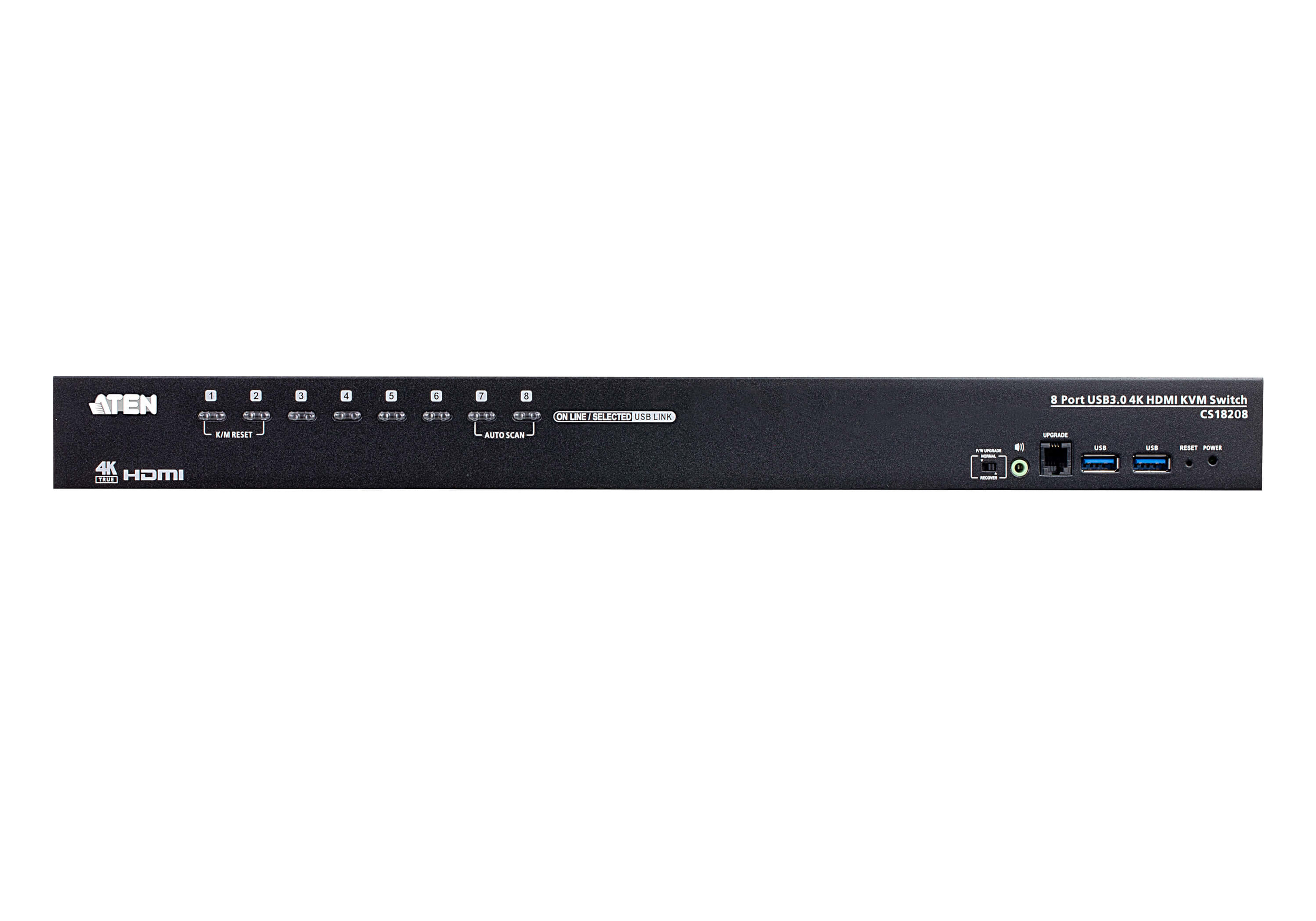

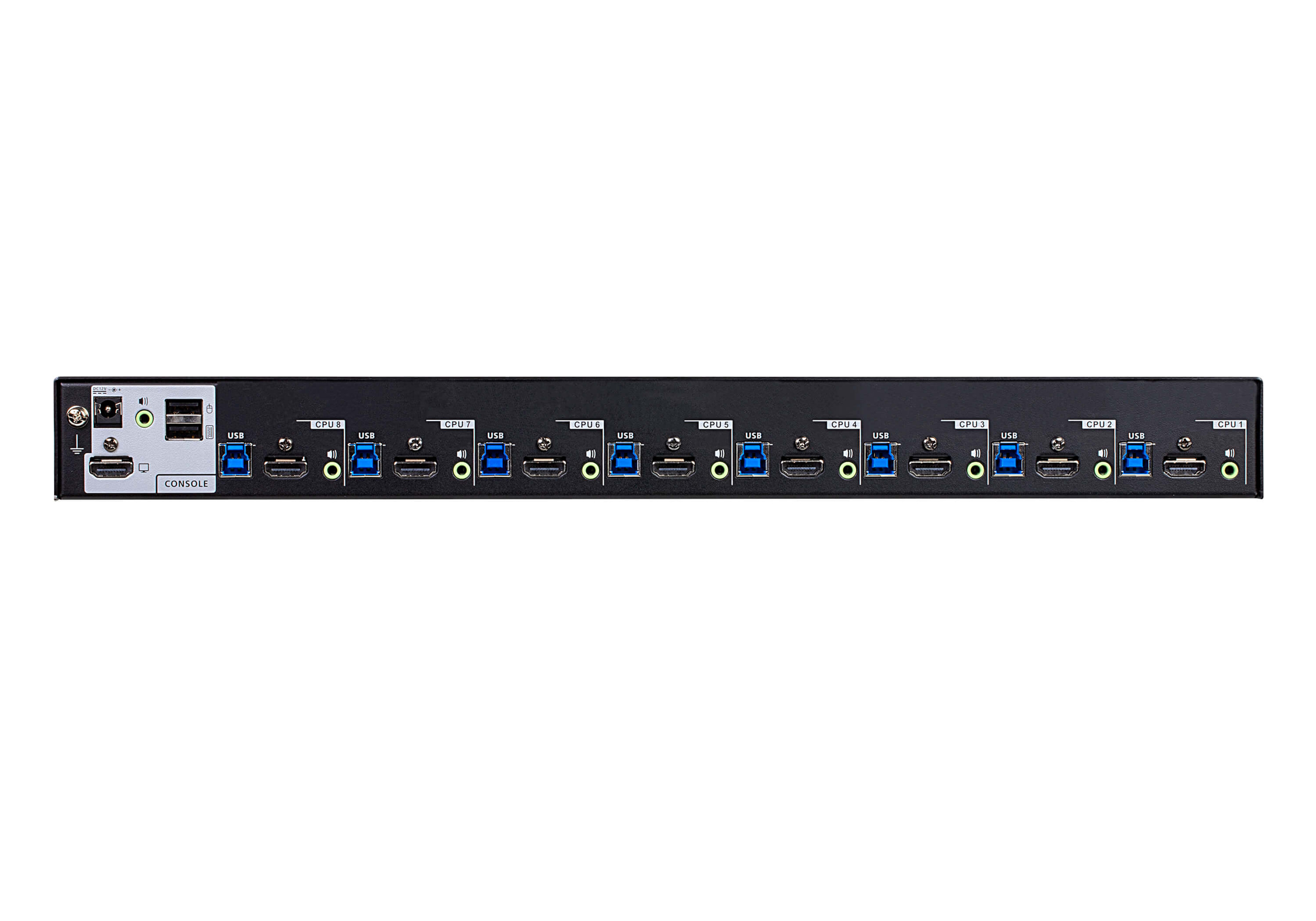

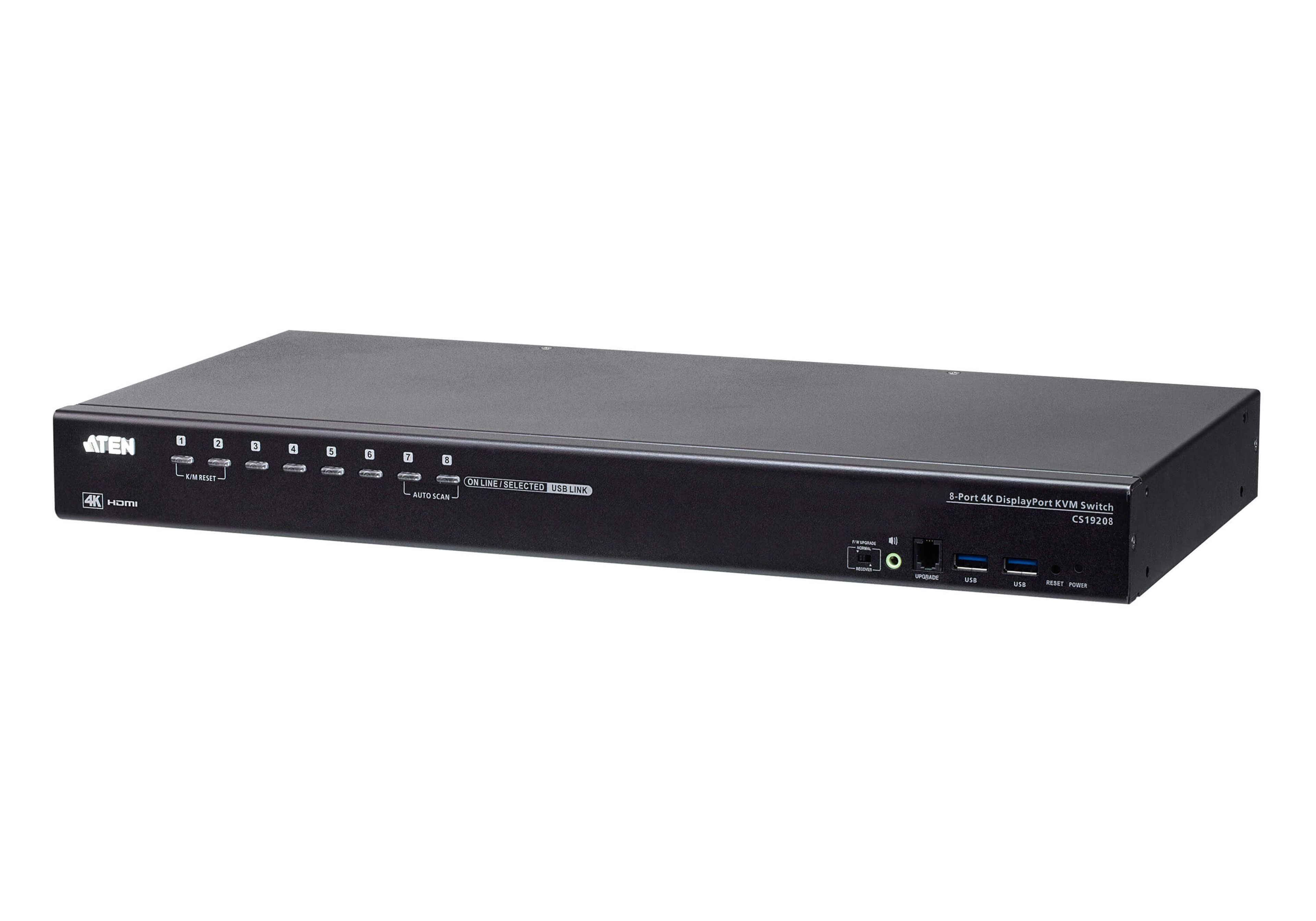

Aten CS18208 8PORT USB3 4K HDMI KVM

Aten

Regular Price $1,265.00
Discount Price: $943.00
Product Overview:

16-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit - 8 Computer(s) - 1 Local User(s) - 4096 x 2160 - 12 x USB - 9 x HDMI - Desktop, Rack-mountable

MFG#:
CS18208
Product Category:
KVM Switches
Adding to cart… The item has been added

Description:

ATEN CS18216 16-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit - 8 Computer(s) - 1 Local User(s) - 4096 x 2160 - 12 x USB - 9 x HDMI - Desktop, Rack-mountable

The ATEN CS18208 8-Port USB 3.0 4K HDMI KVM Switch can effectively access and control up to 8 HDMI computers from a single USB keyboard, USB mouse, and HDMI monitor console. The CS18208 supports high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.

To meet the needs of easy expansion and flexibility, the CS18208 can control up to 512 computers by cascading to three levels for a single console. Furthermore, the CS18208 supports multi-display function by stacking up to eight CS18208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.

With two patented ATEN technologies - Video DynaSync™ and EDID Expert™, the CS18208 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.

Besides, the CS18208 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the CS18208 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.

To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS18208 is ideal for server room or computer room management applied in industries with requirements for high-quality images and multitasking, such as enterprise, government, production, telecom, finance, media, content provider, video surveillance, etc.



Features

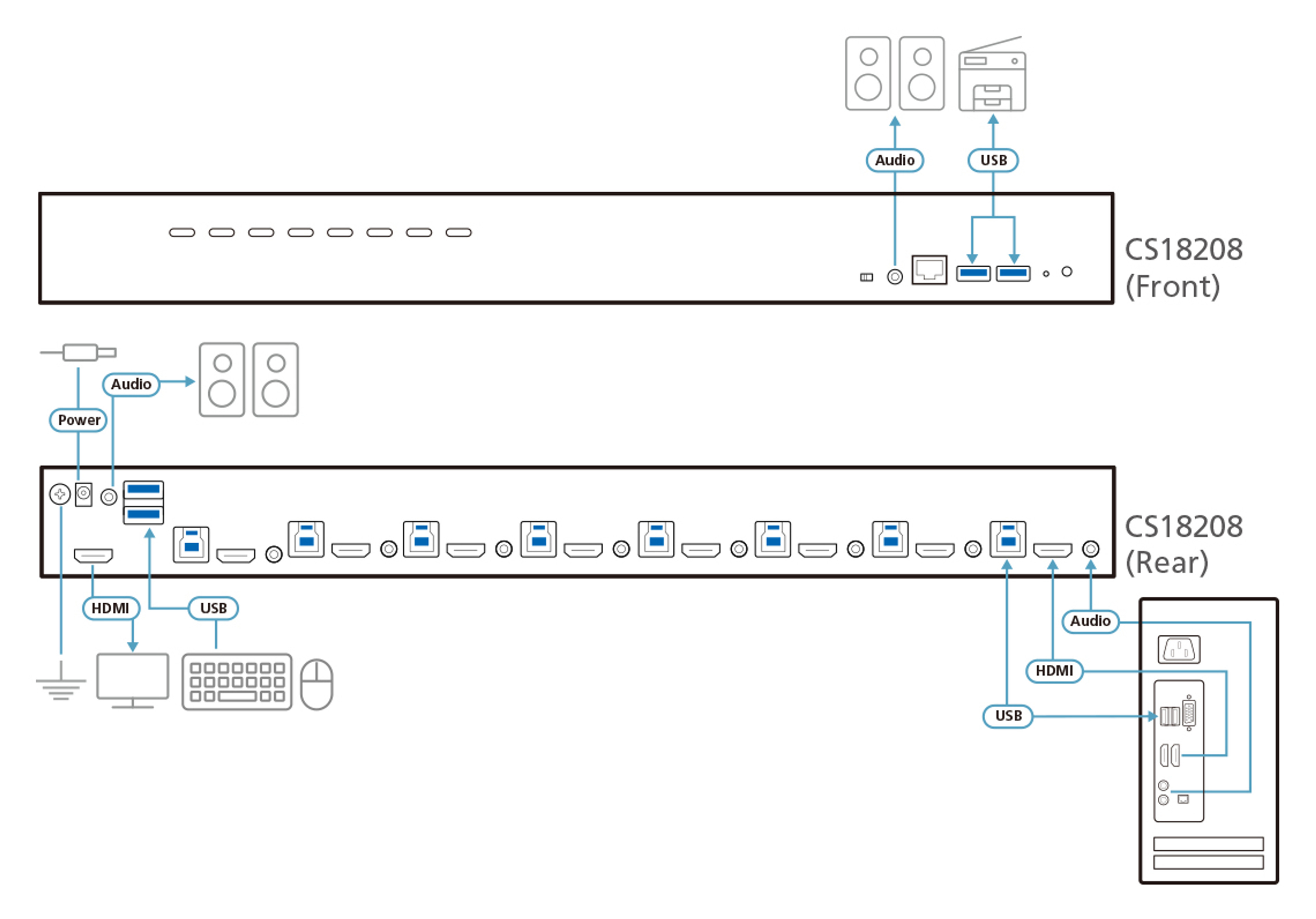

  • One USB console controls up to 8 HDMI interface computers and two additional USB 3.1 Gen 1 peripheral devices
  • Cascadable to three levels - controls up to 512 computers
  • Multi-Display feature - stacks up to eight CS18208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
  • Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • EDID Expert™ - selects optimum EDID mode for smooth power-up and highest quality display
  • Superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz)
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Audio enabled - full bass response provides a rich experience for 2.1 channel stereo sound
  • Supports HD audio
  • Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands

Specifications:

Video
Maximum Video Resolution 4096 x 2160
Technical Information
Number of Computers Supported 8
Number of Local Users Supported 1
Miscellaneous
Package Contents
  • CS18216 16-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit
  • 2 x HDMI Cables
  • 2 x USB 3.0 Cables
  • 2 x Audio Cables
  • 1 x Firmware Upgrade Cable
  • 1 x Foot Pad Set (4 pcs)
  • 1 x Power Adapter
  • 1 x User Instructions
Country of Origin Taiwan
Environmentally Friendly Yes
Interfaces/Ports
USB Yes
HDMI Yes
Number of HDMI Ports 9
Number of USB Ports 12
Physical Characteristics
Weight (Approximate) 7.86 lb
Form Factor Desktop
  Rack-mountable
Height 1.7"
Width 8.4"
Depth 17"
General Information
Product Type KVM Switchbox
Manufacturer Part Number CS18208
Manufacturer Website Address http://www.aten.com/us/en/
Packaged Quantity 1
Manufacturer ATEN Technology, Inc
Product Model CS18208
Product Name CS18216 16-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit
Brand Name ATEN
