Aten CS1144DP4C 4-PORT USB DP DUAL DISPLAY PP4.0 SECURE KVM W/ CAC SUPPORT

Aten

MSRP: $927.00
$670.79
(You save $256.21 )
UPC:
672792013164
Product Overview:

4-Port USB DisplayPort Dual Display Secure KVM Switch with CAC - 4 Computer(s) - 1 Local User(s) - 3840 x 2160 - 50 Hz, 60 Hz - 11 x USB - Desktop - 10 x DisplayPort

MFG#:
CS1144DP4C
Product Category:
KVM Switches
Manuals Brochures and Guides:
Adding to cart… The item has been added

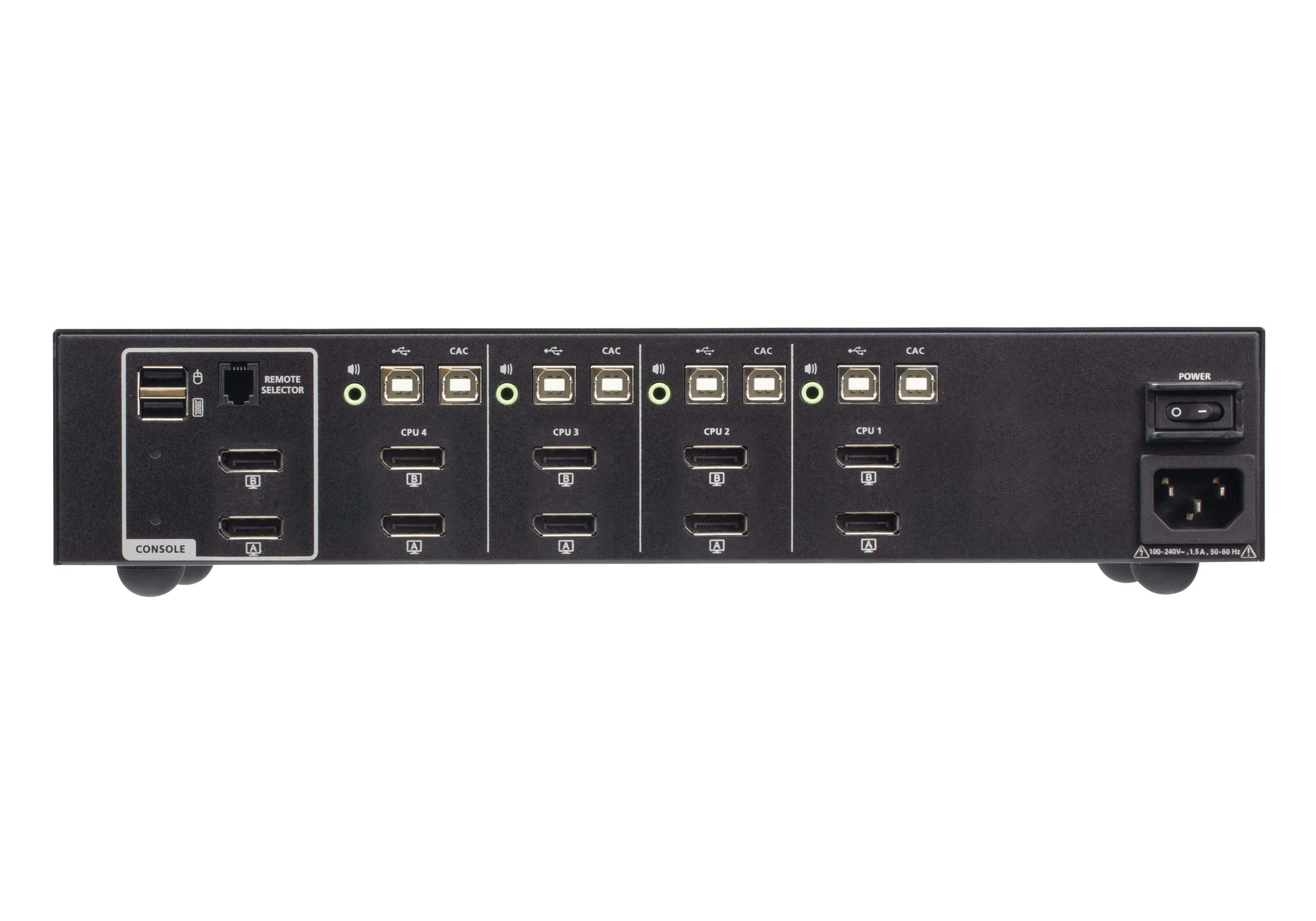

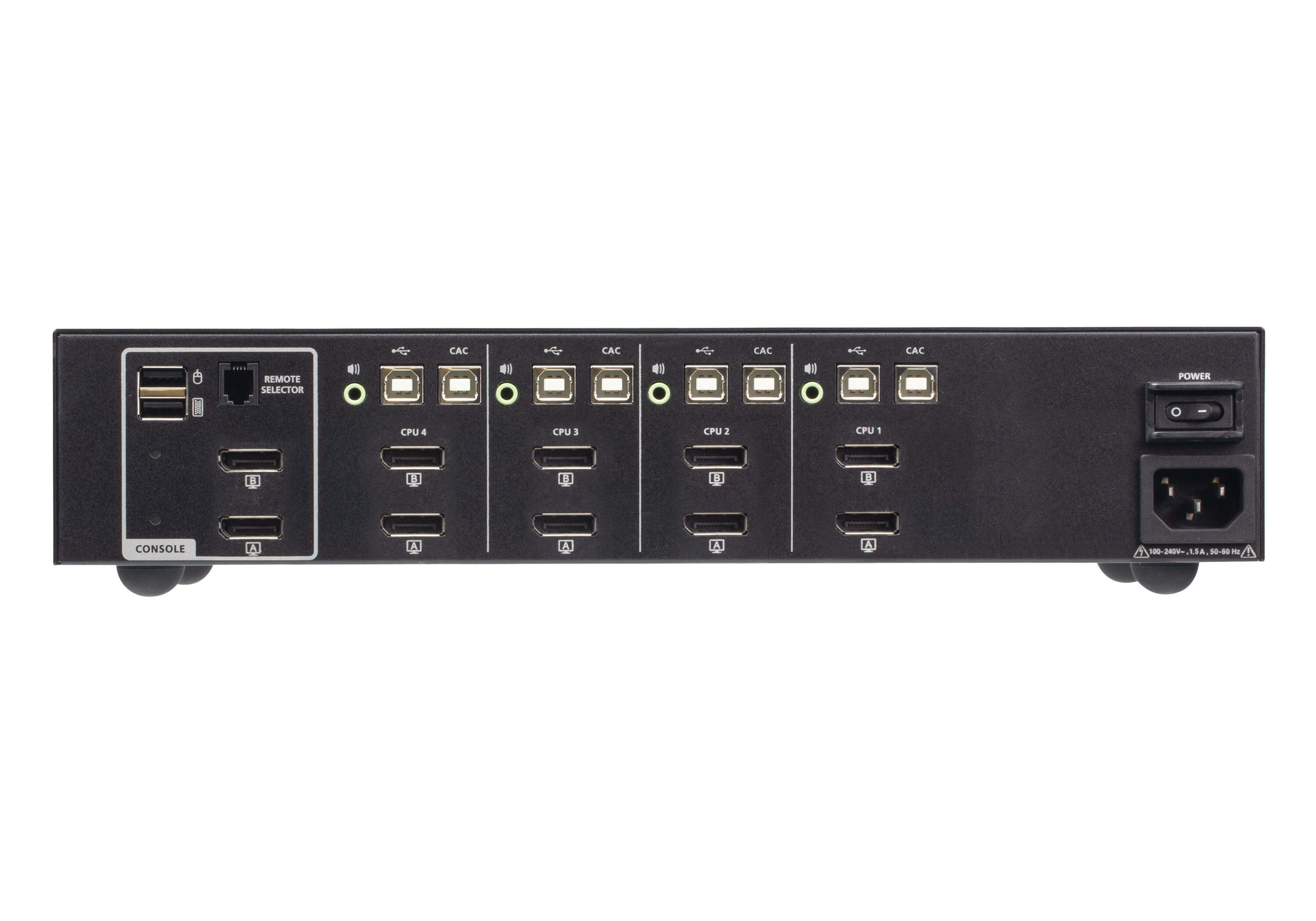

ATEN CS1144DP4C 4-Port USB DP Dual Display Secure KVM Switch

The ATEN PSD PP v4.0 Secure KVM Switch CS1144DP4C is engineered to meet the rigorous security standards required for defense and intelligence installations. This KVM switch is compliant with the PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard, certified by the National Information Assurance Partnership (NIAP).

Key features include:

  • Isolation and Security: Provides isolation between computer sources and peripherals while allowing the sharing of a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader.
  • Data Protection: Ensures maximum user data security with unidirectional data flow, restricted peripheral connectivity, and strict audio filtration.
  • Manual Switching: Enhances security with manual switching methods via front panel pushbuttons and Remote Port Selector (RPS).
  • Always-On Tamper-Proof Design: Keeps sensitive assets isolated and secure, making it ideal for government, military, healthcare, and financial institutions.

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity8
USB 2.0 Type-B ports quantity8
Console portsDisplayPort, USB A
Console USB ports quantity2
Console DisplayPorts ports quantity2
USB hub✓
USB 2.0 Type-A hub ports quantity1
Headphone outputs4
RJ-11 ports quantity1

Performance

HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels

Design

Product colorBlack
Housing materialMetal
Wired remote switch✓
LED indicators✓
Push button✓

Display

Built-in displayNo

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1.5 A
Power consumption (typical)13.9 W

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%

Weight & dimensions

Width6.45" (163.9 mm)
Depth13.2" (335 mm)
Height2.58" (65.5 mm)
Weight5.22 lbs (2.37 kg)

Packaging data

Package width5.16" (131 mm)
Package depth21.3" (540 mm)
Package height9.17" (233 mm)
Package volume16480.4047212 cm³
Package weight6.64 lbs (3.01 kg)

Packaging content

Cables includedAC
Manual✓

Logistics data

Master (outer) case net weight15.7 lbs (7.11 kg)
Master (outer) case width16.5" (420 mm)
Master (outer) case length21.9" (555 mm)
Master (outer) case height10.2" (258 mm)
Master (outer) case weight21.9 lbs (9.95 kg)
Master (outer) case volume60144.9821784 cm³
Country of originTaiwan
