Product Overview:

 LCD Rack Console - 256 Computer(s) - 18.5" LCD - HD - 1366 x 768PS/2 Port - 1 x USB - 16 x VGA - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High

Adding to cart… The item has been added


ATEN SOHO CL3116 LCD Rack Console - 256 Computer(s) - 18.5" LCD - HD - 1366 x 768PS/2 Port - 1 x USB - 16 x VGA - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - Metal, Plastic

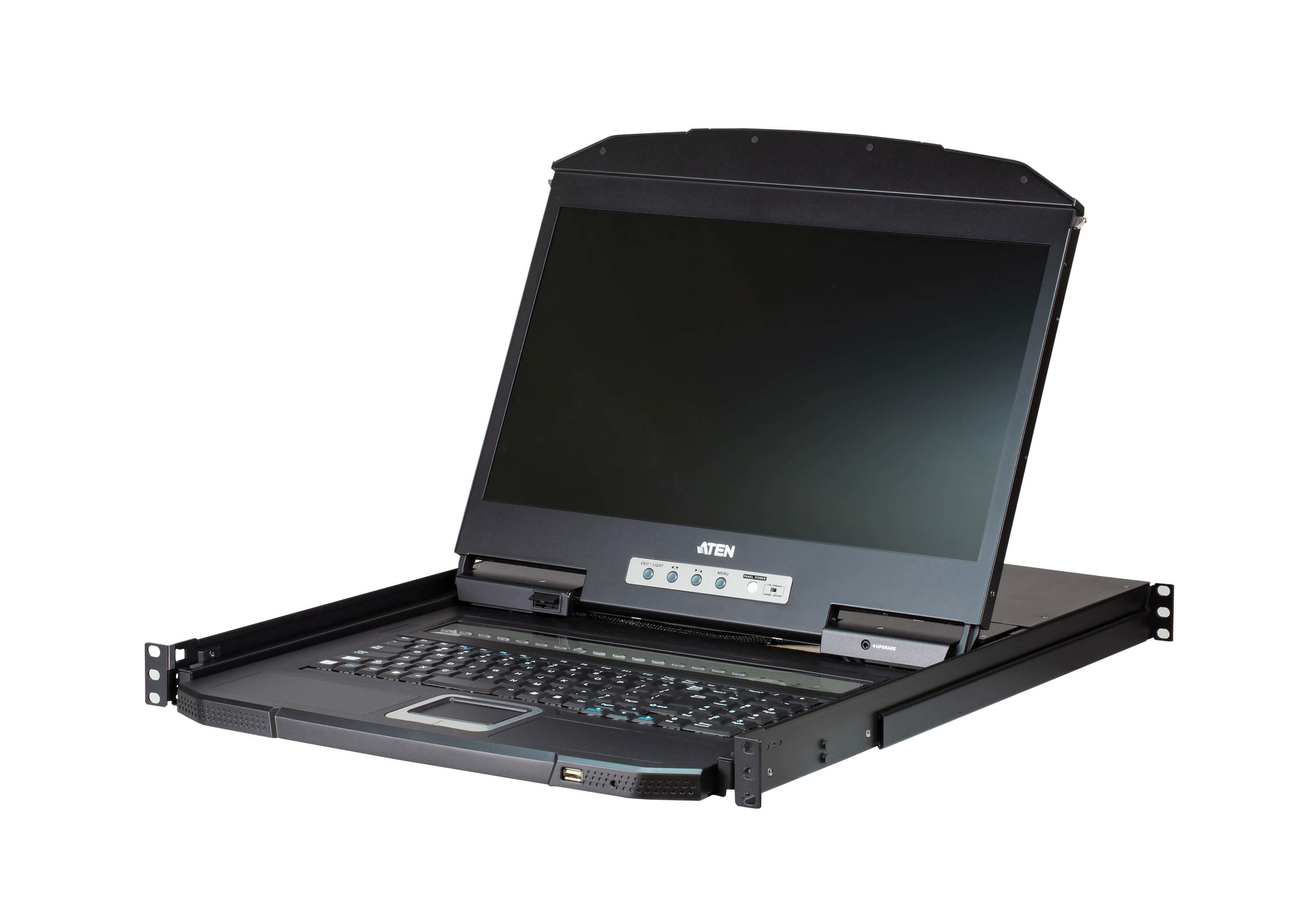

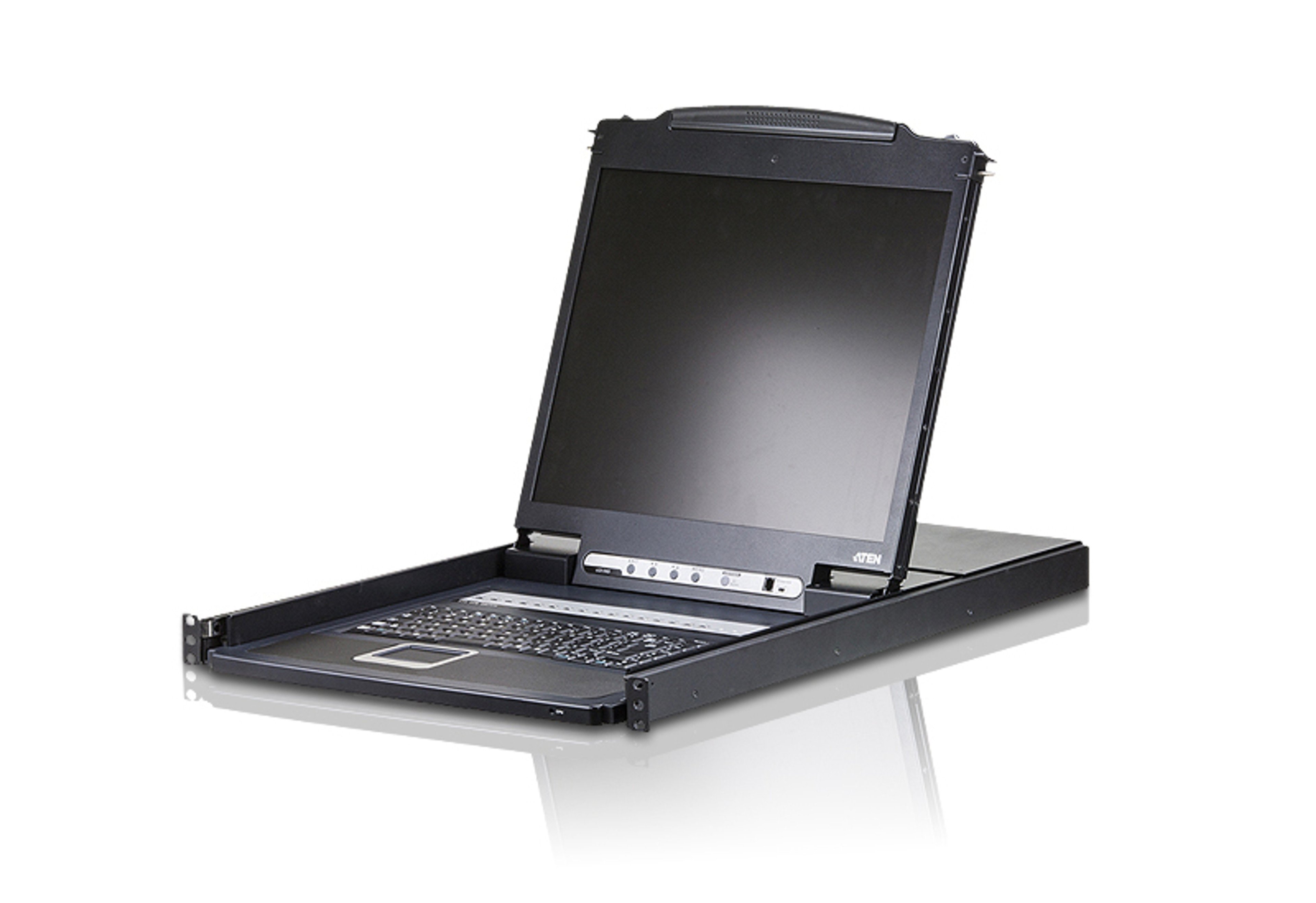

The ATEN CL3108/CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rackmounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

The CL3108/CL3116 can control up to 8/16 computers; when 8/16 additional KVM switches are cascaded, a single CL3108/CL3116 LCD KVM Switch can control up to 128/256 computers. To achieve greater operational efficiency, the CL3108/CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3108/CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108/CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3108/CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
  • Console lock - enables the console drawer to remain securely locked away in position when not in use
  • Superior video quality - up to 1366 x 768 @60Hz; DDC2B
  • Cascade up to 2 levels - CL3108 controls up to 128 computers or CL3116 controls up to 256 computers from a single console (With compatible KVM Switches: CS1308, CS1316)
  • Dual Interface - supports computers with PS/2 or USB keyboards and mice
  • Auto PS/2 and USB interface detection
  • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
  • Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)


Input Devices
Keyboard Yes
Pointing Device Type TouchPad
Technical Information
KVM Switch Yes
Number of Computers Supported 256
Display & Graphics
Screen Resolution 1366 x 768
Screen Size 18.5"
Screen Mode HD
Display Screen Type LCD
Number of USB Ports 1
PS/2 Port Yes
Number of VGA Ports 16
Power Description
Input Voltage 120 V AC
  230 V AC
  120 V AC
  230 V AC
Input Voltage Range 100V AC to 240V AC
Physical Characteristics
Weight (Approximate) 23.37 lb
Height 1.7"
Width 18.9"
Depth 24.9"
Product Material Metal
General Information
Product Type LCD Rack Console
Manufacturer Part Number CL3116NX
Manufacturer Website Address
Manufacturer ATEN Technology, Inc
Product Model CL3116
Product Name SOHO CL3116 LCD Rack Console
Product Series SOHO
Brand Name ATEN
