Aten KE8952R 4K HDMI Single Display KVM over IP TAA Compliant


Regular Price $1,795.00
Discount Price: $1,352.00
Product Overview:

ATEN 4K HDMI Single Display KVM over IP Receiver with PoE-TAA Compliant - 1 Computer(s) - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 1 x HDMI - 5 V DC Input Voltage - Rack-mountable

Adding to cart… The item has been added

ATEN 4K HDMI Single Display KVM over IP Receiver with PoE-TAA Compliant - 1 Computer(s) - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 1 x HDMI - 5 V DC Input Voltage - Rack-mountable 1DISPLAY KVM OVER IP POE

ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new ATEN KE8952 4K HDMI KVM over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.

Utilizing expertise in over IP KVM solutions, KE8952 are IP-based HDMI KVM extenders that allow access to a computer system from a remote USB console to anywhere over an intranet. The KE8952 KVM over IP Extenders support one HDMI monitor at each end, providing a greatly improved video display image with 4K x 2K video resolution (up to 3840 x 2160). KE8952 also support 1Gbps SFP fiber module expansions, enabling connections via fiber optic network to extend distances in transmission. Furthermore, the KE8952 features Power over Ethernet (PoE) function, the power can be supplied through a PoE Network Switch; therefore, eliminating the need for a power adapter and effectively reducing the power configuration cost.

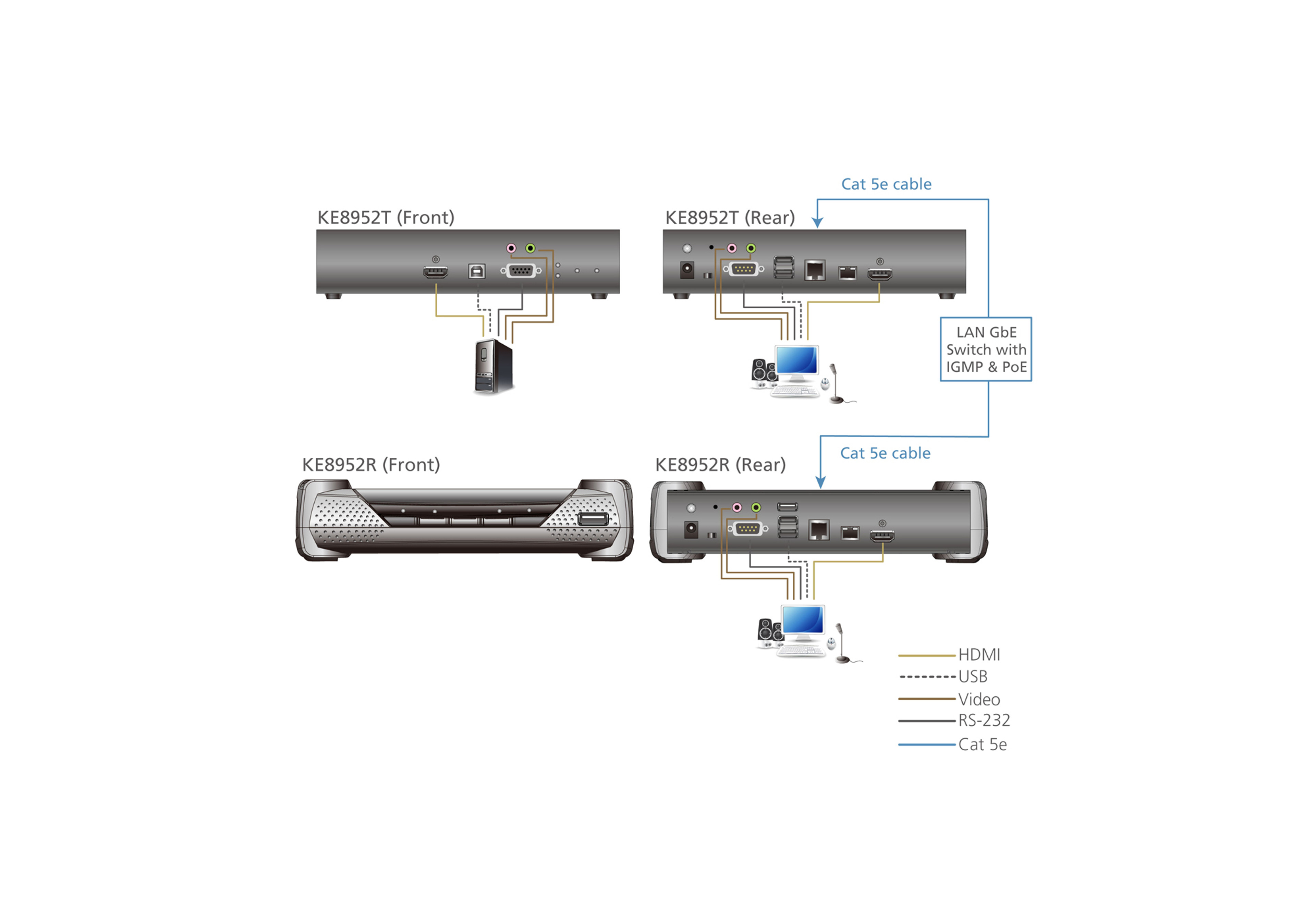

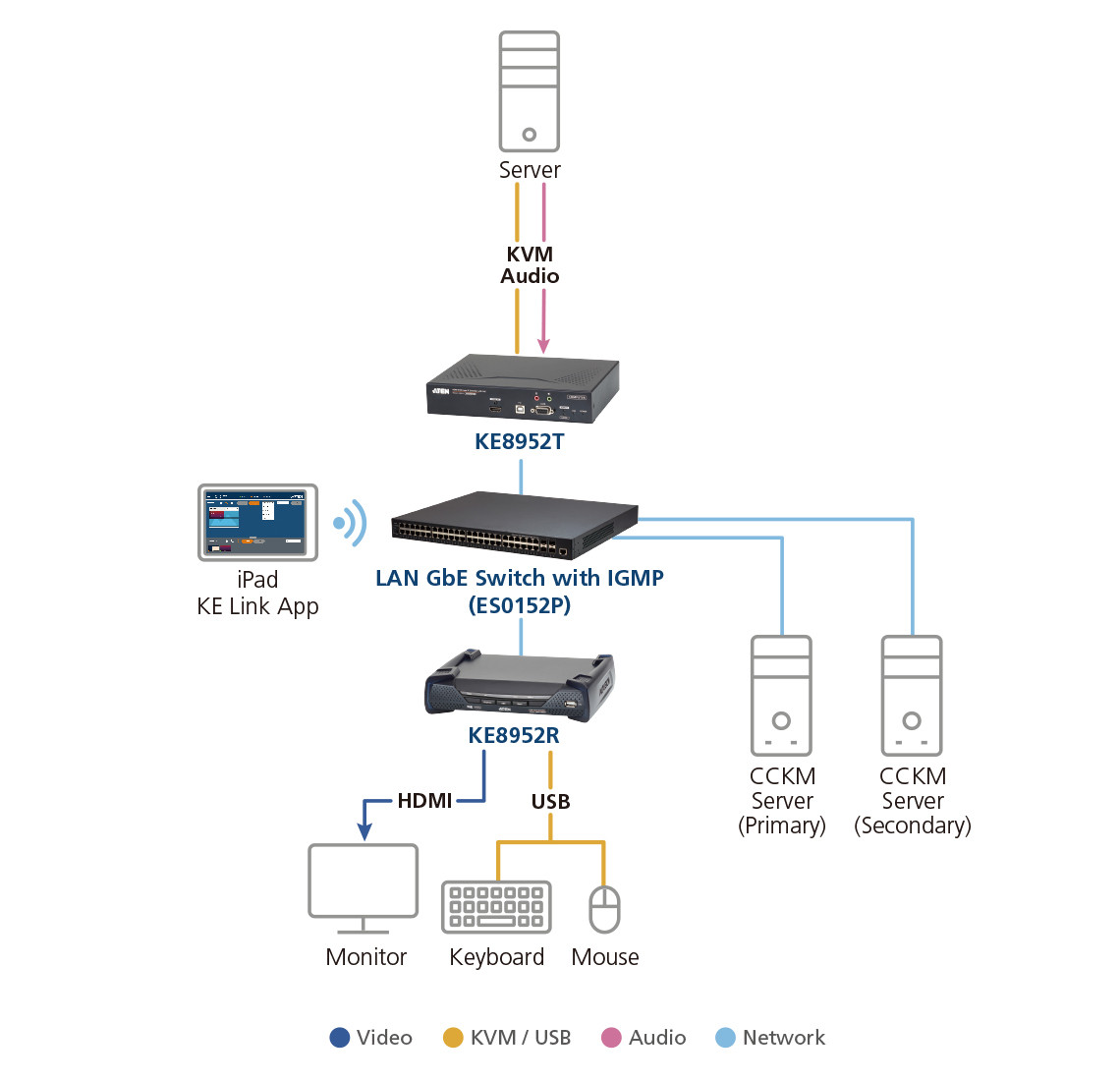

The 4K HDMI KVM over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e/6 cable that allows point-to-point, point-to-multipoint, multipoint-topoint, and multipoint-to-multipoint administration. KE8952 can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN.

Implementing the KE Matrix Management Software (CCKM) with KE8952, IT administrators receive advanced features functioning as auto detection of all KE Series Extenders on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE series is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

More flexible and efficient operations can be achieved in the KVM over IP Matrix System, which integrates KE Series Extenders with the CCKM management software, such as multi-display setups, video grouping, video profile scheduling and enhancements that give greater access to quick and easy control tools to configure KE devices over a network. Whether you're configuring, monitoring, administrating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, as well as to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.

  • Ultra High Definition (UHD) video quality - up to 3840 x 2160 @ 30Hz (4:4:4); 36-bit color depth
  • Support interlaced video (1080i)
  • Support standard HDMI resolutions from 640 x 480 up to 3840 x 2160 @ 30Hz
  • Support stereo speakers and stereo microphone
  • USB Virtual Media Support
  • Compliant with HDMI 1.4a and HDCP 1.4
  • Auto-MDIX - automatically detects cable type
  • Built-in 8KV/15KV ESD protection and 1KV surge protection
  • Fanless design for silent operations that are energy efficient
  • Hot pluggable
Limited Warranty 3 Year
Power Description
Input Voltage 5 V DC
Power Consumption 5.65 W
Technical Information
Connectivity Technology Wired
Number of Computers Supported 1
Maximum Video Resolution 3840 x 2160
Graphic Mode 4K
Package Contents
  • 4K HDMI Single Display KVM over IP Receiver with PoE
  • 1 x HDMI LockPro
  • 1 x User Instructions
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification WEEE
Physical Characteristics
Form Factor Rack-mountable
Receiver Height 2.16"
Receiver Width 6.76"
Receiver Depth 8.96"
Receiver Weight (Approximate) 2.78 lb
Microphone Yes
Number of HDMI Ports 1
Headphone Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of USB Ports 4
General Information
Product Type KVM Console
Manufacturer Part Number KE8952R
Manufacturer Website Address
Packaged Quantity 1
Manufacturer ATEN Technology Inc
Product Model KE8952R
Product Name 4K HDMI Single Display KVM over IP Receiver with PoE
Product Line ALTUSEN
Brand Name ATEN
