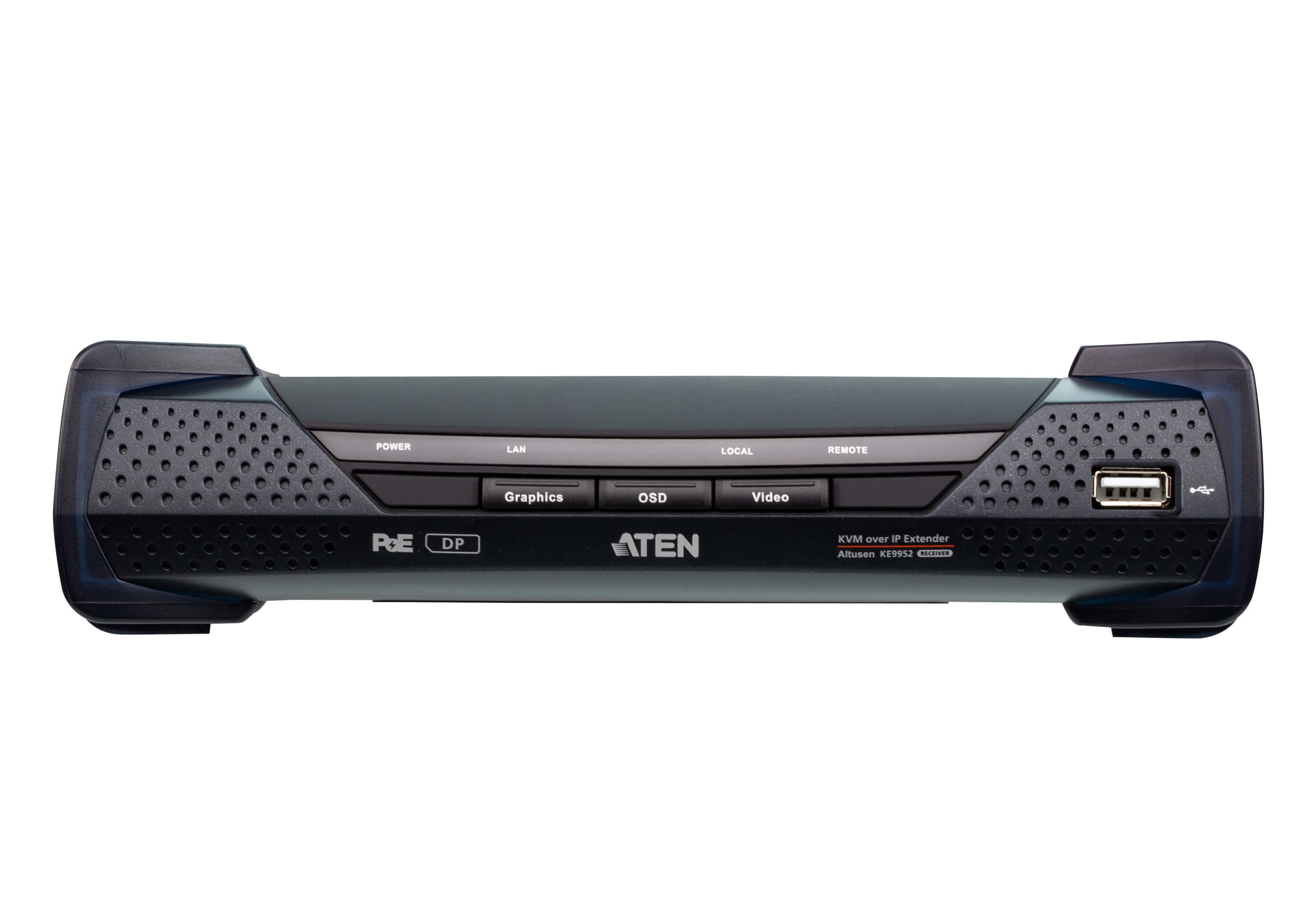

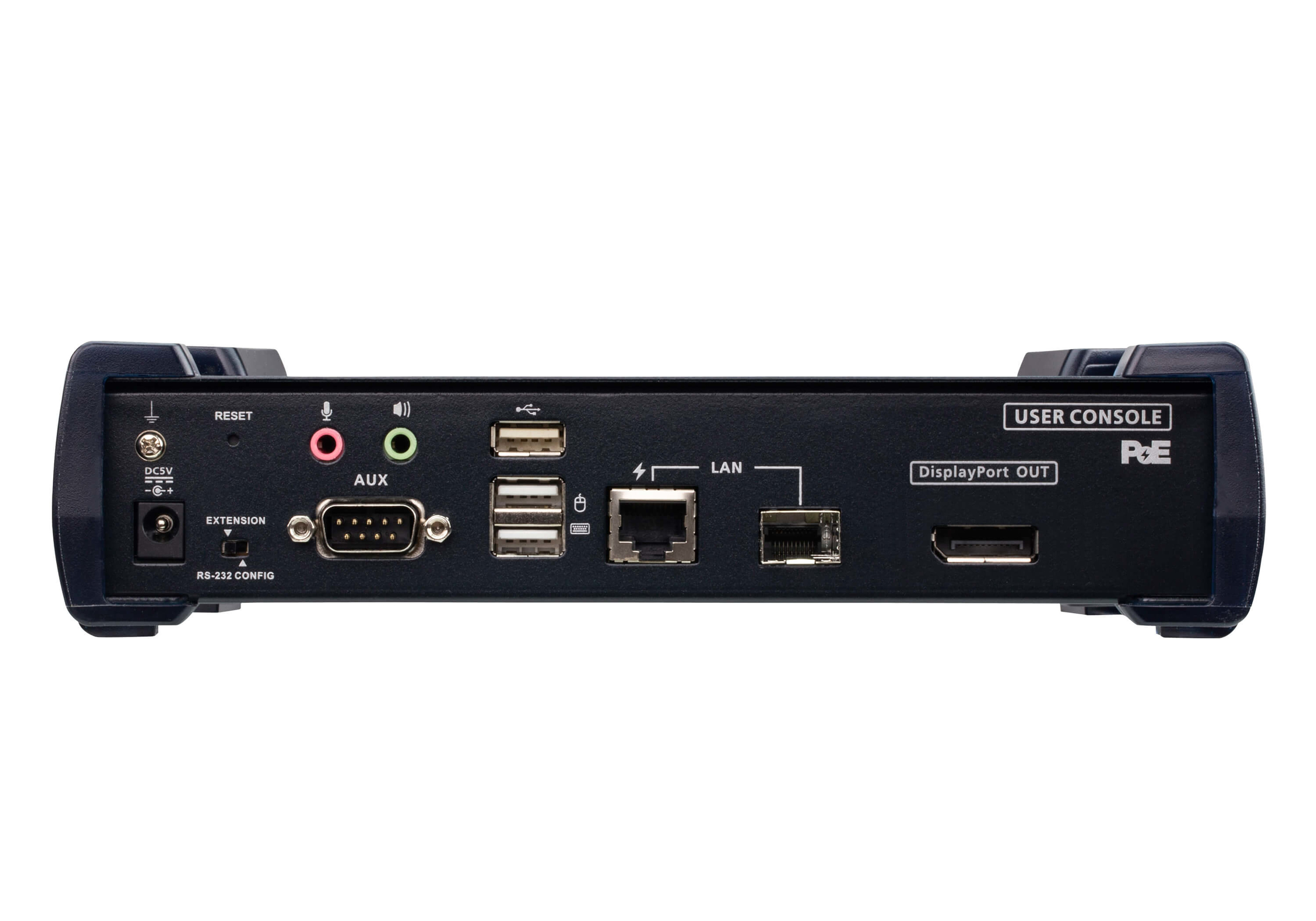

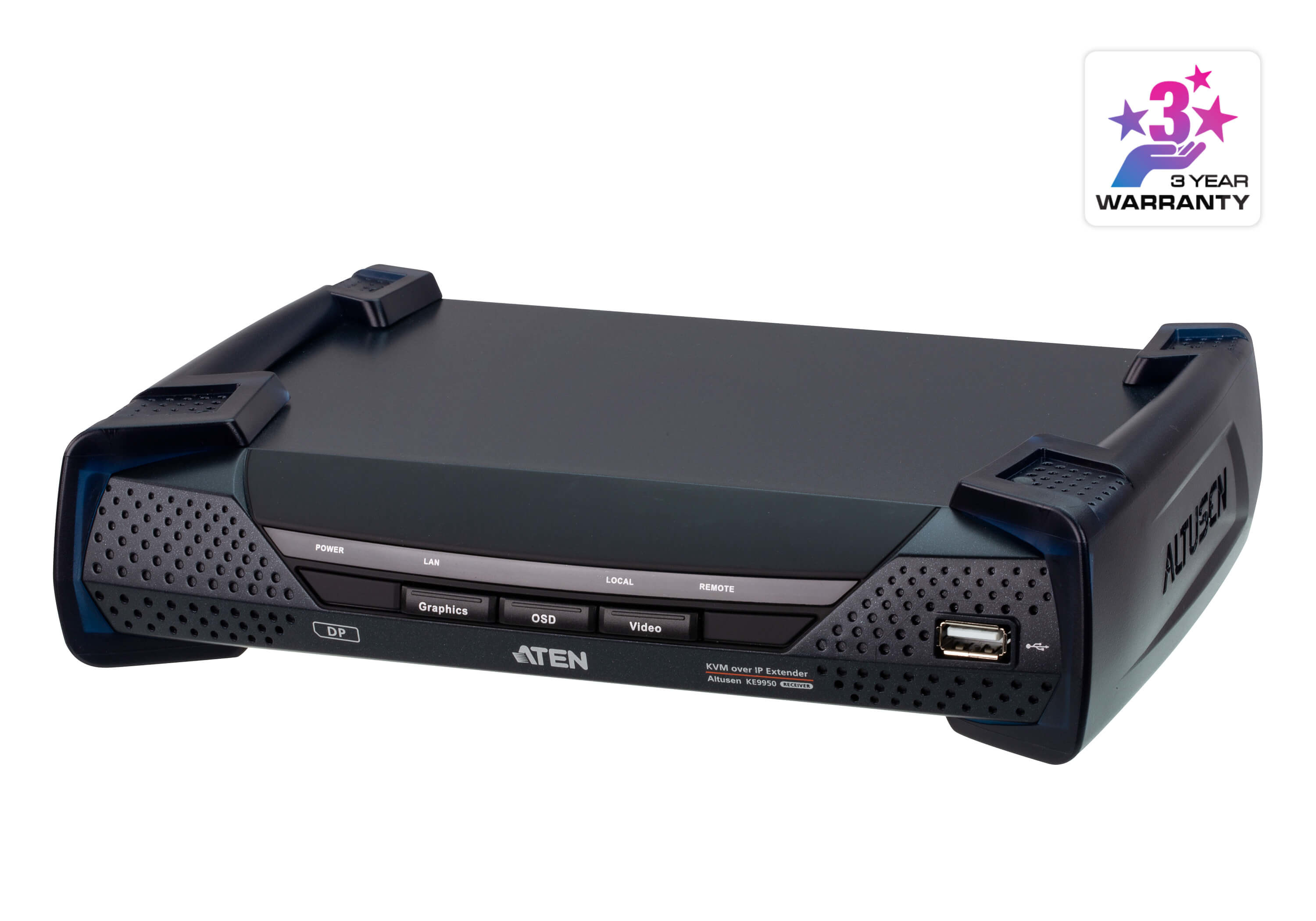

Aten KE9952R 4K DisplayPort Single Display KVM over IP Receiver


Regular Price $1,845.00
Discount Price: $1,305.00
Product Overview:

Aten 4K DisplayPort Single Display KVM over IP Receiver with PoE - 1 Local User(s) - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - DisplayPort - Desktop

Adding to cart… The item has been added

Aten 4K DisplayPort Single Display KVM over IP Receiver with PoE - 1 Local User(s) - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - DisplayPort - Desktop, Wall Mountable, Rack-mountable - 0U

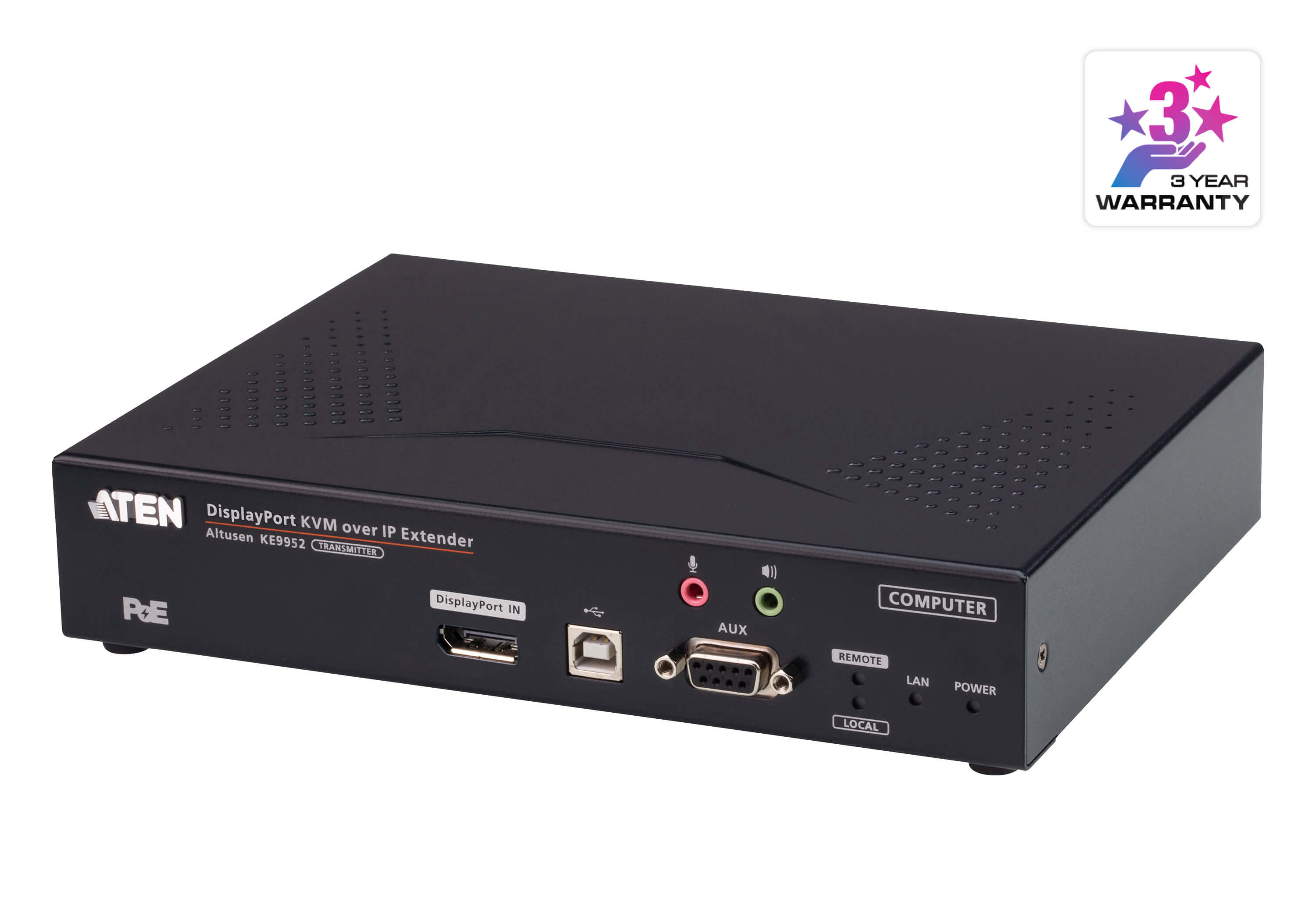

The KE9952 4K DisplayPort Single Display KVM over IP Extender consists of a high performance IP-based transmitter KE9952T that connects to the computer and receiver KE9952R that provides console access from a separate location. The KE9952 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DisplayPort monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users' workstation.

The KE9952 supports one DisplayPort display at each end, providing video resolutions up to 3840 x 2160 @30Hz (4:4:4) as well as flawless and lossless video compression quality with minimal latency.

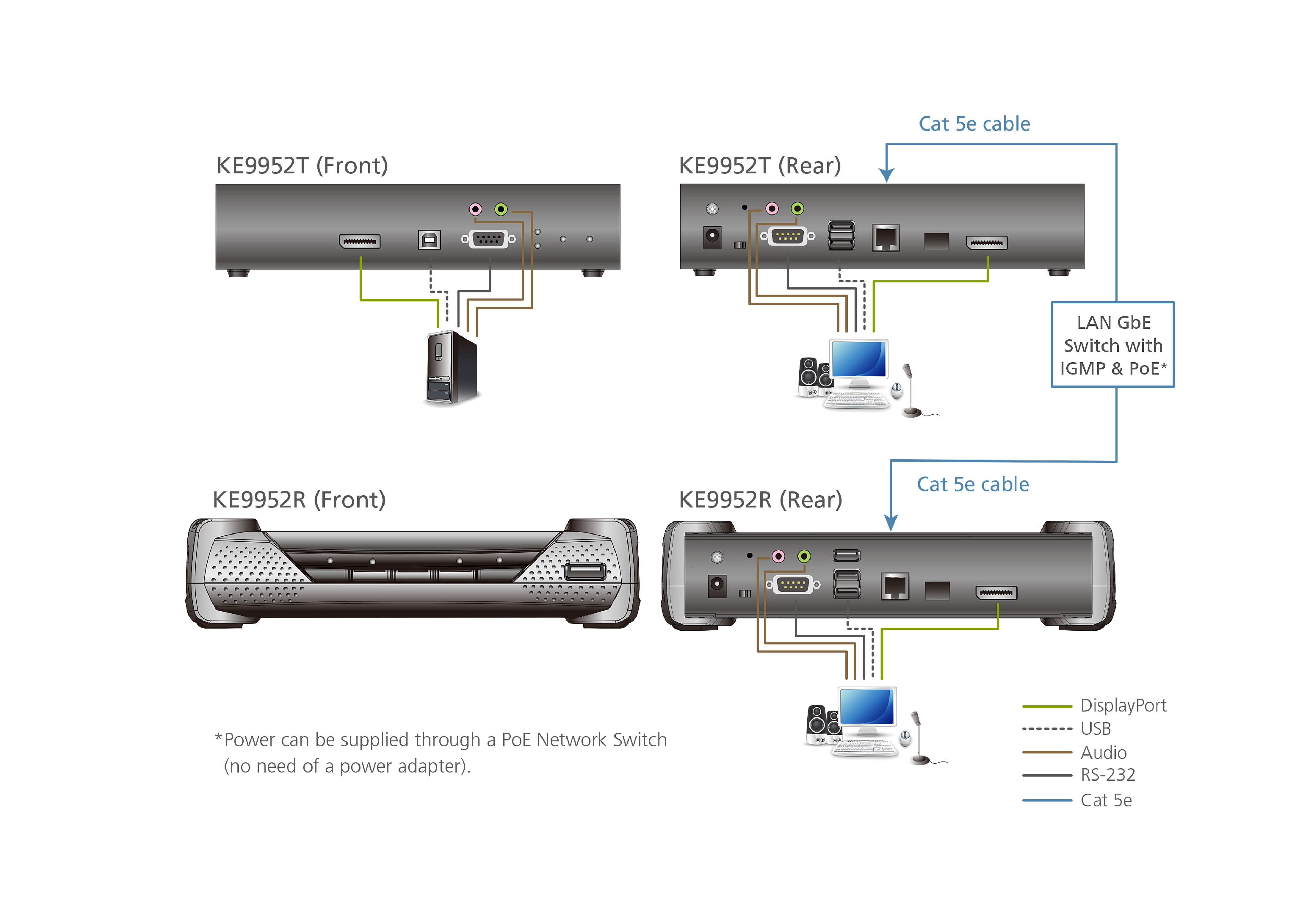

The KE9952 supports connections via an RJ-45 port or a SFP slot. The transmitter and receiver can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN, ensuring 24/7 availability of remote access to servers. To connect via the SFP slot, the extender supports 1Gbps SFP fiber module expansions, enabling connections via fiber optic network to extend transmission distances up to 10km.

In addition, the KE9952 features Power over Ethernet (PoE) function, the power can be supplied through a PoE Network Switch; therefore, eliminating the need for a power adapter and effectively reducing the power configuration cost.

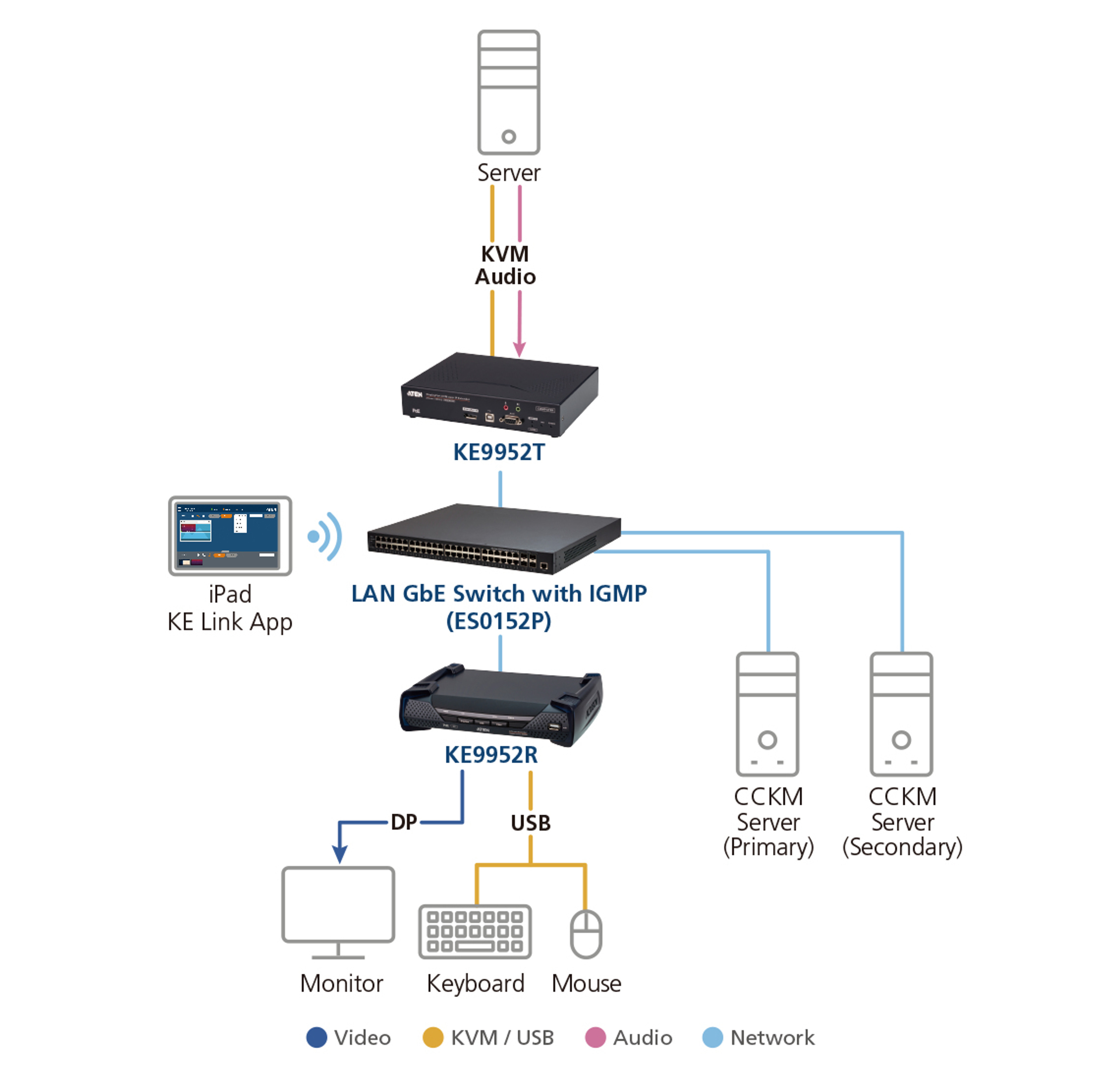

The KE9952 can be set on a desk, mounted on a wall or at the rear of a rack with its spacesaving 0U rack-mount design. As an IP-based matrix extender, the KE9952 can be used as a point-to-point / point-to-multipoint / multipoint-to-point / multipoint-to-multipoint extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM), providing more flexible applications in different working environments.

When integrated with the KE Matrix Management Software, the KE9952 supports more advanced features such as boundless switching, "Push" and "Pull", video wall and multi-display setups, and profile scheduling that provide uninterrupted access with quick and easy control tools to use the KE9952 over a network.

More functions include auto detection of all KE Series extenders in the same subnet for the sake of fast installation or configuration, username / password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE9952 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

Whether you're monitoring, operating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, to provide solutions in traffic management centers, retail surveillance centers, facility situation rooms, command control centers, utilities process control centers, broadcasting distribution monitoring systems, network operations centers (NOC), and many other industries where matrix extending is required.

Technical Information
Number of Local Users Supported 1
Limited Warranty 3 Year
Maximum Video Resolution 3840 x 2160
Graphic Mode 4K
Package Contents
  • 4K DisplayPort Single Display KVM over IP Receiver with PoE
  • 1 x User Instructions
Environmentally Friendly Yes
Environmental Certification WEEE
Physical Characteristics
Form Factor Rack-mountable
Wall Mountable
Rack Height 0U
Receiver Height 2.16"
Receiver Width 8.96"
Receiver Depth 6.76"
Receiver Weight (Approximate) 2.80 lb
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of USB Ports 4
DisplayPort Yes
General Information
Product Type KVM Console/Extender
Manufacturer Part Number KE9952R
Manufacturer Website Address
Packaged Quantity 1
Manufacturer ATEN Technology, Inc
Product Model KE9952R
Product Name 4K DisplayPort Single Display KVM over IP Receiver with PoE
Product Line ALTUSEN
Brand Name Aten
