Description:

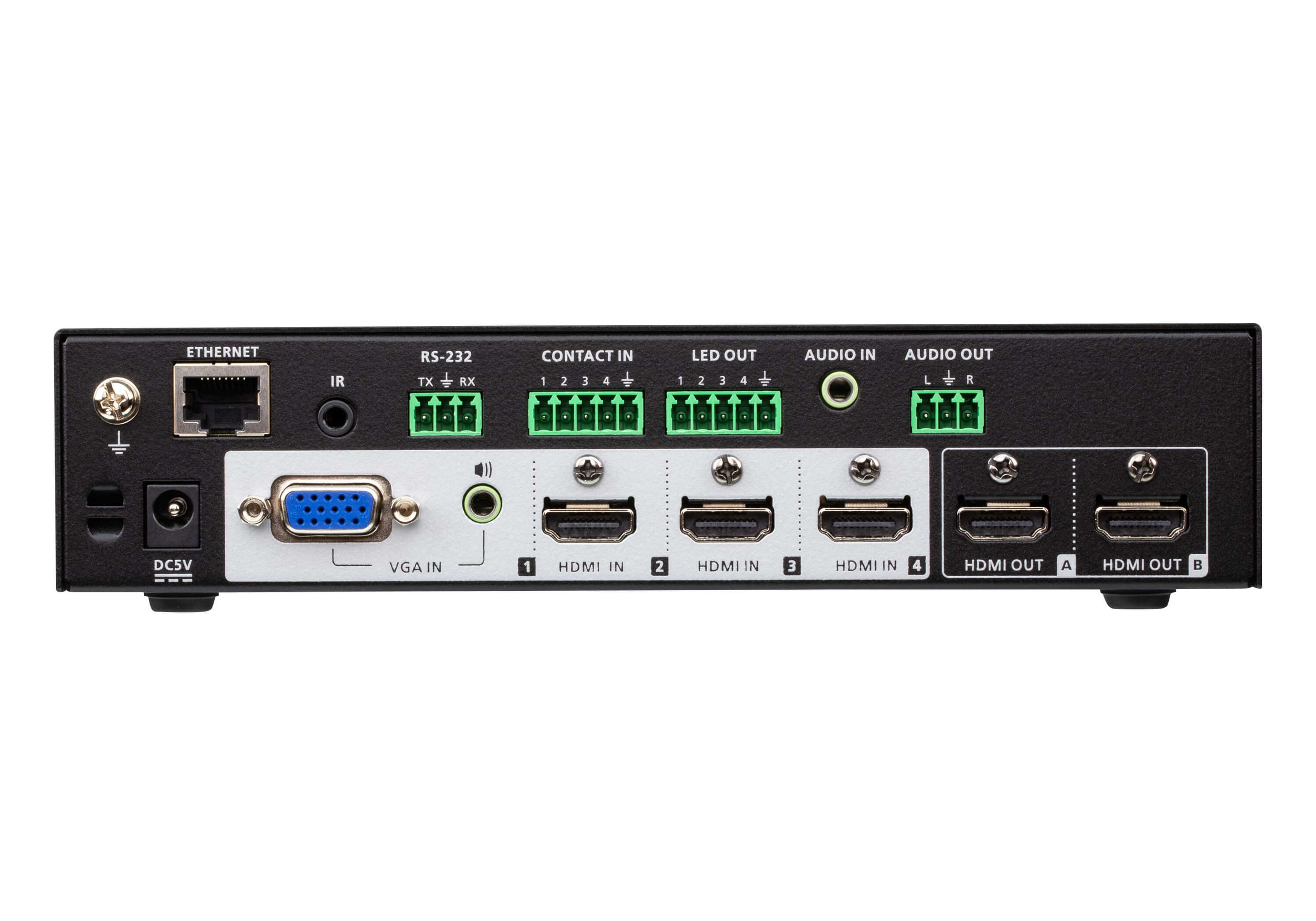

The VP1421 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, HDBaseT extender, audio DSP, and analog-to-digital converter functions into a single compact enclosure, ideal for meeting rooms and educational spaces. True 4K, HDR Visual Clarity Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR to deliver vivid content in every presentation. Smooth AV Switching Scaled to Perfection Connect up to 4 sources (1 HDBaseT, 2 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously. HDBaseT Extended Transmission over One Cable Simplifies cabling and transmits AV, power, and bi-directional RS-232 and IR control signals up to 140m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables (applying both HDBaseT input and output ports). Built-in Advanced Audio DSP Supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output while automatically reducing program audio to enhance speech audibility. Flexible Audio Embedding/De-Embedding Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out. Extract HDMI and HDBaseT audio to different audio outputs as well to ease adaptation to you preferred audio setup. Versatile Control, Streamlined Operations Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations
Specifications:
| Product Type: |
Audio/Video Switchbox |
| Device Supported: |
Media Player |
|
Notebook |
| Connectivity Technology: |
Cable |
| Form Factor: |
Rack-mountable |
|
Under Table |
| Brand Name: |
Aten |
| Maximum Operating Distance: |
459.32 ft |
| Number of HDMI Inputs: |
2 |
| VGA In: |
Yes |
| HDMI In: |
Yes |
| HDMI Out: |
Yes |
| Media Type Supported: |
Twisted Pair |
| Number of Displays Supported: |
2 |
| Number of Input Devices Supported: |
4 |
| Number of VGA Inputs: |
1 |
| General Information |
|---|
| Product Type: |
Audio/Video Switchbox |
| Manufacturer Part Number: |
VP1421 |
| Manufacturer Website Address: |
http://www.aten.com/us/en/ |
| Packaged Quantity: |
1 |
| Manufacturer: |
ATEN Technology, Inc |
| Product Model: |
VP1421 |
| Product Name: |
4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite |
| Brand Name: |
Aten |
| Interfaces/Ports |
|---|
| Number of HDMI Inputs: |
2 |
| Number of HDMI Outputs: |
1 |
| VGA In: |
Yes |
| HDMI In: |
Yes |
| HDMI Out: |
Yes |
| Number of VGA Inputs: |
1 |
| Media & Performance |
|---|
| Maximum Operating Distance: |
459.32 ft |
| Media Type Supported: |
Twisted Pair |
| Miscellaneous |
|---|
| Package Contents: |
- 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
- 1x IR Receiver
- 1x IR Remote Control
- 4x 3-pole Terminal Blocks
- 2x 5-pole Terminal Blocks
- 1x Power Adapter
- 1x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Weight (Approximate): |
2.56 lb |
| Form Factor: |
Rack-mountable |
|
Under Table |
| Height: |
1.7" |
| Width: |
6.7" |
| Depth: |
7.9" |
| Technical Information |
|---|
| Device Supported: |
Notebook |
|
Media Player |
| Connectivity Technology: |
Cable |
| Number of Displays Supported: |
2 |
| Number of Input Devices Supported: |
4 |
| Video |
|---|
| Graphics Modes: |
4K |
| Maximum Video Resolution: |
4096 x 2160 |
