Description:

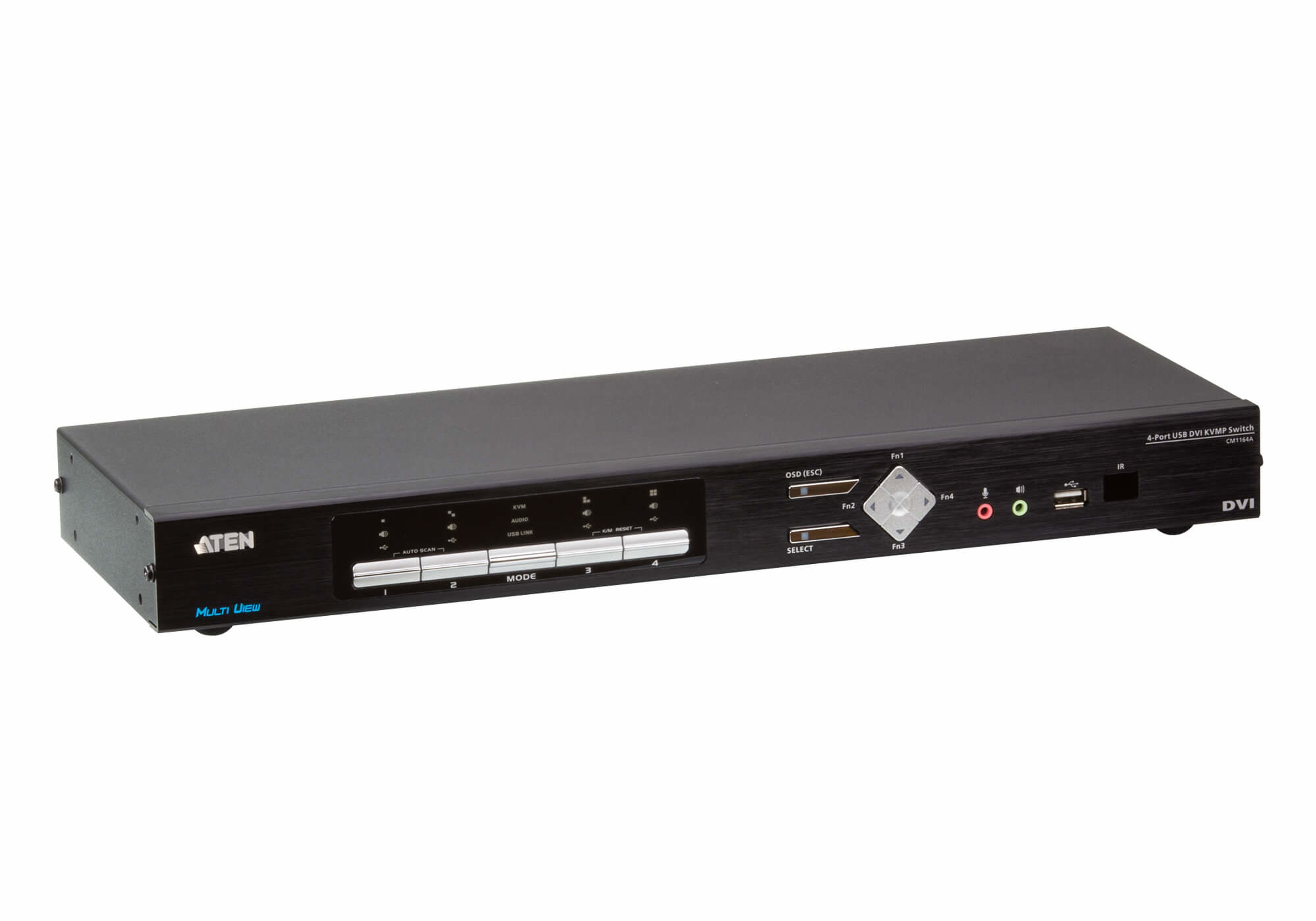

ATEN CM1164A 4-Port USB DVI Multi-View KVMPTM Switch improves the operational efficiency of intensive monitoring applications. With limited screen, to allow users to manage the data more efficiently, up to 16 video sources can be selected, switched and displayed at the same time withindependentkeyboard, mouse control. The CM1164A provides users a real-time monitoring functionality by combining a 4-port DVI-D switch with a 2-port USB hub and providing the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), andFull Screenmode.
Featuring Boundless Switching, the CM1164A allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and controlthe target computer.
Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1164A units via a single console. In addition, CM1164A can be cascaded up to 2 levels to reach the maximum of 16 video sources simultaneously displayed on a display.
Engineered to meet the ever-increasing demand for multi-view functionality, the CM1164A is specifically designed for where real-time monitoring is needed such asaviation industry, financial trading, and medical application.
Specifications:
Computer Connections | 4 |
Port Selection | Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display (OSD), Mouse, RS-232 Commands |
Connectors | |

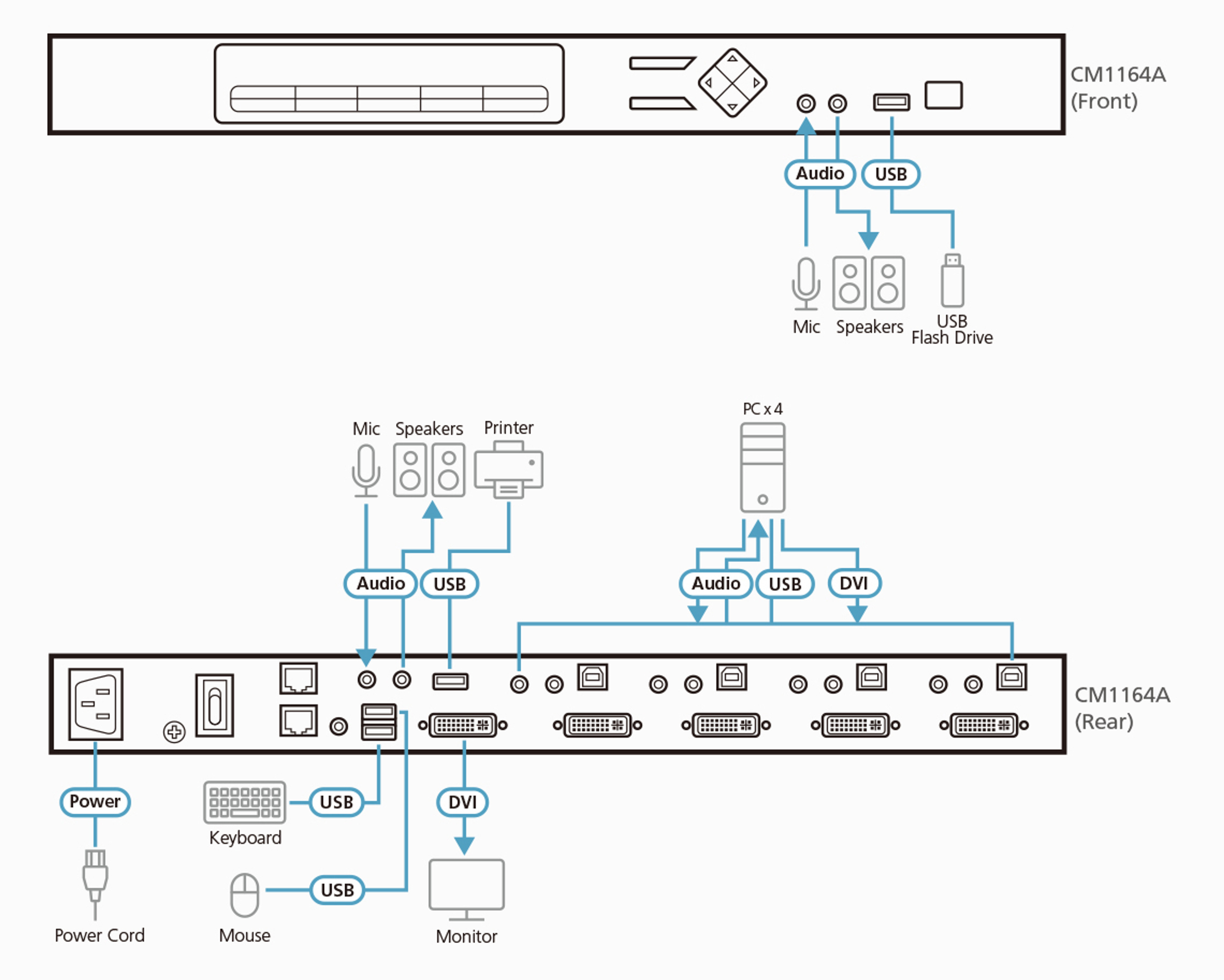

Console Ports | 2 x USB Type A Female 1 x Single Link DVI-D Female (White) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) 2 x RJ-45 |

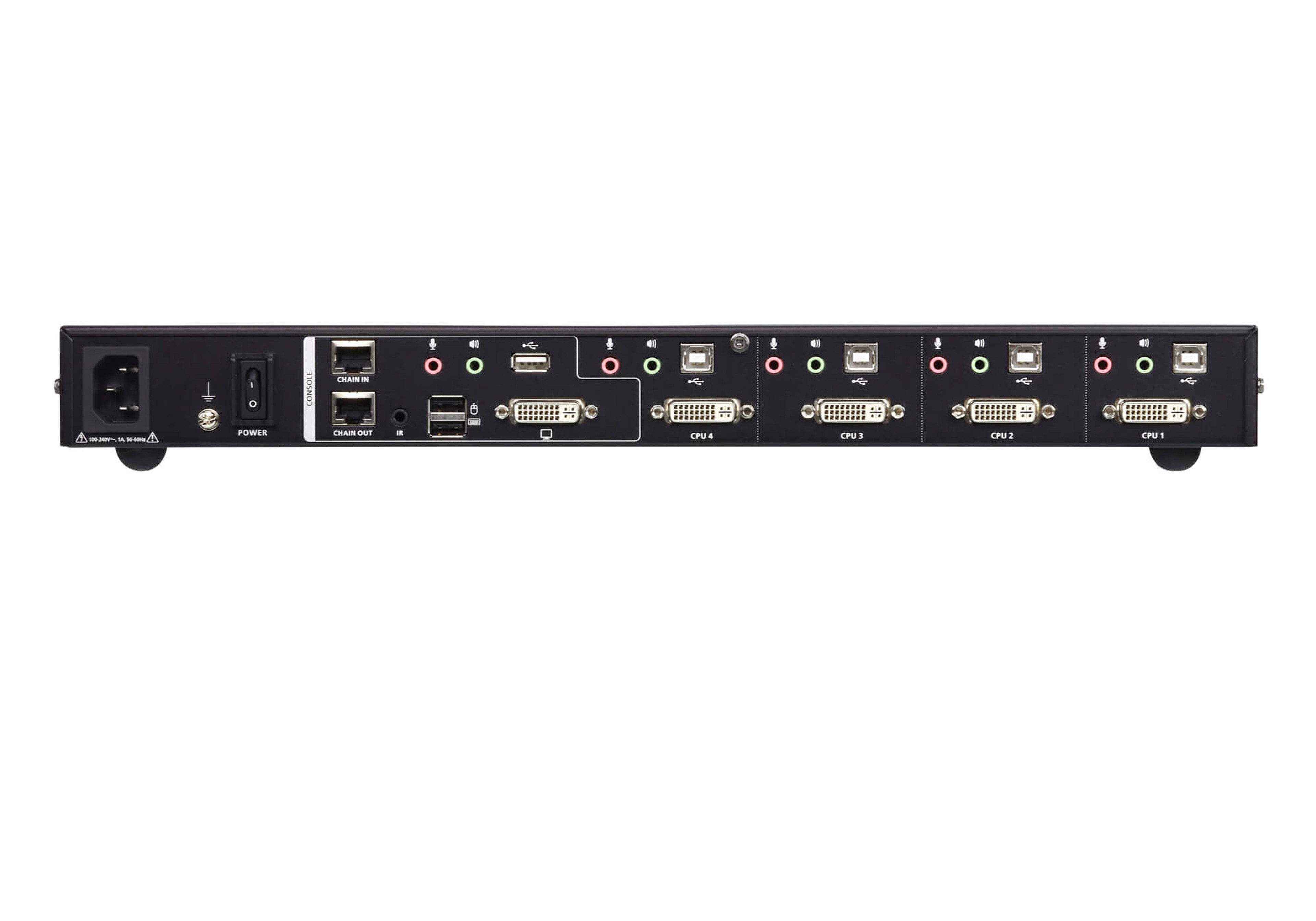

KVM Ports | 4 x USB Type B Female 4 x Single Link DVI-D Female (White) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink) |
Power | 1 x IEC320 Jack |
USB Hub | 2 x USB 2.0 Type A Female |
Switches | |

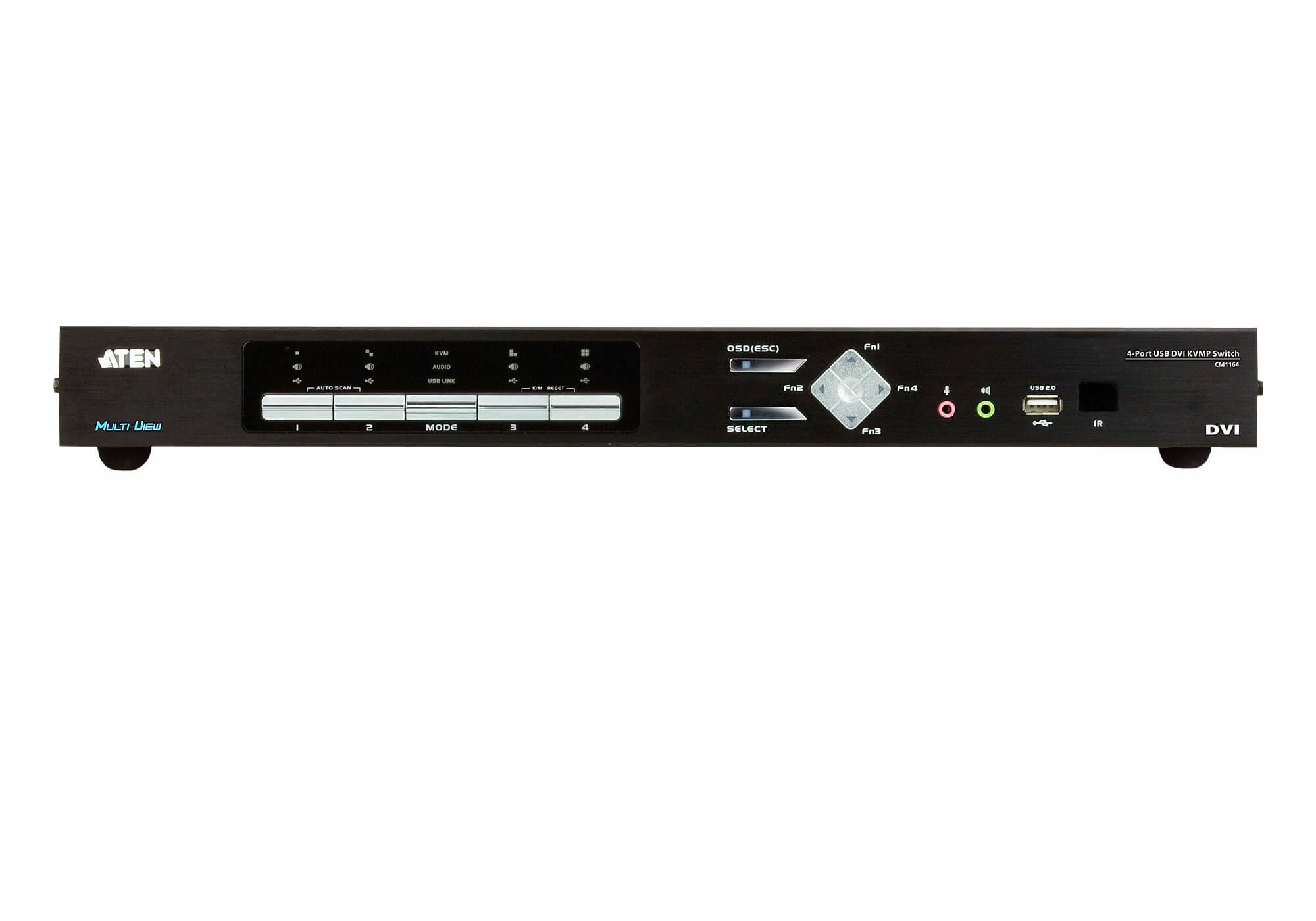

Selected | 11 x Pushbuttons |
LEDs | |
KVM | 4 (Orange) |
Audio | 4 (Green) |
USB | 4 (Green) |
Emulation | |
Keyboard / Mouse | USB |
Video | 1920 x 1200 @ 60 Hz (DVI-D) |
Scan Interval | 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds) |
Power Consumption | AC110V/9.7W:71BTU AC220V/9.5W:70BTU |
Environmental | |
Operating Temperature | 0-40°C |
Storage Temperature | -10-60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Metal |
Weight | 2.46 kg ( 5.42 lb ) |
Dimensions (L x W x H) | 43.72 x 16.40 x 4.40 cm (17.21 x 6.46 x 1.73 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
