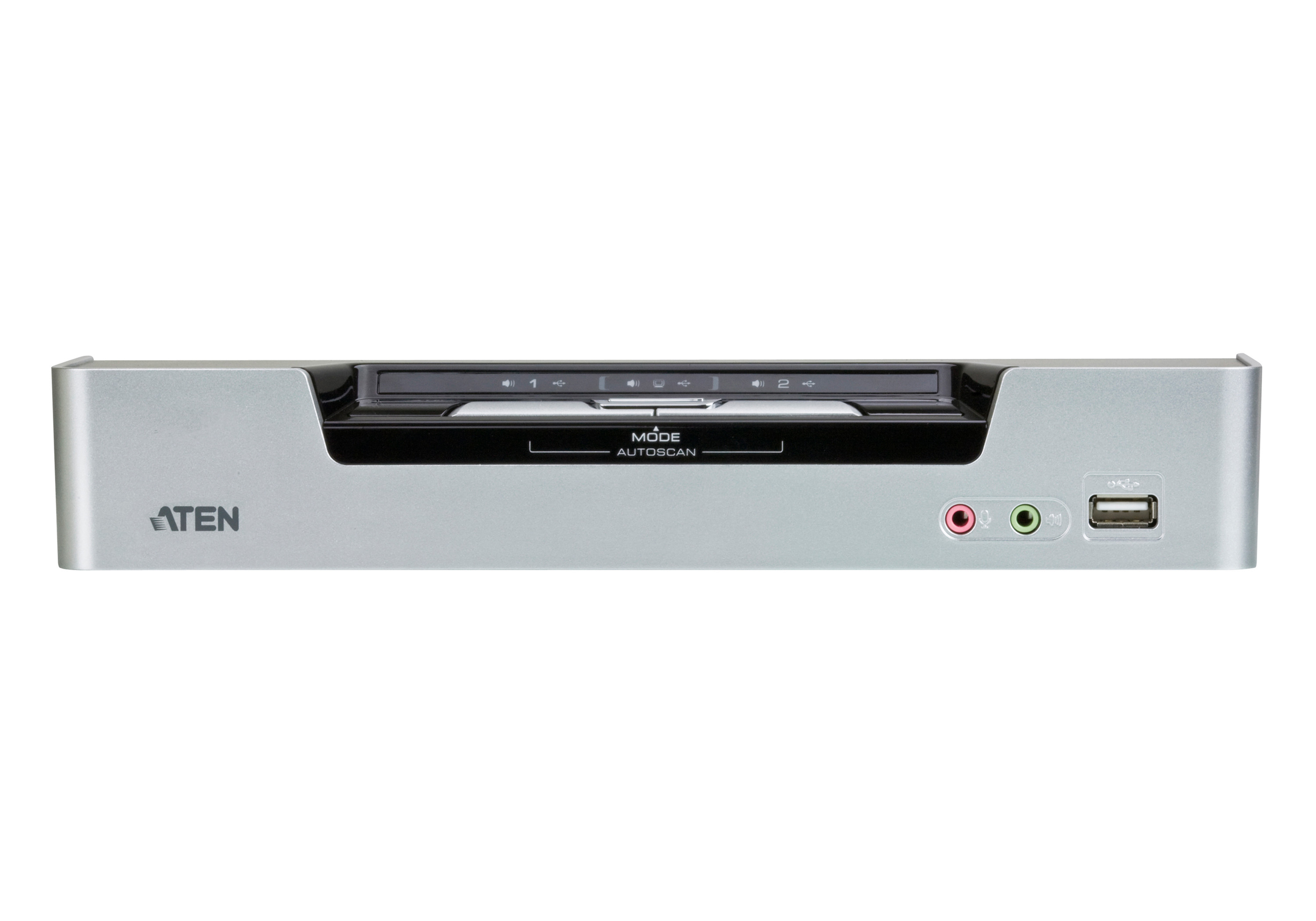

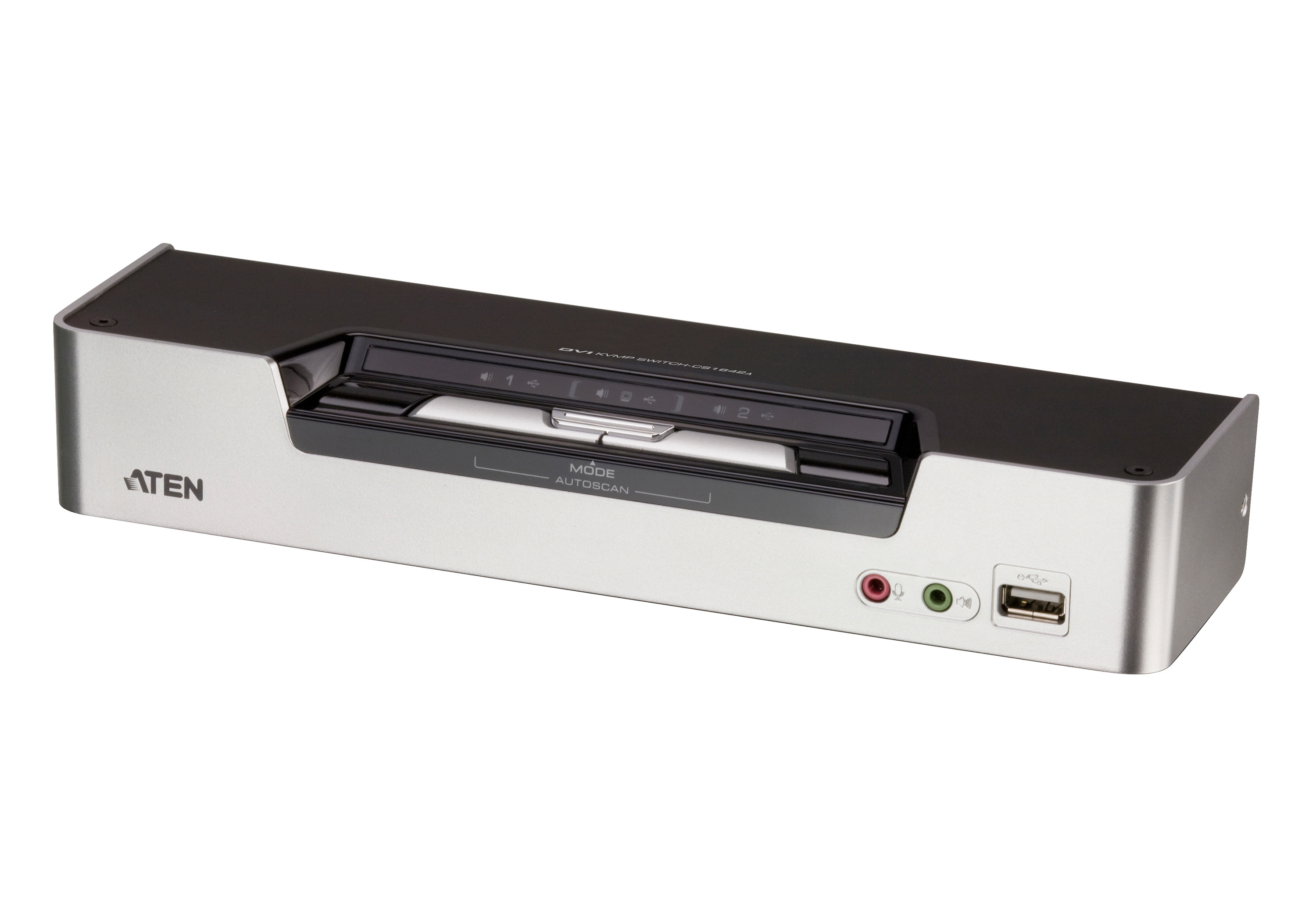

ATEN CS1642A 2-Port Dual Video Dual Link DVI KVMP Switch
The CS1642A 2-Port USB DVI Dual View KVMP™ Switch is a versatile solution for managing multiple computers with dual-screen setups. This innovative device integrates a 2-port KVM switch with a 2-port USB hub, allowing seamless control of two or four dual-screen computers and additional USB devices from a single console.
Key features include:
- Multi-View Capabilities: Connect two CS1642A units for a second dual-screen setup, enabling dual, triple, or quad-view displays.
- Superior Video Quality: Supports resolutions up to 2560 x 1600 at 60Hz (DVI Dual Link) and 3D displays up to 1920 x 1200 at 120Hz (DVI Single Link).
- Independent Switching: Easily switch between KVM, USB, and audio focus independently.
- Wide Compatibility: Supports various operating systems including Windows, Linux, Mac, Sun, and FreeBSD.
- Exclusive Video DynaSync Technology: Eliminates boot-up display problems and optimizes resolution when switching between ports.
Ideal for graphic designers, gamers, and medical professionals, the CS1642A delivers stunning color, clarity, and functionality, making it the perfect choice for demanding users.

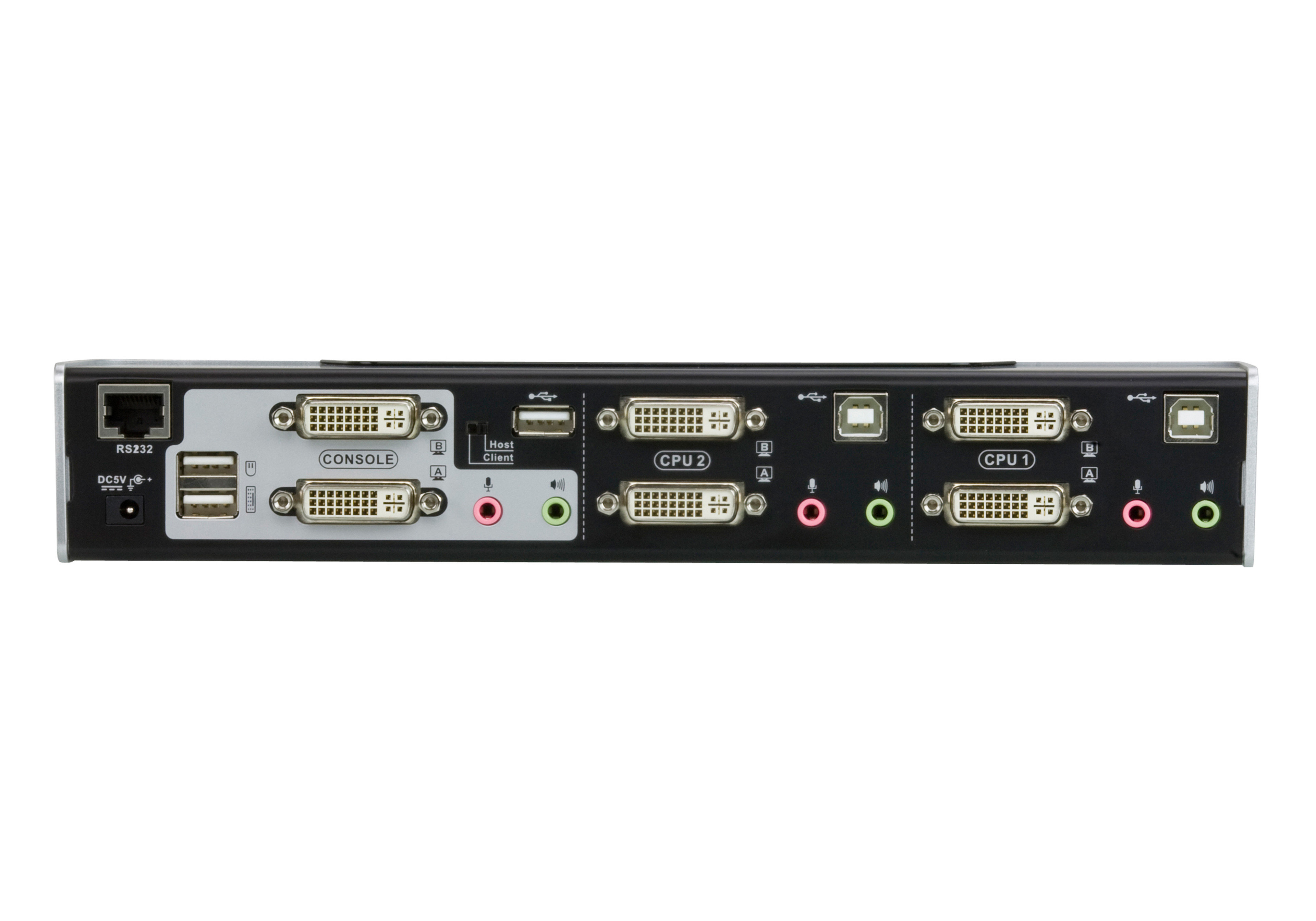

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
DVI-I ports quantity6
Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A
Console USB ports quantity2
USB 2.0 ports quantity4
Audio connections✓
Headphone outputs2
Number of microphone inputs1
DC-in jack✓
Performance
Maximum resolution2560 x 1600 pixels
Video bandwidth60 Hz
Scan interval1,99 s
Design
Rack mounting✓
Rack capacity1U
Product colorBlack, Silver
Housing materialMetal, Plastic
Push button✓
Hot keys✓
Display
Built-in displayNo
Power
Power sourceDC
Input voltage5.3 V
Power consumption (typical)10.6 W
System requirements
Windows operating systems supported✓
Linux operating systems supported✓
Mac operating systems supported✓
Other operating systems supported✓
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width10.3" (262.3 mm)
Depth3.02" (76.8 mm)
Height1.73" (44 mm)
Weight19.8 oz (560 g)
Packaging content
Cables includedDVI, KVM
Quick installation guide✓
AC adapter included✓
