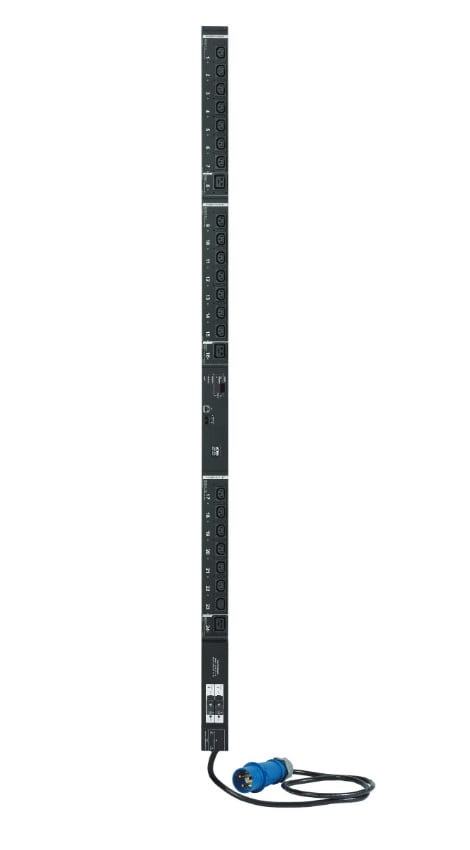

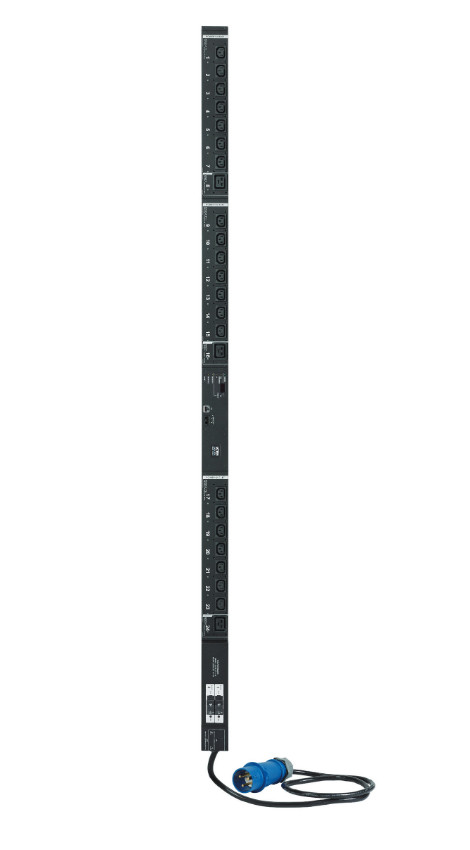

Aten PE6324LG 0U 30A 100-240V Metering & Switching

Aten

Regular Price $1,069.00
Discount Price: $759.00
Product Overview:

0U, 30A 100-240V, 21x C13 + 3x C19 PDU Metering & Switching

MFG#:
PE6324LG
Product Category:
PDU
Adding to cart… The item has been added

Description:

• 0U 24-Outlet low profile eco PDU
• Bank level metering
• Supports Proactive Overload Protection (POP) / Outlet Switch Control

The NRGence PE6324L eco PDUs are low profile intelligent PDUs that contain 24 AC outlets and are available in various IEC or NEMA socket configurations. The low profile series has a smaller input region on the PDU to provide more installation space for data centers.


The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.

NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

Specifications:

Electrical
Nominal Input Voltage 100 – 240 VAC 100 – 240 VAC
Maximum Input Current 30A(Max) 32A(Max)
Input Frequency 50-60 Hz 50-60 Hz
Input Connection NEMA L6-30P IEC 60309 32A
Input Power 6240 VA(Max) 7360 VA(Max)

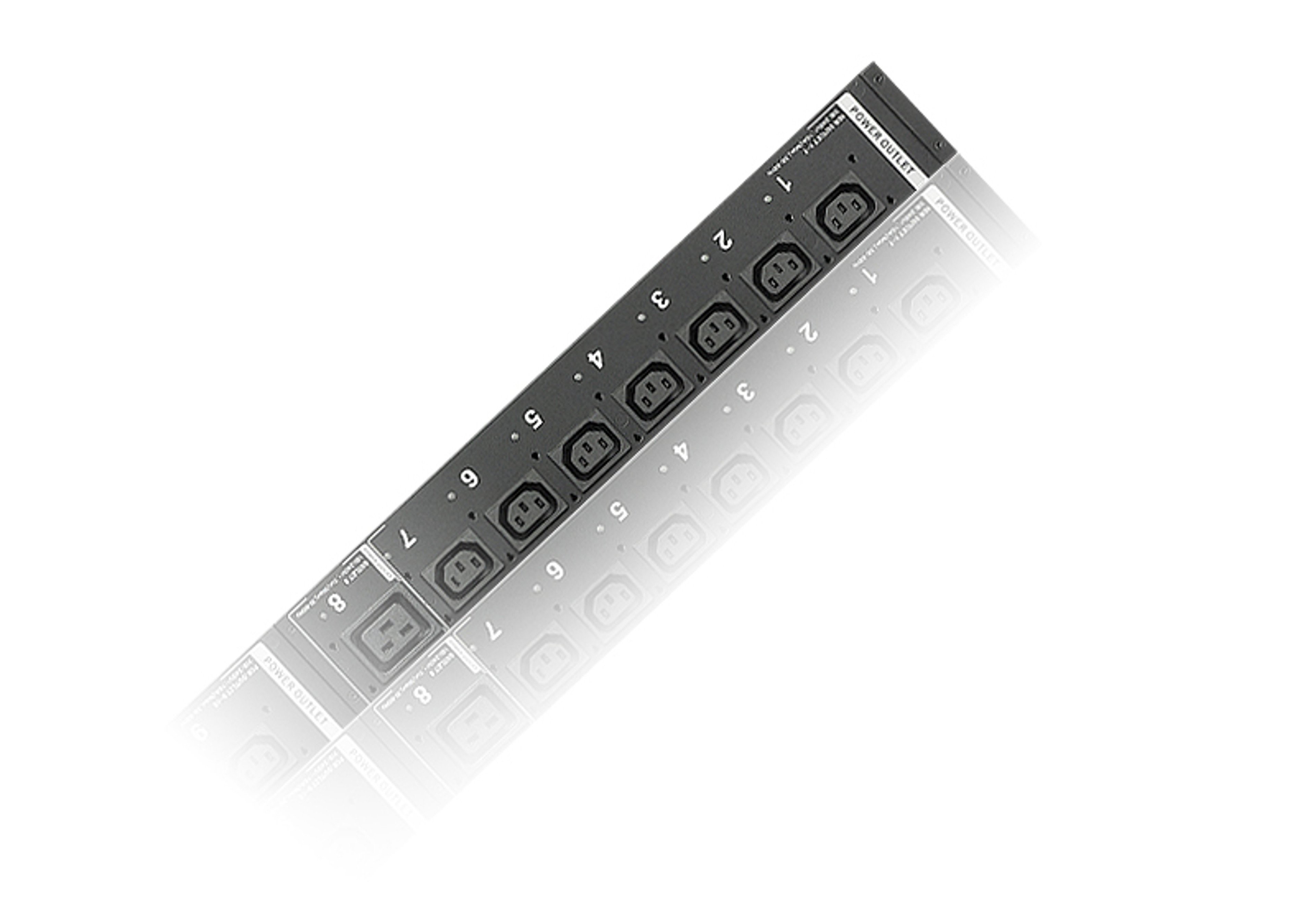

Outlet Type Total: 21 x IEC320 C13 + 3 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19
Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19
Total: 21 x IEC320 C13 + 3 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19
Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19
Nominal Output Voltage 100 – 240 VAC 100 – 240 VAC
Maximum Output Current (Outlet) C13: 15A(Max)
C19: 15A(Max)
C13: 10A(Max)
C19: 16A(Max)
Maximum Output Current (Bank) 15A(Max) 16A(Max)
Maximum Output Current (Total) 30A(Max) 32A(Max)
Breakers 2 x 16A Slim Breaker 2 x 16A Slim Breaker
Metering Bank Level Current, Voltage, VA , PF and kWh Monitoring Bank Level Current, Voltage, VA , PF and kWh Monitoring
Outlet Switching Yes Yes
Environment Sensor Ports 2 2
Metering Accuracy Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H) 177.50 x 6.60 x 4.40 cm
(69.88 x 2.6 x 1.73 in.)
177.50 x 6.60 x 4.40 cm
(69.88 x 2.6 x 1.73 in.)
Weight 5.76 kg ( 12.69 lb ) 5.76 kg ( 12.69 lb )
Power Cord Length 1.6 m 1.6 m
Environmental
Temperature (Operating / Storage) 0–50°C / -20–60°C 0–40°C / -20–60°C
Humidity (Operating & Storage) 0–80% RH, Non-Condensing 0–80% RH, Non-Condensing
Compliance
EMC Verification FCC, Others by Request CE, C-Tick, Others by Request
Safety Verification By Request CE-LVD, Others by Request
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
