Regular Price $2,390.00
Discount Price: $1,499.00
Product Overview:

UPS 2200VA LCD RM 2U 120V with SmartConnect - 2U Rack-mountable - 3 Hour Recharge - 6.60 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave

Adding to cart… The item has been added


APC by Schneider Electric Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect - 2U Rack-mountable - 3 Hour Recharge - 6.60 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - 2 x NEMA 5-20R, 6 x NEMA 5-15R - 8 x Battery/Surge Outlet

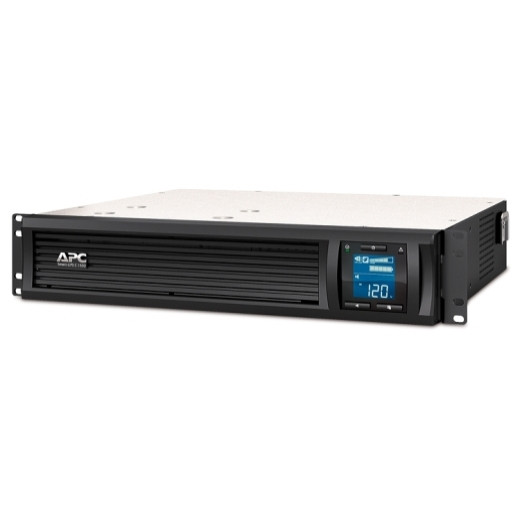

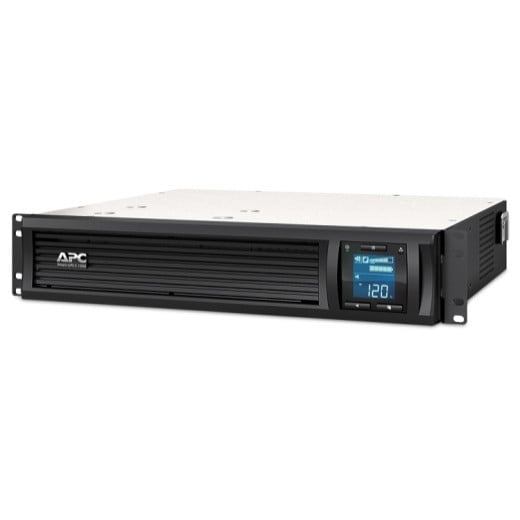

APC Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.


  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency - Reduces utility costs, generates less heat.
  • Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Sequenced network shutdown and reboot - Customize network shutdown and reboot sequence of connected servers and UPSs.
  • Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartSlot - Customize UPS capabilities with management cards.


Network Management SmartConnect
Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $150000 - Lifetime
Battery Information
Battery Chemistry Lead Acid
Hot Swappable Yes
Backup/Run Time (Full Load) 6.60 Minute
Typical Battery Recharge Time 3 Hour
Power Description
Input Voltage 120 V
Output Voltage 120 V AC
Load Capacity 1920 VA/1980 W
Surge Energy Rating 530 J
Waveform Type Sine Wave
Input Voltage Range 75 V AC - 154 V AC
General Information
Product Type Line-interactive UPS
Manufacturer Part Number SMT2200RM2UC
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect
Product Line Smart-UPS
Brand Name APC by Schneider Electric
Technical Information
Plug/Connector Type NEMA 5-20P
Cord Length 8 ft
Receptacle Type NEMA 5-20P
Number of Battery & Surge Outlets 8
Transfer Time 10 ms

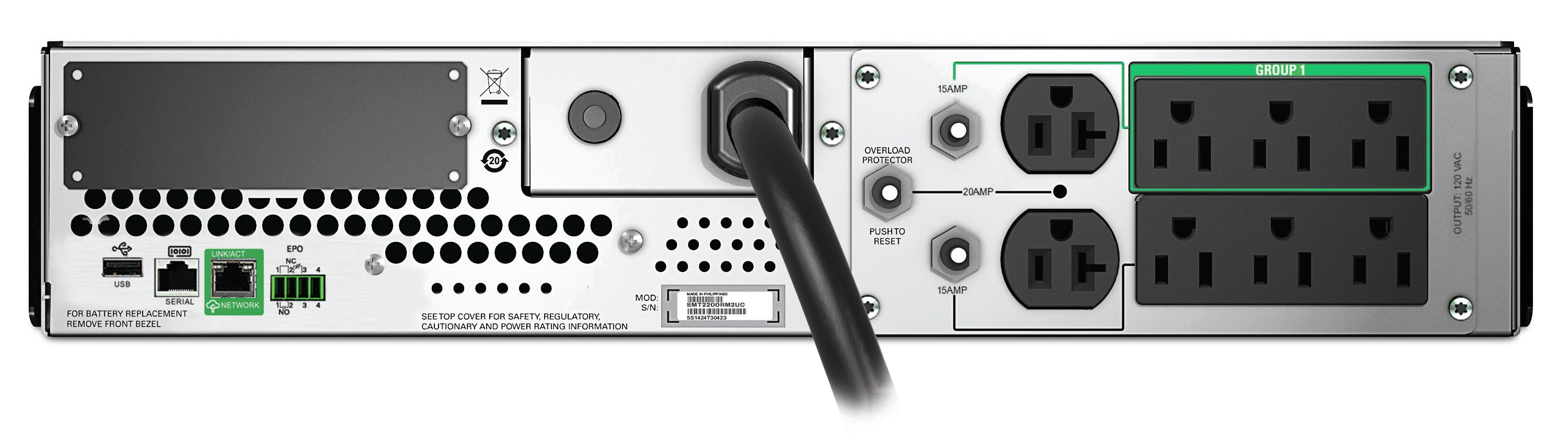

Receptacle Detail 2 x NEMA 5-20R
  6 x NEMA 5-15R
Physical Characteristics
Weight (Approximate) 98.28 lb
Form Factor Rack-mountable
Rack Height 2U
Height 3.4"
Width 17"
Depth 26.9"
Product Color Black
Color Family Black
Mounting Location Front
Mounting Preference Lower
Package Contents
  • Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect
  • Rack mounting brackets
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
Certifications & Standards cULus|ENERGY STAR V2.0 (USA)
Environmentally Friendly Yes
Environmental Certification RoHS
Mercury Free Yes
Energy Star Yes
Green Premium Yes
Optimized Energy Efficiency Yes
Product Take Back Program Yes
RoHS Exemption Information https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT2200RM2UC_ROHS_DECLARATION&p_FileName=SMT2200RM2UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940379&lang=en-us
EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940379&lang=en-us
Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
Energy Star URL https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC No
California Proposition 65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
