Product Overview:

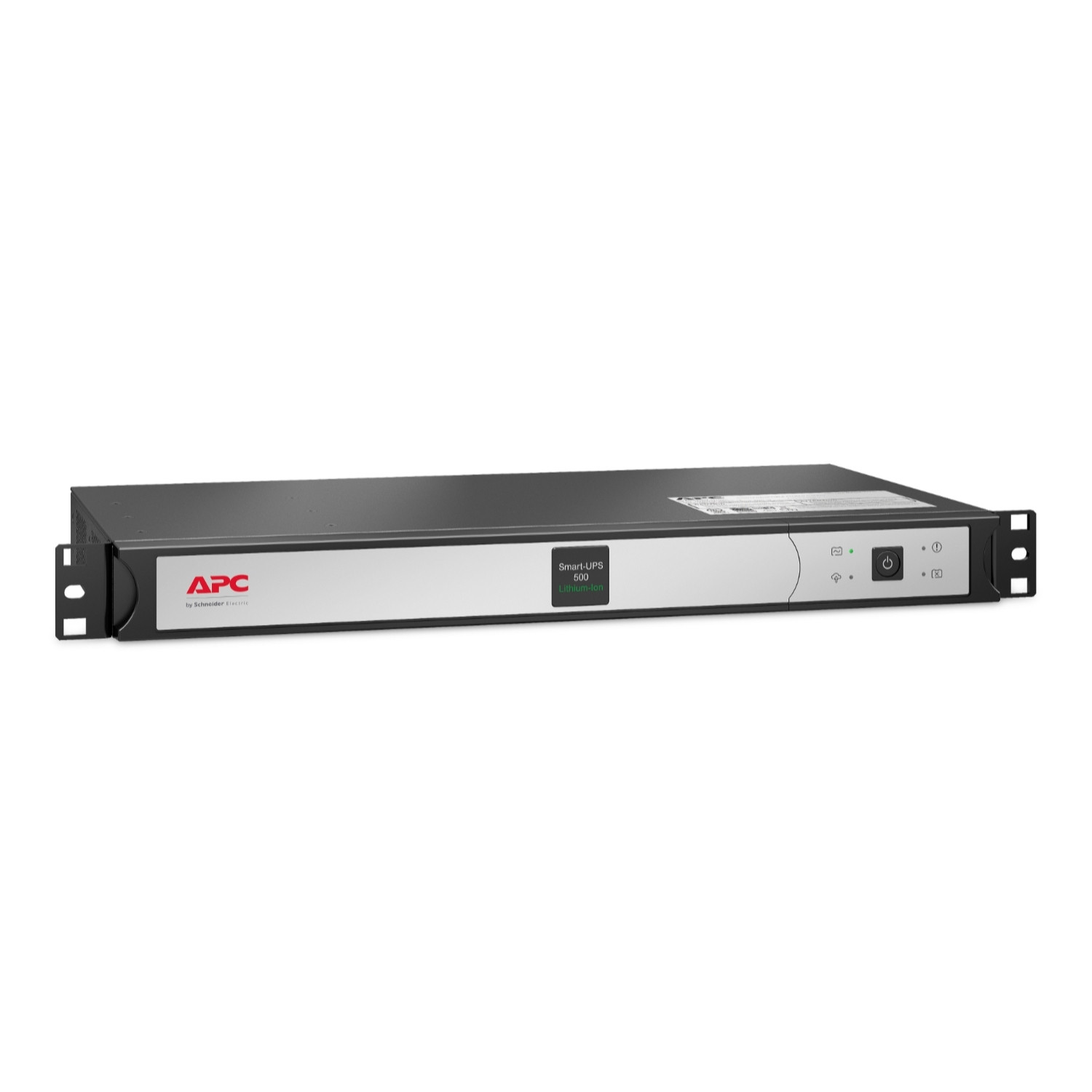

Smart-UPS 500VA Rack/Floor Mountable UPS - 1U Rack-mountable - 3 Hour Recharge - 2.70 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port

Adding to cart… The item has been added


APC by Schneider Electric Smart-UPS 500VA Rack/Floor Mountable UPS - 1U Rack-mountable - AVR - 3 Hour Recharge - 2.70 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 4 x NEMA 5-15R - 4 x Battery/Surge Outlet


Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.


  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Lithium-ion battery - Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Short-depth rack compatibility - Compact design fits comfortably in short-depth rack applications.
  • Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.


Status Indicators LED Display
Additional Warranty Information 5 year repair or replace
Limited Warranty 5 Year
Directly Connected Equipment Guarantee $150000 - Lifetime
Network (RJ-45) Yes
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Network Management SmartConnect
Alarm On Battery
  Low Battery
  Configurable Delay
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Hot Swappable Yes
Backup/Run Time (Half Load) 6.30 Minute
Backup/Run Time (Full Load) 2.70 Minute
Battery Characteristics Valve-regulated
Replaceable Battery Yes
Typical Battery Recharge Time 3 Hour
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 6561 ft
Maximum Storage Elevation 49212 ft
Operating Humidity 10% - 90%
Storage Relative Humidity 10% - 90%
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Sound Emission (A-Weighted) 45 dB(A)
General Information
Product Type Line-interactive UPS
Manufacturer Part Number SCL500RM1UC
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Smart-UPS 500VA Rack/Floor Mountable UPS
Product Line Smart-UPS
Brand Name APC by Schneider Electric
Power Description
Input Voltage 120 V
Output Voltage 120 V AC
Load Capacity 500 VA/400 W
Surge Energy Rating 680 J
Waveform Type Sine Wave
Input Voltage Range 92 V AC - 139 V AC
Output Frequency 60 Hz
Input Frequency 63 Hz
Physical Characteristics
Weight (Approximate) 10.22 lb
Form Factor Rack-mountable
Rack Height 1U
Height 1.7"
Width 17"
Depth 9.1"
Product Color Black
Color Family Multicolor
Package Contents
  • Smart-UPS 500VA Rack/Floor Mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting support rails
  • USB cable
Software Included Powerchute® Business Edition
Certifications & Standards cULus|NOM
Country of Origin Philippines
Environmentally Friendly Yes
Environmental Certification RoHS
Mercury Free Yes
Energy Star Yes
Green Premium Yes
Optimized Energy Efficiency Yes
Product Take Back Program Yes
RoHS Exemption Information https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1UC_ROHS_DECLARATION&p_FileName=SCL500RM1UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500677&lang=en-us
EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500677&lang=en-us
Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
End of Life Manual Availability https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHC No
Technical Information
Application/Usage Storage
  Security System
  POS Terminal
  Network Hub
  Communication System
  Voice/Data Network
Dataline Protection RJ-45
Plug/Connector Type NEMA 5-15P
Cord Length 6 ft
Receptacle Type NEMA 5-15P
Number of Battery & Surge Outlets 4
Transfer Time 10 ms
Receptacle Detail 4 x NEMA 5-15R
