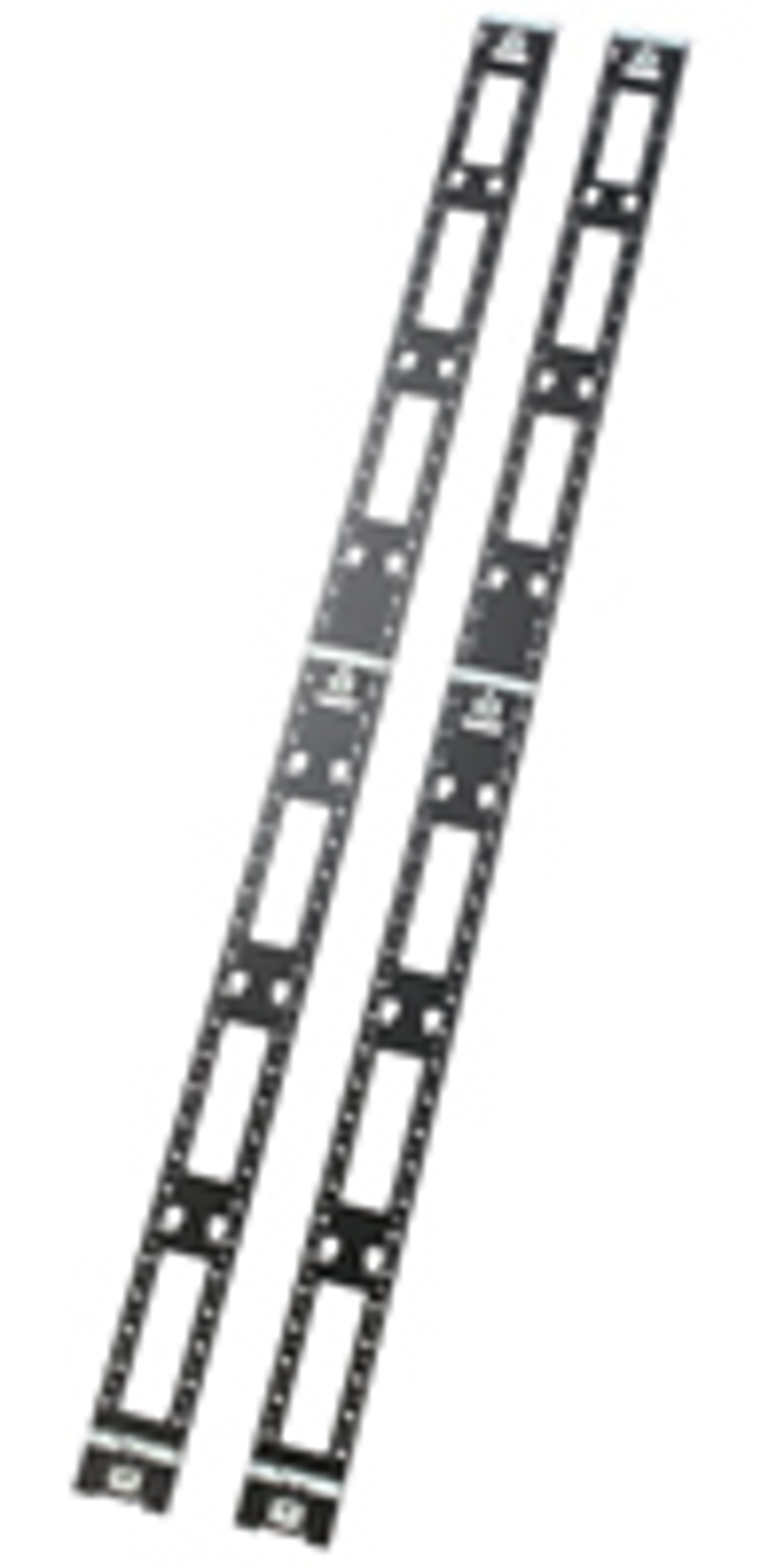

APC AR7580A 2QTY VERTICAL CABLE MANAGER FOR NETSHELTER SX 750MM WIDE 42U

APC

Regular Price $520.00
Discount Price: $382.00
Product Overview:

Vertical Cable Manager for NetShelter SX 750mm Wide 42U (Qty 2) - Cable Pass-through - Black - 1 - 42U Rack Height - TAA Compliant

MFG#:
AR7580A
Product Category:
Cabinet Accessories
Adding to cart… The item has been added

Description:

APC by Schneider Electric Vertical Cable Manager for NetShelter SX 750mm Wide 42U (Qty 2) - Cable Pass-through - Black - 1 - 42U Rack Height - TAA Compliant

The vertical channels have smooth plastic fingers at 1U increments to allow patch cords to enter and exit in an organized manner.

Features
  • Backplate optimized for accessorizing:Backplates feature multiple holes for toollessly mounting accessories such as cable managers for cable tie-off (AR8621) and airflow management brush strips (AR7714) to allow cable pass-through while restricting airflow through the openings.
  • Dedicated cable manager for each enclosure height: Dedicated cable managers for each enclosure height 42U, 45U, and 48U, provide the maximum u-space coverage. Optional covers will match cable manager height to provide full coverage over the entire height of the enclosure.
  • High capacity cable finger design: Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
  • Optional hinging left or right covers: Covers (not provided) install quickly without tools and include two easy to use latches that allow the cover to open to the left or right. The covers hide the cabling to keep the enclosure space neat for future maintenance and an clean aesthetic.
  • Secure cabling with easy access:Secure cabling inside the cable manager with the provided snap hinge cable retainers that open to the left or right for easy access.

Specifications:

Product Information
Cable Manager Type Cable Pass-through
Warranty
Additional Warranty Information 2 years repair or replace
Physical Characteristics
Weight (Approximate) 2.93 lb
Rack Height 42U
Height 70"
Width 4.29"
Depth 0.51"
Product Color Black
Product Material Plastic
General Information
Product Type Cable Organizer
Manufacturer Part Number AR7580A
Manufacturer Website Address http://www.schneider-electric.com
Packaged Quantity 1
Manufacturer Schneider Electric SA
Product Model AR7580A
Product Name Vertical Cable Manager for NetShelter SX 750mm Wide 42U (Qty 2)
Brand Name APC by Schneider Electric
Miscellaneous
Package Contents
  • Vertical Cable Manager for NetShelter SX 750mm Wide 42U (Qty 2)
  • Installation Guide
  • Mounting Hardware
  • 6 x Cable Retainers With Snap Hinges
  • Top Securing Bracket
Compatibility

APC NetShelter SX Enclosure

Certifications & Standards TAA compliance|
Country of Origin Philippines
Environmentally Friendly Yes
Environmental Certification RoHS
Mercury Free Yes
TAA Compliant Yes
Green Premium Yes
RoHS Exemption Information https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR7581A_ROHS_DECLARATION&p_FileName=AR7581AKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384164970&lang=en-us
EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384164967&lang=en-us
Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_V1
REACH free of SVHC Yes
Toxic Heavy Metal Free Yes
