APC AP7569 RACK PDU BASIC PDU 208V 0U 2L6-30R 24XC13 4XC19 14.4KW 3IN


Regular Price $1,835.00
Discount Price: $1,297.00
Product Overview:

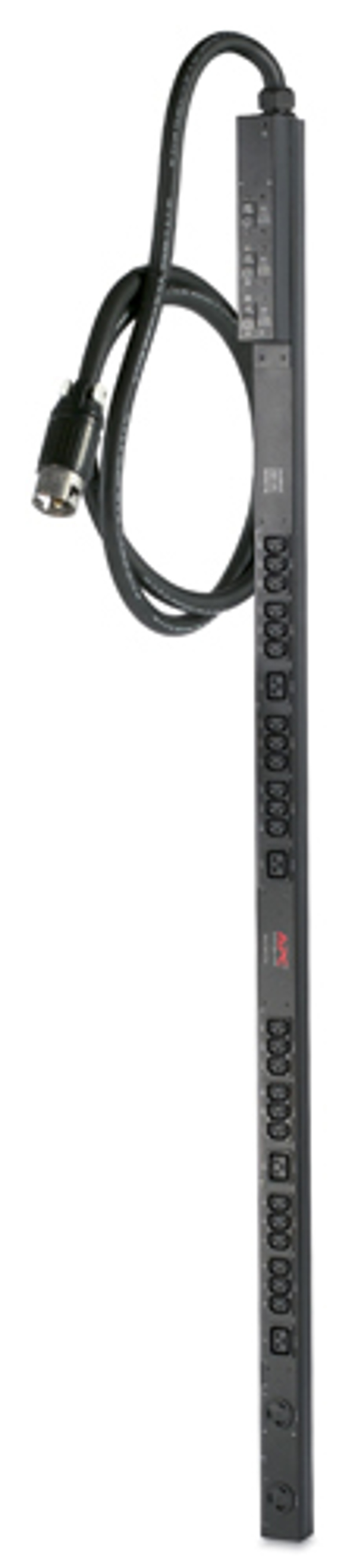

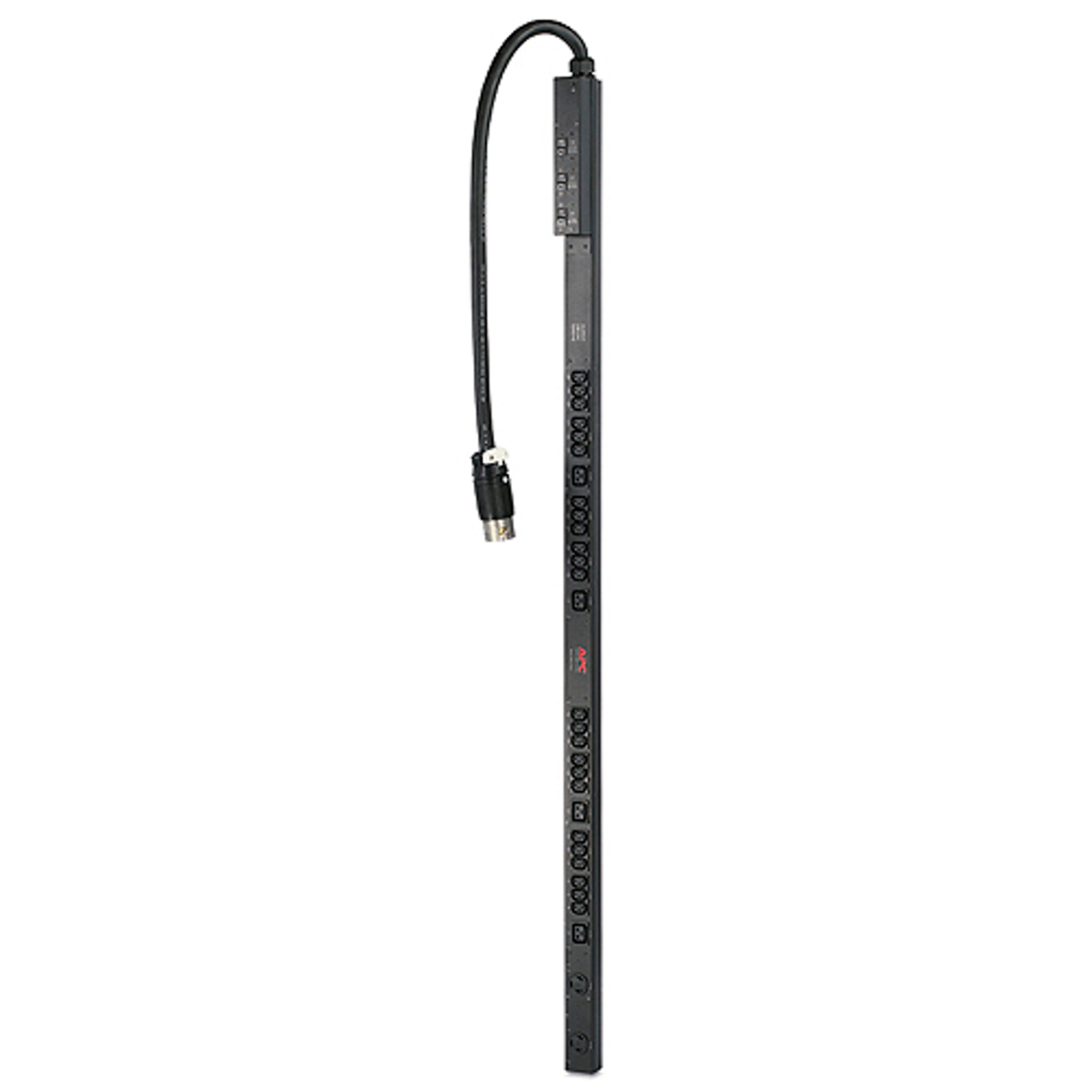

APC Basic Rack 14.4kVA PDU - 24 x IEC 320-C13, 4 x IEC 320-C19, 2 x NEMA L6-30R - 14.4kVA - Zero U Rack-mountable

Adding to cart… The item has been added


APC Basic Rack 14.4kVA PDU - 24 x IEC 320-C13, 4 x IEC 320-C19, 2 x NEMA L6-30R - 14.4kVA - Zero U Rack-mountable
  • Low Cost Power Distribution
  • Multi-branch Power Input
  • Toolless Mounting Capability
  • Vertical Mounting Capability
  • Resettable circuit breakers - Enables a quick recovery from overload events.
  • Toolless Rack Mounting Capabilities - Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
  • Vertical Mounting Capabilities - Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.


Physical Characteristics
Mount Type Rack-mountable
Product Color Black
Power Description
Output Voltage 208 V AC
  208 V AC
Power Rating (VA) 14.40 kVA
Package Contents
  • Basic Rack 14.4kVA PDU
  • Cord retention bracket(s)
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Toolless mounting kit
  • cUL Listed
  • CSA
  • METI Denan
  • UL 60950
  • UL Listed
Environmentally Friendly Yes
Environmental Certification RoHS
EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759122&lang=en-us
Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_V1
End of Life Manual Availability https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_V1
General Information
Product Type PDU
Manufacturer Part Number AP7569
Manufacturer Website Address http://www.schneider-electric.com
Packaged Quantity 1 Each
  1 Each
Manufacturer Schneider Electric SA
Product Name Basic Rack 14.4kVA PDU
Product Line Basic Rack
Brand Name APC by Schneider Electric
Technical Information
Protection Type Overload Protection
Plug/Connector Type Hubbell CS8365C
Receptacle Type IEC 60320 C13
  NEMA L6-30R
  IEC 60320 C19
PDU Type Basic
Receptacle Detail 4 x IEC 60320 C19
  24 x IEC 60320 C13
  2 x NEMA L6-30R
