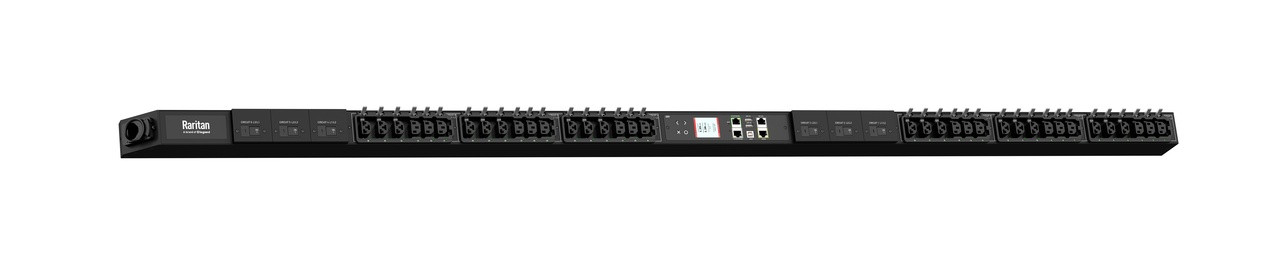

Raritan PX4-132A-E7V2 36-Outlets PDU - Metered

Raritan PX4-132A-E7V2 36-Outlets PDU - Metered

Raritan

MSRP: $1,806.20
Regular Price $1,535.00
Discount Price: $1,481.00
(You save $325.20 )
Shipping:
Free Shipping
MFG#:
PX4-132A-E7V2
Product Category:
PDU
Platform:
PX4
Metering and Switching:
PDU Metered
Total Outlets:
36
Plug Type:
208V Delta 60A IEC 60309 3P+G 9Hr
Input Phase:
3 Phase Delta (L-L)
Power Capacity:
17.3 kW
Input Voltage:
208 V
Input Current:
60
Form Factor:
0U
Manufactures Website:
https://www.raritan.com
Manufactures Product Page:
https://www.raritan.com/product-selector/pdu-detail/PX4-132A-E7V2
Adding to cart… The item has been added

Description:

Raritan PX4-132A-E7V2 36-Outlets PDU - Metered - IEC 60309 3P+E 9h 60A (3P4W) - 18 x IEC 60320 C13, 18 x CX - 230 V AC - Branch Circuit, Circuit Breaker, Overload Protection - Network (RJ-45) - 9.84 ft Cord Length - 0U - Button Mount

Features
  • Provide circuit protection and easy configuration for trouble-free access
  • Metered PDU offers reliable, rack-mount and multi-outlet power source
  • Three Phase phase PDU provides dependable power output with maximum efficiency
  • IEC 60309 3P+E 9h 60A (3P4W) plug/connector type for reliable, productive connectivity and optimal power output
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • 230 V AC input voltage for optimal performance with maximum usability

Specifications:

Interfaces/Ports
Network (RJ-45) Yes
Management
Management
  • HTTP(s)
  • SSH (CLI)
  • Telnet
  • RS-232 (Serial)
  • SNMP version v2/v3
  • SMTP
  • JSON-RPC API
  • MODBUS-TCP
  • Redfish API
Remote Outlet Switching No
Miscellaneous
Certifications & Standards
  • UL Listed
  • Canada ICES-003
  • Part 15 Class A of the FCC Rules
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Conditions
Maximum Operating Temperature 140°F (60°C)
Minimum Storage Temperature -22°F (-30°C)
Maximum Storage Temperature 176°F (80°C)
Minimum Operating Humidity 5%
Maximum Operating Humidity 95%
General Information
Product Type PDU
Manufacturer Part Number PX4-132A-E7V2
Manufacturer Website Address http://www.legrand.us
Manufacturer Legrand Group
Product Model PX4-132A-E7V2
Product Name PX4-132A-E7V2 36-Outlets PDU
Product Series PX4
Brand Name Raritan
Physical Characteristics
Weight (Approximate) 21.61 lb
Mount Type Button Mount
Rack Height 0U
Cord Length 9.84 ft
Height 70.1"
Width 2.2"
Depth 2.6"
Product Color Black Powder Coat
Color Family Other
Power Description
Circuit Breaker Yes
Input Voltage 230 V AC
  230 V AC
Output Voltage 208 V AC
  208 V AC
Input Current 60 A
Input Voltage Range 208 V AC - 240 V AC
  208 V AC - 240 V AC
Input Frequency 60 Hz
Output Voltage Range 208 V AC - 240 V AC
  208 V AC - 240 V AC
Power Rating (VA) 20 kVA
Technical Information
Features Onboard Display
  Multi-color LCD
Protection Type Overload Protection
  Branch Circuit
  Circuit Breaker
Plug/Connector Type IEC 60309 3P+E 9h 60A (3P4W)
Phase Three Phase
Receptacle Type CX
  IEC 60320 C13
PDU Type Metered
  Metered
Locking Receptacles P-Lock
  SecureLock
Receptacle Detail 18 x IEC 60320 C13
  18 x CX
!
