Description:

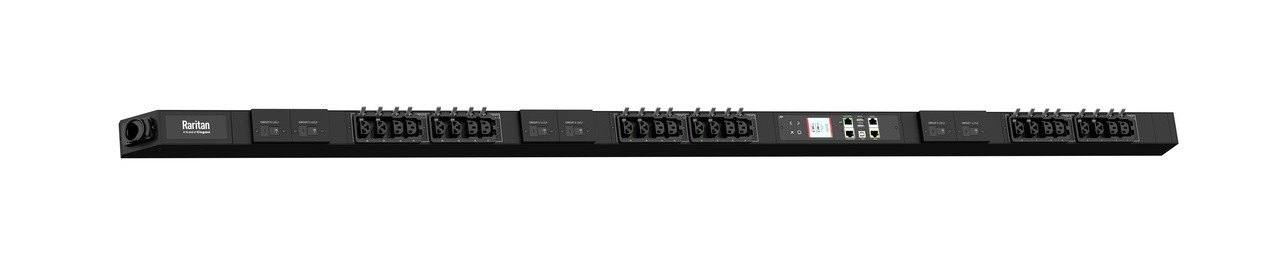

Raritan PX4-5547-E7V2 24-Outlets PDU - Switched with Metered-by-Outlet - CS8365C (3P4W) - 12 x IEC 60320 C13, 12 x CX - 230 V AC - Network (RJ-45) - Button Mount - Hot-swappable
Features - PDU improves efficiency, uptime and growth of data centers
- Remotely monitor your equipment without any worries with Switched with Metered-by-Outlet
- Three Phase phase PDU provides optimal power output with added usability
- CS8365C (3P4W) plug/connector type for better, dependable connectivity and desired power output
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- 230 V AC input voltage for maximum feasibility and added productivity
- 208 V AC output voltage for optimal performance with maximum feasibility
Specifications:
| Interfaces/Ports | | Network (RJ-45) | Yes | | Management | | Management | - HTTP(s)
- SSH (CLI)
- Telnet
- RS-232 (Serial)
- SNMP version v2/v3
- SMTP
- JSON-RPC API
- MODBUS-TCP
- Redfish API
| | Remote Outlet Switching | Yes | | Miscellaneous | | Environmentally Friendly | Yes | | Environmental Compliance | Restriction of Hazardous Substances (RoHS) | | Physical Characteristics | | Form Factor | Hot-swappable | | Mount Type | Button Mount | | Height | 70.1" | | Width | 2.2" | | Depth | 2.6" | | Product Color | Black Powder Coat | | General Information | | Product Type | PDU | | Manufacturer Part Number | PX45547E7V2 | | Manufacturer Website Address | http://www.legrand.us | | Manufacturer | Legrand Group | | Product Model | PX4-5547-E7V2 | | Product Name | PX4-5547-E7V2 24-Outlets PDU | | Product Series | PX4 | | Brand Name | Raritan | | Power Description | | Input Voltage | 230 V AC | | | 230 V AC | | Output Voltage | 208 V AC | | | 208 V AC | | Input Current | 50 A | | Input Voltage Range | 208 V AC - 240 V AC | | | 208 V AC - 240 V AC | | Output Voltage Range | 208 V AC - 240 V AC | | | 208 V AC - 240 V AC | | Power Rating (VA) | 16.60 kVA | | | Technical Information | | Features | Multi-color LCD | | | Onboard Display | | Protection Type | Fuse | | | Overload Protection | | | Circuit Breaker | | Plug/Connector Type | CS8365C (3P4W) | | Phase | Three Phase | | Receptacle Type | IEC 60320 C13 | | | CX | | PDU Type | Switched with Metered-by-Outlet | | | Switched with Metered-by-Outlet | | Environmental Sensors | Water | | | Humidity | | | Dust | | | Differential Pressure | | | Contact Closure | | | Air Flow | | | Temperature | | Locking Receptacles | SecureLock | | Receptacle Detail | 12 x CX | | | 12 x IEC 60320 C13 | |
