APC AP9565 BASIC PDU 208/230V 16A 1U RM 12XC13


Regular Price $273.00
Discount Price: $199.00
Product Overview:

 Basic Rack 3.68kVA PDU - 12 x IEC 320-C13 - 3.68kVA - 1U Rack-mountable

Adding to cart… The item has been added

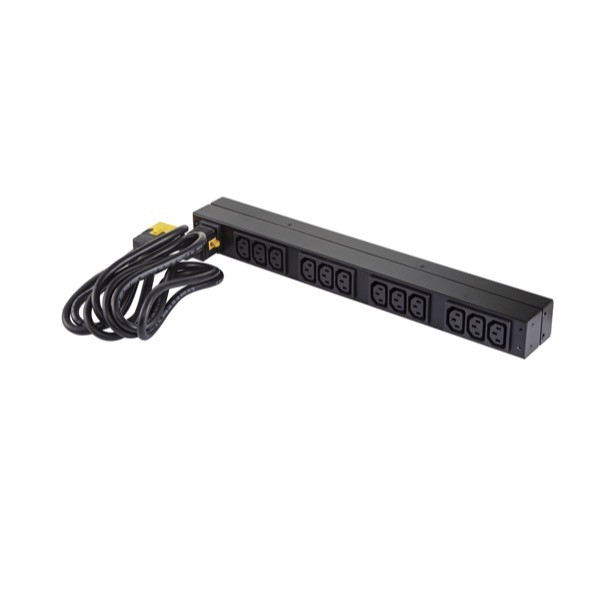

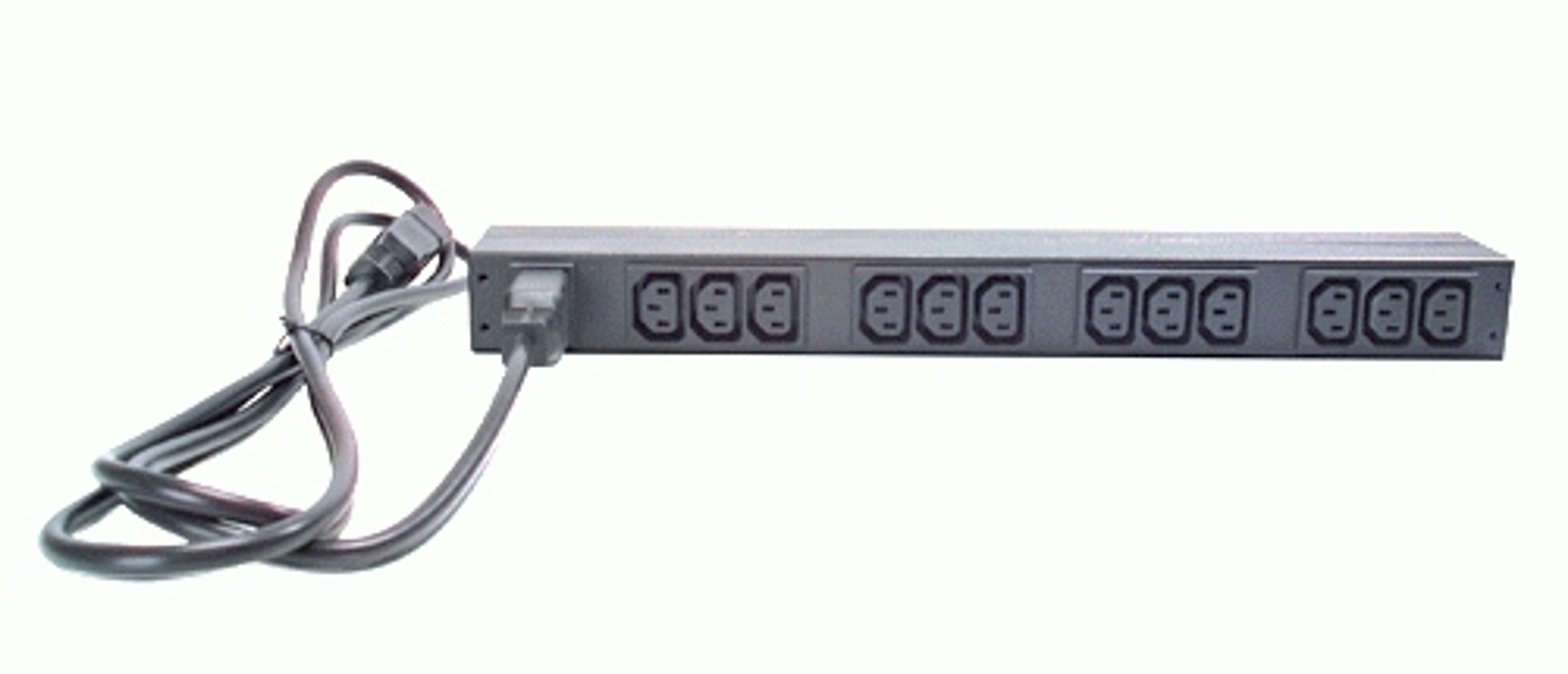

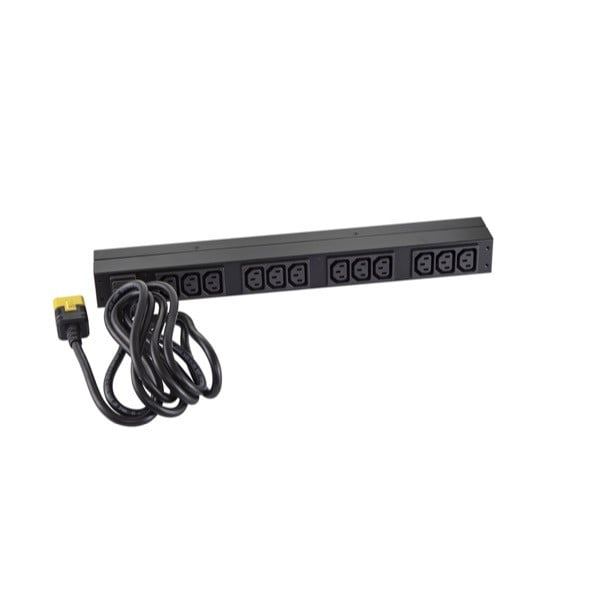

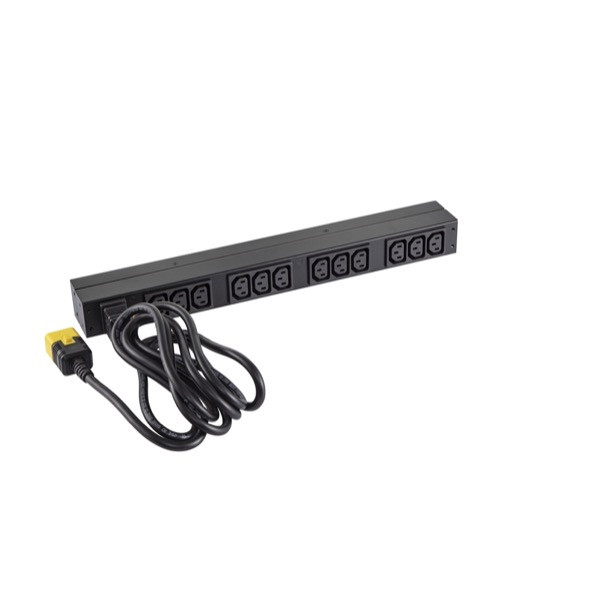

APC Basic Rack 3.68kVA PDU - 12 x IEC 320-C13 - 3.68kVA - 1U Rack-mountable

Basic Rack 3.68kVA PDU which allow users to distribute power outlets to rack-mount equipment. APC now offers Basic Rack PDUs that mount veritcally, without tools in the rear channel of a NetShelter VX.

  • PDU allows power to be more efficiently distributed and controlled
  • With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
  • IEC 60320 C20 plug/connector type for reliable, productive connectivity and optimal power output
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • 230 V input voltage for maximum feasibility and added productivity
  • 208 V AC output voltage for optimal performance with maximum feasibility


Additional Warranty Information 2 years repair or replace
Parts Warranty/Labor 2 Year
  2 Year
Technical Information
Plug/Connector Type IEC 60320 C20
Receptacle Type IEC 60320 C13
PDU Type Basic
Receptacle Detail 12 x IEC 60320 C13
Power Description
Input Voltage 230 V
  230 V
Output Voltage 208 V AC
  208 V AC
Input Voltage Range 120 V AC - 240 V AC
  120 V AC - 240 V AC
Power Rating (VA) 3680 VA
General Information
Product Type PDU
Manufacturer Part Number AP9565
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Basic Rack 3.68kVA PDU
Product Line NetShelter
Product Series Basic
Brand Name APC by Schneider Electric
Physical Characteristics
Weight (Approximate) 5.51 lb
Mount Type Rack-mountable
Rack Height 1U
Cord Length 12.01 ft
Height 1.7"
Width 17.6"
Depth 2.2"
Product Color Black
Package Contents
  • Basic Rack 3.68kVA PDU
  • Installation guide
  • Rack mounting brackets
Certifications & Standards cUL Listed|UL Listed
Environmentally Friendly Yes
Environmental Certification WEEE
Green Premium Yes
Optimized Energy Efficiency Yes
Product Take Back Program Yes
REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759570&lang=en-us
EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759568&lang=en-us
Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_V1
End of Life Manual Availability https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_V1
REACH free of SVHC Yes
Lead Free Yes
