Description:

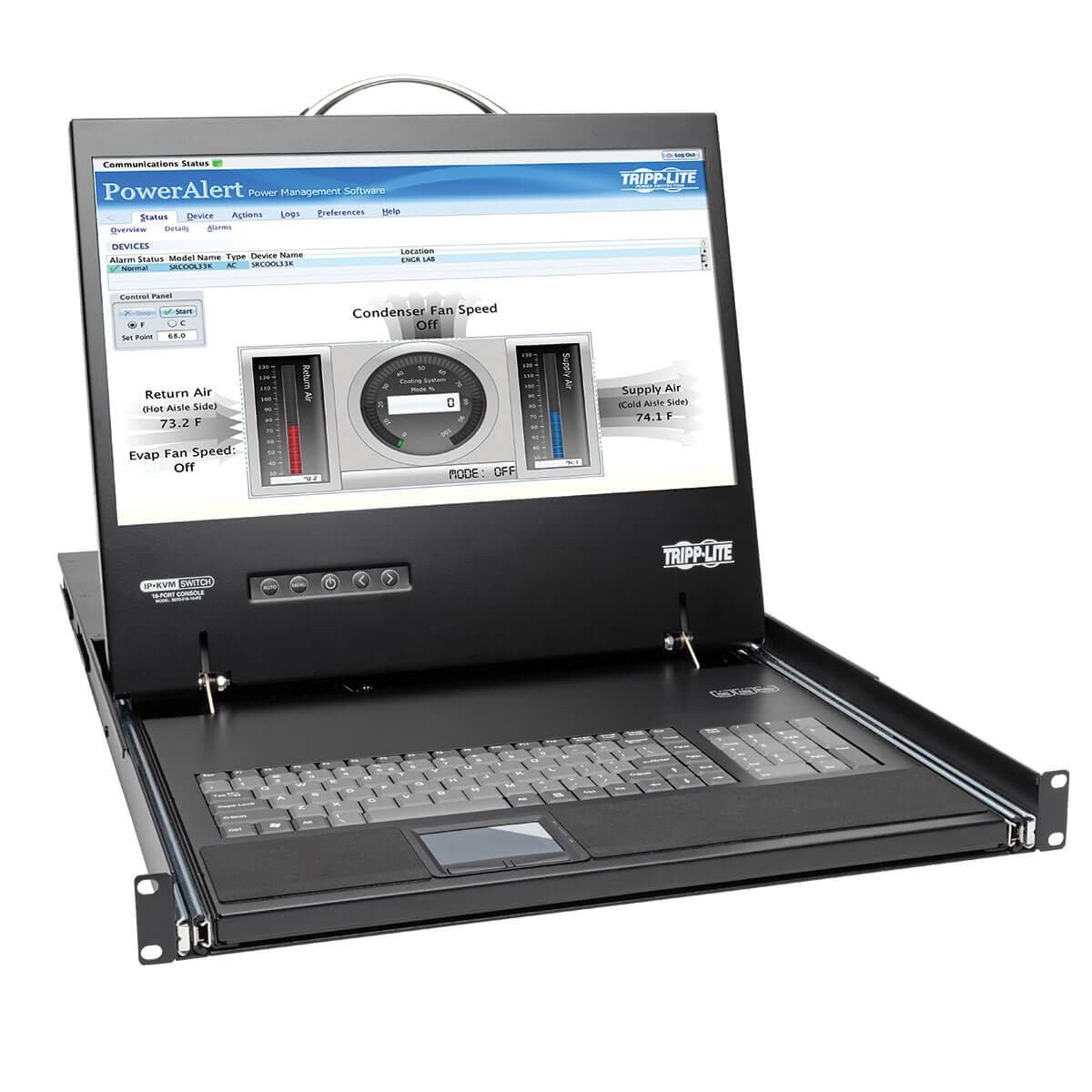

Tripp Lite's B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use. Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.
Features
Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad
- Mounts in 1U of space in EIA-standard 19 in. rack
- Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
- Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N
- Fast Virtual Media KVM system: U.S. Patent #9,417,720
- BIOS-level control of any server brand and model
IP Remote Access for Fewer Trips to the Server Room
- Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
- Non-browser client that can bypass browser-related Java security prompts is available
- Up to 3 users (1 local, 2 remote) can sign in simultaneously
- Up to 5 users can share a single session
- Supports both IPv4 and IPv6
- Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail
Simplifies IT Tasks
- Users can switch between ports via on-screen display, hotkeys or remote toolbar

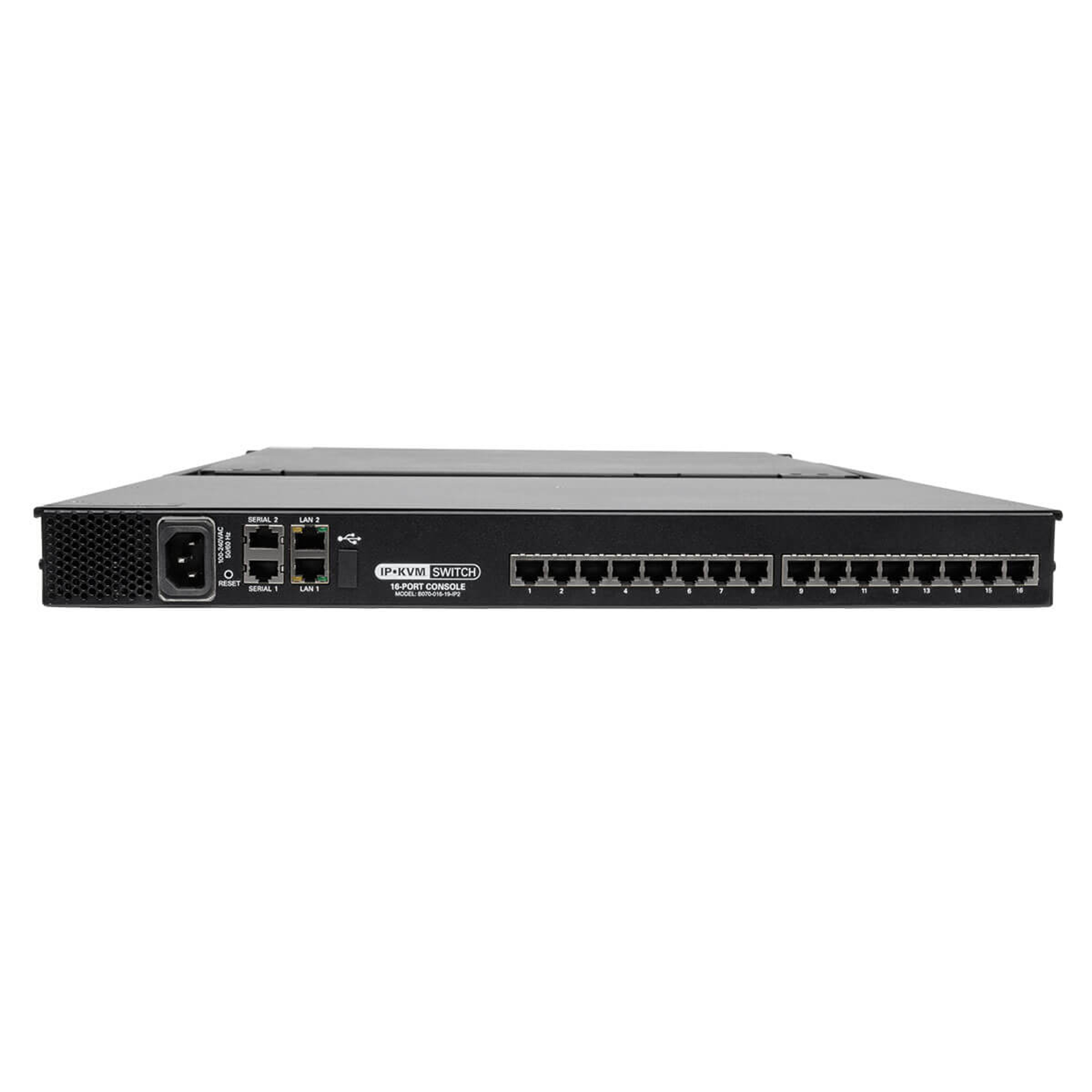

- Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
- Assign individual ports to an IP PDU port to power on/off the server connected to that port
- Virtual Media allows.iso file to be mounted to target server and accessed directly
- Supports RADIUS and LDAP/S authentication
- Log tracks events on your installation
Large 19 in. LCD Screen
- Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
- DDC emulation allows for optimal output to LCD
Advanced Security Features
- Multi-level password protection-create administrator accounts with full access and user accounts with limited access
- 128-bit AES and HTTPS encryption for highest security standards
- 19 in. LCD supports video resolutions up to 1366 x 768
- Cat5e/6 cabling connects computers/servers up to 100 ft. away
- Simultaneous support for 3 users-1 local, 2 remote
- Supports IPv4 and IPv6
- Mounts in 1U of space in EIA-standard 19 in. rack
Tripp Lite NetCommander 16-Port Cat5 KVM over IP Switch 19 in. LCD 2 Remote + 1 Local User 1U Rack-Mount - 3 Computer(s) - 19" LCD - 1366 x 768 - 2 x Network (RJ-45)PS/2 Port - 1 x USB - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - PC, Linux - Black - TAA Compliant
Tripp Lite's B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use. Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.
Features
Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad
- Mounts in 1U of space in EIA-standard 19 in. rack
- Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
- Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N
- Fast Virtual Media KVM system: U.S. Patent #9,417,720
- BIOS-level control of any server brand and model
IP Remote Access for Fewer Trips to the Server Room
- Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
- Non-browser client that can bypass browser-related Java security prompts is available
- Up to 3 users (1 local, 2 remote) can sign in simultaneously
- Up to 5 users can share a single session
- Supports both IPv4 and IPv6
- Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail
Simplifies IT Tasks
- Users can switch between ports via on-screen display, hotkeys or remote toolbar
- Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
- Assign individual ports to an IP PDU port to power on/off the server connected to that port
- Virtual Media allows.iso file to be mounted to target server and accessed directly
- Supports RADIUS and LDAP/S authentication
- Log tracks events on your installation
Large 19 in. LCD Screen
- Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
- DDC emulation allows for optimal output to LCD
Advanced Security Features
- Multi-level password protection-create administrator accounts with full access and user accounts with limited access
- 128-bit AES and HTTPS encryption for highest security standards
Features- 19 in. LCD supports video resolutions up to 1366 x 768
- Cat5e/6 cabling connects computers/servers up to 100 ft. away
- Simultaneous support for 3 users-1 local, 2 remote
- Supports IPv4 and IPv6
- Mounts in 1U of space in EIA-standard 19 in. rack
Specifications:

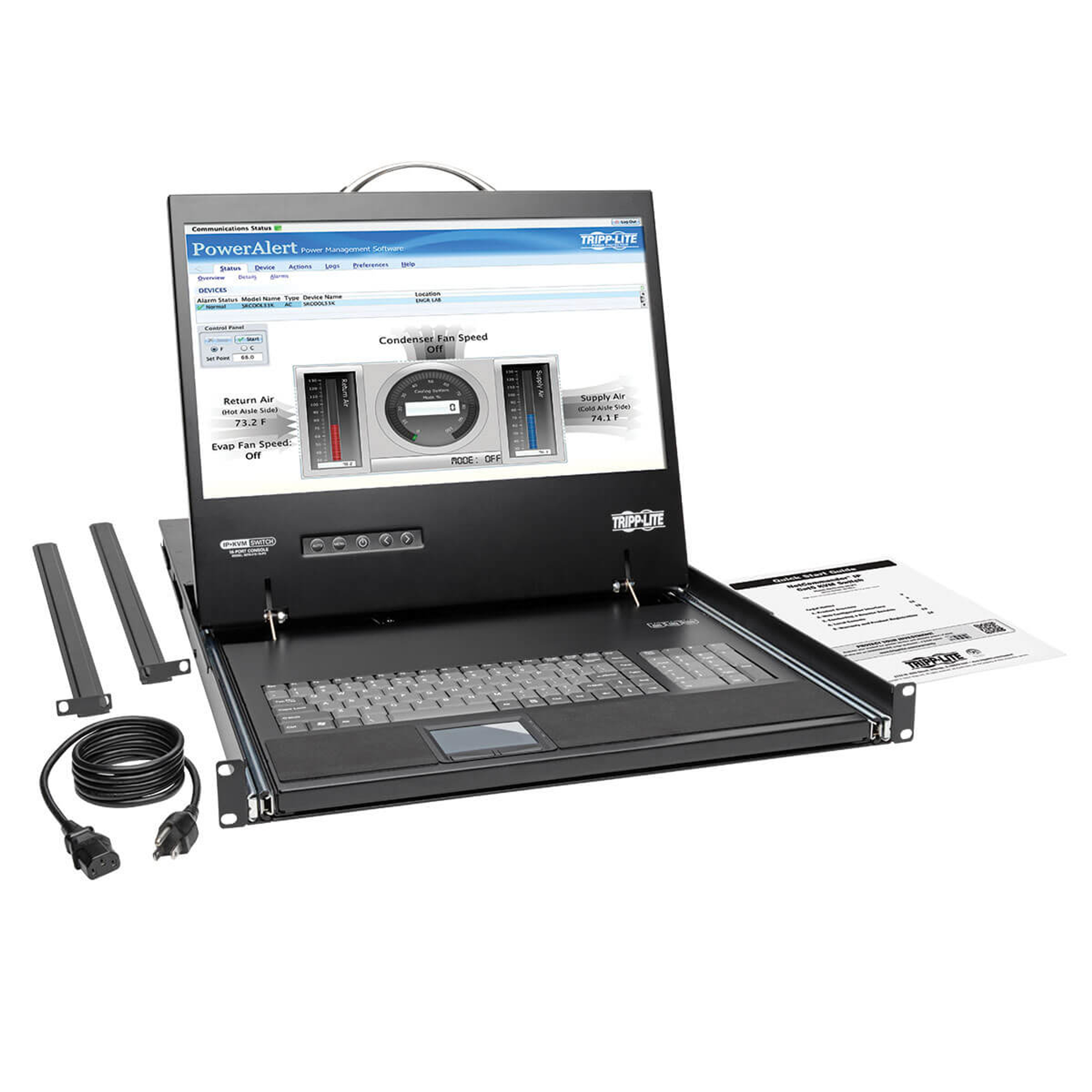

Input Devices Keyboard Yes Pointing Device Type TouchPad Display & Graphics Screen Resolution 1366 x 768 Screen Size 19" Display Screen Type LCD Power Description Input Voltage 120 V AC 230 V AC 120 V AC 230 V AC Technical Information KVM Switch Yes KVM Technology Digital Number of Computers Supported 3 Device Type LCD Rack Console Interfaces/Ports USB Yes Number of Network (RJ-45) Ports 2 Network (RJ-45) Yes Number of USB Ports 1 PS/2 Port Yes Physical Characteristics Weight (Approximate) 28.46 lb Height 4.3" Width 47.7" Depth 69.2" Product Color Black Miscellaneous Package Contents - B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
- C13 to NEMA 5-15P Power Cord, 6 ft.
- Rack-Mounting Hardware
- Quick Start Guide
Platform Supported Linux PC Certifications & Standards - UL 60950-1 (USA)
- CAN/CSA (Canada)
- FCC Part 15 Class A
- CE
- IEC 60950-1
Country of Origin Taiwan Environmentally Friendly Yes TAA Compliant Yes General Information Product Type LCD Rack Console Manufacturer Part Number B070-016-19-IP2 Manufacturer Website Address https://tripplite.eaton.com/ Manufacturer Tripp Lite by Eaton Product Model B070-016-19-IP2 Product Name B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch Product Line NetCommander Brand Name Tripp Lite
