Tripp Lite B064-008-01-IPG KVM Switch - Control 8 Computers/Servers

Tripp Lite

Regular Price $2,250.00
Discount Price: $1,253.00
UPC:
37332236326
MFG#:
B064-008-01-IPG
Product Category:
KVM Switches
Manuals Brochures and Guides:
Adding to cart… The item has been added

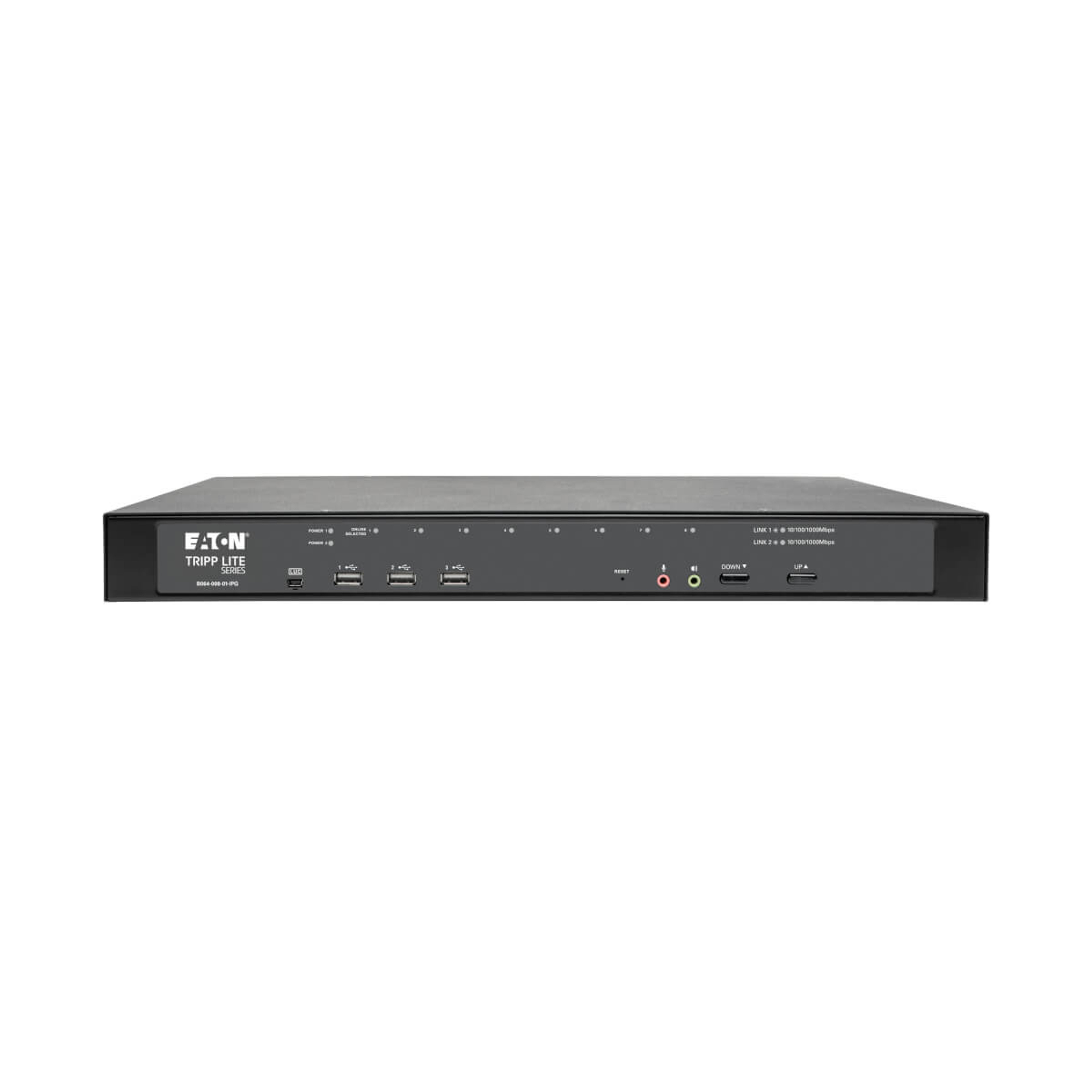

Tripp Lite B064-008-01-IPG KVM Switch

Control Up to 8 Computers or Servers from Anywhere
The Tripp Lite NetDirector® Cat5 KVM switch allows you to manage up to eight computers and servers from a single monitor, USB keyboard, and mouse. With dual redundant power supplies, you can ensure 24/7 reliability, even in the event of a power supply failure.

Comprehensive Network Management
This KVM switch installs in just 1U of rack space and requires no server-resident software, ensuring optimal server performance. It supports all major operating systems and web browsers, making it a versatile solution for any IT environment.

Flexible Access Options
With built-in IP capability, two users can access the network simultaneously—one local and one remote. The switch also features a dedicated Laptop USB Console (LUC) port for easy console operation.

High-Resolution Display
Enjoy high-resolution video up to 1920 x 1200 with multi-language support on the advanced on-screen display (OSD). The OSD includes management tools such as custom port labeling and auto-scanning.

Enhanced Security Features
Protect your connections with three levels of password protection and advanced encryption technologies, ensuring secure access to your servers and computers.

Energy-Efficient Operation

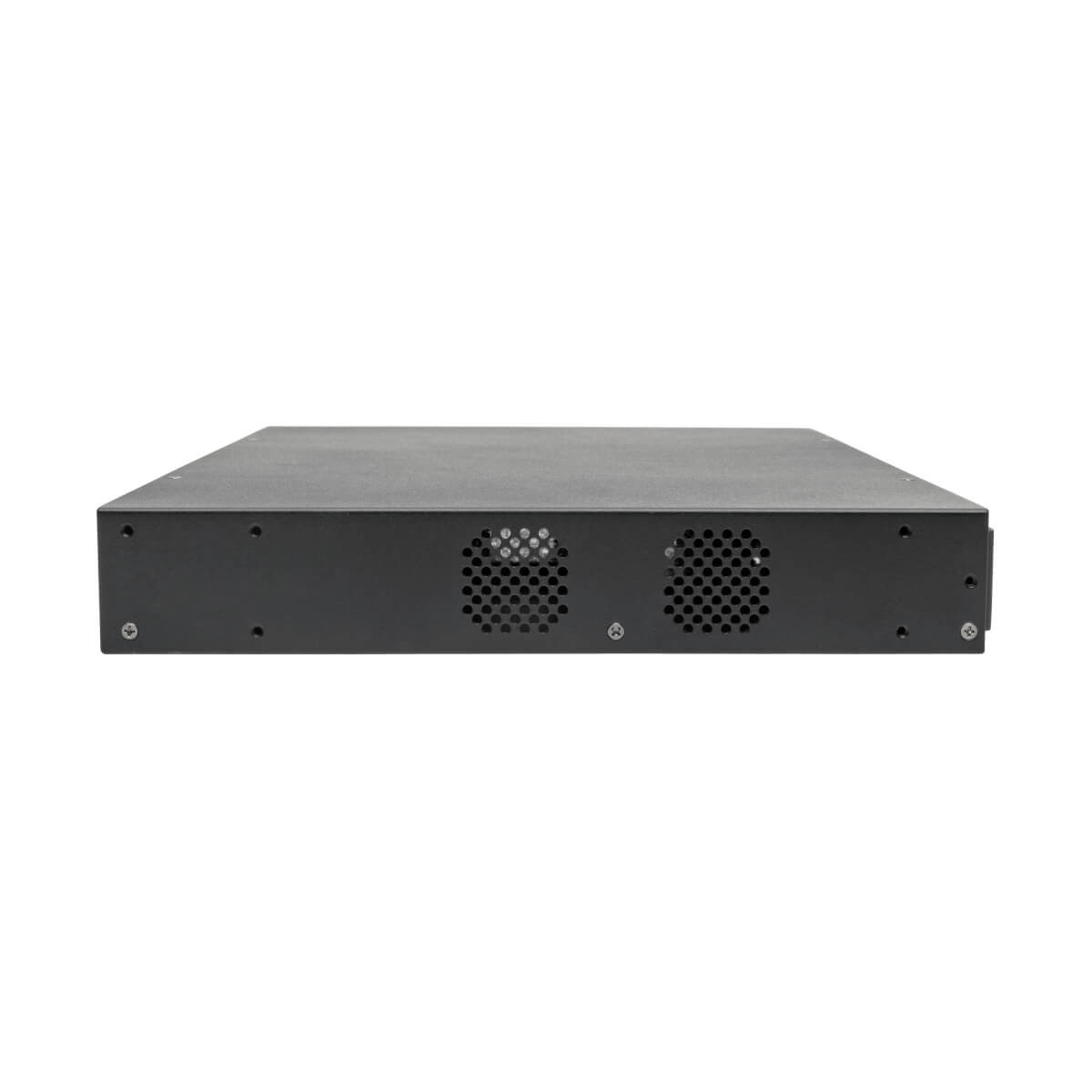

Temperature sensors adjust fan speed to optimize cooling and prolong the lifespan of the KVM switch.

Free Management Software
Included NetDirector-AXS management software allows for easy remote access and control of KVM settings.

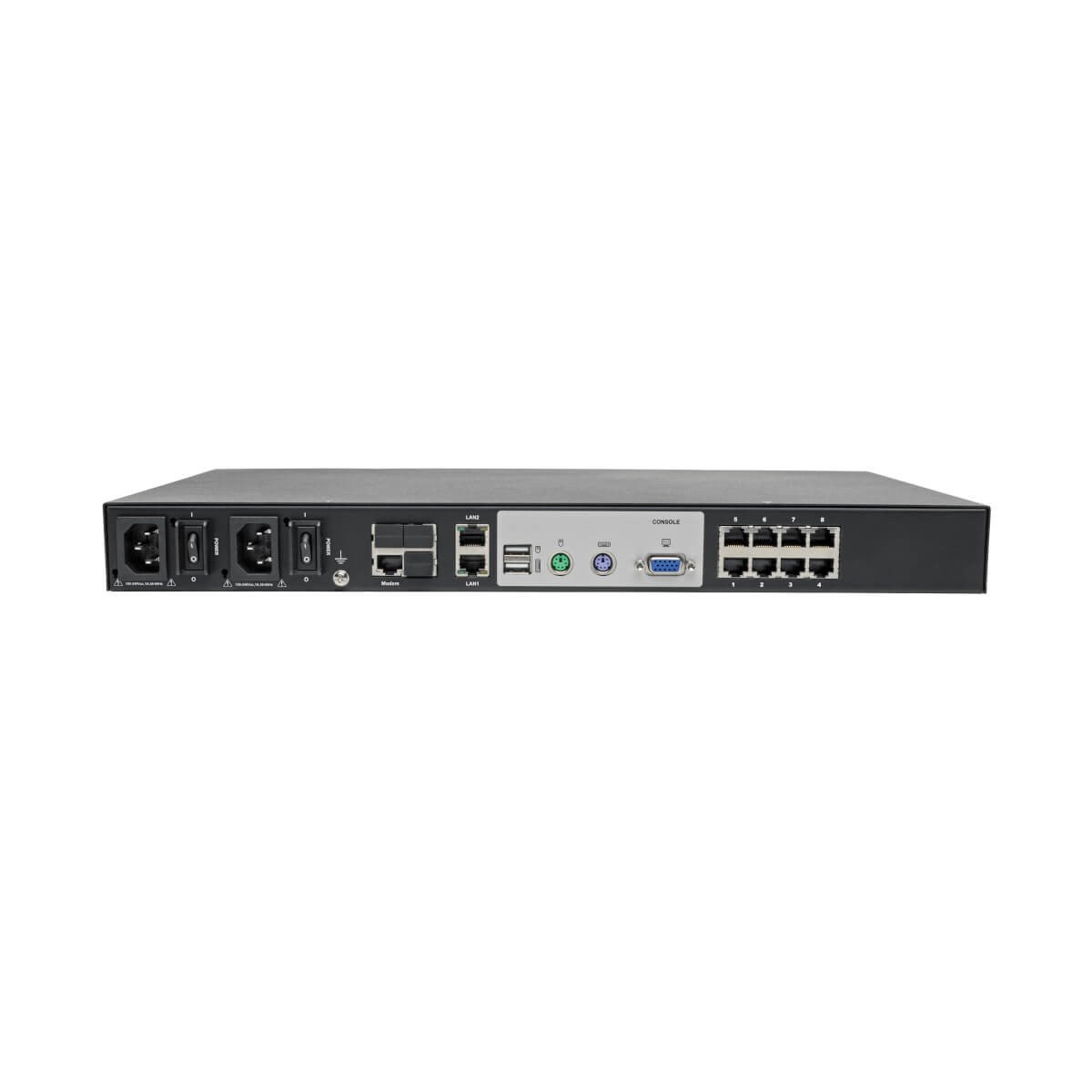

Ports & interfaces

Number of computers controlled8
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
VGA (D-Sub) ports quantity8
Console portsPS/2, USB A, VGA (D-Sub)
USB connector typeMini-USB B, USB Type-A
Audio connections✓

Network

Ethernet LAN✓
Ethernet LAN (RJ-45) ports19

Performance

HD typeFull HD+
Maximum resolution1920 x 1200 pixels
Video bandwidth60 Hz
Automatic switching✓
Scan interval1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
Auto scan delay (min)1 s
Auto scan delay (max)255 s
Plug and Play✓
Number of users2 user(s)
Maximum operating distance1968.5" (50 m)

Design

Rack mounting✓
Product colorBlack
Housing materialMetal
Wired remote switch✓
LED indicators✓
Push button✓
CertificationFCC, REACH

Display

Built-in displayNo
On Screen Display (OSD)✓

Power

Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1 A

Sustainability

Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%

Weight & dimensions

Width17.5" (443.5 mm)
Depth10.4" (264.7 mm)
Height1.72" (43.7 mm)
Weight7.76 lbs (3.52 kg)

Packaging data

Package width21.1" (534.9 mm)
Package depth5.51" (140 mm)
Package height13.2" (335 mm)
Package weight11.2 lbs (5.1 kg)

Logistics data

Harmonized System (HS) code8471.80.1000
Master (outer) case width21.1" (534.9 mm)
Master (outer) case length5.51" (140 mm)
Master (outer) case height13.2" (335 mm)
Master (outer) case weight11.2 lbs (5.1 kg)
Quantity per master (outer) case1 pc(s)
Country of originTaiwan
