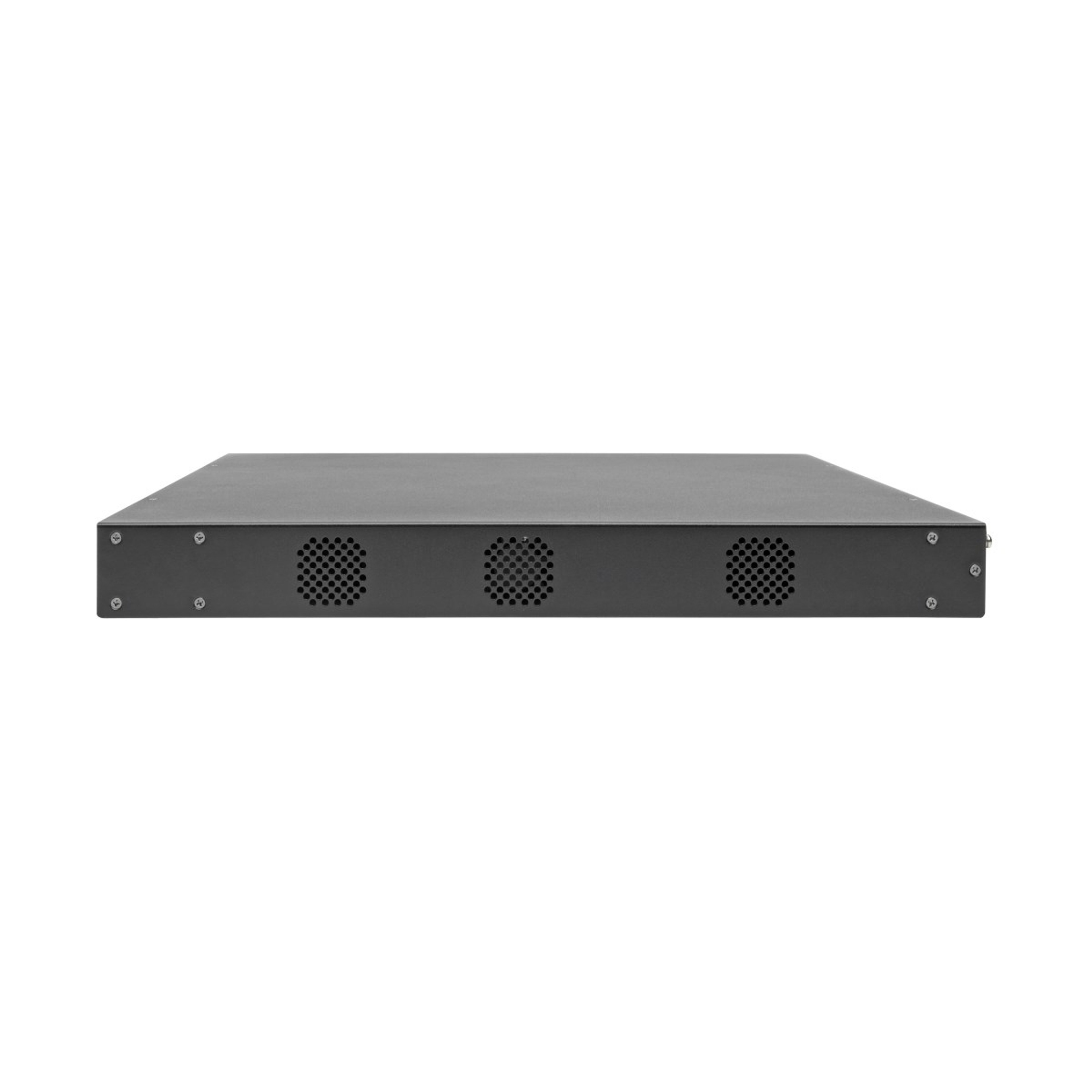

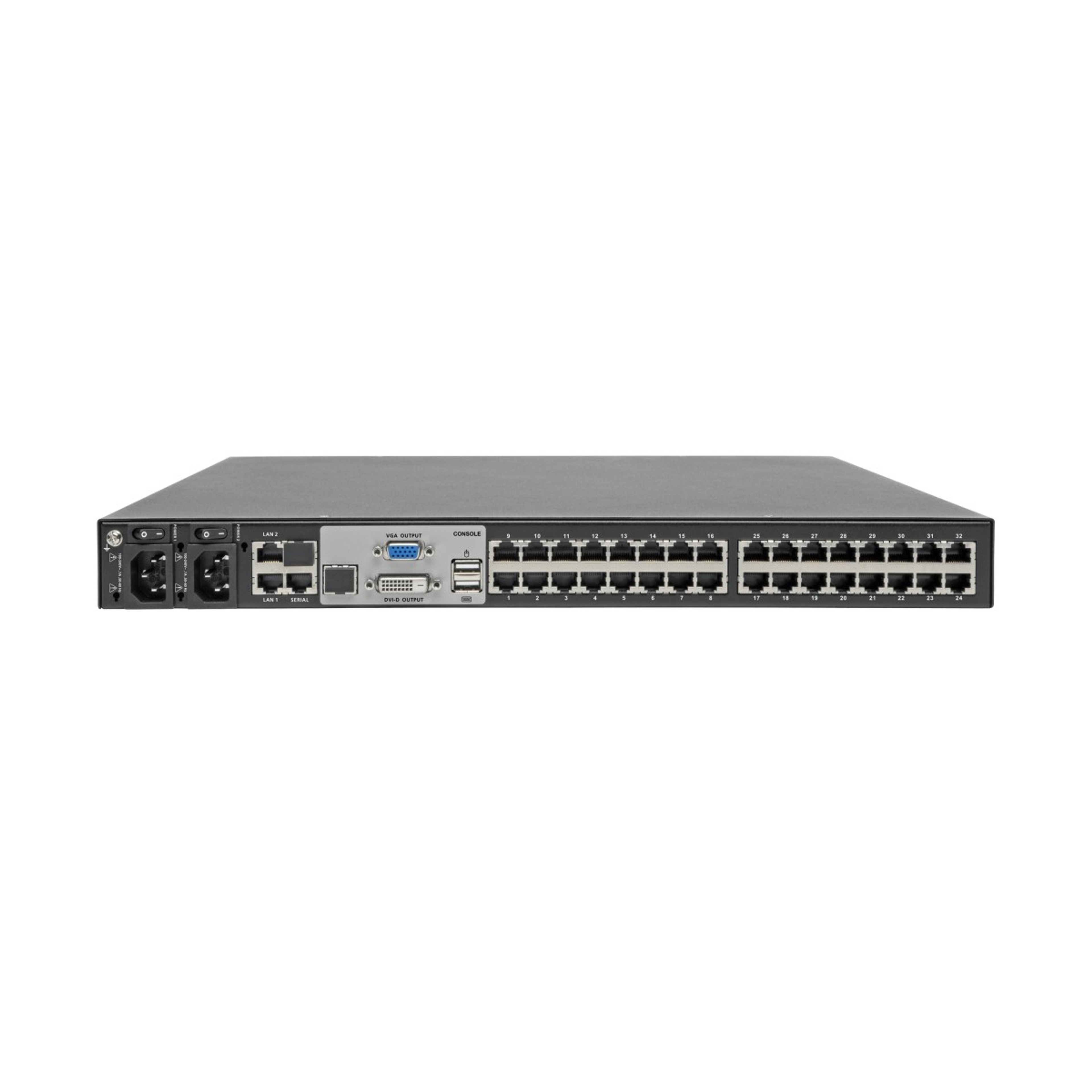

Tripp Lite B064-032-01-IPG KVM Switch
Control Up to 32 Computers or Servers from Anywhere
The Tripp Lite NetDirector® Cat5 KVM switch allows BIOS-level access to multiple computers and servers, making it ideal for complex IT environments. With the ability to control up to 32 devices from a single monitor, USB keyboard, and mouse, this KVM switch ensures seamless management of your IT infrastructure.
- Dual Redundant Power Supplies: Ensures continuous operation even if one power supply fails.
- Easy Console Operation: A dedicated Laptop USB Console (LUC) port allows for direct laptop connection.
- Comprehensive Network Management: Installs in 1U of rack space without requiring server-resident software.
- Multi-User Access: Supports up to two users (one local, one remote) for simultaneous control.
- High-Resolution OSD: Offers video up to 1920 x 1200 with multi-language support.
- Enhanced Security: Features three levels of password protection and advanced encryption technologies.
- Virtual Media Capability: Allows remote access to storage media for file transfers and software installations.
- Energy-Efficient Operation: Temperature sensors optimize fan speed for prolonged lifespan.
- Free Management Software: Includes NetDirector-AXS software for easy remote management.
- TAA-Compliant: Eligible for GSA Schedule purchases.
Ports & interfaces
Number of computers controlled32
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
VGA (D-Sub) ports quantity16
Console portsDVI-D, PS/2, USB A, VGA (D-Sub)
USB connector typeMini-USB B, USB Type-A
Serial port typeDE-9 (DB-9)
Audio connections✓
Network
Ethernet LAN✓
Ethernet LAN (RJ-45) ports35
Performance
HD typeFull HD+
Maximum resolution1920 x 1200 pixels
Video bandwidth60 Hz
Automatic switching✓
Scan interval1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
Auto scan delay (min)1 s
Auto scan delay (max)255 s
Number of users2 user(s)
Maximum operating distance1968.5" (50 m)
Design
Rack mounting✓
Product colorBlack
Housing materialMetal
Wired remote switch✓
LED indicators✓
Push button✓
CertificationFCC, REACH
Display
Built-in displayNo
On Screen Display (OSD)✓
Power
Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1 A
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%
Weight & dimensions
Width17.1" (433.3 mm)
Depth16.3" (413.3 mm)
Height1.72" (43.7 mm)
Weight12.2 lbs (5.53 kg)
Packaging data
Package width22.6" (575.1 mm)
Package depth19.8" (502.9 mm)
Package height5.12" (130 mm)
Package weight16.5 lbs (7.5 kg)
Package typeBox
Packaging content
Cables includedAC, LAN (RJ-45), PS/2, USB
Quick installation guide✓
Manual✓
Drivers included✓
Rack mount kit✓
Rubber feet✓
Logistics data
Harmonized System (HS) code8471.80.1000
Quantity per master (outer) case1 pc(s)
Country of originTaiwan
