Tripp Lite B064-032-02-IPG KVM Switch - 32-Port Cat5 IP KVM
The Tripp Lite B064-032-02-IPG KVM Switch is the ultimate solution for managing multiple computers remotely. With support for up to three simultaneous users (one local and two remote), this 32-port NetDirector® Cat5 IP KVM Switch allows you to control a combination of PS/2, USB, and Serial computers effortlessly.
- High Video Resolution: Enjoy stunning video quality with resolutions up to 1600 x 1200 at 60 Hz.
- Multi-Language OSD: The full-screen graphical OSD supports multiple languages including English, German, Russian, Japanese, and Chinese.
- Virtual Media Support: Access DVD/CD drives and flash drives remotely as if they were directly connected.
- Robust Security: Compliant with FIPS 140-2 level 1 security standards, ensuring your data remains secure.
- Dual Power Supplies: Keep your operations running smoothly even if one power supply fails.
Constructed from heavy-duty steel, this KVM switch is built to last and features temperature sensors to control fan speed, ensuring optimal performance. With remote authentication support and easy console operation via a USB Mini-B port, the Tripp Lite KVM Switch is designed for efficiency and reliability.
Ports & interfaces
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
Network
Ethernet LAN (RJ-45) ports32
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Design
Rack mounting✓
Rack capacity1U
Product colorBlack
LED indicators✓
CertificationUL/cUL, FCC, CE, TAA, RoHS
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width17.1" (433.3 mm)
Depth16.3" (413.3 mm)
Height1.72" (43.7 mm)
Weight12.1 lbs (5.49 kg)
Packaging data
Package width20.2" (513.1 mm)
Package depth22.6" (574 mm)
Package height5.2" (132.1 mm)
Package weight16.5 lbs (7.48 kg)

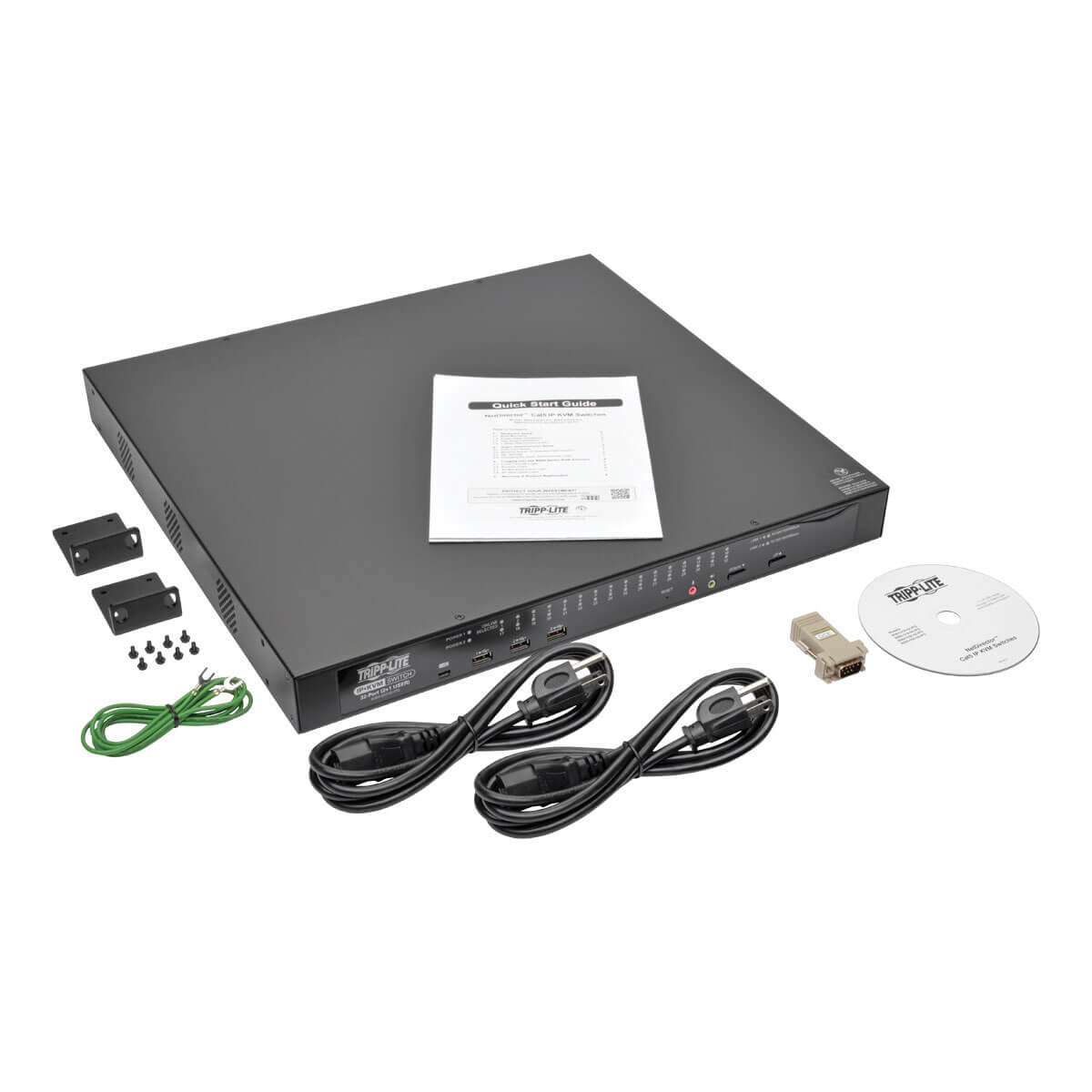

Packaging content
Cables includedPS/2, USB
Other features
Data link protocolsTCP/IP, HTTP, DNS, DHCP, UDP, ARP
Connectivity technologyWired
Ports quantity32
Weight (imperial)17 lbs
Logistics data
Harmonized System (HS) code8471.80.1000
Quantity per master (outer) case1 pc(s)
Country of originTaiwan
