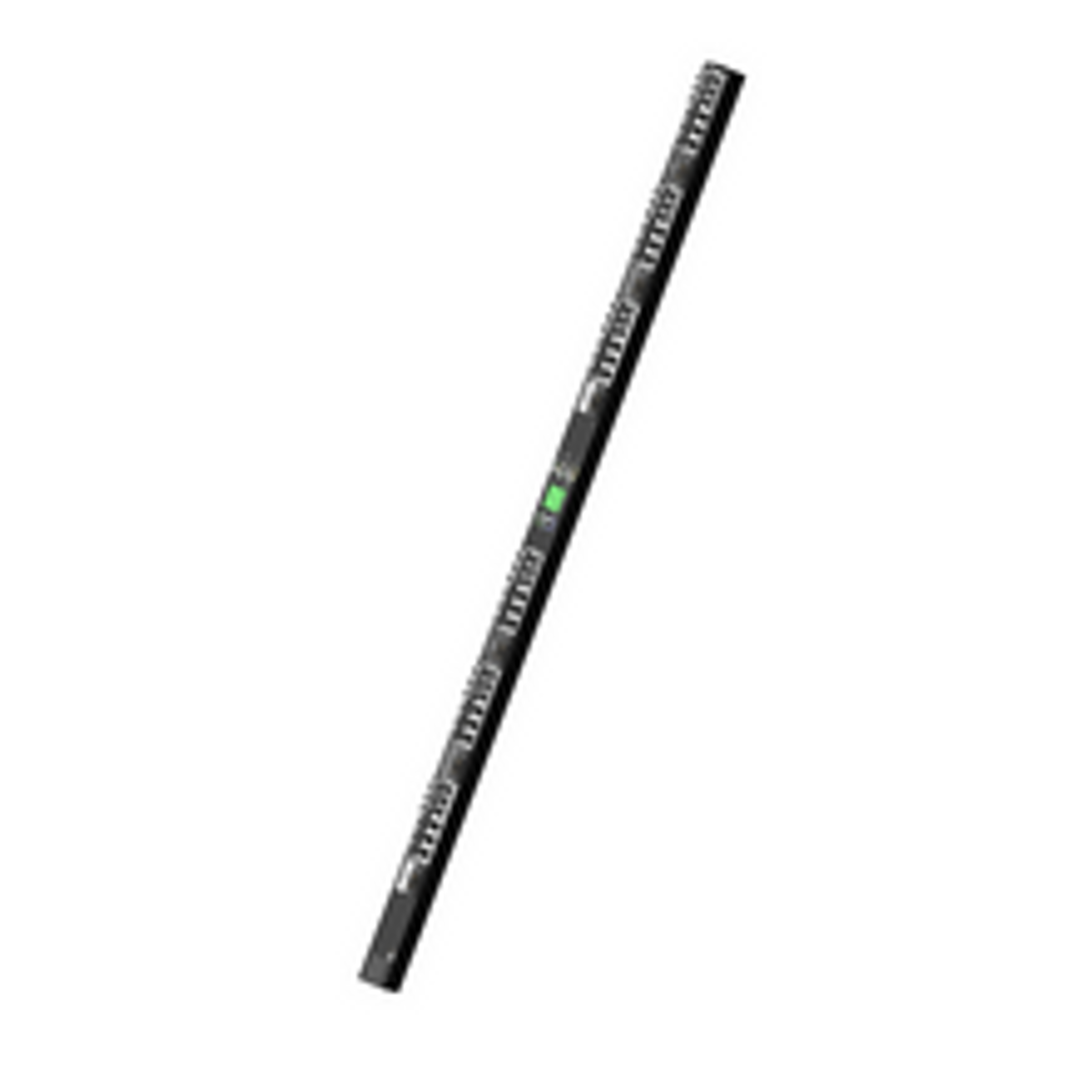

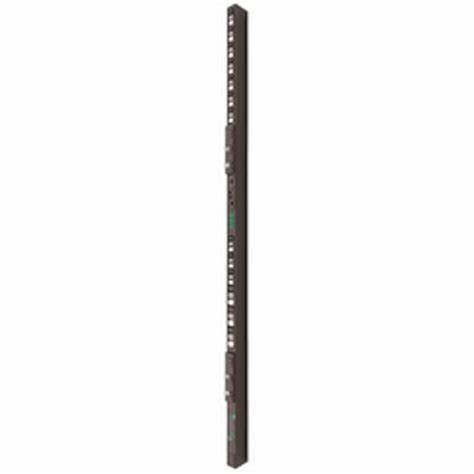

Server Technology C3S36RL-DQJE2MT2 Smart PRO3X 0U

Server Technology C3S36RL-DQJE2MT2 Smart PRO3X 0U

Server Technology

Regular Price $2,488.00
Discount Price: $2,115.00
Shipping:
Free Shipping
Product Overview:

Smart PRO3X with PIPS, 0U, 36 RamLock HDOT Outlets (18 C13 + 18 Cx), Color Matrix LCD, 208V/3-Phase Delta (L-L)/60A, Input: 208V Delta 60A IEC 60309 3P+G 9Hr

MFG#:
C3S36RL-DQJE2MT2
Product Category:
PDU
Platform:
PRO3X
Metering and Switching:
Smart
Total Outlets:
36
Plug Type:
208V Delta 60A IEC 60309 3P+G 9Hr
Input Phase:
3 Phase Delta (L-L)
Power Capacity:
17.3 kW
Input Voltage:
208 V
Input Monitoring:
PIPS
Input Current:
60
Input Current Rating:
48
Form Factor:
0U
Rack Mounting Style:
Vertical
Branch Monitoring:
Current (A)
Alt Phase:
FALSE
Adding to cart… The item has been added

Key Features

  •
    HDOT CX
    Cx is the future ready UL tested hybrid of the C13 and C19 outlets accommodating both C20 and C14 plugs.
  •
    NETWORK MONITORING
    Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
  •
    MULTI PRIMARY LINKING
    Multi-Linking Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
  •
    COLOR MATRIX LCD DISPLAY
    Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
  •
    HOT-SWAP CONTROLLER
    100% Field Replaceable while hot, no risk of short circuits, finger safe replacement in the unlikely event of an outage.
  •
    RAMLOCK LOCKING OUTLETS
    Receptacles have high retention and are compatible with P-Lock type power cords.
  •
    ENVIRONMENTAL MONITORING
    PRO3X units support a maximum of 12 daisy-chained Raritan DX2 sensor packages. Receive SNMP-based alerts and e-mail notifications
  •
    PER-INLET POWER SENSING
    Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
  • BRANCH CIRCUIT PROTECTION
    This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
  •
    HIGH TEMPERATURE RATING
    This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
  •
    FLEXIBLE MOUNTING
    Includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details).

Description

This all new Server Technology PRO3X Smart PDU features RamLock HDOT outlets running with the Xerus Technology Platform's state of the art network interface module. Server Technology's unique RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring and supports Legrand plug-and-play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.

Inputs

Input Voltage (V): 208
Input Plug: 208V Delta 60A IEC 60309 3P+G 9Hr
Input Current (A): 60
Input Current Rated (A): 48
Input Power Capacity (kW): 17.3

Outputs

Connector Rating
(18) x IEC 60320/C13 North American Rating: ≤ 12A @208V L-L (15A Peak)
(18) x Cx North American Rating: ≤ 16A @208V L-L (20A Peak)

Branch Circuit Protection

UL489 Compliant 2-pole, 20A trip circuit breakers, six (6) branch, rating: ≤ 16A, 10 kAIC Interrupt Rating

Physical

Dimensions: 70.0in tall x 2.2in wide x 2.5in deep [1778mm x 56mm x 64mm]

Environmental

Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations

Communications & Security

Dual Ethernet, Two (2) 10/100/1000 Mbps (Cat5e/6 connector), Optional WiFi (802.11 a/b/g/n)
One (1) Sensor port (RJ45), One (1) Aux port (6P6C), One (1) Console/Modem port (RJ45), One (1) USB-A and One (1) USB-B
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP

Certifications

North American:
Safety (TUVR certified, cTUVus mark)
  • UL Std. 60950-1, 62368-1
  • CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1
EMC
  • FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
  • CAN ICES-003, Class A

Measurement Accuracy

Input Measurement Accuracy:
Input Measurement Accuracy
LED Current = ± 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution
GUI Current = ± 1% at 0.01 amp resolution (above 0.5 amp)
Voltage = ± 1% at 0.1 volt resolution (nominal ± 10%)
Active Power = ± 1% at 1 watt resolution
Apparent Power = ± 1% at 1 volt-amp resolution
Power Factor = ± 3% at 0.01 resolution
Crest Factor = ± 10% at 0.1 resolution
Energy = ± 1% at 0.1 kilowatt-hour resolution
!
