Description:

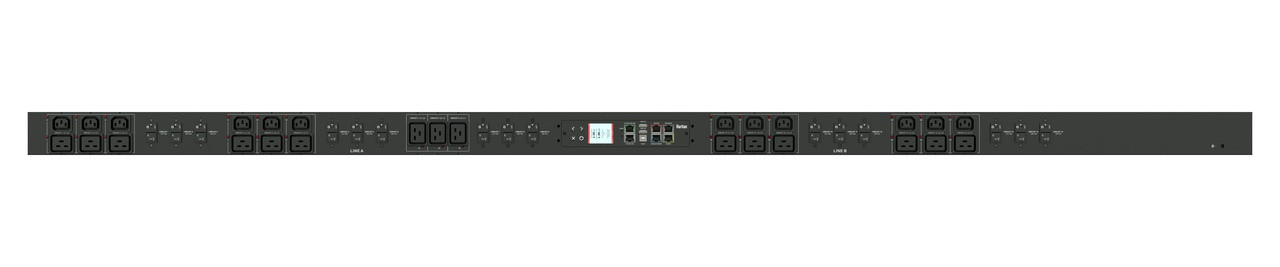

The Server Technology® PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a
per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of
current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with
temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through
SNMP. The PRO1 Smart “Primary”PDU can be connected to as many as three (with optional module) PRO1 S
Input s
Input Voltage (V): 208
Frequency 50/60 Hz
Input Plug: IEC C20 200-240V Inlet
Input Current (A): 20
Input Current Rated (A): 16
Input Power Capacity (kW): 3.3
Requires PTCORD-L1, -L2, -L3, or –L4
Output s
Connect or Rating
(24) x IEC 60320/C13 North AmericanRating: ≤ 12A @208V L-L (15A Peak)
Global Rating: ≤ 10A @230V L-L
(6) x IEC 60320/C19 North AmericanRating: ≤ 16A @208V L-L (20A Peak)
Global Rating: ≤ 16A @230V L-L
Branch Ci r cuit Protecti on
UL 489, CSA C22.2 No. 5 & IEC/EN60947-2 Compliant 2-pole, 20A trip circuit breakers, two (2) branch, rating: ≤ 16A, 5 kAIC Interrupt Rating
Physi cal
Dimensions: 60.0in tall x 1.75in wide x 2.25in deep [1524mmx 45mmx 58mm]
Envi ronmental
Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RHto 90%RHnon-condensing | 6,500ft/2kmelevation
St orage Environment: -40°F to 185°F / -40°C to 85°C | 8%RHto 90%RHnon-condensing | 50,000ft/15kmelevation
Quiescent/ Unloaded Power Draw: < 10W for all configurations
Communi cati ons & Secur it y
10/100 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6,
LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
