Description:

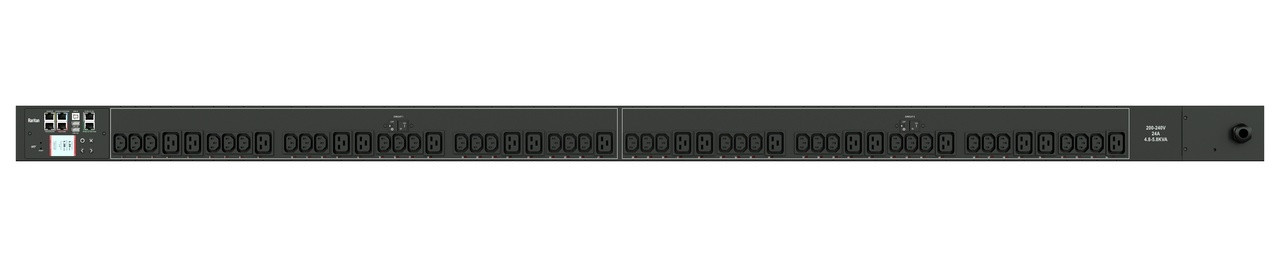

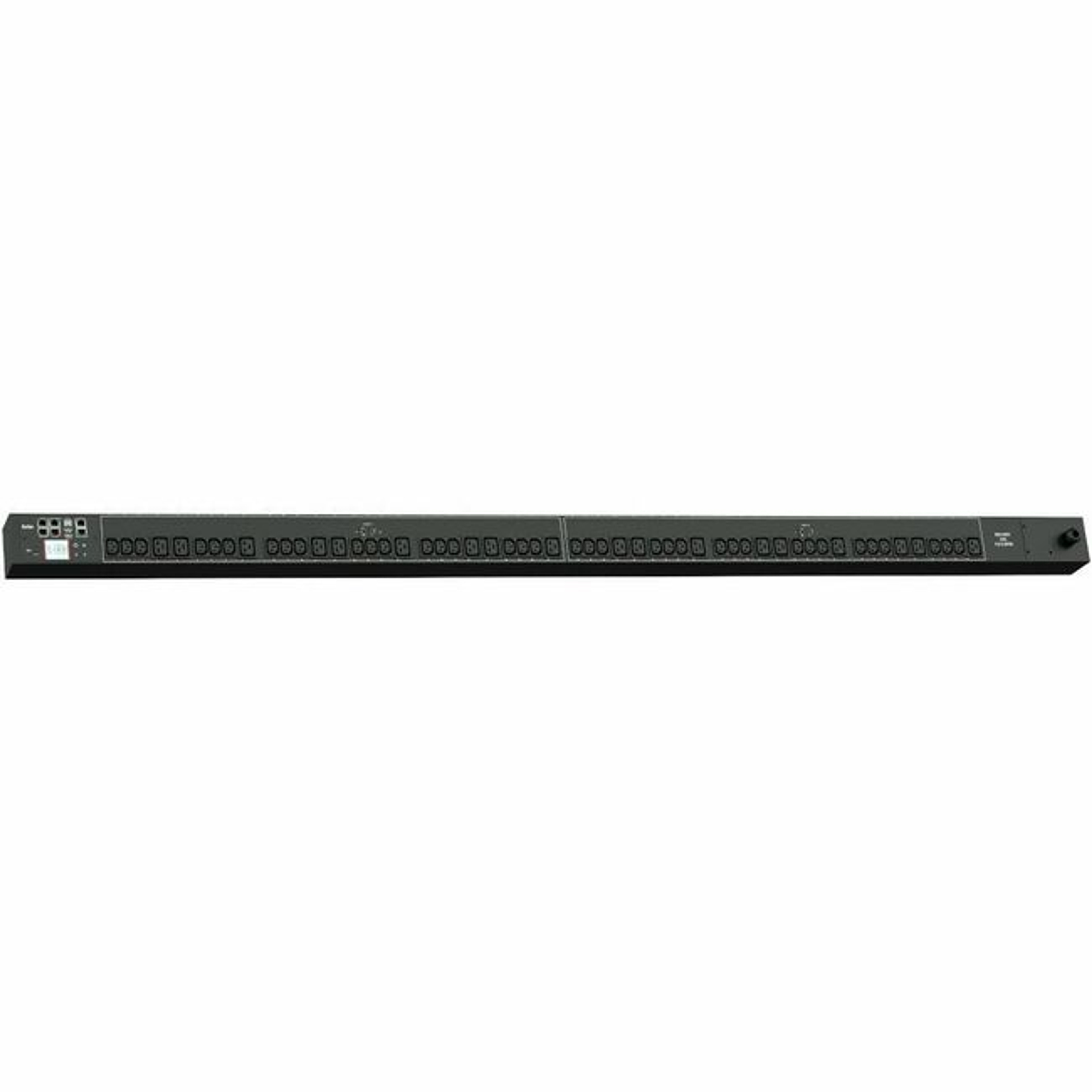

Raritan PX3-5553-N1Q1 54-Outlets PDU - Metered - NEMA L6-30P (2P3W) - 36 x IEC 60320 C13, 18 x IEC 60320 C19 - 230 V AC - Rack-mountable
Features - PDU provides active metering enabling energy optimization and circuit protection
- Metered PDU offers reliable, rack-mount and multi-outlet power source
- Single Phase phase PDU for reliable performance with maximum productivity
- NEMA L6-30P (2P3W) plug/connector type for efficient connectivity and feasible power output
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- 230 V AC input voltage for optimal performance with maximum usability
- 230 V AC output voltage for optimal performance with maximum feasibility
Specifications:
| Management | | Management | - HTTP(s)
- SSH
- Telnet
- RS-232 (Serial)
- Power IQ
- SNMP version v2/v3
- SMTP
- JSON-RPC
- Modbus over TCP
| | Remote Outlet Switching | Yes | | Miscellaneous | | Environmentally Friendly | Yes | | Environmental Compliance | Restriction of Hazardous Substances (RoHS) | | Physical Characteristics | | Mount Type | Rack-mountable | | Height | 78.7" | | Width | 3.5" | | Depth | 3.1" | | Product Color | Black Powder Coat | | General Information | | Product Type | PDU | | Manufacturer Part Number | PX3-5553-N1Q1K3 | | Manufacturer Website Address | http://www.legrand.us | | Manufacturer | Legrand Group | | Product Model | PX3-5553-N1Q1 | | Product Name | PX3-5553-N1Q1 54-Outlets PDU | | Brand Name | Raritan | | Power Description | | Input Voltage | 230 V AC | | | 230 V AC | | Output Voltage | 230 V AC | | | 230 V AC | | Input Current | 30 A | | Input Voltage Range | 200 V AC - 240 V AC | | | 200 V AC - 240 V AC | | Output Voltage Range | 200 V AC - 240 V AC | | | 200 V AC - 240 V AC | | Power Rating (VA) | 5800 VA | | | Technical Information | | Protection Type | Overload Protection | | Plug/Connector Type | NEMA L6-30P (2P3W) | | Phase | Single Phase | | Receptacle Type | IEC 60320 C19 | | | IEC 60320 C13 | | PDU Type | Metered | | | Metered | | Environmental Sensors | Contact Closure | | | Air Flow | | | Differential Pressure | | | Water | | | Humidity | | | Temperature | | Receptacle Detail | 18 x IEC 60320 C19 | | | 36 x IEC 60320 C13 | |
