Description:

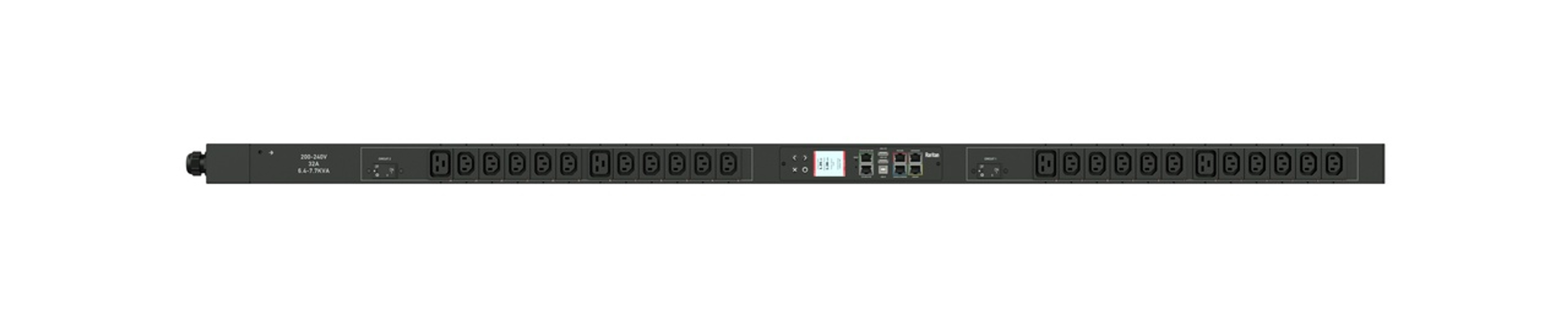

Raritan PX3-5493V-E2 24-Outlets PDU - Switched - IEC 60309 2P+E 6h 32A (2P3W) - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 0U - Rack-mountable - Rack
Features - A device fitted with multiple outputs for the distribution of electric power
- With a built-in digital current meter avoid potential overloads via switched PDUs
- Single Phase phase PDU for reliable performance with maximum productivity
- IEC 60309 2P+E 6h 32A (2P3W) plug/connector type for efficient connectivity and feasible power output
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- 230 V AC input voltage for optimal performance with maximum usability
- 230 V AC output voltage for optimal performance with maximum feasibility
Specifications:
| Management | | Management | - HTTP(s)
- SSH
- Telnet
- RS-232 (Serial)
- Power IQ
- SNMP version
- v2/v3
- SMTP
- JSON-RPC
- Modbus over TCP
| | Remote Outlet Switching | Yes | | Miscellaneous | | Environmentally Friendly | Yes | | Environmental Compliance | Restriction of Hazardous Substances (RoHS) | | General Information | | Product Type | PDU | | Manufacturer Part Number | PX35493VE2 | | Manufacturer Website Address | http://www.legrand.us | | Manufacturer | Legrand Group | | Product Model | PX3-5493V-E2 | | Product Name | PX3-5493V-E2 24-Outlets PDU | | Brand Name | Raritan | | Physical Characteristics | | Shipping Weight (Approximate) | 16.97 lb | | Form Factor | Rack | | Mount Type | Rack-mountable | | Rack Height | 0U | | Height | 60.6" | | Width | 2.1" | | Depth | 2.8" | | Product Color | Black Powder Coat | | | Power Description | | Input Voltage | 230 V AC | | | 230 V AC | | Output Voltage | 230 V AC | | | 230 V AC | | Input Current | 32 A | | Input Voltage Range | 200 V AC - 240 V AC | | | 200 V AC - 240 V AC | | Output Voltage Range | 200 V AC - 240 V AC | | | 200 V AC - 240 V AC | | Power Rating (VA) | 7700 VA | | Technical Information | | Protection Type | Overload Protection | | Plug/Connector Type | IEC 60309 2P+E 6h 32A (2P3W) | | Phase | Single Phase | | Receptacle Type | IEC 60320 C13 | | | IEC 60320 C19 | | PDU Type | Switched | | | Switched | | Locking Receptacles | IEC 60320 C19 | | | IEC 60320 C13 | | Receptacle Detail | 4 x IEC 60320 C19 | | | 20 x IEC 60320 C13 | |
