Chatsworth ZB15-DC21A-71 Vertical Exhaust Duct 34”H-60”H Black

Chatsworth

Regular Price $4,993.83
Discount Price: $4,195.00
Product Overview:

ZetaFrame Cabinet; 84.6"H x 23.6"W x 47.2"D (2149 mm x 600 mm x 1200 mm); 45U; Perf Front Door; Solid Rear Door

MFG#:
ZB15-DC21A-71
Product Category:
Cabinet Accessories
Adding to cart… The item has been added

Description

ZetaFrame™ Cabinet System Overview

  Speedy Deployment
  • Customer-specified, factory-assembled solution reduces component count, packaging and on-site assembly, saving time and delivery cost
  • Order a cabinet integrated with power, cable and thermal management preinstalled under a unique, project-specific part number
  • Easy attachment and positioning of accessories allow for faster deployment and maintenance
  • Optional shock pallet ensures safe delivery of racked ICT equipment
  Fast Selection and Customization – Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements.
  Future-Proof Strength – Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads
  Integrated Bonding – Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components
  Enhanced Cable Management – ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications


Integrated Airflow Management – Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling

Specifications

Height:
84.6" (2149 mm) 45U
Width:
23.6" (600 mm)
Depth:
47.2" (1200 mm)
Doors:
Perf Front Door/Solid Rear Door
Top Panel:

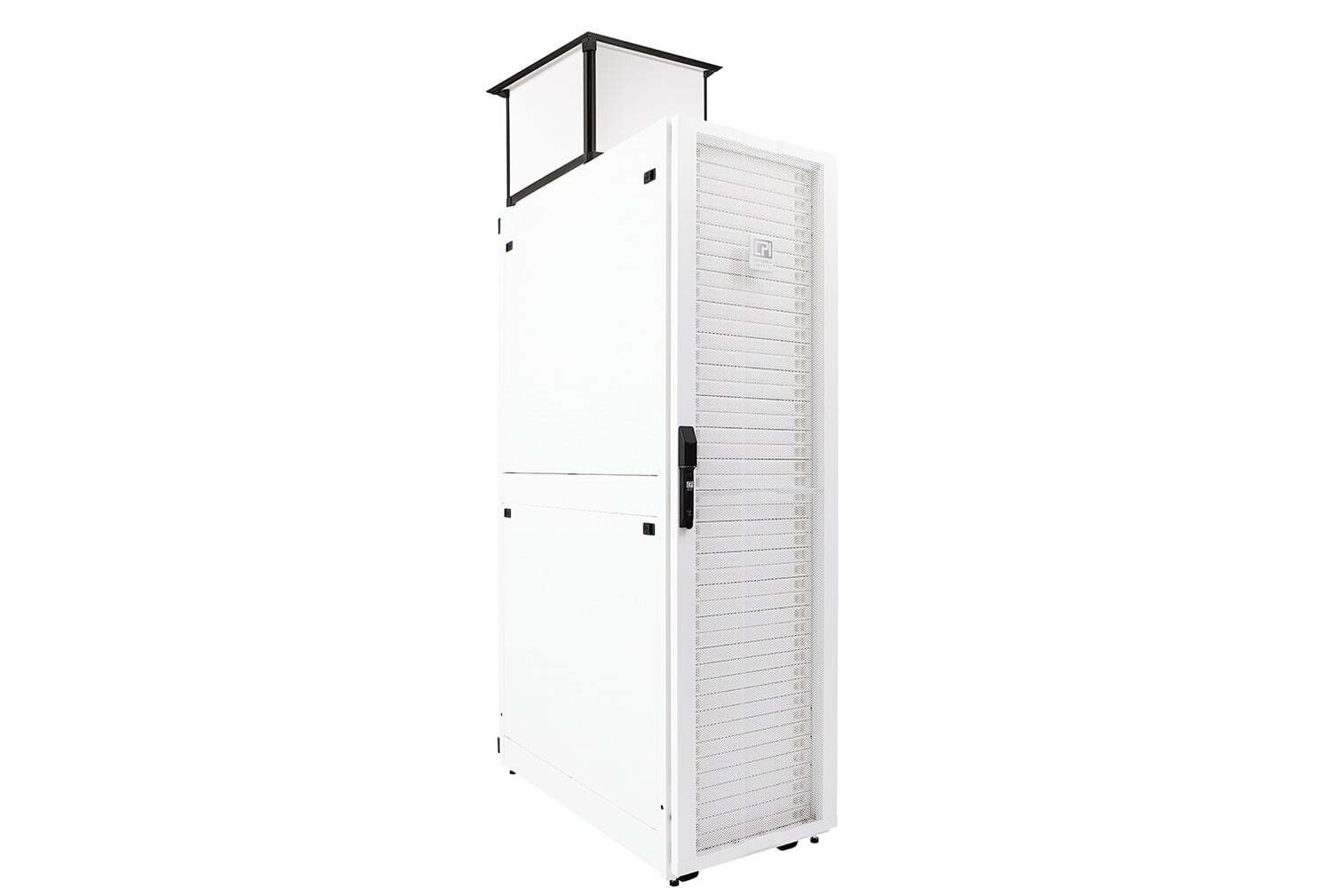

Vertical Exhaust Duct 34”H-60”H (863 mm – 1524 mm)
Side Panels:
Two Side Panels
Bottom Panel:
Bottom Panel
Thermal Management:
Air Dam ; Grommets To Seal Cable Openings
Color:
Black
Shipping:
Standard Pallet
