Description:

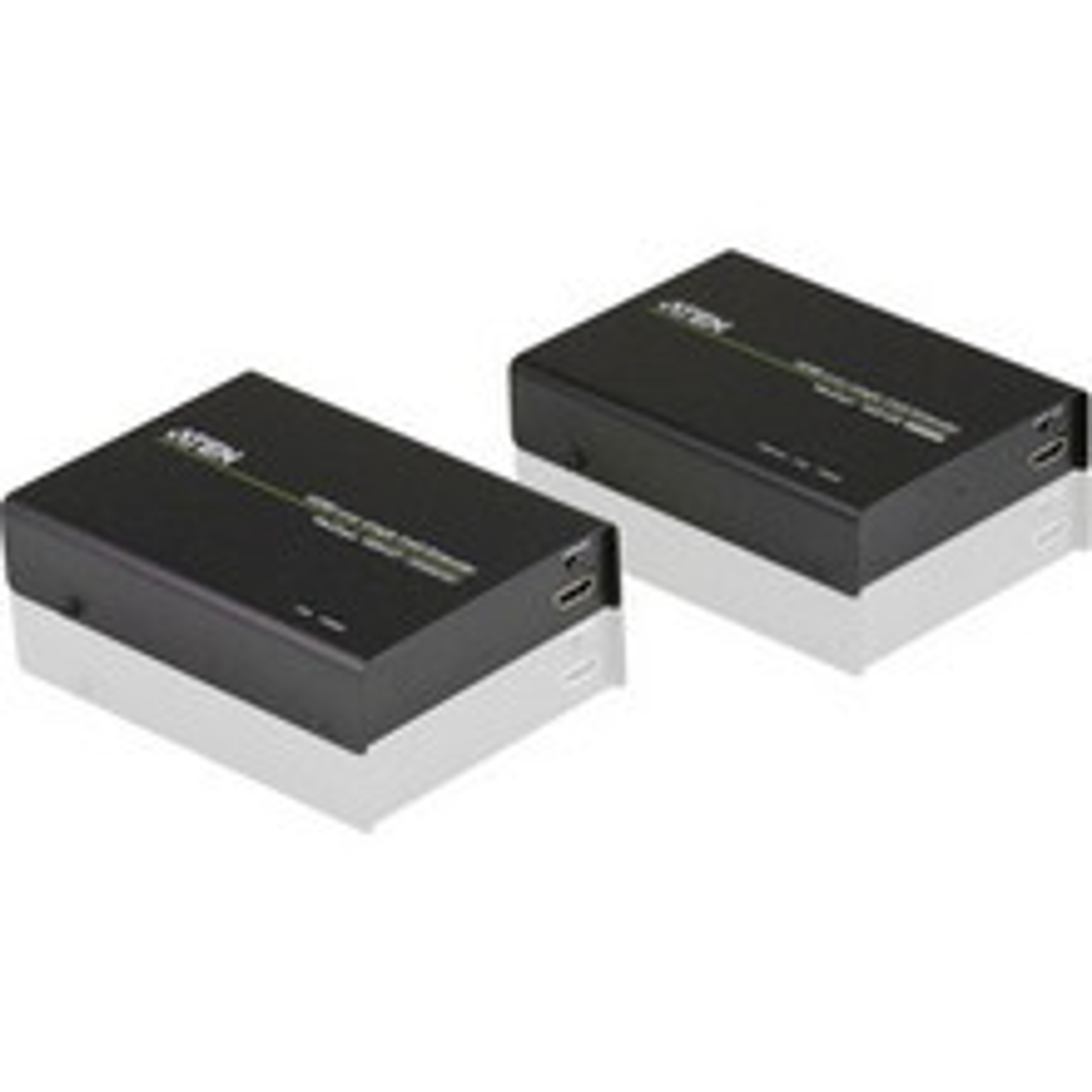

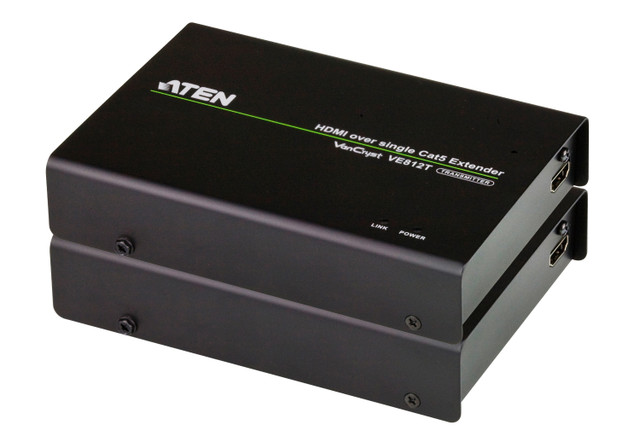

HDMI over Single Cat 5 Extender
The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.
The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display. The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Specifications:
| Product Type: |
Video Extender Transmitter |
| Connectivity Technology: |
Wired |
| Brand Name: |
ATEN |
| Maximum Operating Distance: |
328.08 ft |
| Number of Network (RJ-45) Ports: |
1 |
| Product Family: |
VanCryst |
| Number of HDMI Inputs: |
1 |
| Media Type Supported: |
Twisted Pair |
| Number of Input Devices Supported: |
1 |
| General Information |
|---|
| Product Type: |
Video Extender Transmitter |
| Manufacturer Part Number: |
VE812T |
| Manufacturer Website Address: |
http://www.aten-usa.com |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
VE812T |
| Product Name: |
VE812T HDMI Over Single Cat 5 Transmitter |
| Product Line: |
VanCryst |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Number of Network (RJ-45) Ports: |
1 |
| Network (RJ-45): |
Yes |
| Number of HDMI Inputs: |
1 |
| HDMI In: |
Yes |
| Media & Performance |
|---|
| Twisted Pair Cable Standard: |
Category 5e |
| Media Type Supported: |
Twisted Pair |
| Physical Characteristics |
|---|
| Material: |
Metal |
| Length: |
5.6" |
| Transmitter Height: |
1.18" |
| Transmitter Width: |
4.06" |
| Transmitter Weight (Approximate): |
14.11 oz |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
328.08 ft |
| Number of Input Devices Supported: |
1 |
| Video |
|---|
| Graphics Modes: |
4K |
| Maximum Video Resolution: |
4096 x 2160 |
