Description:

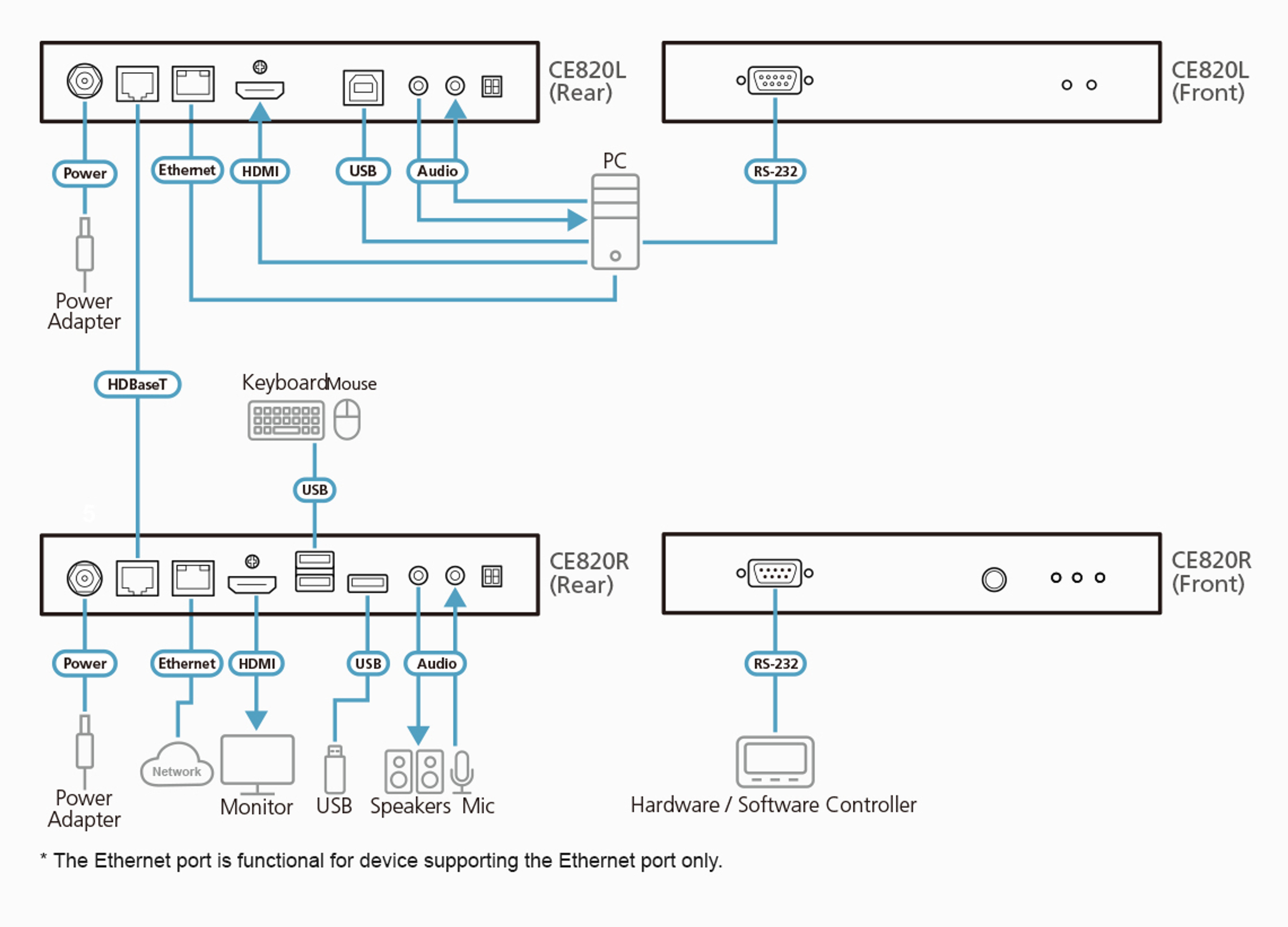

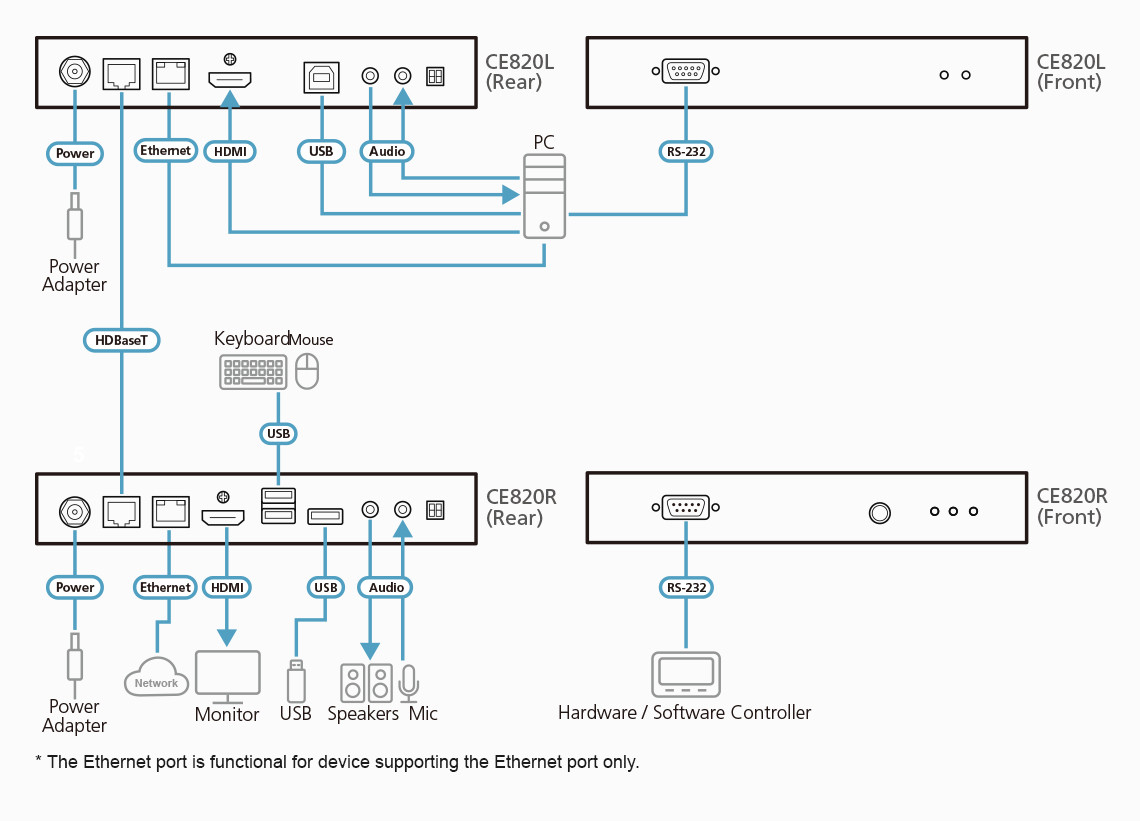

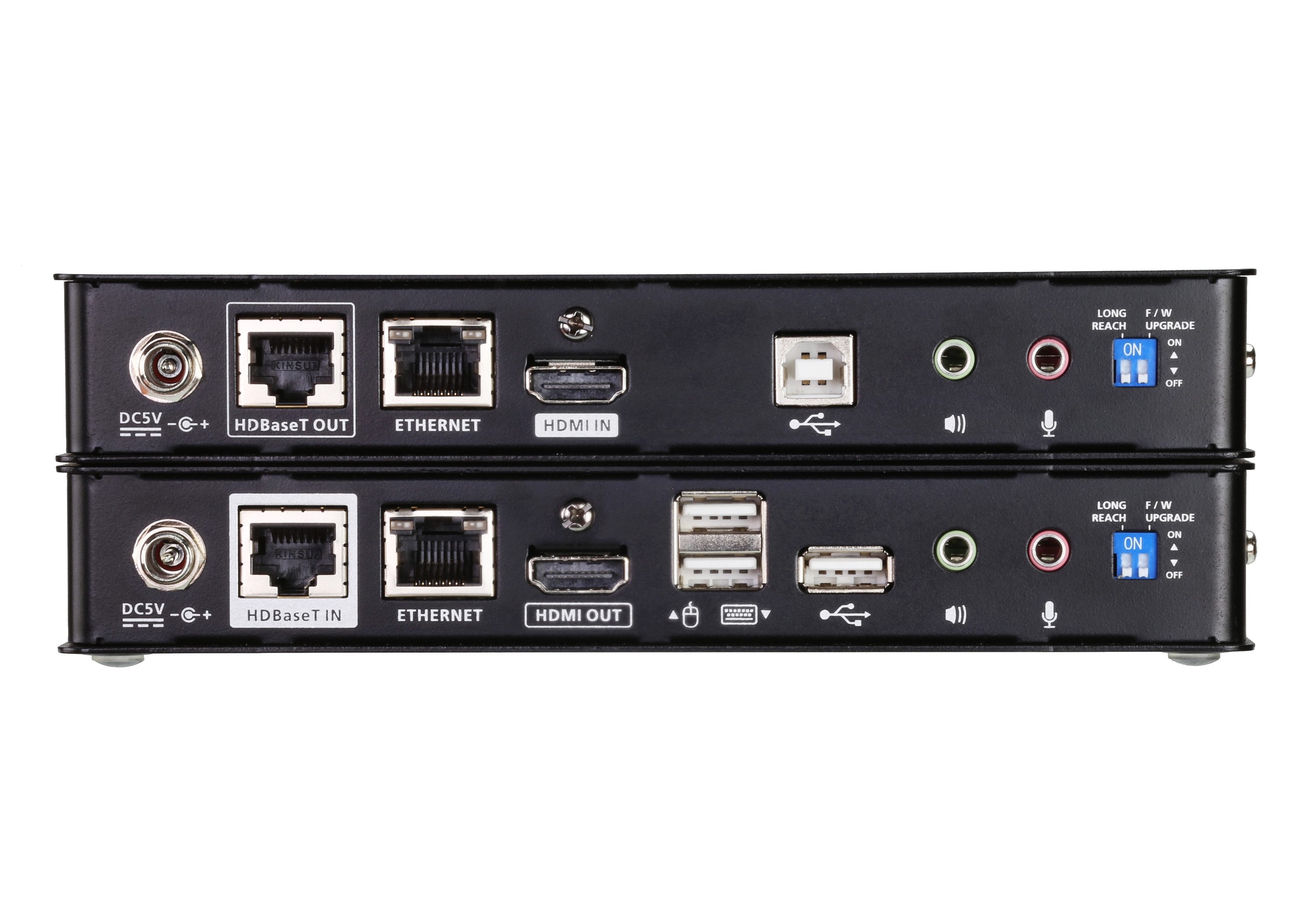

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Specifications:
| Basic |
|---|
| Product Type: |
KVM Console/Extender |
| Connectivity Technology: |
Wired |
| Form Factor: |
Rack-mountable |
| Brand Name: |
ATEN |
| Maximum Video Resolution: |
4096 x 2160 |
| Maximum Operating Distance: |
492.13 ft |
| USB: |
Yes |
| HDMI: |
Yes |
| Network (RJ-45): |
Yes |
| General Information |
|---|
| Product Type: |
KVM Console/Extender |
| Manufacturer Part Number: |
CE820 |
| Manufacturer Website Address: |
http://www.aten.com/us/en/ |
| Manufacturer: |
ATEN Technology Inc |
| Product Model: |
CE820 |
| Product Name: |
USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m) |
| Brand Name: |
ATEN |
| Interfaces/Ports |
|---|
| Microphone: |
Yes |
| USB: |
Yes |
| HDMI: |
Yes |
| Number of HDMI Ports: |
2 |
| Headphone: |
Yes |
| Number of Network (RJ-45) Ports: |
4 |
| Network (RJ-45): |
Yes |
| Number of USB Ports: |
4 |
| Miscellaneous |
|---|
| Package Contents: |

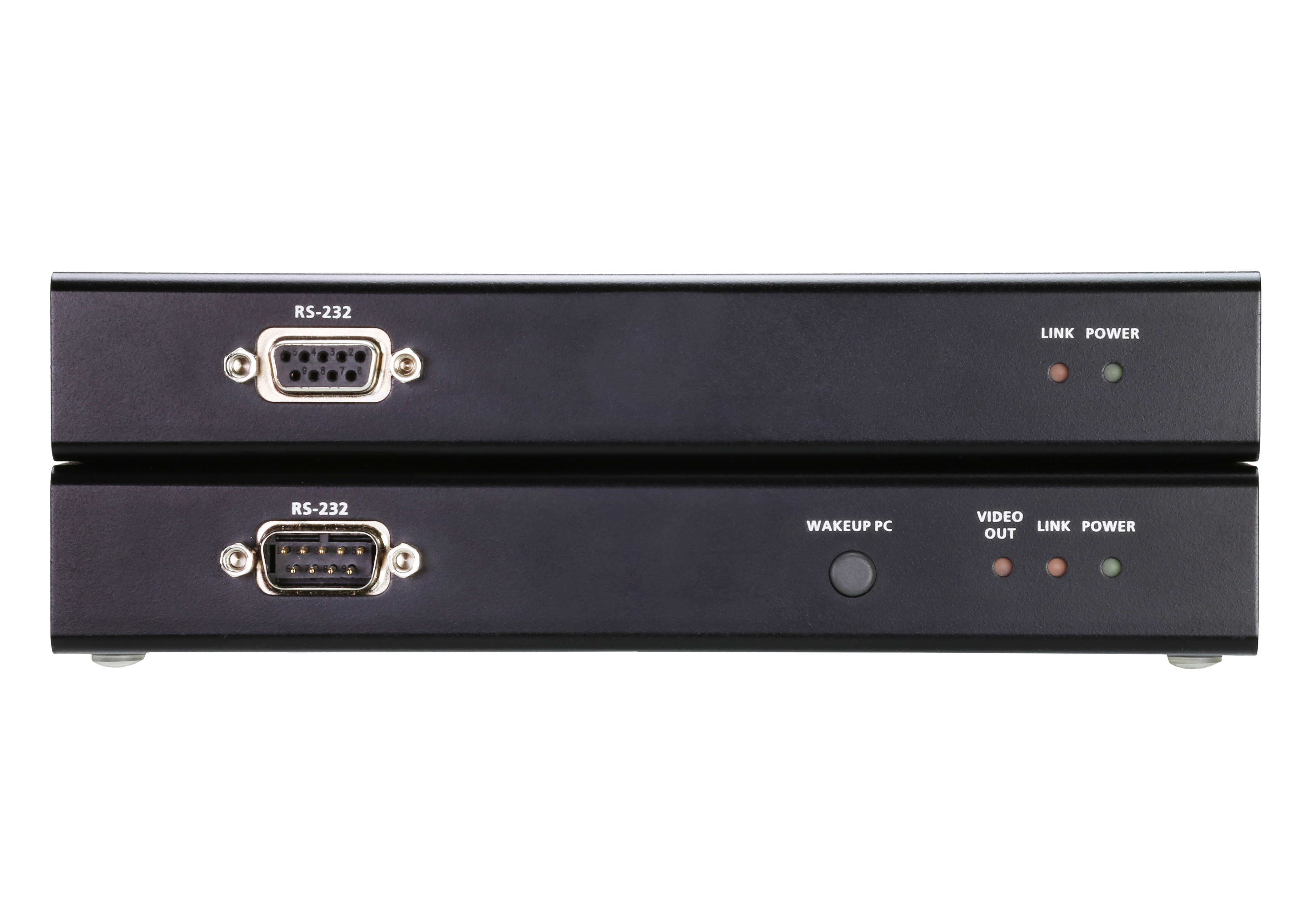

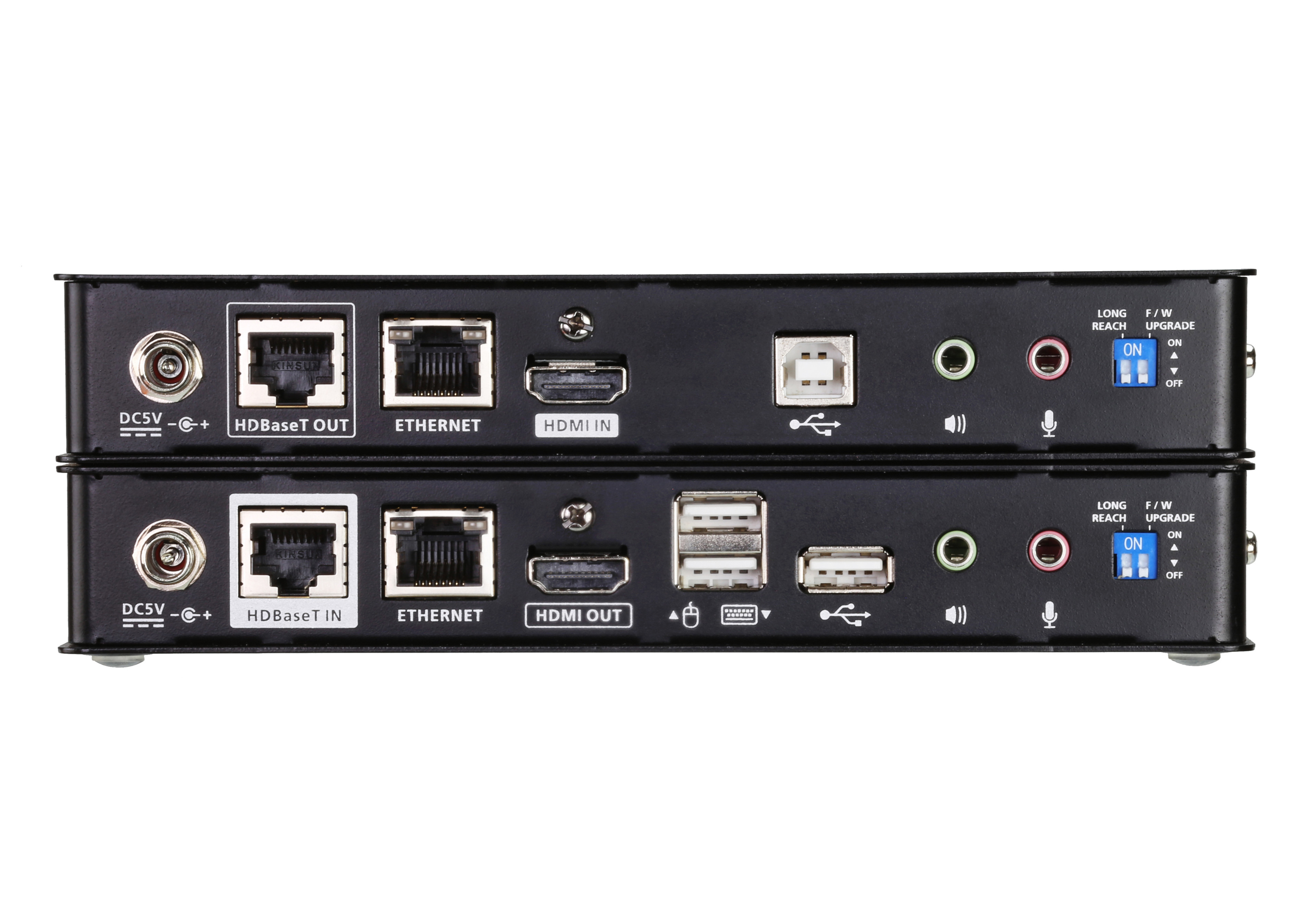

- 1 x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)

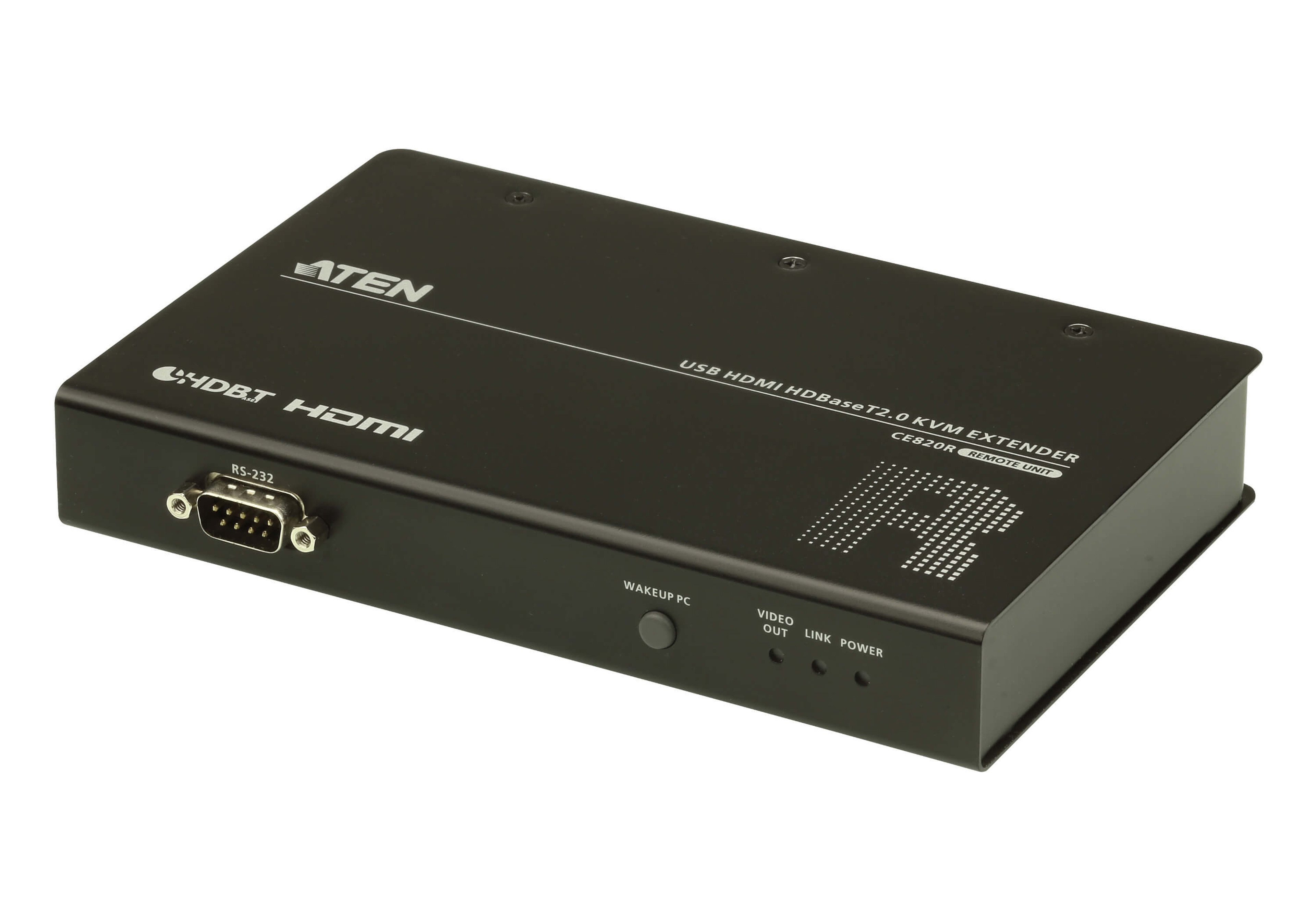

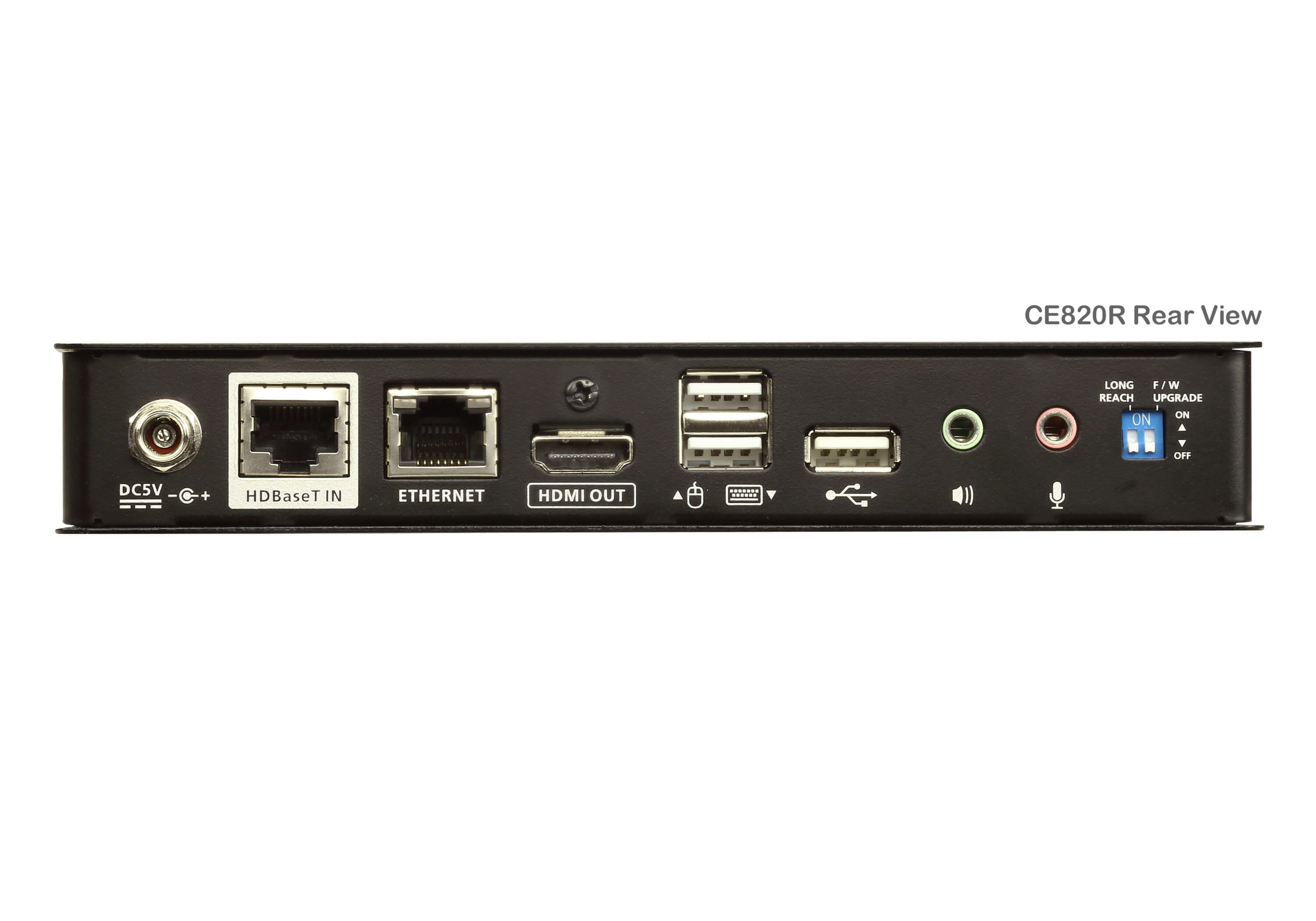

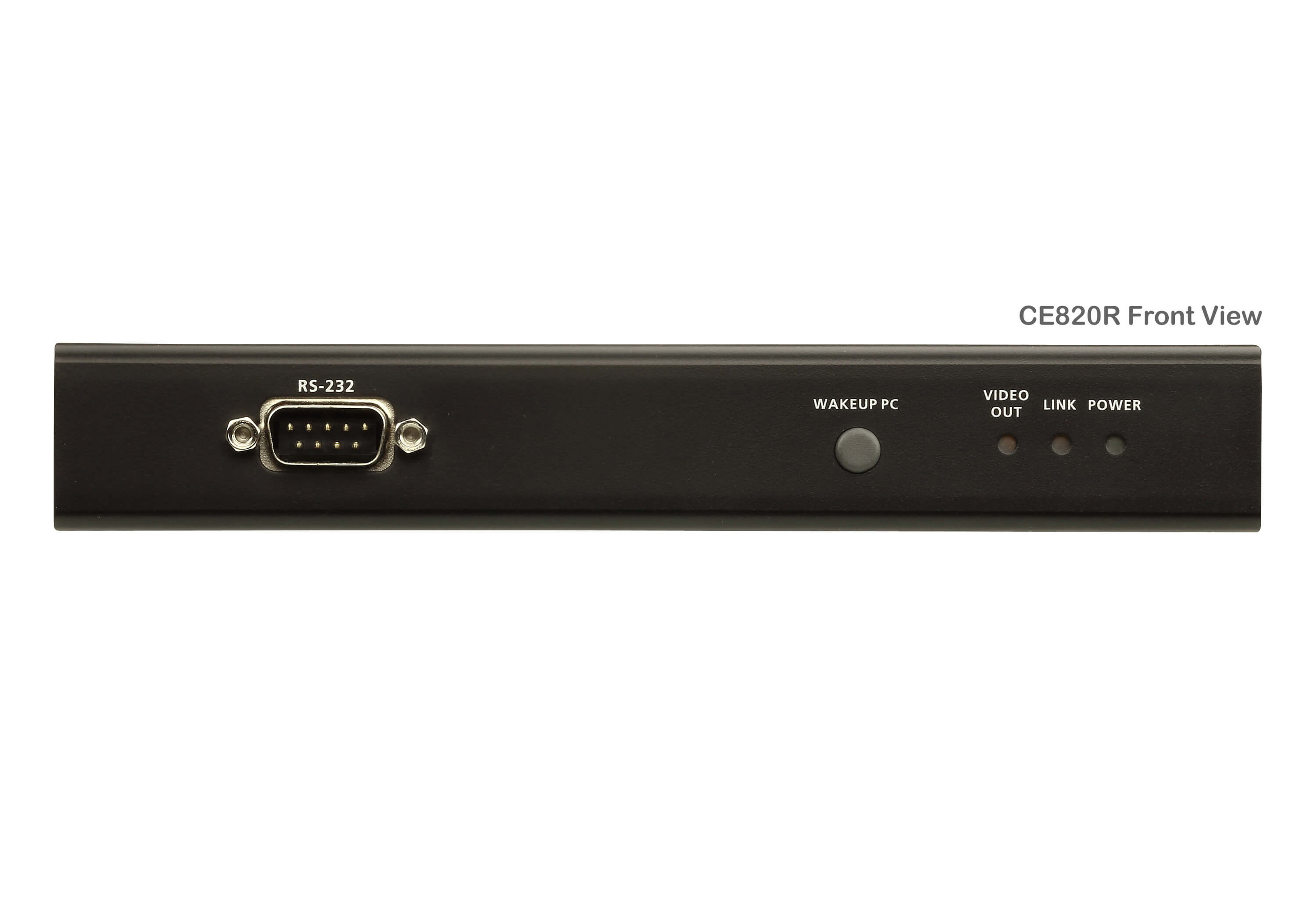

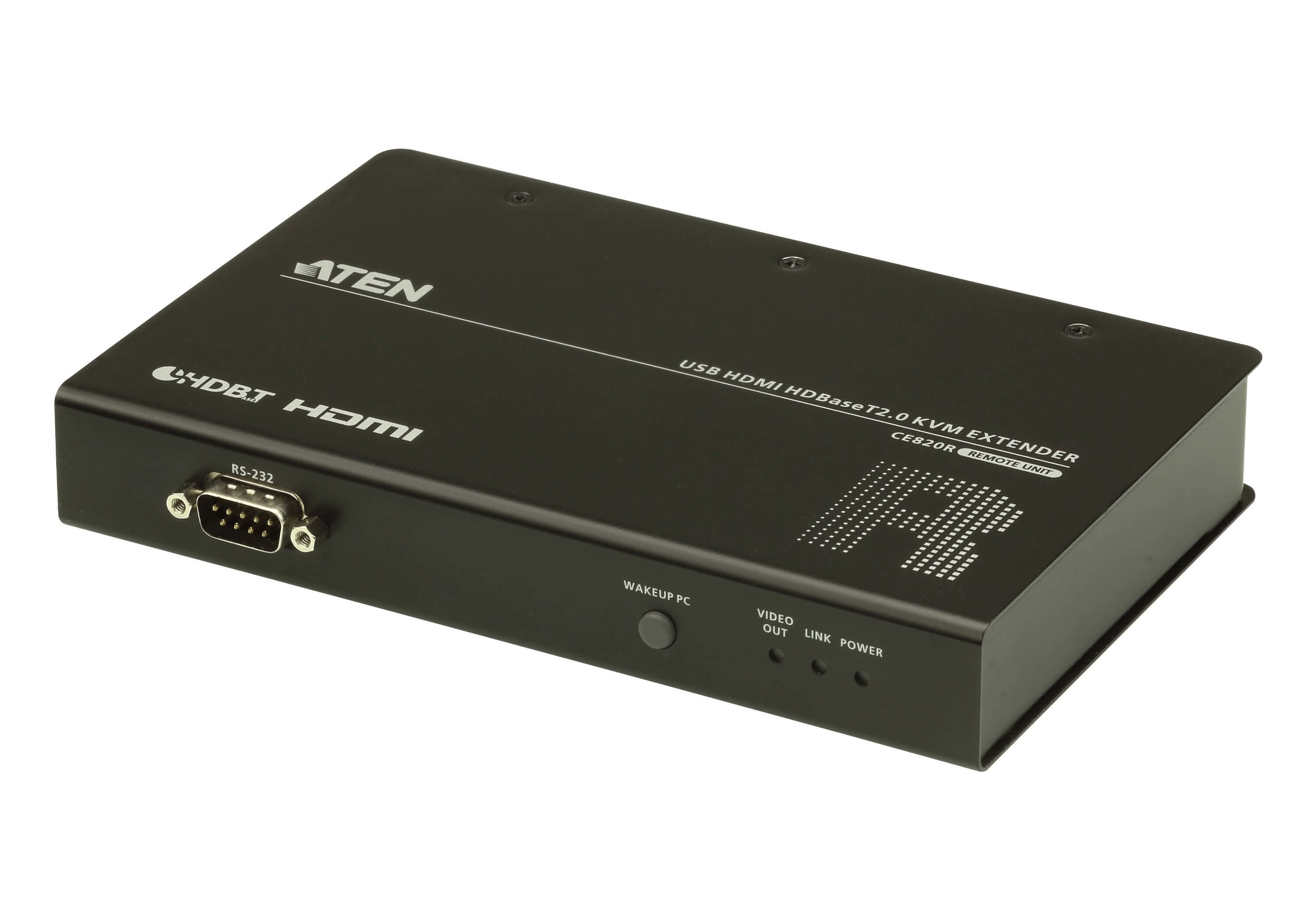

- 1 x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
- 1 x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
- 2 x Power Adapters
- 2 x Mounting Kits
- 8 x Foot Pads
- 1 x User Instructions
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
RoHS |
|
WEEE |
| Physical Characteristics |
|---|
| Form Factor: |
Rack-mountable |
| Transmitter Height: |
1.13" |
| Transmitter Width: |
4.80" |
| Transmitter Depth: |
7.17" |
| Receiver Height: |
1.13" |
| Receiver Width: |
4.80" |
| Receiver Depth: |
7.17" |
| Transmitter Weight (Approximate): |
1.43 lb |
| Receiver Weight (Approximate): |
1.39 lb |
| Power Description |
|---|
| Input Voltage: |
5 V DC |
| Technical Information |
|---|
| Connectivity Technology: |
Wired |
| Maximum Operating Distance: |
492.13 ft |
| Video |
|---|
| Maximum Video Resolution: |
4096 x 2160 |
| Graphic Mode: |
4K |
