Description:

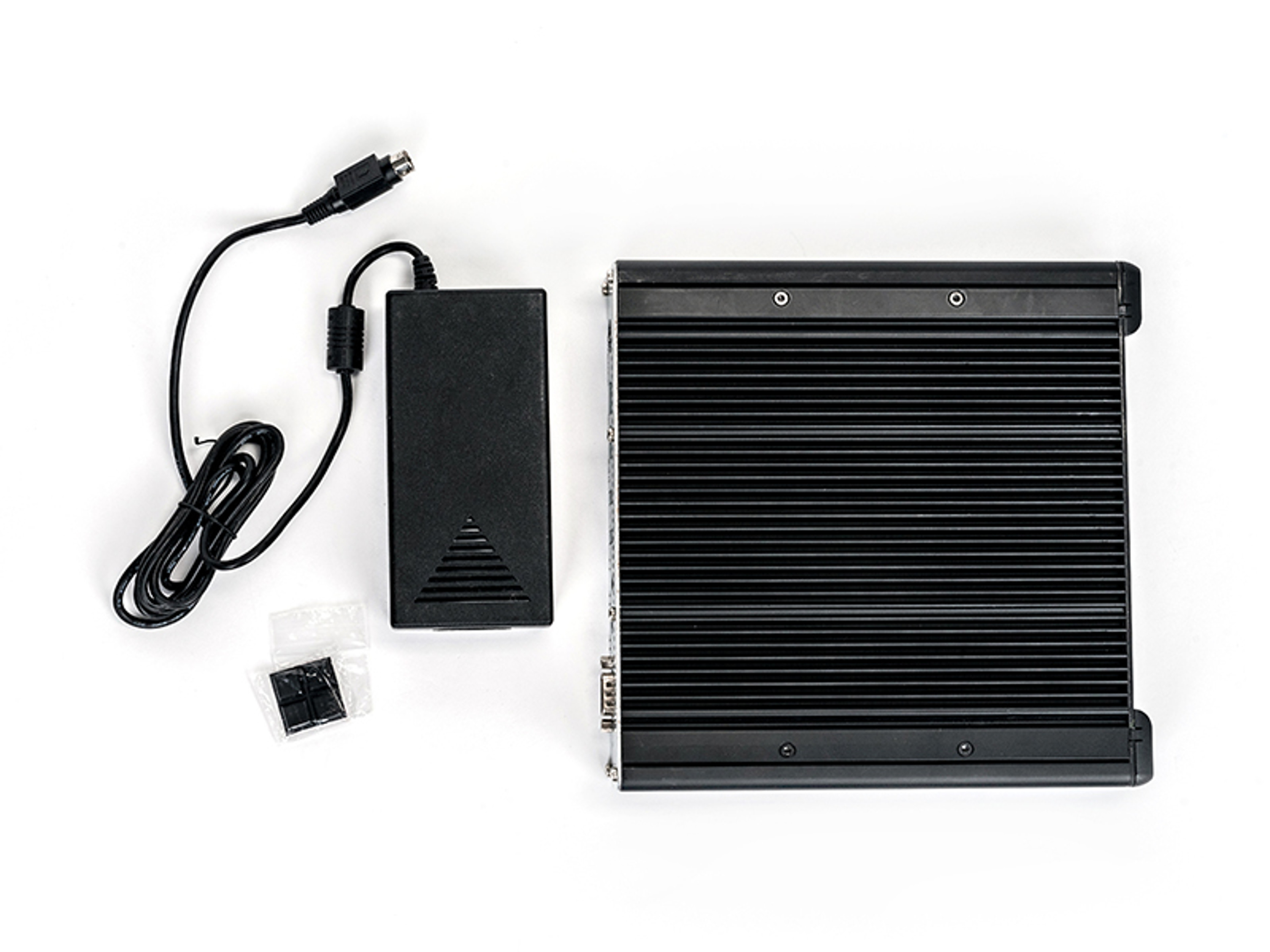

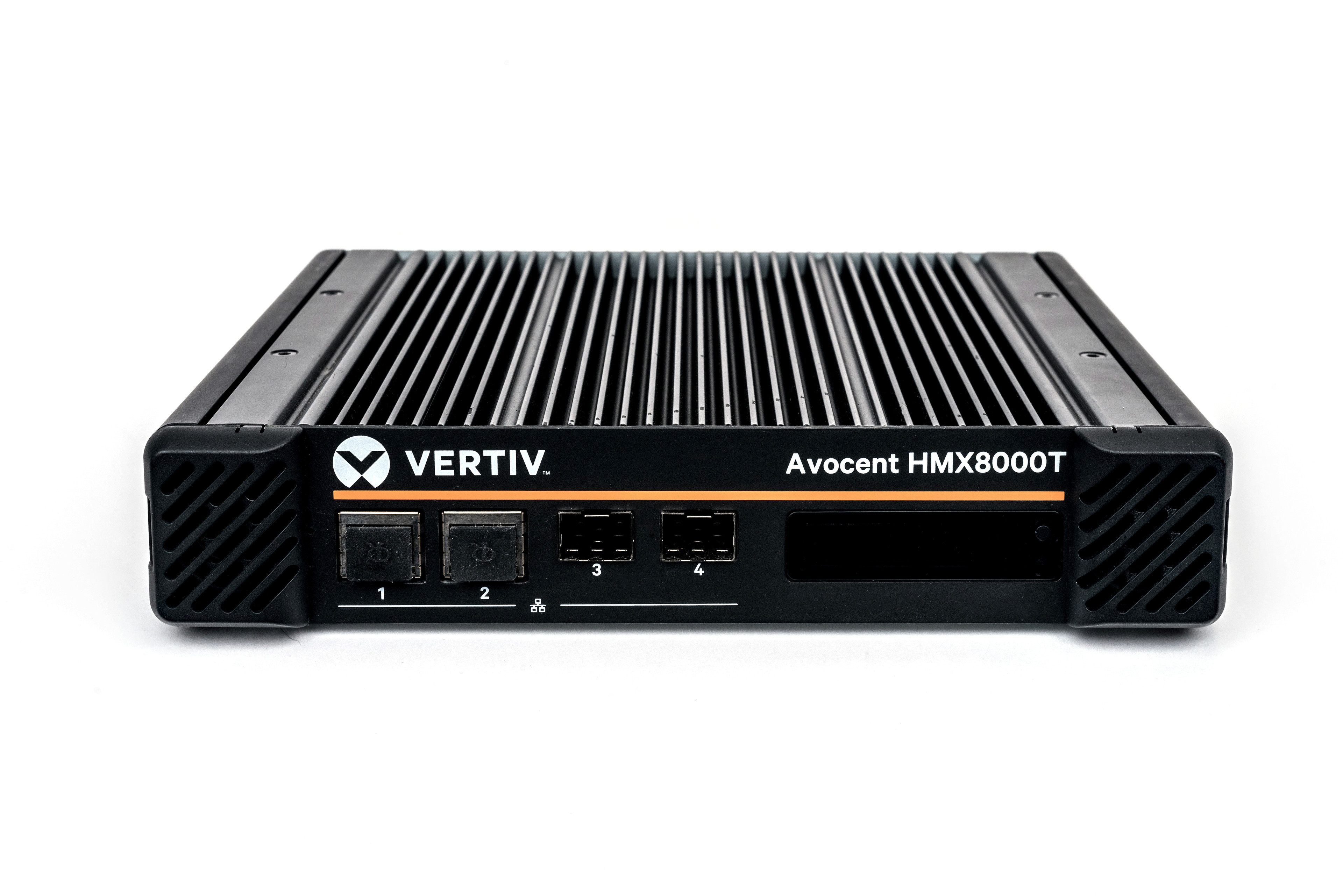

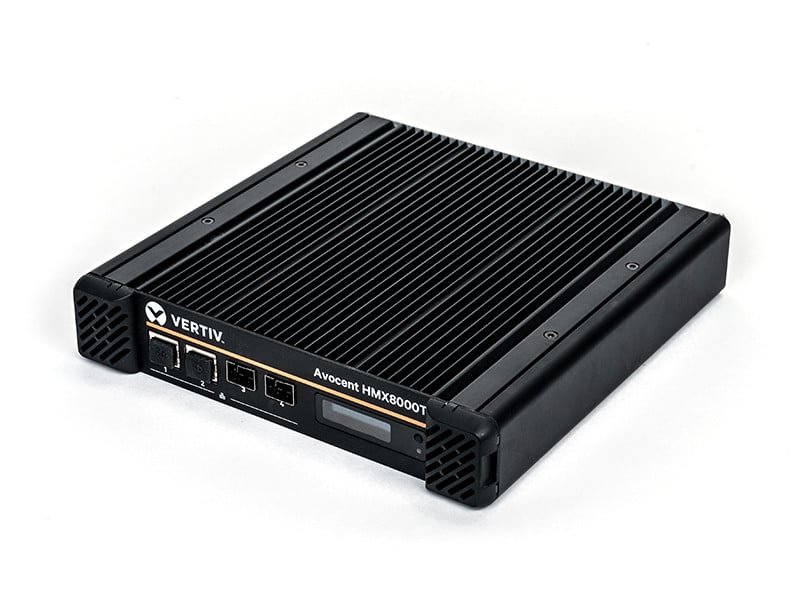

The Vertiv Avocent HMX8000T - IP KVM Transmitter (HMX8000T) is a high performance KVM extender that offers 4K video over a single fiber connection, along with audio and USB. Dual head 4K can be achieved with additional fiber connection. It delivers pixel-perfect, color accurate picture quality at 4K 60Hz and USB2.0 for fast switching. The 1U transmitter enables users to locate critical computing hardware in secure, temperature-controlled environment, away from the user work station to maintain component integrity. It provides access to system computers via a standard IP infrastructure network, allowing users the ability to share computing resources. System control is managed from a single access point through confirmed verification tools. This KVM system is ideal for demanding applications such as media, control rooms and collaborative environments. It is used in broadcasting, post production and many other industries where high resolution and zero latency are required.
Specifications:
Warranty
Physical Characteristics
| Rack Height |
1U |
| Transmitter Depth |
1.60" |
Power Description
| Input Voltage |
12 V AC |
| Power Consumption |
20 W |
Video
| Maximum Video Resolution |
4096 x 2160 |
| Graphic Mode |
4K |
Technical Information
| Connectivity Technology |
Wired |
| KVM Technology |
Digital |
| Device Type |
High Performance KVM |
Miscellaneous
| Platform Supported |
PC |
| Linux |
| Mac |
| Country of Origin |
United Kingdom |
| TAA Compliant |
Yes |
Basic
| Product Type |
KVM Extender Transmitter |
| Connectivity Technology |
Wired |
| Brand Name |
AVOCENT |
| Maximum Video Resolution |
4096 x 2160 |
| USB |
Yes |
| HDMI |
No |
| DVI |
No |
| VGA |
No |
| Network (RJ-45) |
Yes |
| DisplayPort |
Yes |
| Product Family |
HMX8000T |
| Proprietary Interface |
Yes |
| PS/2 Port |
No |
| KVM Technology |
Digital |
| TAA Compliant |
Yes |
| Device Type |
High Performance KVM |
General Information
| Product Type |
KVM Extender Transmitter |
| Manufacturer Part Number |
HMX8000T-400 |
| Manufacturer Website Address |
http://www.vertiv.com/ |
| Packaged Quantity |
1 |
| Manufacturer |
Vertiv |
| Product Model |
HMX8000 |
| Product Name |
HMX 8000 Transmitter |
| Product Series |
HMX8000T |
| Brand Name |
AVOCENT |

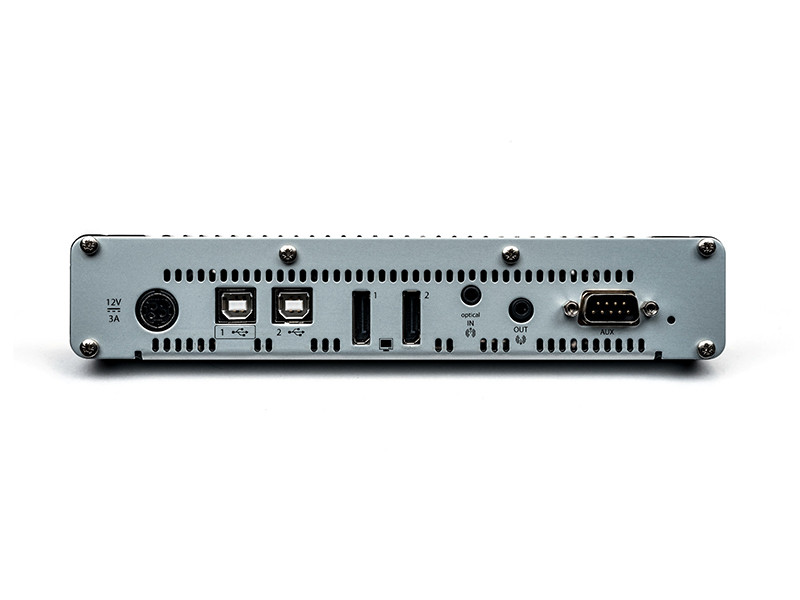

Interfaces/Ports
| Microphone |
Yes |
| USB |
Yes |
| HDMI |
No |
| Number of HDMI Ports |
0 |
| DVI |
No |
| VGA |
No |
| Headphone |
Yes |
| Number of Network (RJ-45) Ports |
2 |
| Network (RJ-45) |
Yes |
| Number of USB Ports |
2 |
| DisplayPort |
Yes |
| Proprietary Interface |
Yes |
| PS/2 Port |
No |
| Number of PS/2 Ports |
0 |
| Number of VGA Ports |
0 |
| Digital Audio/Video |
Yes |
| Number of DVI Ports |
0 |
