Product Description:

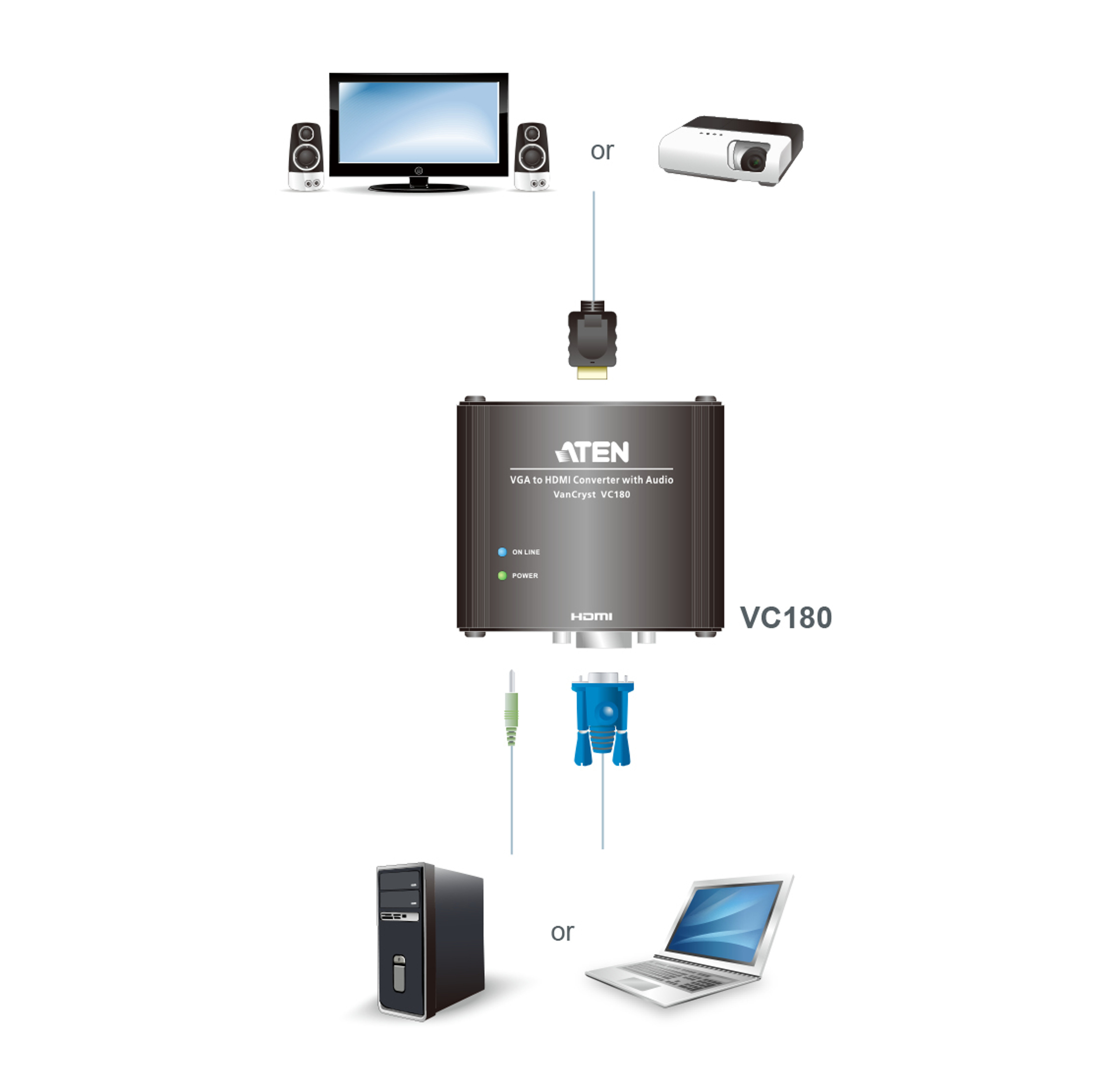

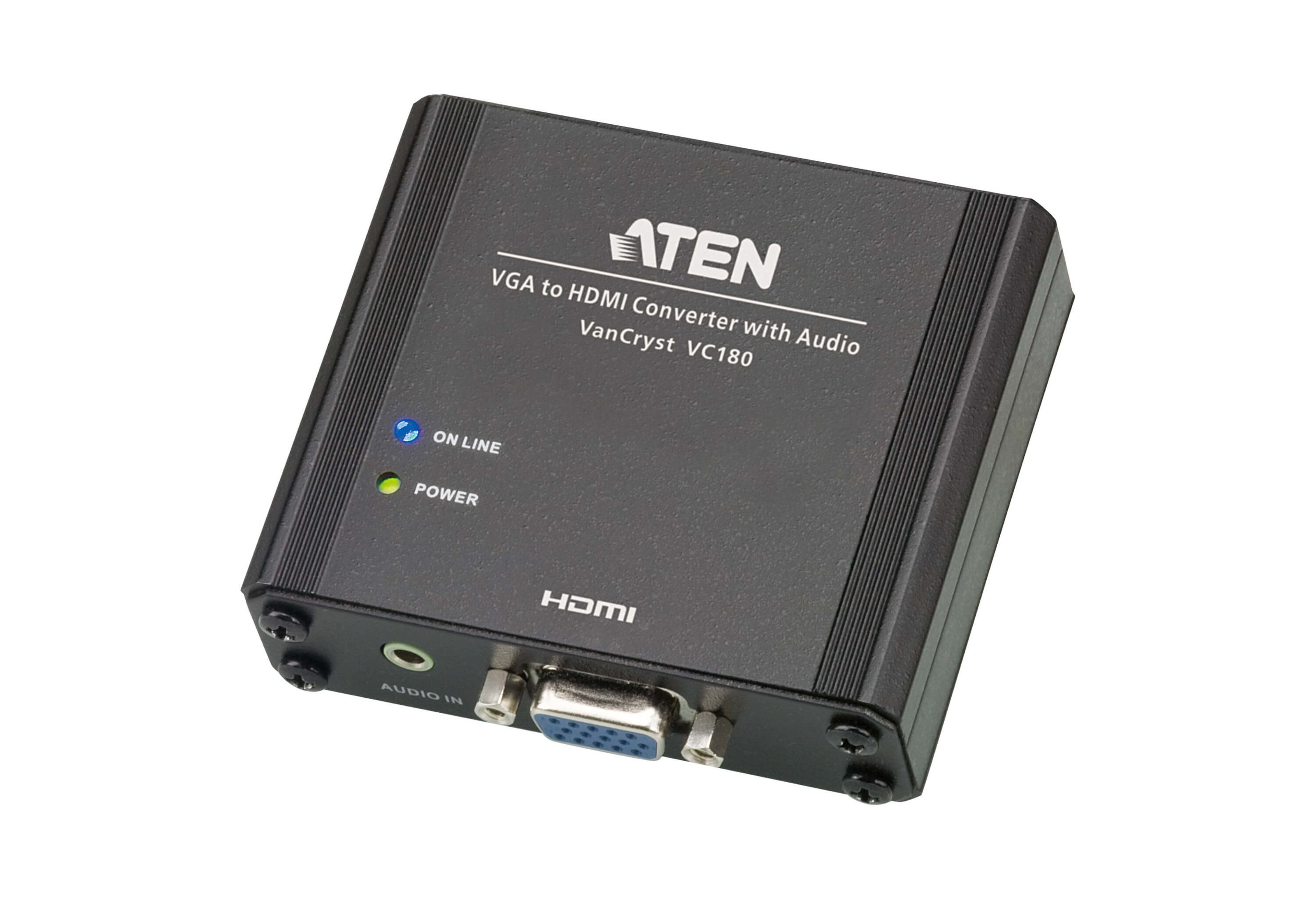

The VC180 is a VGA-to-HD Audio/Video Converter with Audio that lets you view VGA source data in an HDMI outputdisplay with stereo sound quality. It uses dual power sources – from the VGA port or a power adapter. The VC180 gets its power supply from the VGA port. However if your source device is not capable of supplying power, use the power adapter to connect the VC180 to a power source. The VC180 is compact, flexible and convenient to install – with no software required. Simply make the hardware connections and enjoy the experience.
Features:
- Converts VGA signals to HDMI output
- Supports analog stereo audio input
- Superior video quality – up to 1080p, WUXGA
- Screen Position Button – screen position settings can be stored for each output resolution
- Multiplatform support – Windows and Mac
- Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
- Automatically detects video input signals
- LED indicator
- HDMI compatible
- Compact and lightweight
- No software required – eliminates incompatibility and installation issues
Specifications:

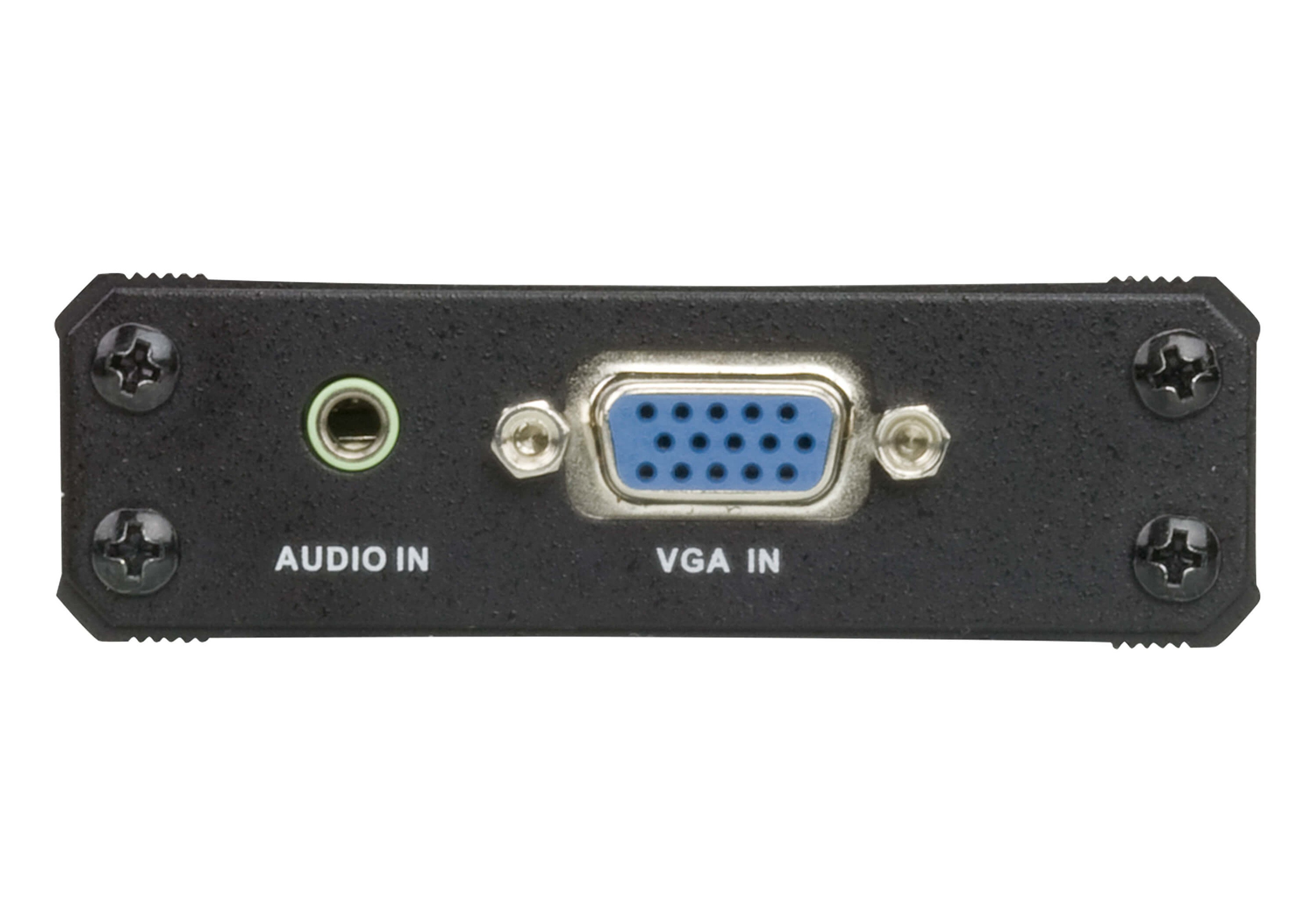

| Connectors | Video In | 1 x HDB-15 Female (Blue) |
| Audio In | 1 x 3.5 mm Stereo Audio (Green) | |

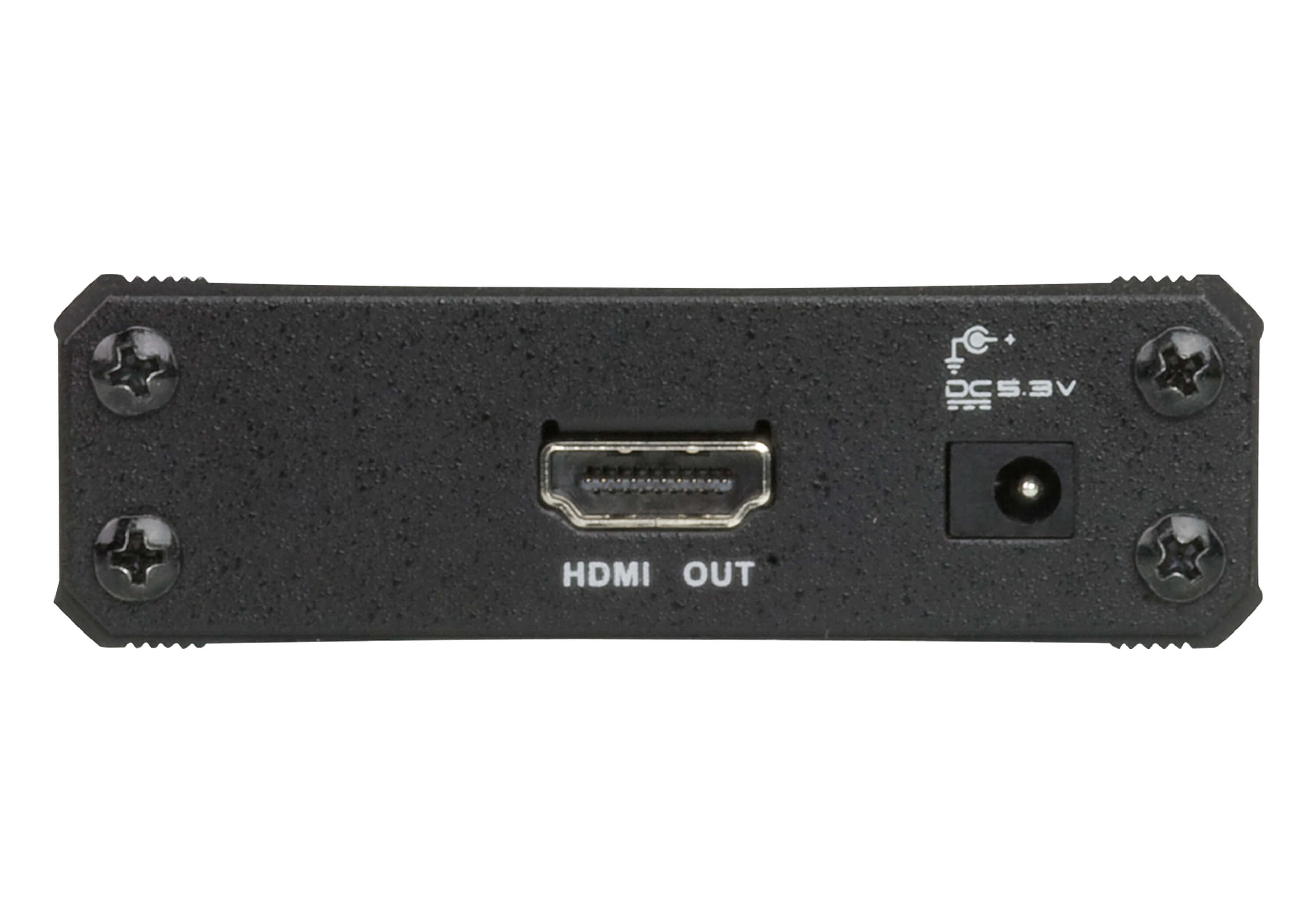

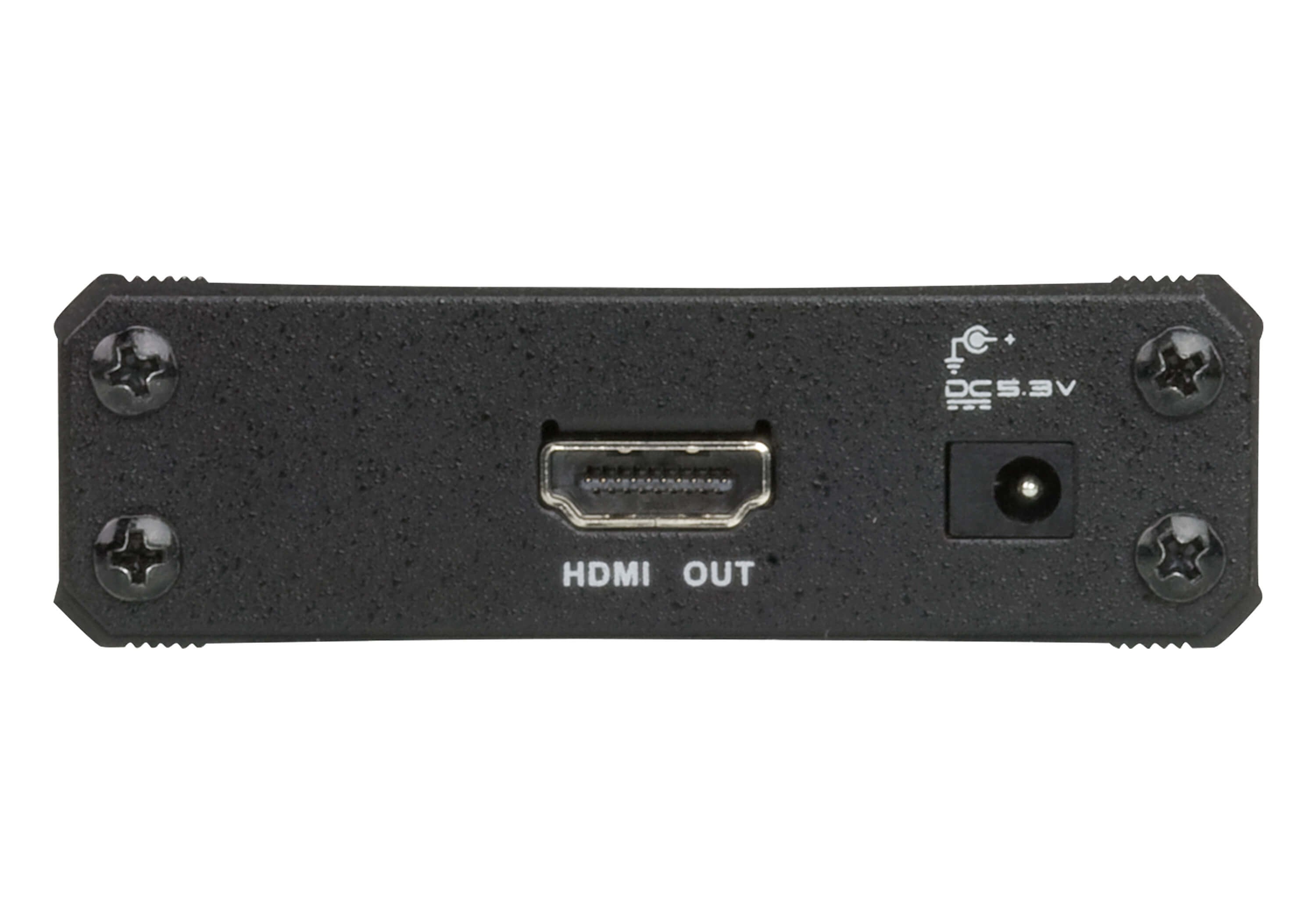

| HDMI Out | 1 x HDMI Type A Female (Black) | |
| Power | 1 x DC Jack | |
| LEDs | Power | 1 (Green) |
| On Line | 1 (Blue) | |
| Video | Up to 1920 x 1200 @ 60 Hz | |
| Power Consumption | DC5.3V, 3.2W | |
| Environment | Operating Temp. |
0-50°C |
| Storage Temp. | -20-60°C | |
| Humidity | 0 - 80% RH, Non-condensing | |
| Physical Properties |
Housing | Metal |
| Weight | 0.15 kg | |
| Dimensions ( L x W x H ) |
7.90 x 7.29 x 2.43 cm | |
