Tripp Lite SMART1500LCD UPS SMART 1500VA 900W LCD 120V 8OUTLETAVR RACK TOWER 2U

Tripp Lite

Regular Price $533.52
Discount Price: $348.00
UPC:
37332126146
Product Overview:

Smart 1500VA 900W Rackmount Tower Battery Back Up LCD AVR 120V USB DB9 RJ45 - 2U Rack/Tower - 8 Hour Recharge - 3.50 Minute Stand-by - 110 V AC Input - 120 V AC

MFG#:
SMART1500LCD
Product Category:
Wall Mount Cabinets
Adding to cart… The item has been added

Description:

Tripp Lite UPS Smart 1500VA 900W Rackmount Tower Battery Back Up LCD AVR 120V USB DB9 RJ45 - 2U Rack/Tower - 8 Hour Recharge - 3.50 Minute Stand-by - 110 V AC Input - 120 V AC, 120 V AC Output - 8 x NEMA 5-15R
1500VA/900W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

This SmartPro® line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The SMART1500LCD is ideal protection for small business networks, VoIP systems, point-of-sale applications, desktop workstations, home offices and home theater systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

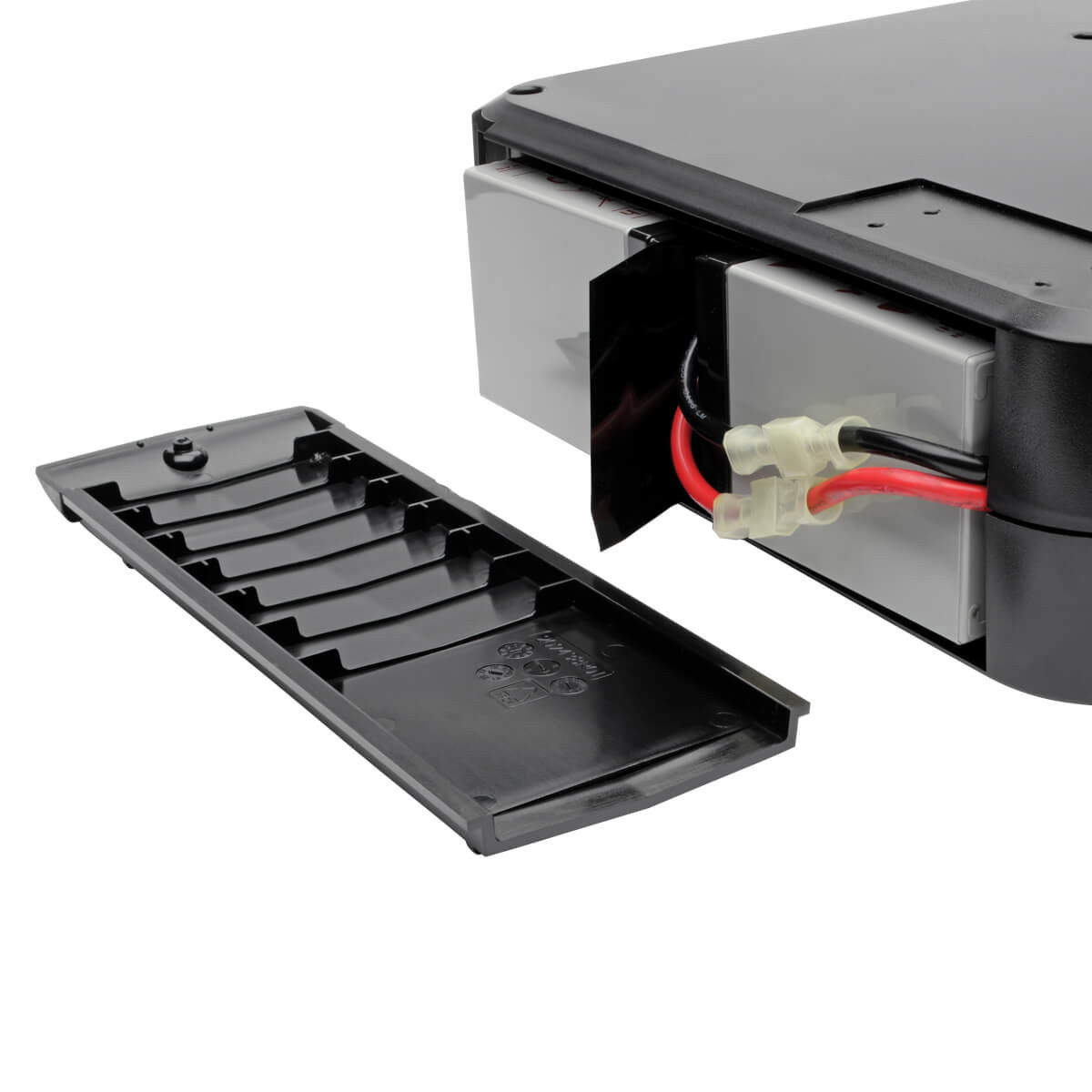

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting.

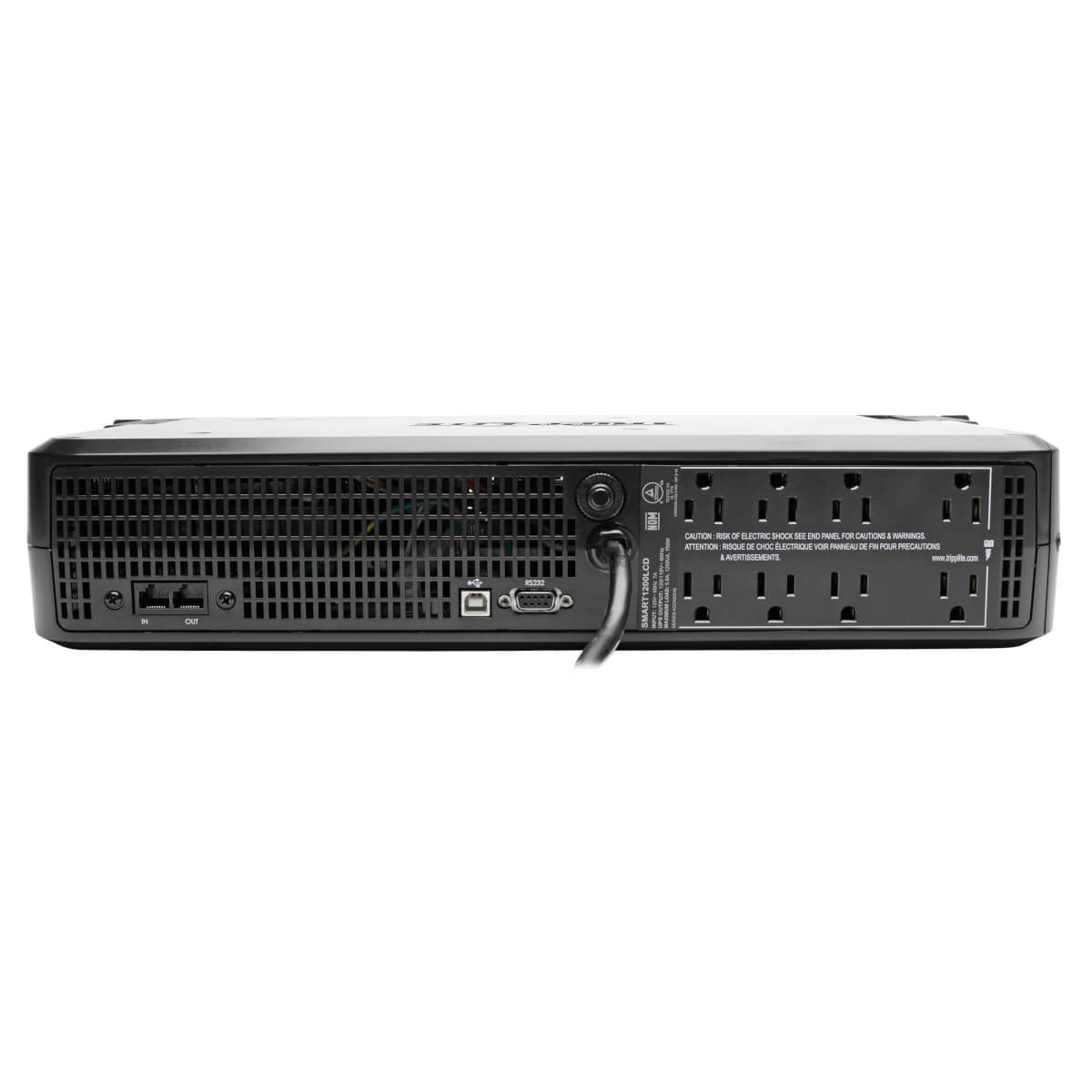

NEMA 5-15R Outlets Protect Your Connected Components

Eight 5-15R outlets provide connected equipment with PWM sine wave AC output. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1500LCD can correct brownouts as low as 75V and overvoltages as high as 147V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

ENERGY STAR-Certified to Help You Save Money and Protect the Environment

By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.

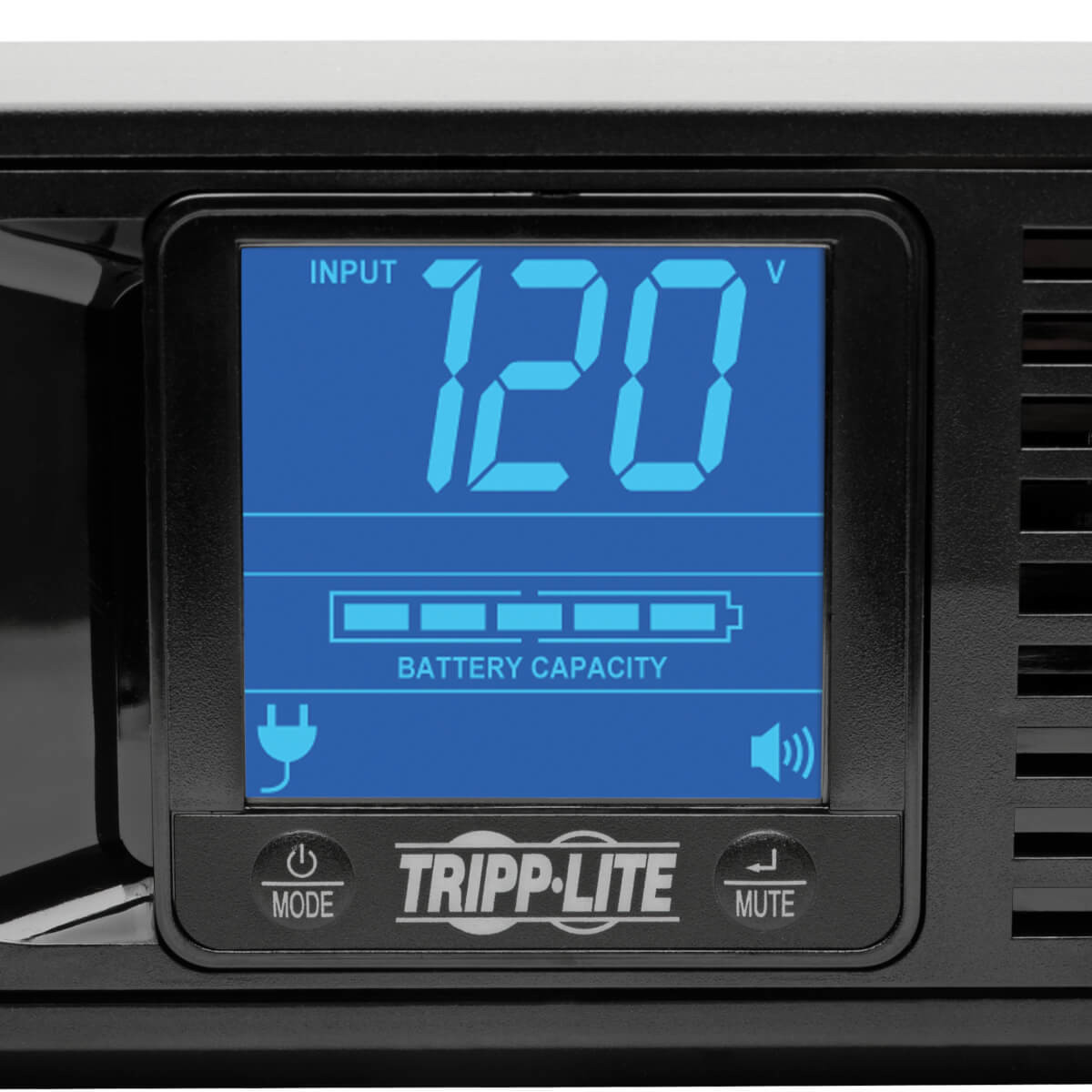

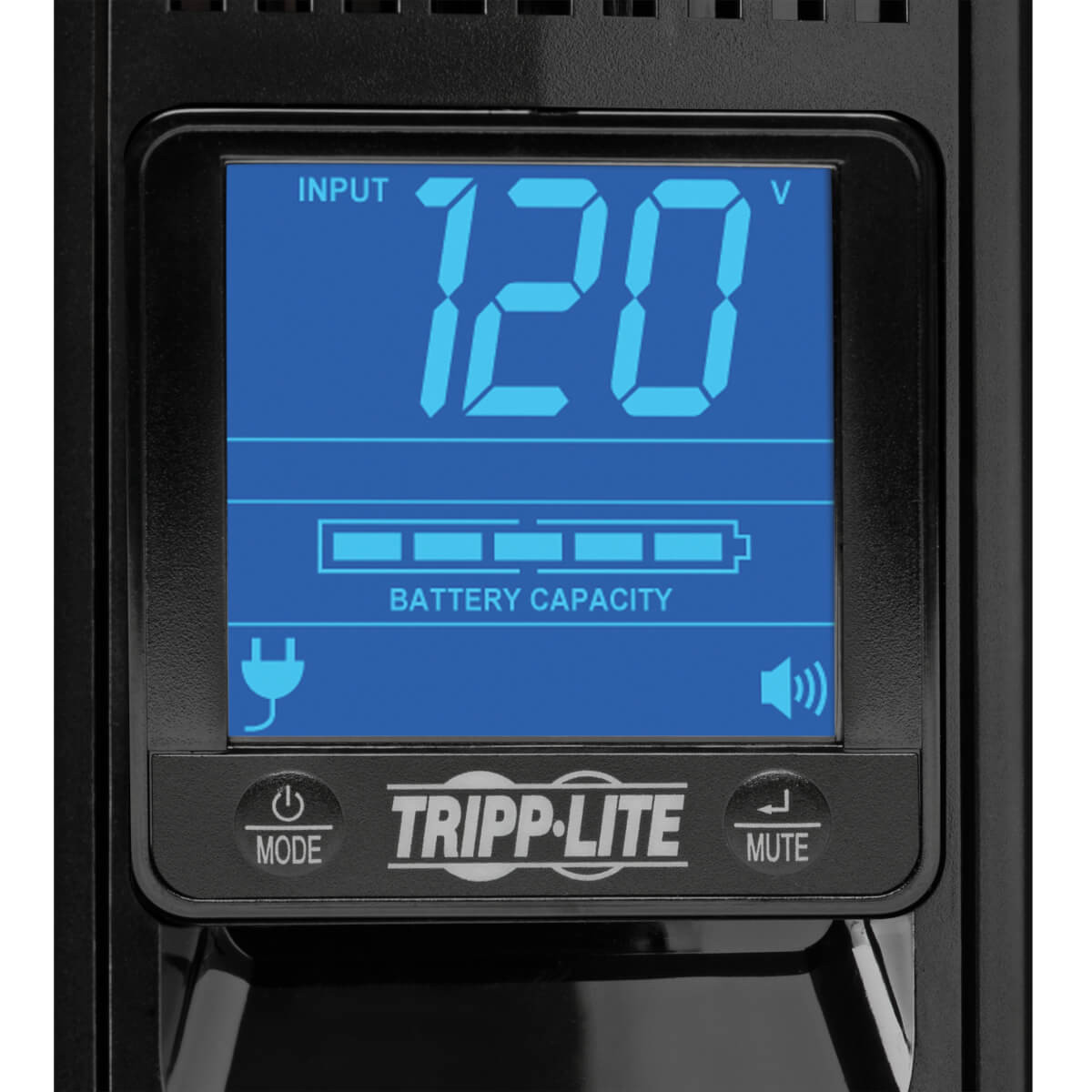

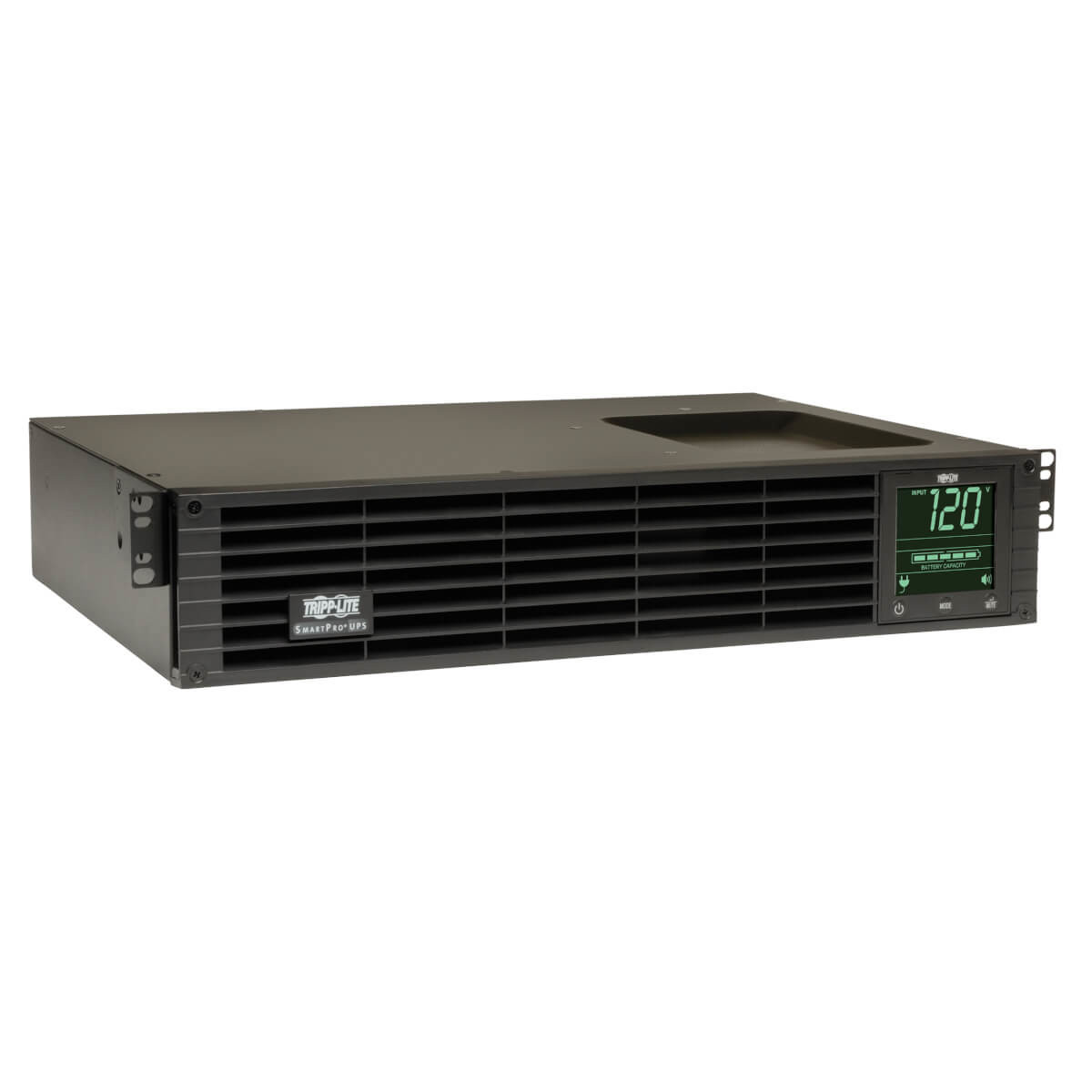

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring

The large LCD indicates a variety of UPS operational conditions, including voltage, runtime, load, battery and operating mode. The control panel rotates to accommodate both rack-mount and tower configurations. An audible alarm indicates loss of utility power or low battery.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and HID-compliant USB ports connect to a computer running free downloadable PowerAlert® software to enable safe unattended system shutdown in case of a prolonged power failure. Cables are included.
Versatile Installation Options

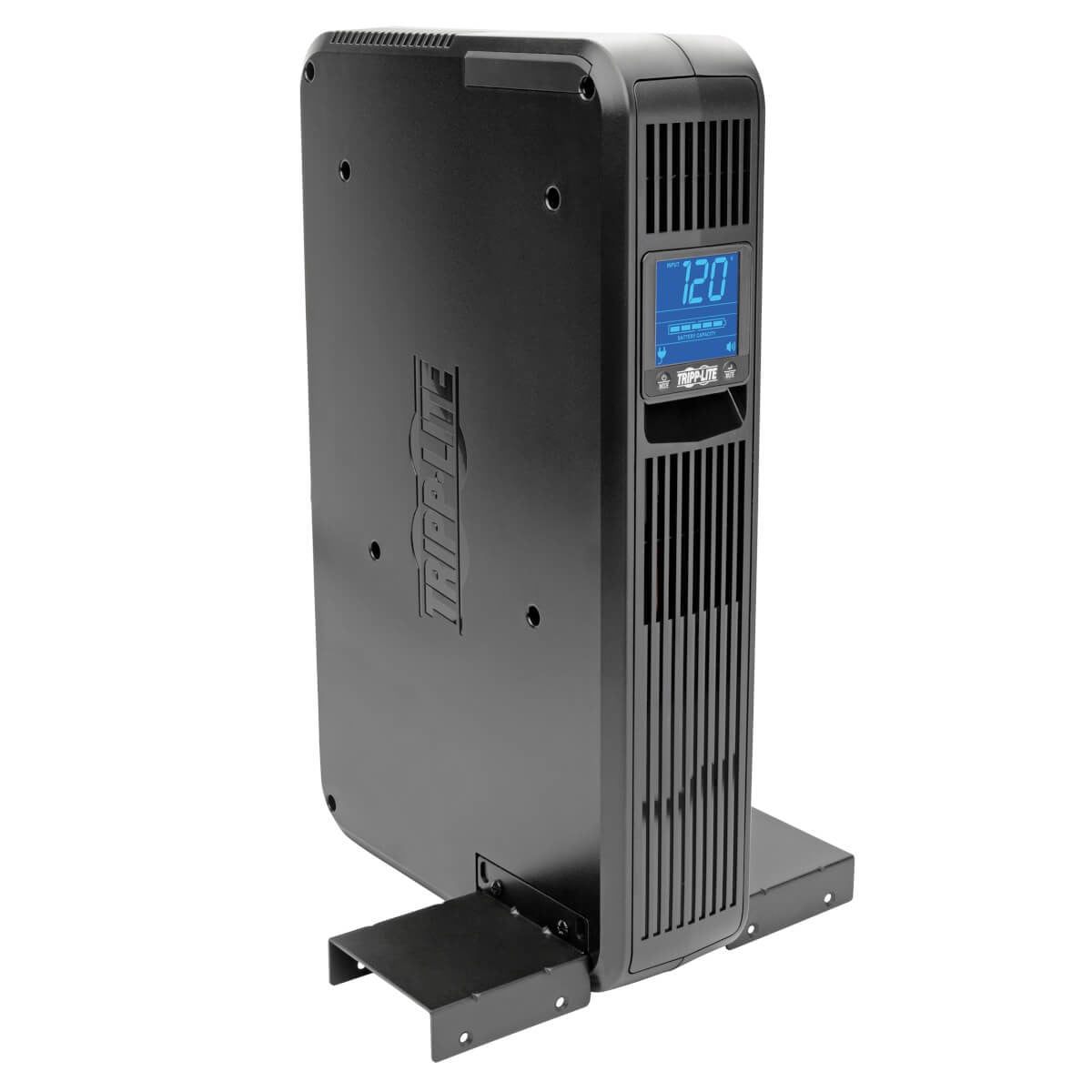

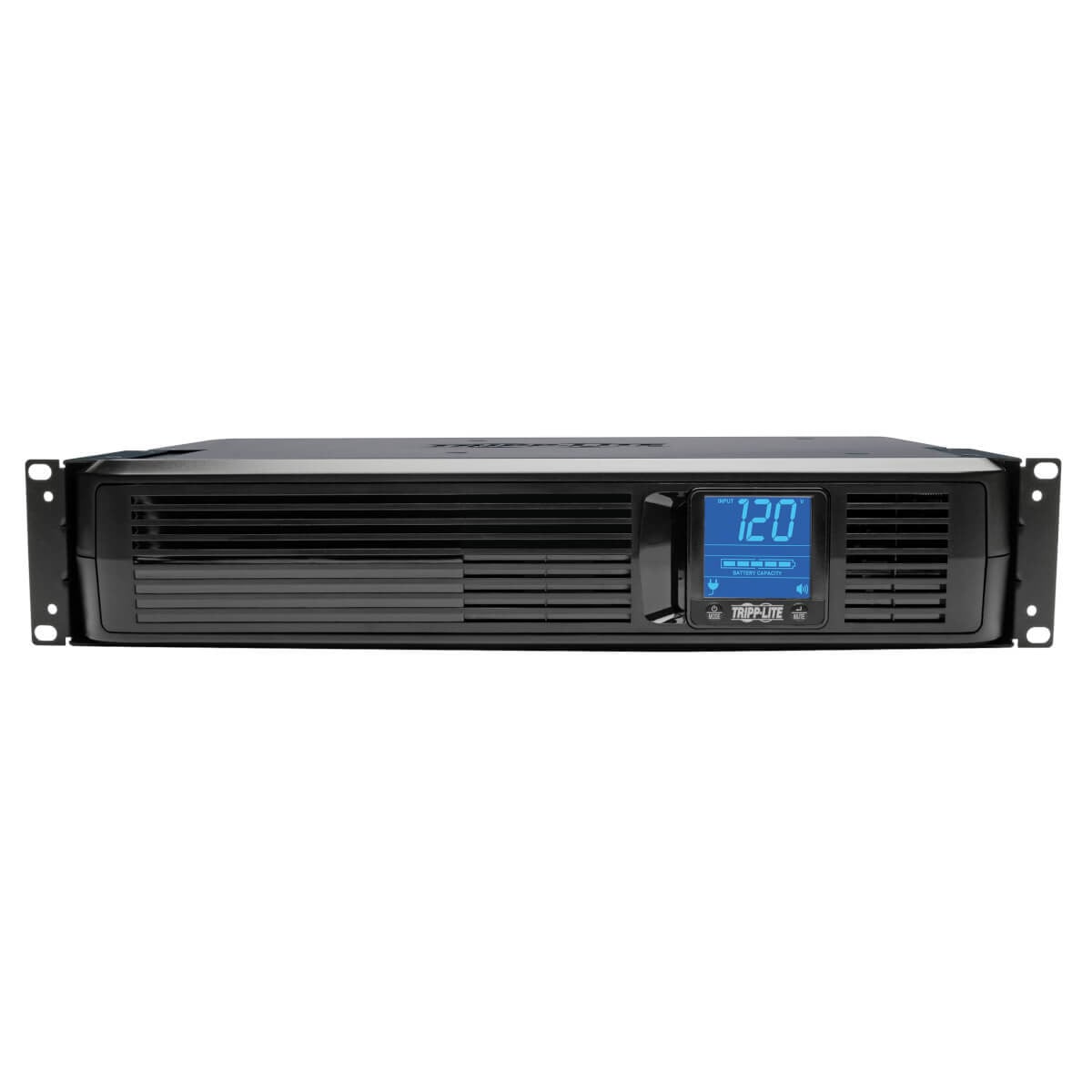

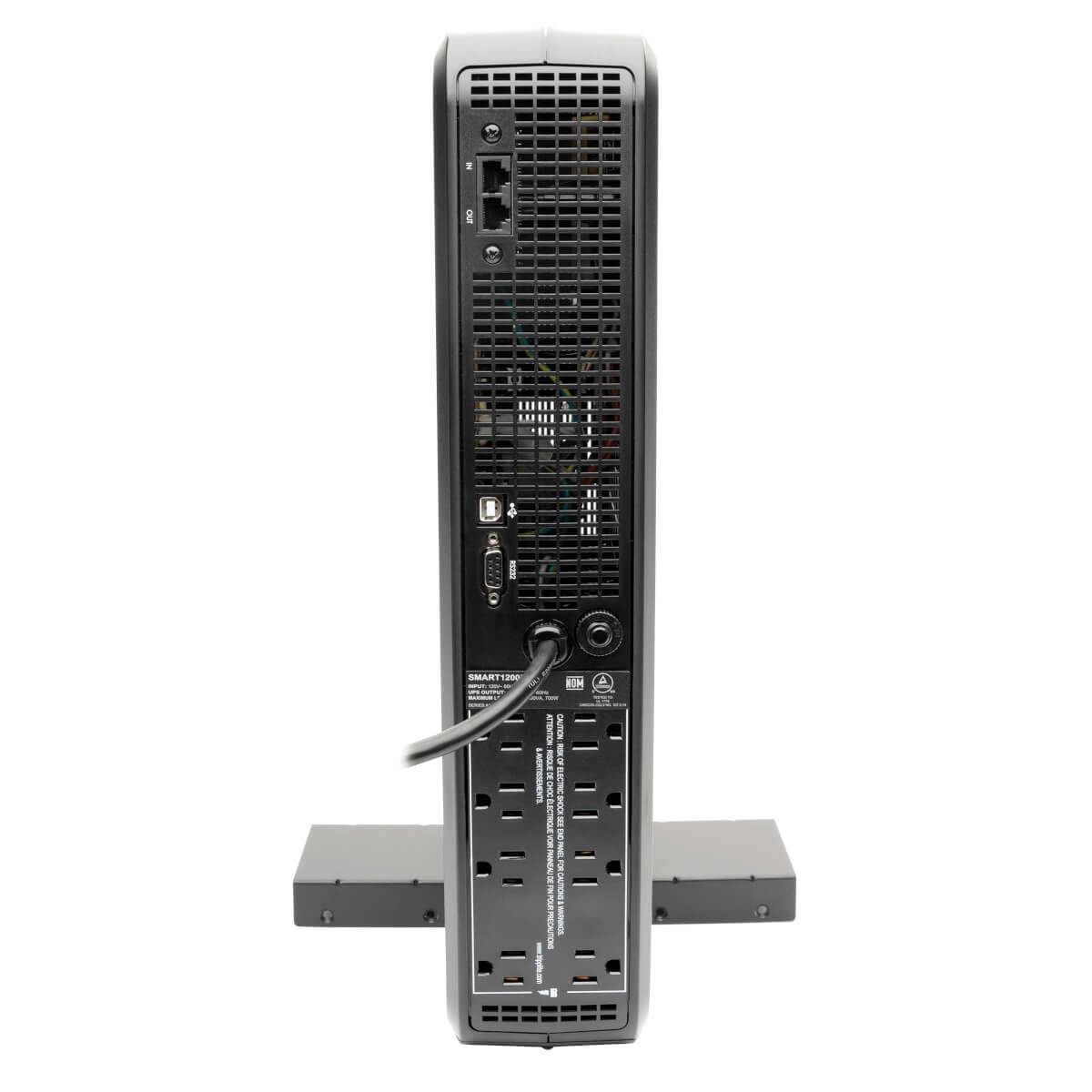

You can mount the SMART1500LCD in just 2U of space in an EIA-standard 19-inch rack using the included hardware. You can also adapt it for tower installation using the included brackets. The six-foot power cord with NEMA 5-15P plug connects to a compatible AC outlet.

Features
  • Provides reliable 1500VA/900W power protection for your desktop computer, network workstation, homelab, audio/video components or media center. Protects against surges, line noise, blackouts and brownouts
  • Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
  • Keeps AC power running during blackouts to allow time for file saves and safe shutdown
  • Maintains continuous 120V nominal output during brownouts and overvoltages
  • ENERGY STAR-certified to save electricity, lower costs and protect the environment
  • Front-panel LCD reports detailed voltage, runtime, load and battery information
  • 3-year limited warranty & $250,000 Ultimate Lifetime Insurance

Specifications:

Maximum Operating Temperature 122°F (50°C)
Warranty
Limited Warranty 3 Year
Interfaces/Ports
USB Yes
Serial Port Yes
Battery Information
Backup/Run Time (Half Load) 13 Minute
Backup/Run Time (Full Load) 3.50 Minute
Typical Battery Recharge Time 8 Hour
Power Description
Input Voltage 110 V AC
Output Voltage 120 V AC
Load Capacity 1500 VA/900 W
Surge Energy Rating 480 J
Waveform Type Pulse-width Modulated Sine Wave
General Information
Product Type Line-interactive UPS
Manufacturer Part Number SMART1500LCD
Manufacturer Website Address https://tripplite.eaton.com/
Manufacturer Tripp Lite by Eaton
Product Name SmartPro 1500 VA Rackmount/Tower Digital UPS
Product Line SmartPro
Brand Name Tripp Lite
Miscellaneous
Additional Information
  • Cold Start Capable
  • Automatic Voltage Regulation (AVR)
  • LCD display indicates input voltage, battery capacity and a variety of operating conditions
  • Switches: Two front panel switches - one main on/off power switch and one dual-function "alarm cancel"/"self test" button

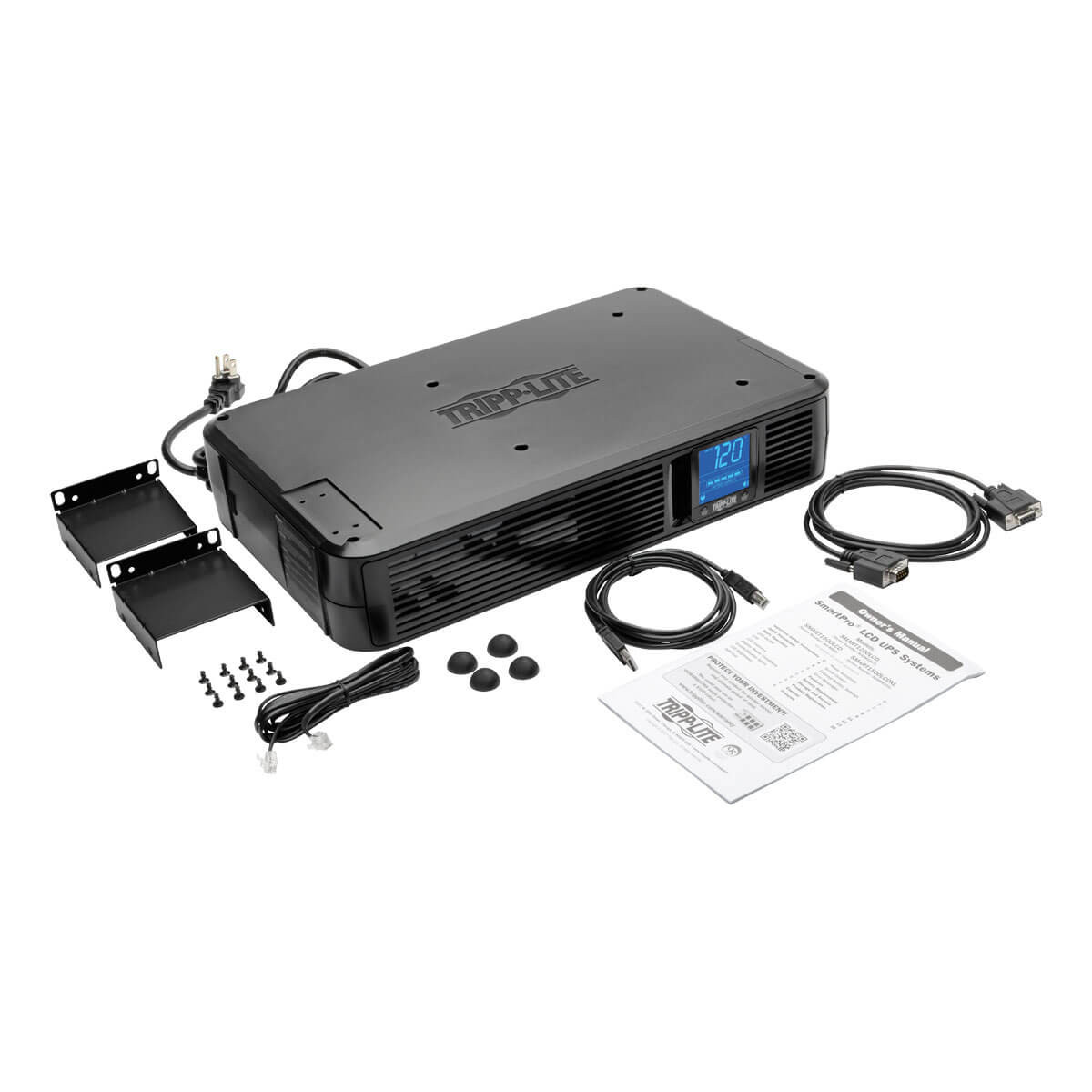

Package Contents
  • SmartPro 1500 VA Rackmount/Tower Digital UPS
  • USB Cable
  • Serial Cable
  • Mounting Hardware
  • Manual with Warranty Information
Certifications & Standards
  • CSA
  • NOM
  • UL1778
  • FCC Class B
  • FCC part 68
Country of Origin China
Recycled No
Post-consumer-waste% 0%
Assembly Required No
Physical Characteristics
Weight (Shipping) 32.9 lb
Form Factor Rack/Tower
Rack Height 2U
Height 17.3"
Width 3.5"
Depth 10.5"
Product Color Black
Technical Information
Dataline Protection RJ-45
Protection Type Over Voltage
  Brownout
Plug/Connector Type NEMA 5-15P
Cord Length 6 ft
Receptacle Type NEMA 5-15R
Transfer Time 4 ms
Receptacle Detail 8 x NEMA 5-15R
