Description:

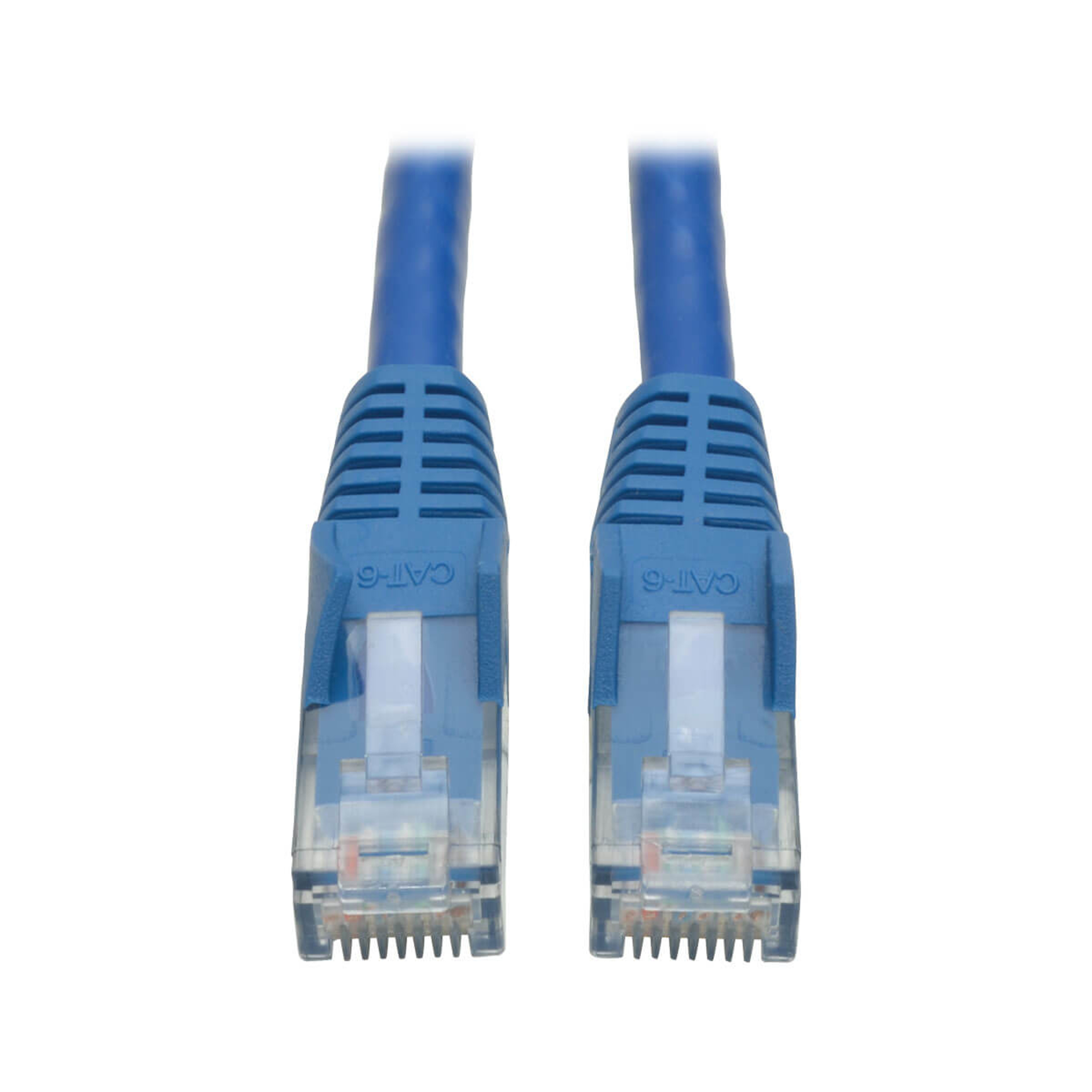

2FT CAT6 PATCH CABLE M/M BLUE GIGABIT MOLDED SNAGLESS PVC RJ45
With Tripp Lite's new Category 6 snagless molded patch cables you can stay ahead of the game by distributing data, voice and video at higher speeds.
Specifications:
OVERVIEW
| UPC Code |
037332116437 |
| Technology |
Cat6; PoE |
PHYSICAL
| Cable Jacket Color |
Blue |
| Cable Jacket Material |
PVC |
| Cable Jacket Rating |
CM |
| Cable Shielding |
UTP |
| Cable Outer Diameter (OD) |
6.0 mm |
| Number of Conductors |
4 Pair |
| Conductor Material |
Stranded Copper |
| Conductor Gauge |
24 AWG |
| Cable Length (ft.) |
2 |
| Cable Length (in.) |
24 |
| Shipping Dimensions (hwd / in.) |
9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) |
0.07 |
| Unit Dimensions (hwd / in.) |
0.000 x 0.000 x 0.000 |
ENVIRONMENTAL
| Operating Temperature Range |
14° to 122°F (-10° to 50°C) |
| Storage Temperature Range |
5° to 140°F (-15° to 60°C) |
| Operating Humidity Range |
0% to 90% RH, Non-Condensing |
| Storage Humidity Range |
0% to 90% RH, Non-Condensing |
COMMUNICATIONS
| Bandwidth per TIA Standard |
250 MHz |
| Maximum Bandwidth as Tested |
500 MHz |
| Network Compatibility |
1 Gbps (Gigabit) |
| IEEE Standards Supported |
802.3an; 802.3at |
CONNECTIONS
| Side A - Connector 1 |
RJ45 (MALE) |
| Side B - Connector 1 |
RJ45 (MALE) |
| Contact Plating |
Gold |
| PoE Type |
Type 2 PoE+ (30W, IEEE 802.3at) |
| Connector Type |
Snagless; Molded |
| Wiring Configuration |
EIA/TIA 568B |
FEATURES & SPECIFICATIONS
STANDARDS & COMPLIANCE
| Product Certifications |
UL Listed; cUL Listed |
| Product Compliance |
CE (Europe); RoHS; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA |
WARRANTY & SUPPORT
| Product Warranty Period (Worldwide) |
Lifetime limited warranty |
