StarTech.com 4 Port Dual DVI USB KVM Switch w/ Audio & USB Hub - Share a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers - Dual Monitor KVM - dual monitor kvm switch - usb kvm switch - 4 port kvm switch - dual dvi kvm
The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.
This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.
Rackmount your KVM switch
If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable
Specifications:
| Warranty |
| Limited Warranty |
3 Year |
| Technical Information |
| Number of Computers Supported |
4 |
| Number of Local Users Supported |
1 |
| Video |
| Maximum Video Resolution |
2048 x 1536 |
| Graphic Mode |
QXGA |
| Power Description |
| Input Voltage |
230 V AC |
| |
120 V AC |
| Input Voltage Range |
110V AC to 240V AC |
| Interfaces/Ports |
| USB |
Yes |
| DVI |
Yes |
| Number of USB Ports |
8 |
| Number of DVI Ports |
10 |
| Physical Characteristics |
| Weight (Approximate) |
2.87 lb |
| Form Factor |
Desktop |
| Height |
2.4" |
| Width |
8.7" |
| Depth |
5.1" |
| Product Color |
Black |
|
| Miscellaneous |
| Additional Information |
- Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices.
- Take full advantage of Dual head video cards by switching up to four machines across two high resolution DVI monitors.
- Absolutely no software or drivers required providing a completely OS independent KVM solution.
|

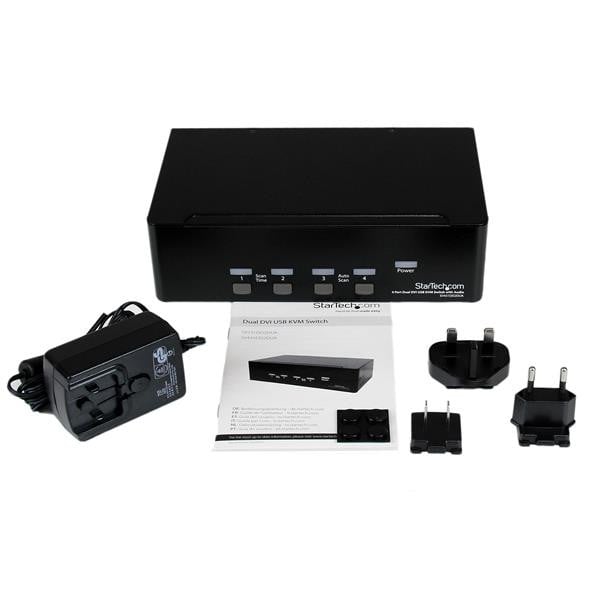

| Package Contents |
- 4-Port Dual DVI USB KVM Switch with Audio and USB 2.0 Hub
- 4 x Foot Pads
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Instruction manual
|
| Country of Origin |
Taiwan |
| Environmentally Friendly |
Yes |
| Environmental Certification |
WEEE |
| |
RoHS |
| TAA Compliant |
Yes |
| General Information |
| Product Type |
KVM Switchbox |
| Manufacturer Part Number |
SV431DD2DUA |
| Manufacturer Website Address |
http://www.startech.com |
| Packaged Quantity |
1 |
| Manufacturer |
StarTech.com |
| Product Model |
SV431DD2DUA |
| Product Name |
4-Port Dual DVI USB KVM Switch with Audio and USB 2.0 Hub |
| Brand Name |
StarTech.com |
|
