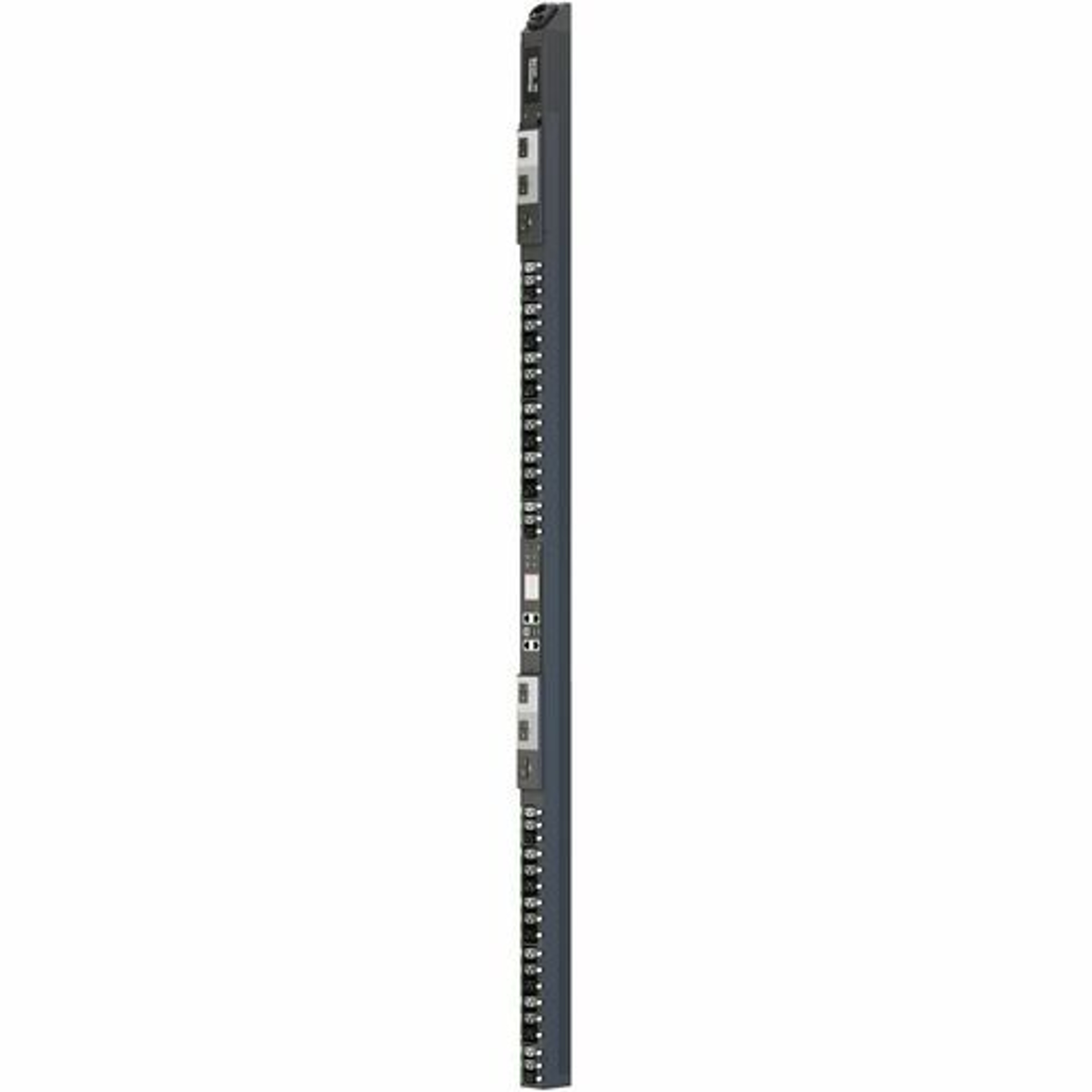

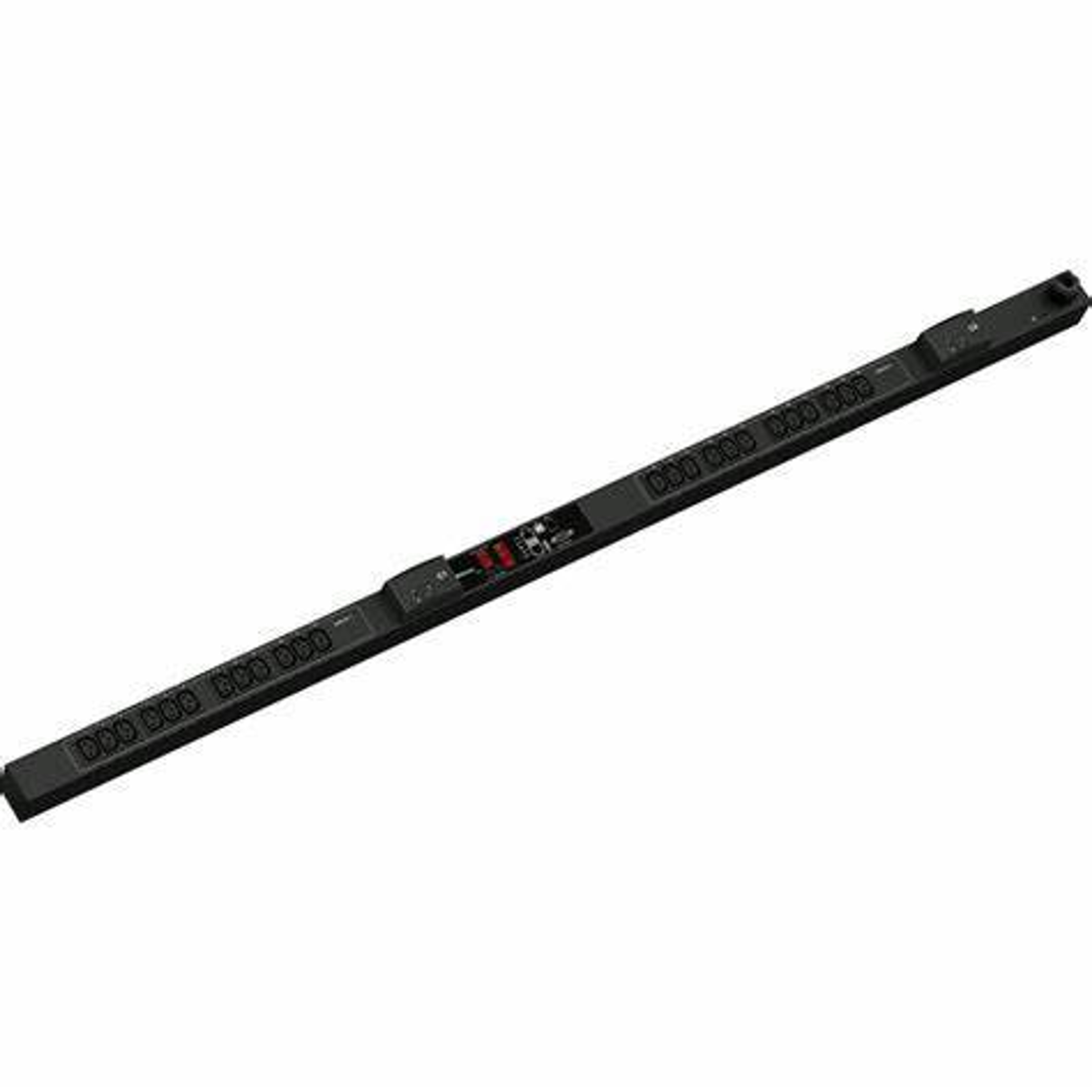

Server Technology C4T36RA-DFBD2FE1 PRO4X PDU 208 Volt 36 Outlets 0U

Server Technology

MSRP: $4,200.00 SALE PRICE
$3,570.00

REGULAR PRICE $3,822.00

(You Save $630.00)

MFG#:C4T36RA-DFBD2FE1
Product Category:PDU
Platform:PRO4X
Metering and Switching:Smart POPS
★★★★4.1/5
Rate Us on Trustpilot

Additional information

Description:

Key Features | HDOT Cx Outlets

Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.

45 Degree Angled Infeed

The angled infeed improves accessibility, provides infeed strain relief, and its bend radius is suitable with 60A rated cords.

Network Monitoring

Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.

Multi-Unit Linking & Cascading

Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.

Multi-Color LCD

An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.

Hot Swappable Controller

The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.

Power Quality Measurements

Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.

RGB LED Outlet Indicators

RGB LEDs identify an outlet's on/off state, if it's above/below a certain power threshold, or if it's in suspect of a power measurement irregularity.

Waveform Capture

Capture voltage and current waveforms automatically or upon demand.

RamLock Locking Outlets

A mechanical locking mechanism built to secure the broadest range of C14 and C20 plugs in place.

Environmental Monitoring

Support up to 12 daisy chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.

Per-Inlet Power Sensing

PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.

Per-Outlet Power Sensing

POPS® (Per Outlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, and Energy per outlet.

Branch Circuit Protection

This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.

  • Provide circuit protection and easy configuration for trouble-free access
  • CS8365 3P+G 50A plug/connector type for reliable, productive connectivity and optimal power output
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • 230 V AC input voltage for optimal performance with maximum usability
  • 208 V AC output voltage for better reliance and maximum usability

Specifications:

Interfaces/Ports
Network (RJ-45)Yes
Management
Management
  • HTTP/HTTPS
  • TLSv1.2
  • SSHv2
  • Telnet
  • SNMPv2c
  • v3 (GET, SET, Traps)
  • IPv4
  • IPv6
  • LDAPv3/LDAPS
  • TACACS+
  • RADIUS
  • FTP/SFTP
Miscellaneous
Certifications & Standards

Safety (Listed & Certified, cTUVus mark):

  • UL 62368-1
  • CSA C22.2 No. 62368-1

EMC:

  • FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A
  • CAN ICES-003, Class A
Physical Characteristics
Height70"
Width2.2"
Depth2.5"
Power Description
Circuit BreakerYes
Input Current50 A
Power Rating (Watt)14.40 kW
Environmental Conditions
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature140°F (60°C)
Minimum Storage Temperature-40°F (-40°C)
Maximum Storage Temperature185°F (85°C)
Minimum Operating Humidity5%
Maximum Operating Humidity90%
General Information
Product TypePDU
Manufacturer Part NumberC4T36RA-DFBD2FE1
Manufacturer Website Addresshttp://www.servertech.com
ManufacturerServer Technology, Inc
Product NameSmart POPS PRO4X 36-Outlets PDU
Product LineSmart POPS
Product SeriesPRO4X
Brand NameServer Technology
Technical Information
FeaturesMulti-color LCD
Protection TypeFuse
Circuit Protection
Branch Circuit
Plug/Connector TypeCS8365 3P+G 50A
Receptacle TypeIEC 60320 C13
CX
Load Capacity (Watt)14.40 kW
Locking ReceptaclesRamLock Locking Outlet
Receptacle Detail24 x CX
12 x IEC 60320 C13
