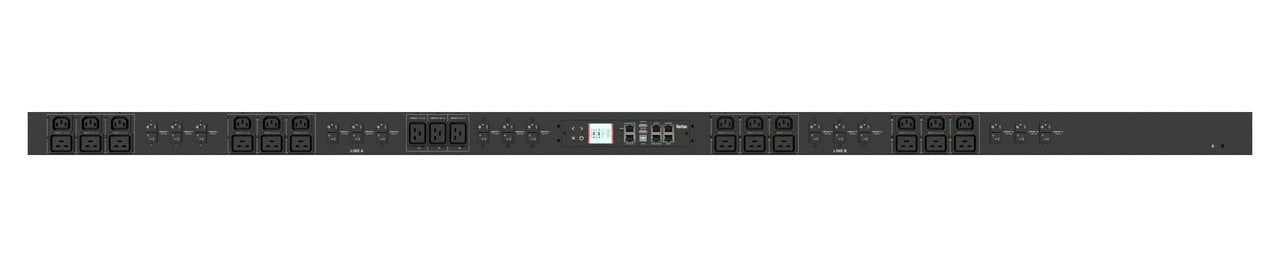

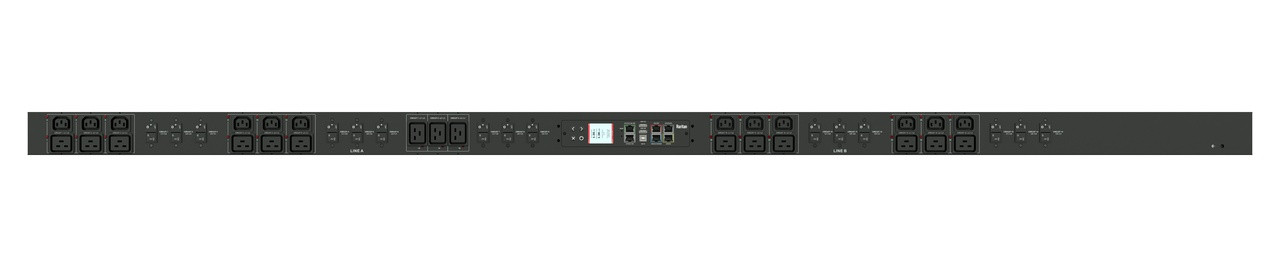

Server Technology's PRO4X Switched POPS PDUs run on our state-of-the-art Xerus network interface platform and provide remote access to power, PDU status, input, outlet and branch current monitoring, and outlet on/off control. The PDU features RamLock, a self-locking mechanism to prevent accidental cord disconnects, and our award-winning HDOT Cx outlets that can be deployed as either a C13 or C19. Switched POPS PDUs are secured with strong configurable password, active directory, 256-bit AES encryption, SSH, SSL and HTTPS support. SNMP traps provide automated alerts on power and environmental conditions from Legrand's plug-and-play environmental monitoring sensors like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.

• HDOT CX OUTLETS:
• Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
• 45 DEGREE ANGLED INFEED:
• The angled infeed improves accessibility, provides infeed strain relief, and its bend radius is suitable with 60A rated cords.
• NETWORK MONITORING:
• Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
• MULTI-UNIT LINKING & CASCADING:
• Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.
• MULTI-COLOR LCD:
• An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.
• HOT SWAPPABLE CONTROLLER:
• The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.
• POWER QUALITY MEASUREMENTS:
• Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.
• RGB LED OUTLET INDICATORS:
• RGB LEDs identify an outlet's on/off state, if it's above/below a certain power threshold, or if it's in suspect of a power measurement irregularity.
• WAVEFORM CAPTURE:
• Capture voltage and current waveforms automatically or upon demand.
• RAMLOCK LOCKING OUTLETS:
• A mechanical locking mechanism built to secure the broadest range of C14 and C20 plugs in place.
• ENVIRONMENTAL MONITORING:
• Support up to 12 daisy chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.
• PER-INLET POWER SENSING:
• PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.
• PER-OUTLET POWER SENSING:
• POPS® (Per Outlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, and Energy per outlet.
• BRANCH CIRCUIT PROTECTION:
• This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.
• Color-Coded Options:
• Select from six colors to designate PDU circuits in the data center - black, white, red, green, blue, and yellow.

Specifications:
