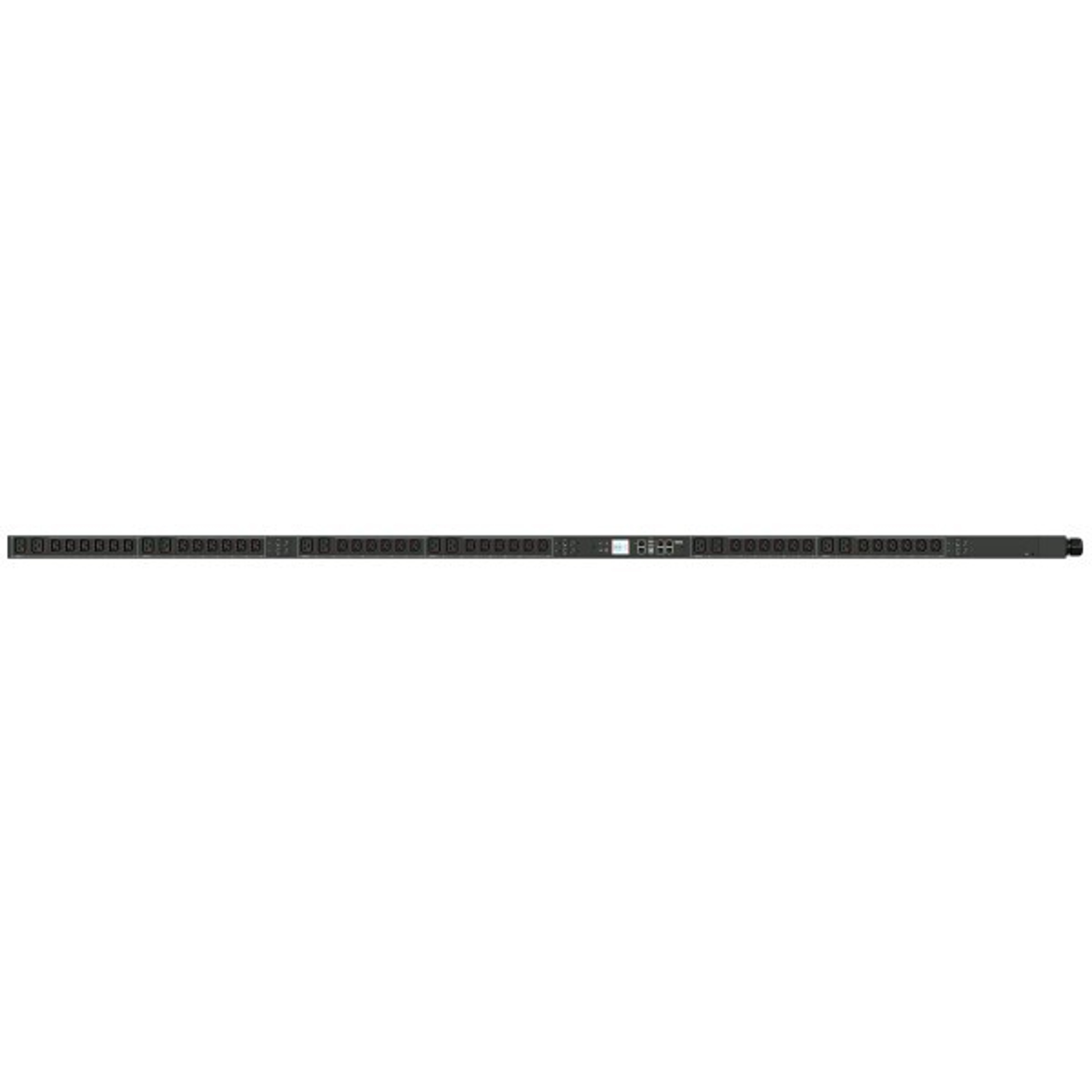

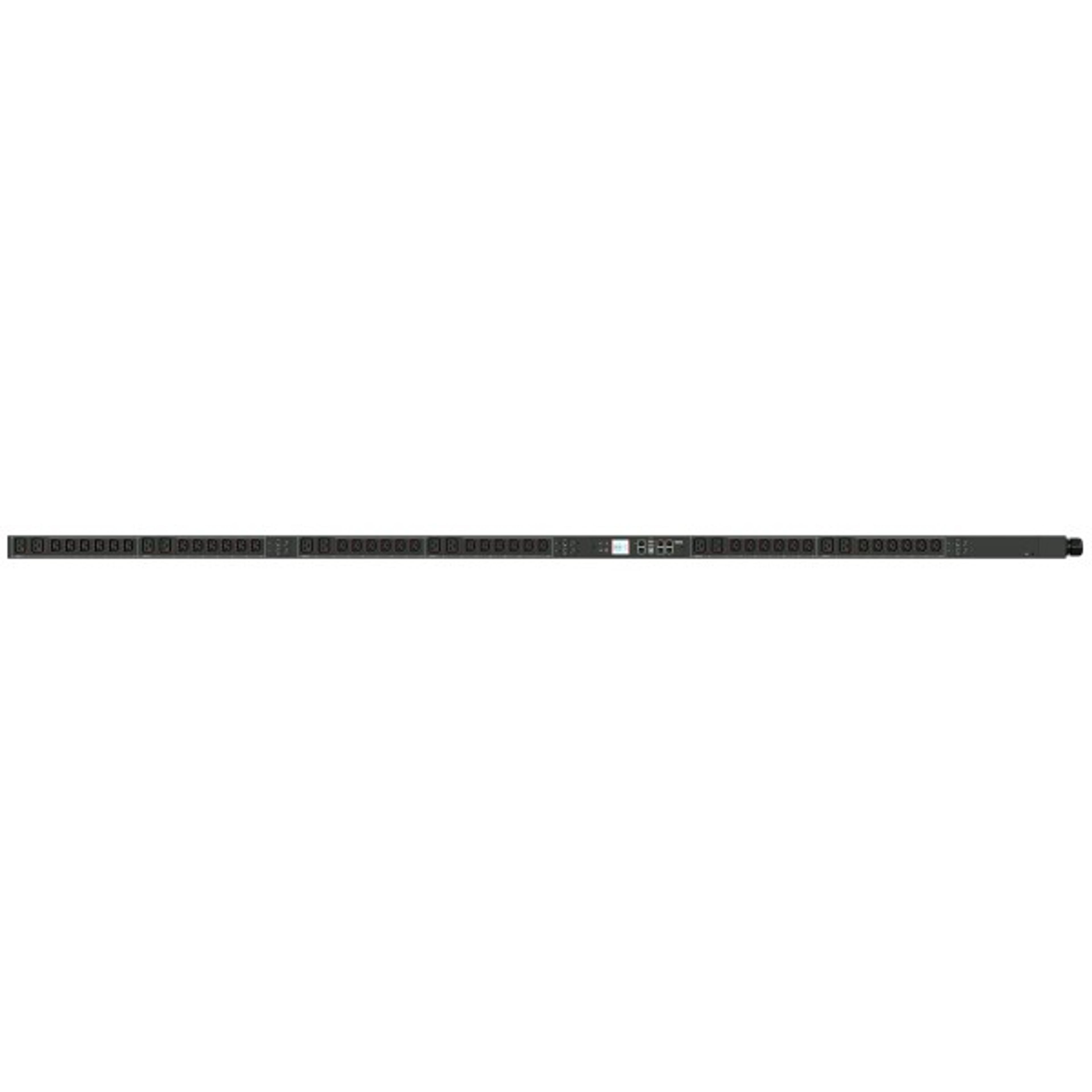

Raritan PX3-5909U-E2M5N1V2 48-Outlets PDU

Raritan

SALE PRICE
$3,222.00

REGULAR PRICE $3,929.00
MFG#:PX3-5909U-E2M5N1V2
Product Category:PDU
Model or Line:PX3
Availability:Call for Availability

Additional information

Description:

Raritan PX3-5909U-E2M5N1V2 48-Outlets PDU - Switched with Metered-by-Outlet - IEC 60309 3P+N+E 6h 32A (4P5W) - 36 x IEC 60320 C13, 12 x IEC 60320 C19 - 400 V AC - Branch Circuit, Overload Protection - Network (RJ-45) - 9.84 ft Cord Length

Features
  • Electric power fitted to racks of computers and networking equipment within a data center
  • Manage the load and monitor it perfectly with Switched with Metered-by-Outlet anytime with the convenience
  • Three Phase phase PDU provides optimal power output with added usability
  • IEC 60309 3P+N+E 6h 32A (4P5W) plug/connector type for better, dependable connectivity and desired power output
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • 400 V AC input voltage for maximum feasibility and added productivity
  • 230 V AC output voltage for maximum dependability and added productivity

Specifications:

Interfaces/Ports
Network (RJ-45) Yes
Environmental Conditions
Maximum Operating Temperature 140°F (60°C)
Maximum Operating Humidity 85%
Management
Management
  • HTTP(s)
  • SSH
  • Telnet
  • RS-232 (Serial)
  • Power IQ
  • SNMP version v2/v3
  • SMTP
  • JSON-RPC
  • Modbus over TCP
Remote Outlet Switching Yes
Miscellaneous
Certifications & Standards
  • CE
  • Canada ICES-003
  • Part 15 Class A of the FCC rules
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Cord Length 9.84 ft
Height 96"
Width 2.1"
Depth 2.8"
Product Color Black Powder Coat
Color Family Other
General Information
Product Type PDU
Manufacturer Part Number PX35909UE2M5N1V2
Manufacturer Website Address http://www.legrand.us
Manufacturer Legrand Group
Product Model PX3-5909U-E2M5N1V2
Product Name PX3-5909U-E2M5N1V2 48-Outlets PDU
Product Series PX3
Brand Name Raritan
Power Description
Circuit Breaker Yes
Input Voltage 400 V AC
  400 V AC
Output Voltage 230 V AC
  230 V AC
Input Current 32 A
Input Voltage Range 380 V AC - 415 V AC
  380 V AC - 415 V AC
Input Frequency 60 Hz
Output Voltage Range 220 V AC - 240 V AC
  220 V AC - 240 V AC
Power Rating (VA) 23 kVA
Technical Information
Features LCD Display
Protection Type Overload Protection
  Branch Circuit
Plug/Connector Type IEC 60309 3P+N+E 6h 32A (4P5W)
Phase Three Phase
Receptacle Type IEC 60320 C13
  IEC 60320 C19
PDU Type Switched with Metered-by-Outlet
  Switched with Metered-by-Outlet
Locking Receptacles SecureLock
Receptacle Detail 12 x IEC 60320 C19
  36 x IEC 60320 C13
