Description:

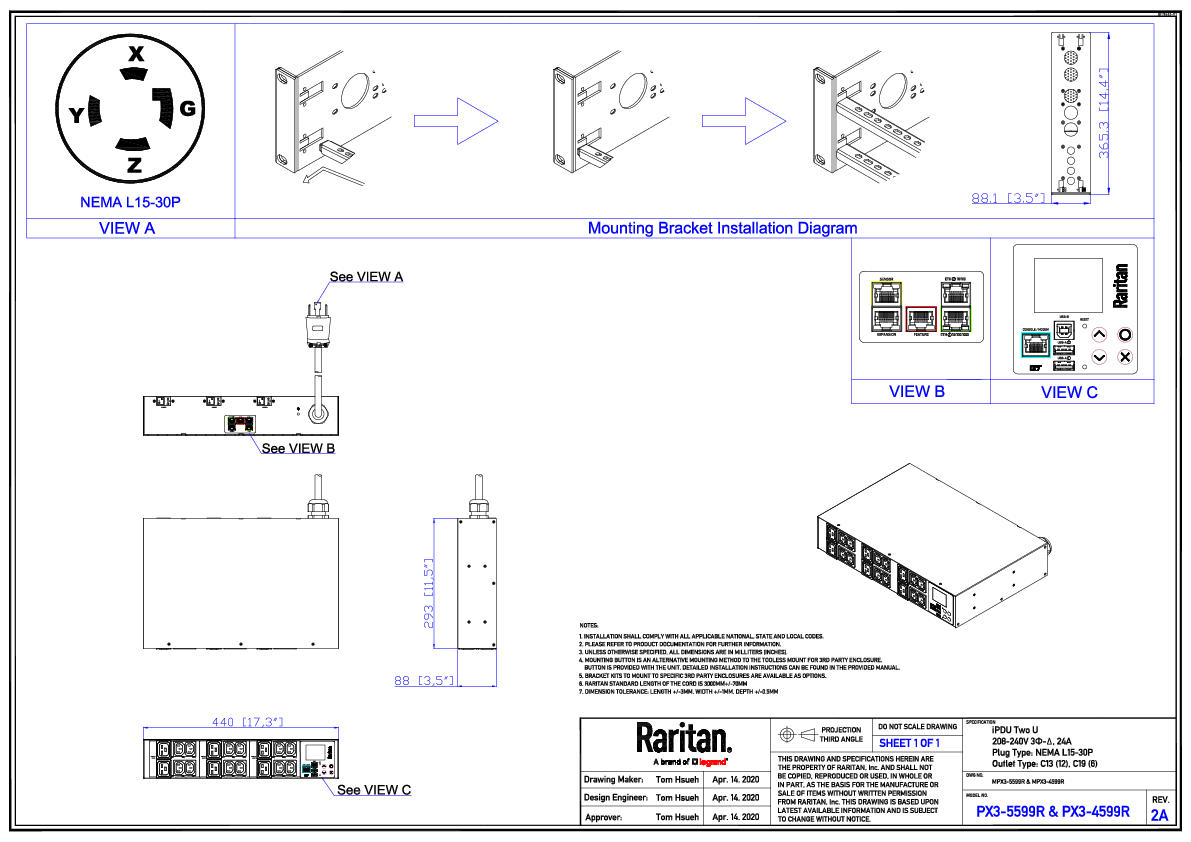

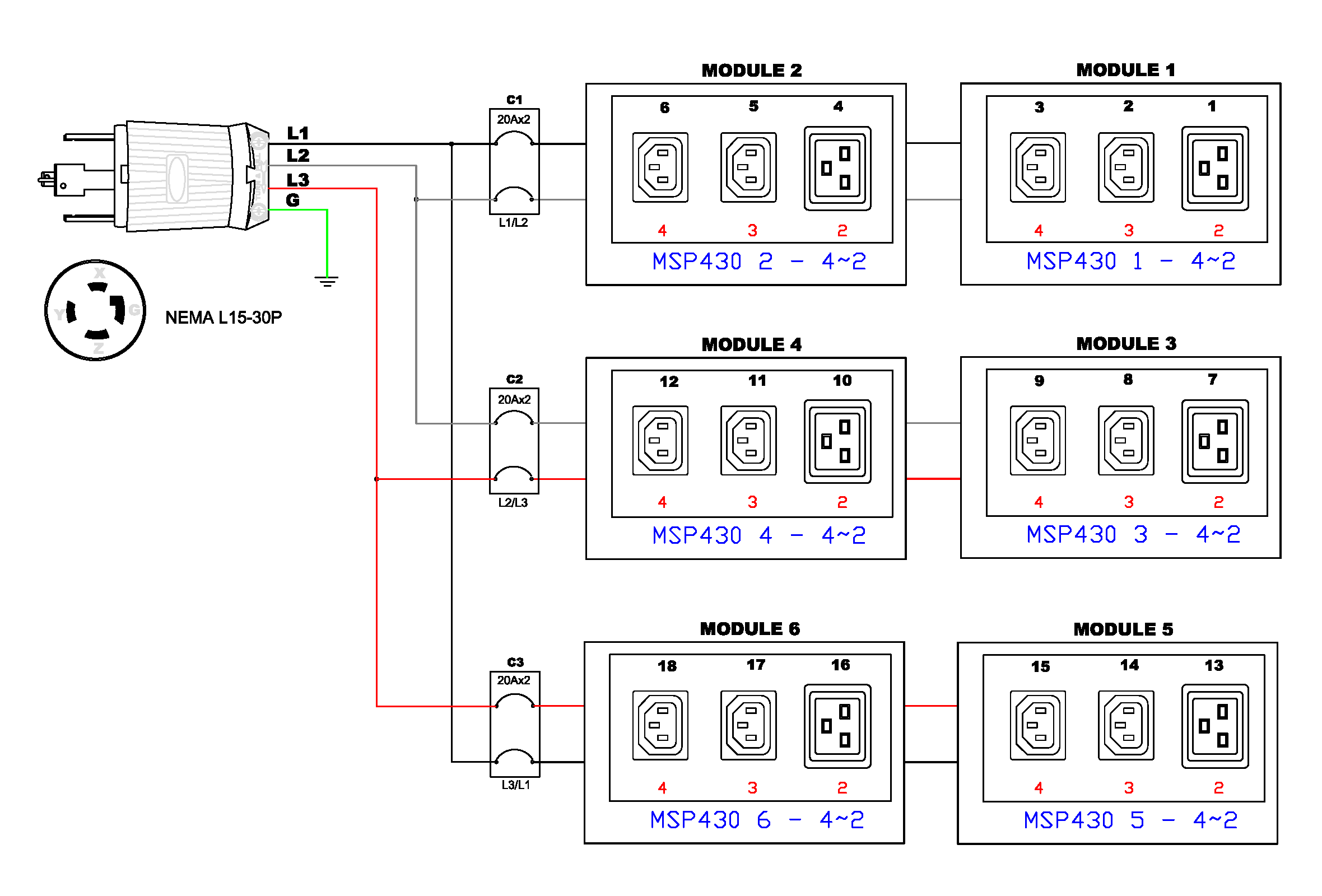

3PH, 208V AC, 30A (24A/PH rated); 18 outlets: 12x C13, 6x C19; plug: NEMA L15-30P (Delta Rear feed), 8.6kVA; Outlet Metered/Switched, 2U horizontal PDU, SecureLock ready, high resolution color display, Ethernet, serial, 2x USB-A, USB-B and sensor connections
Specifications:
| Interfaces/Ports |
| Network (RJ-45) |
Yes |
| Environmental Conditions |
| Maximum Operating Temperature |
140°F (60°C) |
| Maximum Operating Humidity |
85% |
| Management |
| Management |
- HTTP(s)
- SSH
- Telnet
- RS-232 (Serial)
- Power IQ
- SNMP version v2/v3
- SMTP
- JSON-RPC
- Modbus over TCP
|
| Remote Outlet Switching |
Yes |
| Miscellaneous |
| Certifications & Standards |
- UL Listed
- Canada ICES-003
- Part 15 Class A of the FCC rules
|
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| General Information |
| Product Type |
PDU |
| Manufacturer Part Number |
PX35599R |
| Manufacturer Website Address |
http://www.legrand.us |
| Manufacturer |
Legrand Group |
| Product Model |
PX3-5599R |
| Product Name |
PX3-5599R 18-Outlets PDU |
| Product Series |
PX3 |
| Brand Name |
Raritan |
| Physical Characteristics |
| Mount Type |
Rack-mountable |
| Rack Height |
1U |
| Cord Length |
9.84 ft |
| Height |
3.5" |
| Width |
17.3" |
| Depth |
11.5" |
| Product Color |
Black Powder Coat |
| Color Family |
Other |
|
| Power Description |
| Circuit Breaker |
Yes |
| Input Voltage |
230 V AC |
| |
230 V AC |
| Output Voltage |
208 V AC |
| |
208 V AC |
| Input Current |
30 A |
| Input Voltage Range |
208 V AC - 240 V AC |
| |
208 V AC - 240 V AC |
| Input Frequency |
60 Hz |
| Output Voltage Range |
208 V AC - 240 V AC |
| |
208 V AC - 240 V AC |
| Power Rating (VA) |
10000 VA |
| Technical Information |
| Features |
Onboard Display |
| |
LCD Display |
| Protection Type |
Overload Protection |
| |
Branch Circuit |
| Plug/Connector Type |
NEMA L15-30P (3P4W) |
| Phase |
Single Phase |
| Receptacle Type |
IEC 60320 C19 |
| |
IEC 60320 C13 |
| PDU Type |
Switched with Metered-by-Outlet |
| |
Switched with Metered-by-Outlet |
| Locking Receptacles |
SecureLock |
| Receptacle Detail |
6 x IEC 60320 C19 |
| |
12 x IEC 60320 C13 |
|
