Description:

Industrial 17.3" LED backlit LCD KVM console drawer 1920x1080 resolution, keyboard and touchpad, USB 2.0 port, 1U rack-mount form factor with intergated 16 port 2 user LX II KM Switch, cascaded to managed 256 Servers.

1U rack-mount form factor for the setup, administration and maintenance of rack mount servers in data centers, server rooms and other space-critical industrial environments

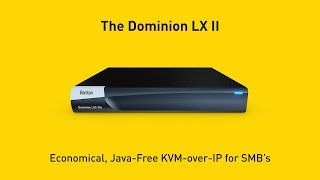

DLX2-108-LED Console Drawer is an affordable 8-port KVM-over-IP switch, 1 remote and 1 local user, virtual media, single power and single LAN

Specifications:

• 1 User, 8 Ports,
• 256 Managed Servers (Cascaded),
• 1920 x 1080@60Hz (VGA) Video Resolution,
• > 30,000 Hours MTBF

Dimension

• 481 x 571 x 43.9mm

Weight

• 11.15 kg

Rating/Power Consumption

• AC100-240V, 1.5A;
• DC12V/5.42A (65W)

DLX2-108 Affordable 8-port KVM-over-IP switch, 1 remote and 1 local user, virtual media, single power and single LAN.

Environmentals

• Operating Temperature:
  0–40°C (32°–104° F)
• Humidity:
  2%–85% RH

Hardware Supported

Form Factor  1U, rack mountable (brackets included)
Local Access Ports  VGA local video output port. Three USB-A ports for keyboard and mouse
Sample Video Resolutions  1024x768, 1280x1024, 1440x900, 1680x1050, 1600x1200, 1920x1080, 1920x1200

Remote Connection
Ports 8 (DLX2-108)
Users  Local user; 1 or 1 remote user
Network  Single 10/100/1000 gigabit Ethernet access, dual stack: IPv4 and IPv6
Protocols  TCP/IP; HTTP: HTTPs; UDP; RADIUS; SNMP; DHCP; PAP; CHAP
