Description:
The Cat5 Reach DVI-HD KVM Extender provides 1080p/60fps HD video quality and protection while enabling remote access to DVI or VGA ports on PCs, servers or KVM switches. The remote user console (video, audio, and USB keyboard, mouse, and peripherals) can be up to 3,300 feet/1,000 meters away from the remote device. Dual console support enables both local and remote control.
EASY TO INSTALL. EASY TO USE. EASY TO MAINTAIN.

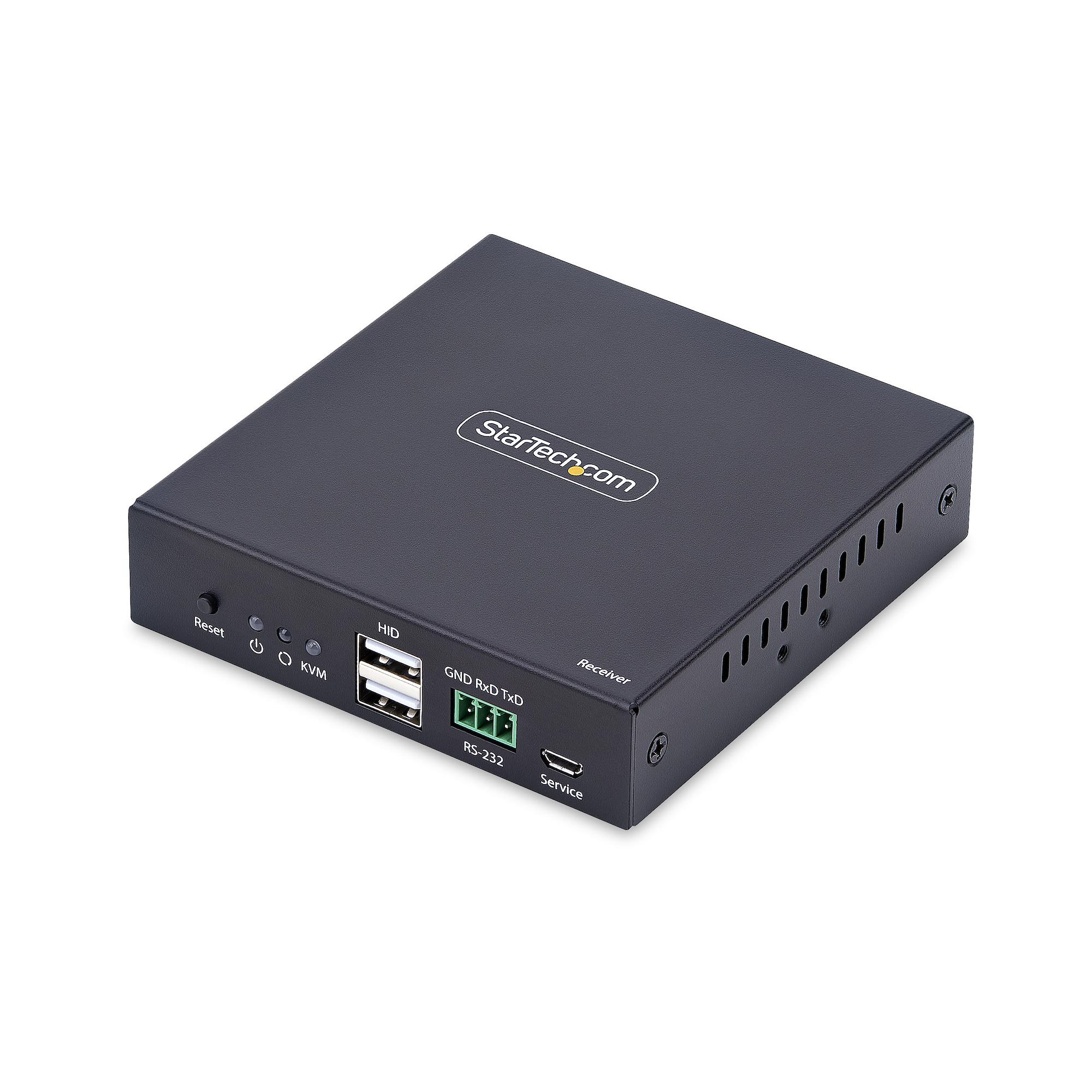

Cat5 Reach DVI-HD includes a transmitter and receiver pair for use with a Cat5 UTP cable. Plug a keyboard, video and mouse to the receiver and operate. The video quality is automatically adjusted - no manual adjustments are required. User can easily upgrade the firmware by the Web User Interface.
Specifications:
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 3280.84 ft |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 4 |
| Number of DVI Ports | 1 |
| Power Description | |
| Input Voltage Range | 110 V AC - 240 V AC |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Physical Characteristics | |
| Height | 1.1" |
| Width | 3.5" |
| Depth | 7.1" |
