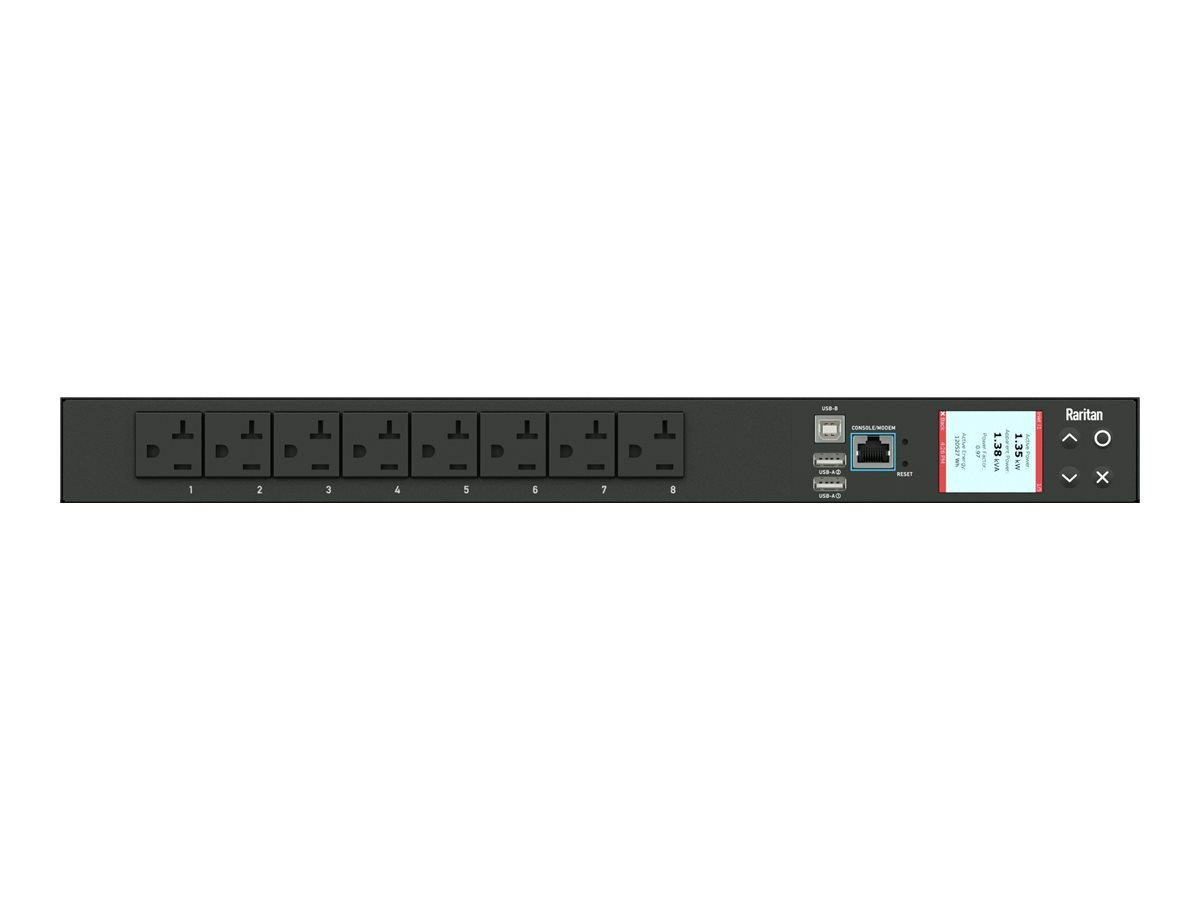

Raritan PX3-1147R 1PH 120V AC 20A 8 outlets 1U

Name: Raritan PX3-1147R 1PH 120V AC 20A 8 outlets 1U
Brand: Raritan
SKU: PX3-1147R
Price: 1298 USD
Availability: InStock

Raritan

MSRP: $1,583.00

Regular Price $1,583.00

Discount Price: $1,298.00

(You save $285.00 )

UPC:

Shipping:: Free Shipping

Product Overview:: 1PH, 120V AC, 20A (16A rated); 8 outlets: 8x NEMA 5-20R; plug: NEMA L5-20P (Rear feed), 1.9kVA; Unit Metered, 1U horizontal PDU

MFG#:: PX3-1147R

Product Category:: PDU

Platform:: PX3

Metering and Switching:: PDU Metered

Total Outlets:: 8

Plug Type:: NEMA L5-20P

Input Phase:: 1 Phase (L-N)

Power Capacity:: 1.9 kW

Input Voltage:: 120 V

Input Current:: 20

Form Factor:: 1U

Manufactures Website:: https://www.raritan.com

Manufactures Product Page:: https://www.raritan.com/product-selector/pdu-detail/PX3-1147R

Model or Line:: PX3

Detail

Description:

Monitored rack power distribution unit (1U [horizontal], 1.9kVA, 8 outlets). INPUT: 120v, 20a - NEMA L5-20P plug (2P3W); OUTPUT: 8@ 5-20R, 12@ outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Max Dimensions 440mm x 133mm x 44mm (17.3in x 5.2in x 1.7in). Max Weight 2.2 kg. Maximum ambient temperature 60C at full load.

Power Configuration

img-standard_ul 120V, 1Φ, 1.9kVA, 16A

Features

Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

Color, matrix LCD display : Voltage, current, or active power (per line); Alarms; Configuration information (name, ratings, IP / Networking information).
