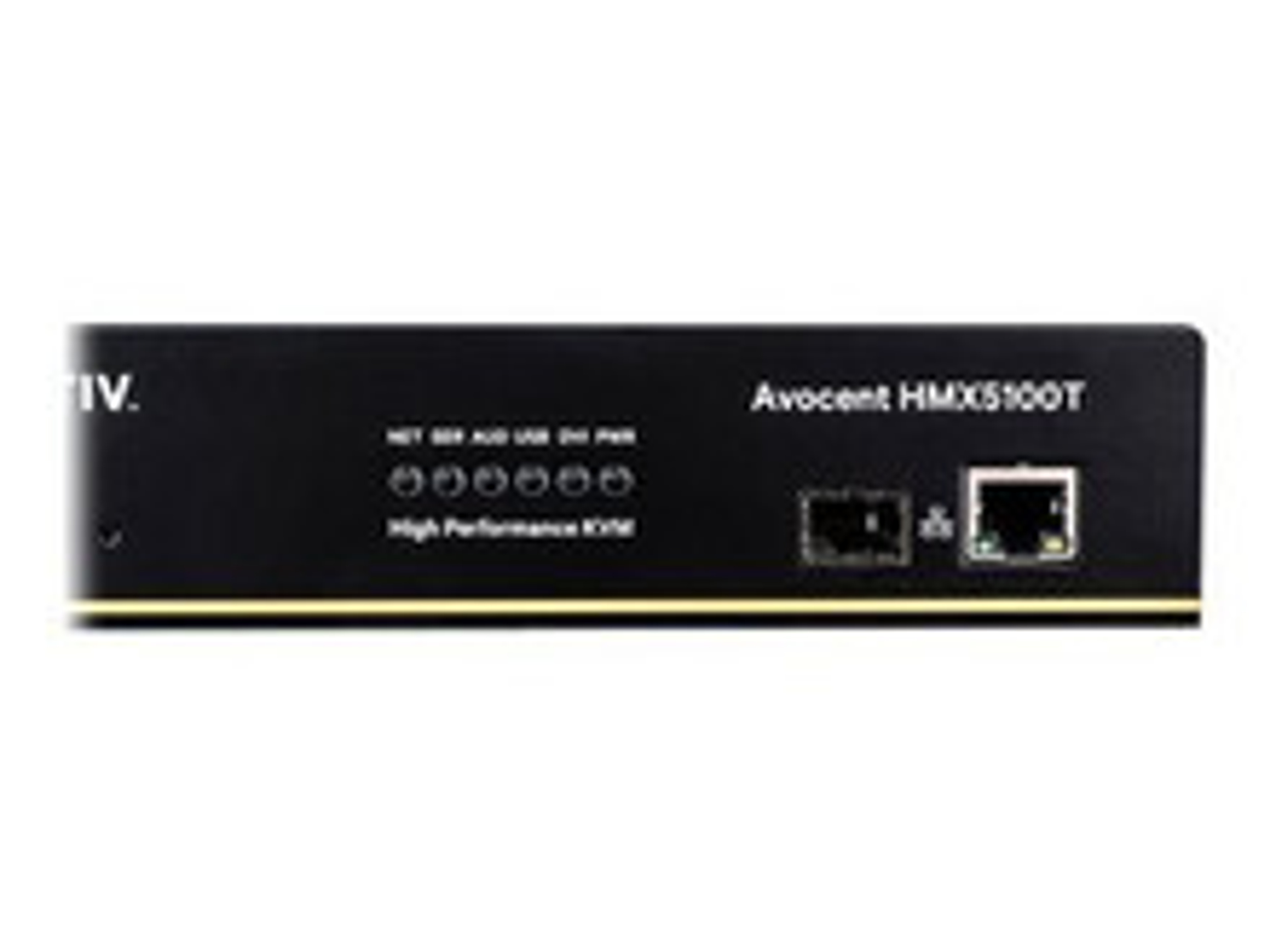

HMX TX SINGLE DVI-D, USB, AUDIO, SFP - Vertiv HMX5100T-001

Avocent HMX 5000 - KVM / audio / USB extender - 1U

Vertiv Avocent HMX TX 5100T High Performance KVM transmitter is an extender that provides access to system computers via a CATx network, allowing users the ability to access and share computing resources. The system enables you to locate critical computing hardware in secure, temperature-controlled environment, away from the user work station to maintain component integrity. It is ideal for demanding applications such as pre- and post-production editing, control rooms and collaborative environments. The system provides a high degree of security through its ability to disable the use of non-HID devices, eliminating the need to block USB ports to prevent the use of mass storage devices. The Vertiv Avocent HMX 5100T provides access to DVI-D video resolution to a maximum resolution of 1920x1200. It includes one USB-B input port and one system audio output port.

Specificationns:

Product Description Avocent HMX 5000 - KVM / audio / USB extender Device Type KVM / audio / USB extender Form Factor External - 1U Localization North America Power AC 120/230 V Dimensions (WxDxH) 7.8 in x 5.9 in x 1.7 in Weight 2.43 lbs

EXTENDED SPECIFICATIONS

General

Device Type KVM / audio / USB extender Form Factor External - 1U Localization North America

Networking

Connectivity Technology Wired Max Resolution 1920 x 1200 @ 60 Hz Features EDID Management

Expansion / Connectivity

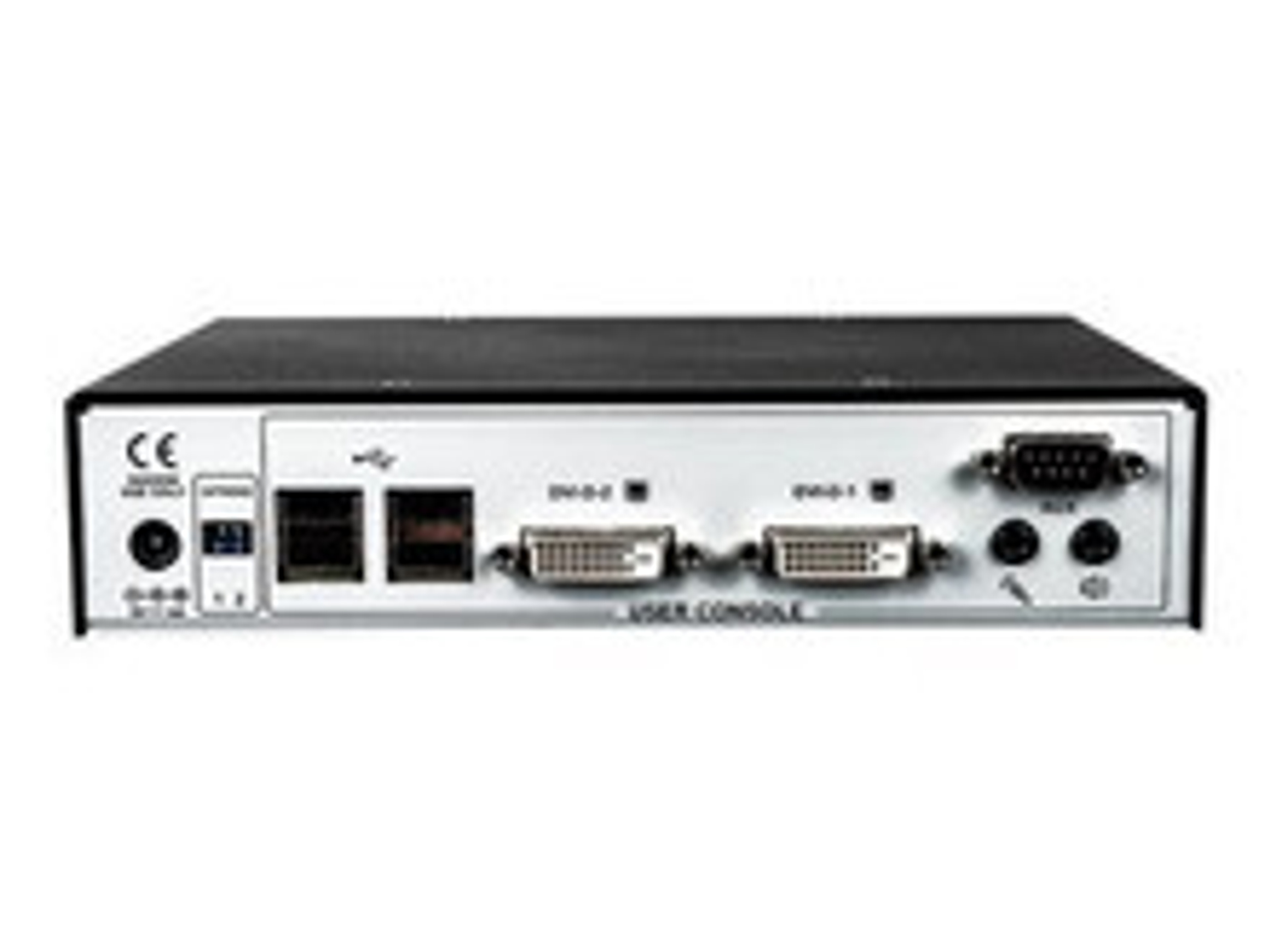

Interfaces 1 x USB 2.0 - Type B ¦ 1 x DVI-D ¦ 1 x audio (output) - mini jack female ¦ 1 x - RJ-45 female ¦ 1 x audio (input) - mini jack female ¦ 1 x RS-232 - DB-9 ¦ 1 x - SFP

Miscellaneous

Compliant Standards FCC

Power

Power Device External power adapter Voltage Required AC 120/230 V (50/60 Hz) Power Consumption Operational 20 Watt

Dimensions & Weight

Width 7.8 in Depth 5.9 in Height 1.7 in Weight 2.43 lbs

Environmental Parameters

Min Operating Temperature 32 °F Max Operating Temperature 104 °F
