Product Description:
The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.

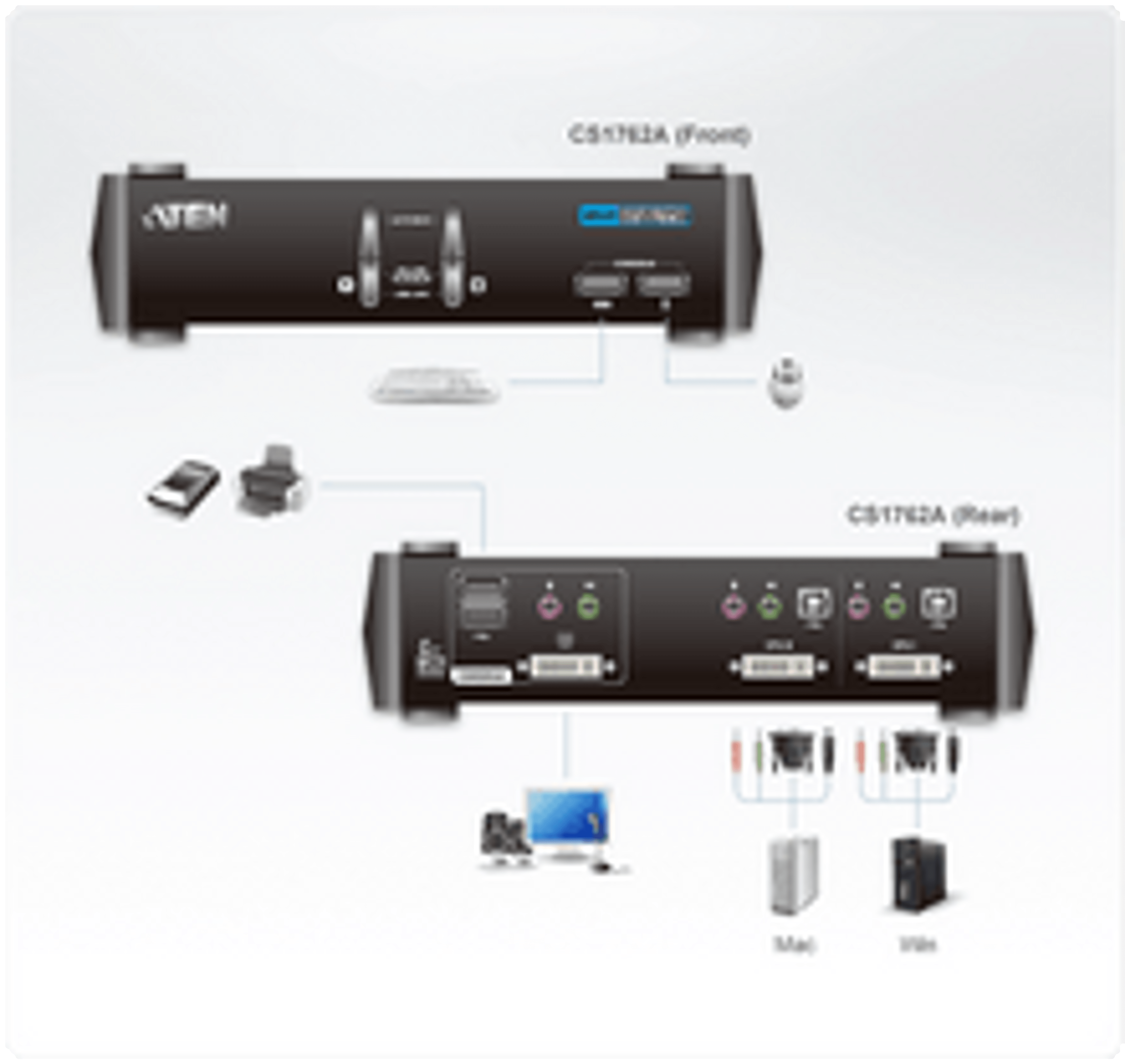

As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
- 1x CS1762A USB 2.0 DVI KVMP™ Switch
- 2x Custom KVM Cable Sets (DVI-D)
- 1x Power Adapter
- 1x User Manual
- 1x Quick Start Guide
Features:
- One USB console controls two DVI computers and two additional USB 2.0 devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification

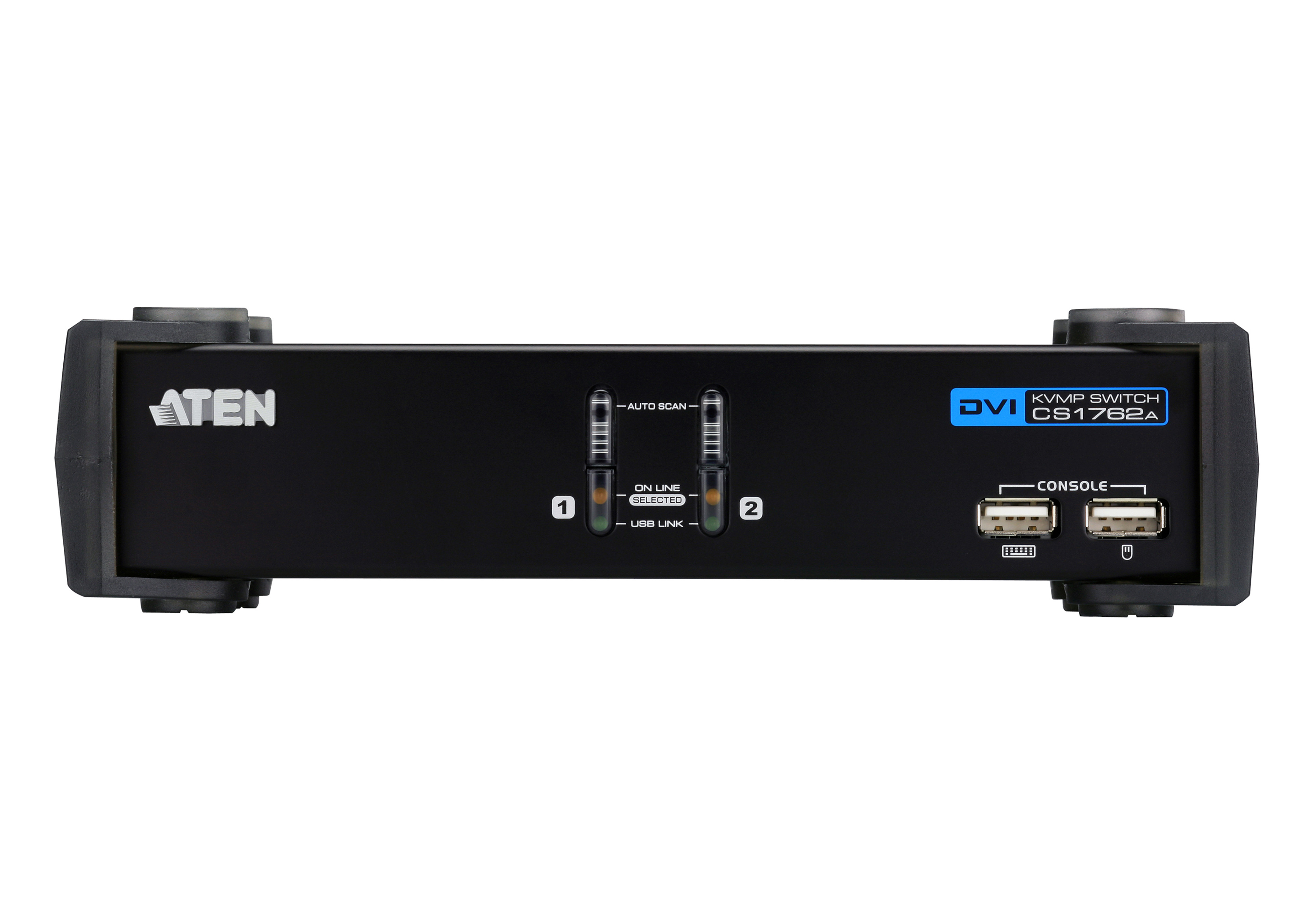

- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports widescreen resolutions
- Superior video quality – 1920 x 1200
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifi cations
- HDCP compatible
- Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
- Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboards only work with their own computer
Specifications:
| Computer Connections | 2 | ||
| Port Selection | Front Panel Pushbuttons; Hotkey, Mouse |
||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White; front panel) |
| Video | 1 x DVI-I Female (White) | ||
| Mouse | 1 x USB Type A Female (white; front panel) |
||
| Speakers | 1 x Mini Stereo Jack Female (Green; rear panel) |
||
| Mic. | 1 x Mini Stereo Jack Female (Pink; rear panel) |
||

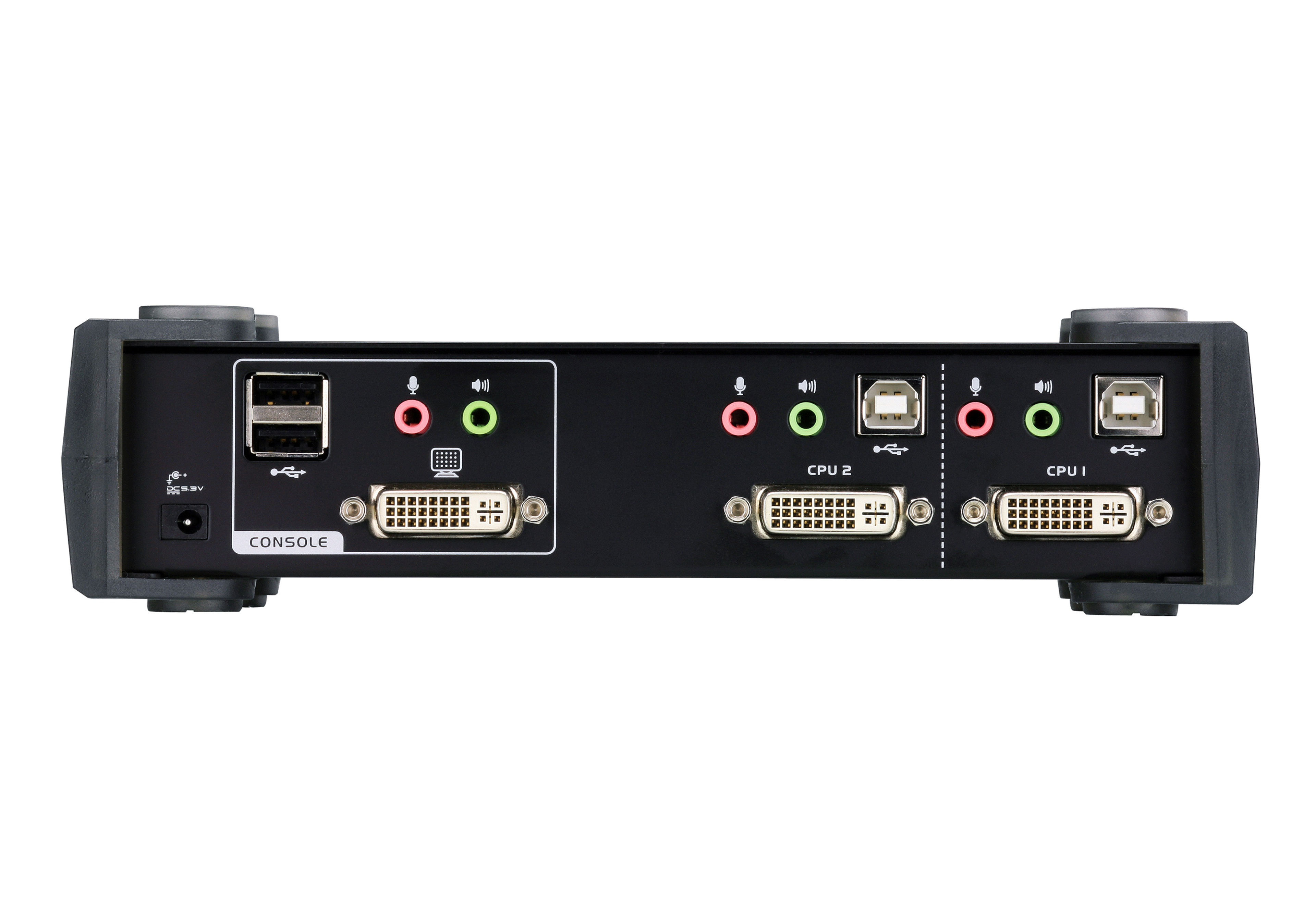

| KVM Ports | Keyboard / Mouse | 2 x USB Type B Female (White) | |
| Video | 2 x DVI-I Female (White) | ||
| Speakers | 2 x Mini Stereo Jack Female (Green) | ||
| Mic. | 2 x Mini Stereo Jack Female (Pink) | ||
| Power | 1 x DC Jack | ||
| USB Hub | 2 x USB Type A Female (Black, rear panel) |
||
| Switches | Selected | 2 x Pushbutton | |
| LEDs | On Line / Selected | 2 (Orange) | |
| USB Link | 2 (Green) | ||
| Emulation | Keyboard/Mouse | USB | |
| Video | 1920 x 1200 | ||
| Scan Interval | 1–99 secs. (5 secs. default) | ||
| Power Consumption | DC5.3V, 9.0W | ||
| Environment | Operating Temp. | 0 - 50°C | |
| Storage Temp. | -20 - 60°C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.73 kg | ||
| Dimensions ( L x W x H ) | 21.00 x 8.70 x 5.50 cm | ||
