Description:

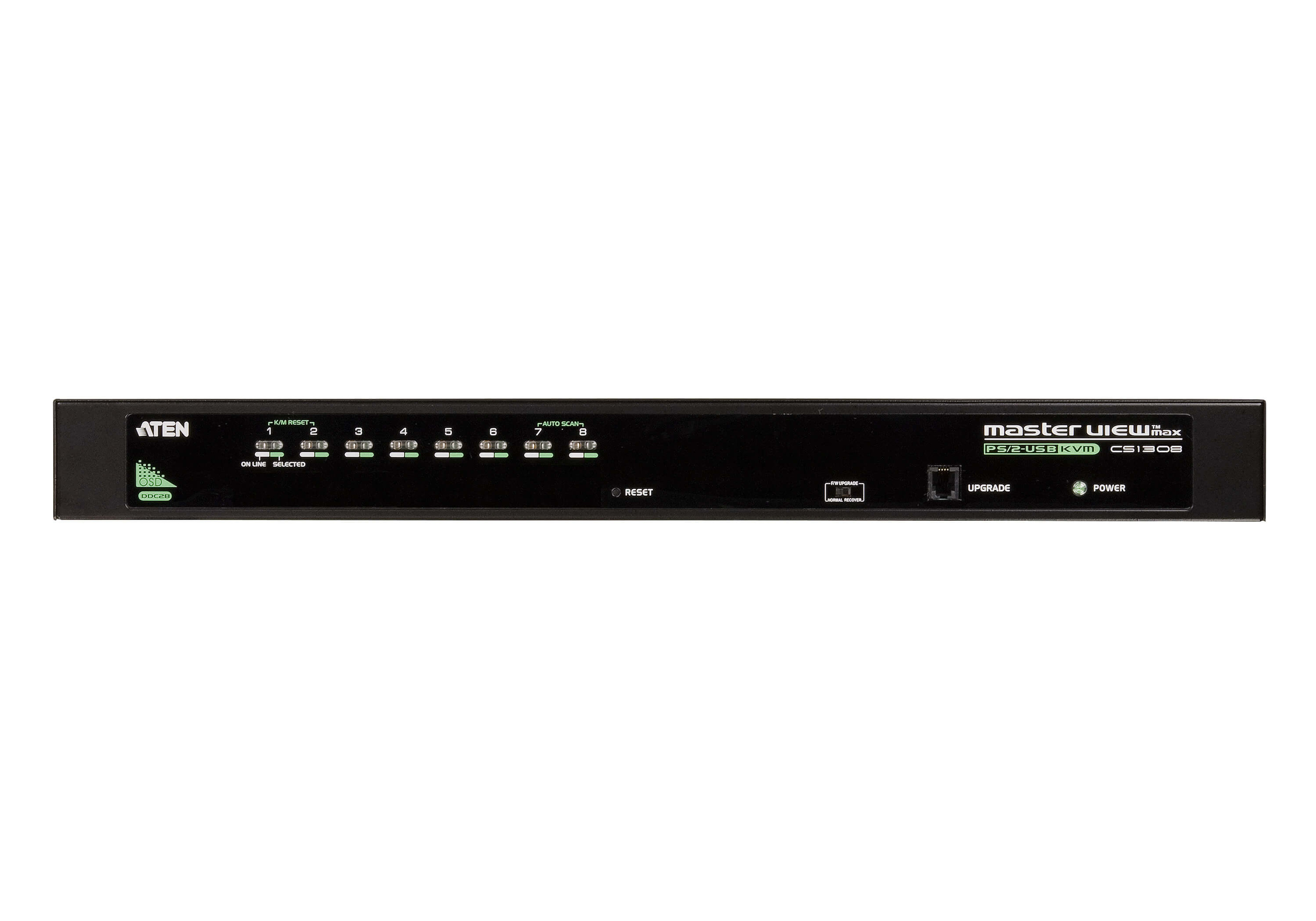

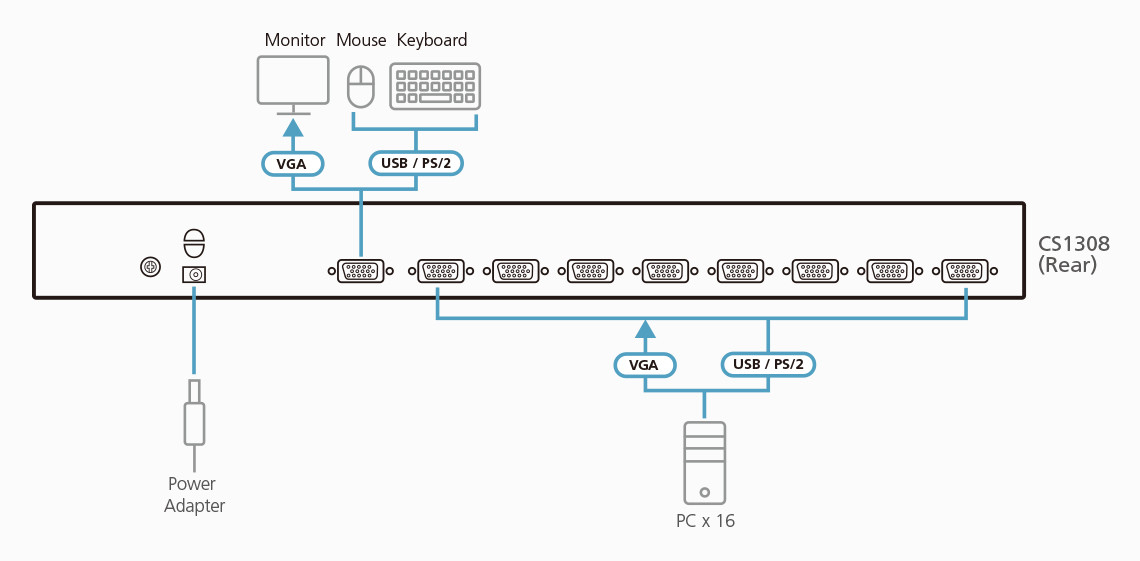

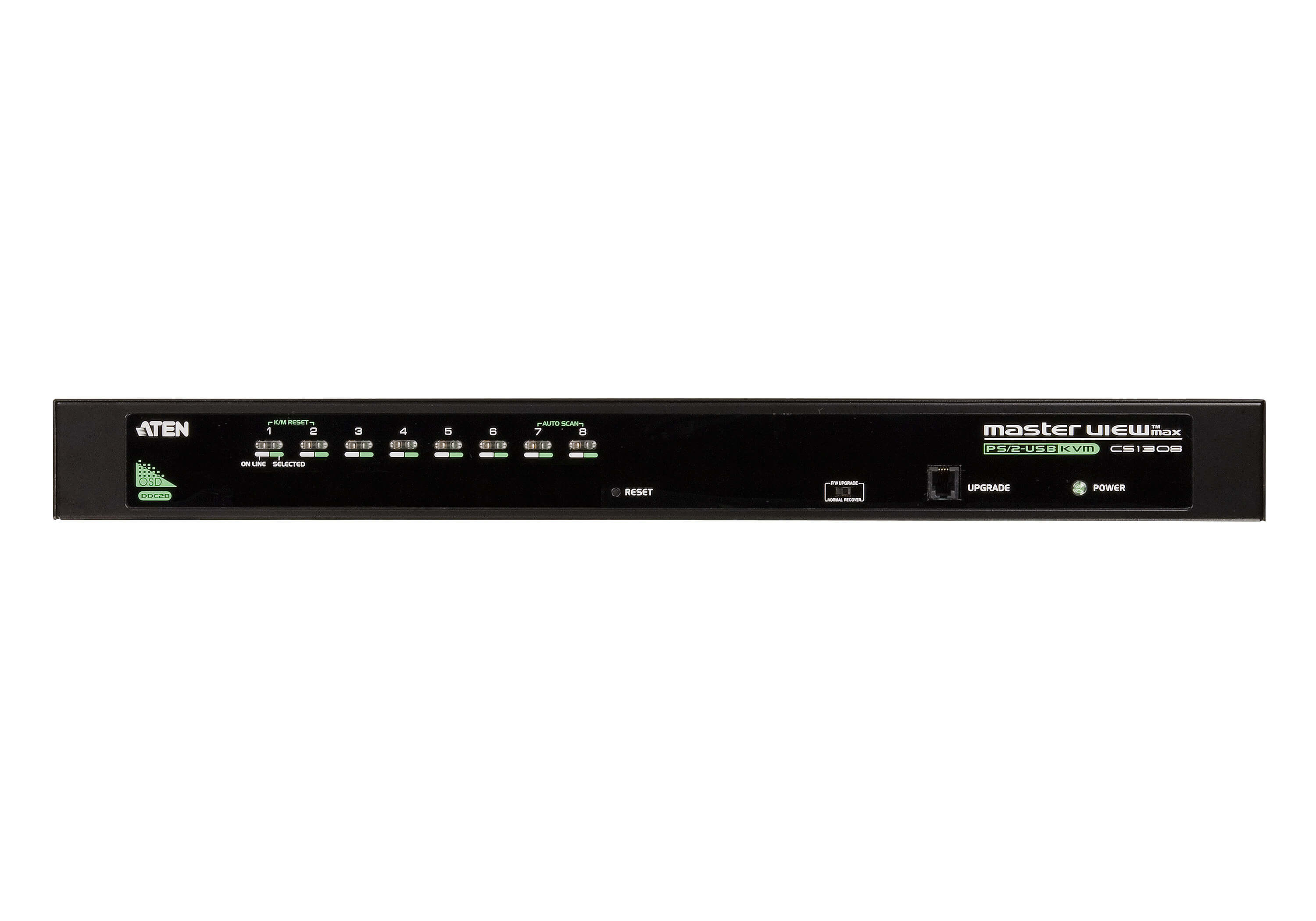

The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
Specifications:
- One USB-PS/2 console controls 8 computers
- Cascade up to 2 levels - control up to 64 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
Specifications:
| Computer Connections | |
| Direct | 8 |
| Daisy Chain or Cascading | 64 (via Cascade) |
| Port Selection | OSD, Hotkeys, Pushbuttons |
| Console Connectors | |

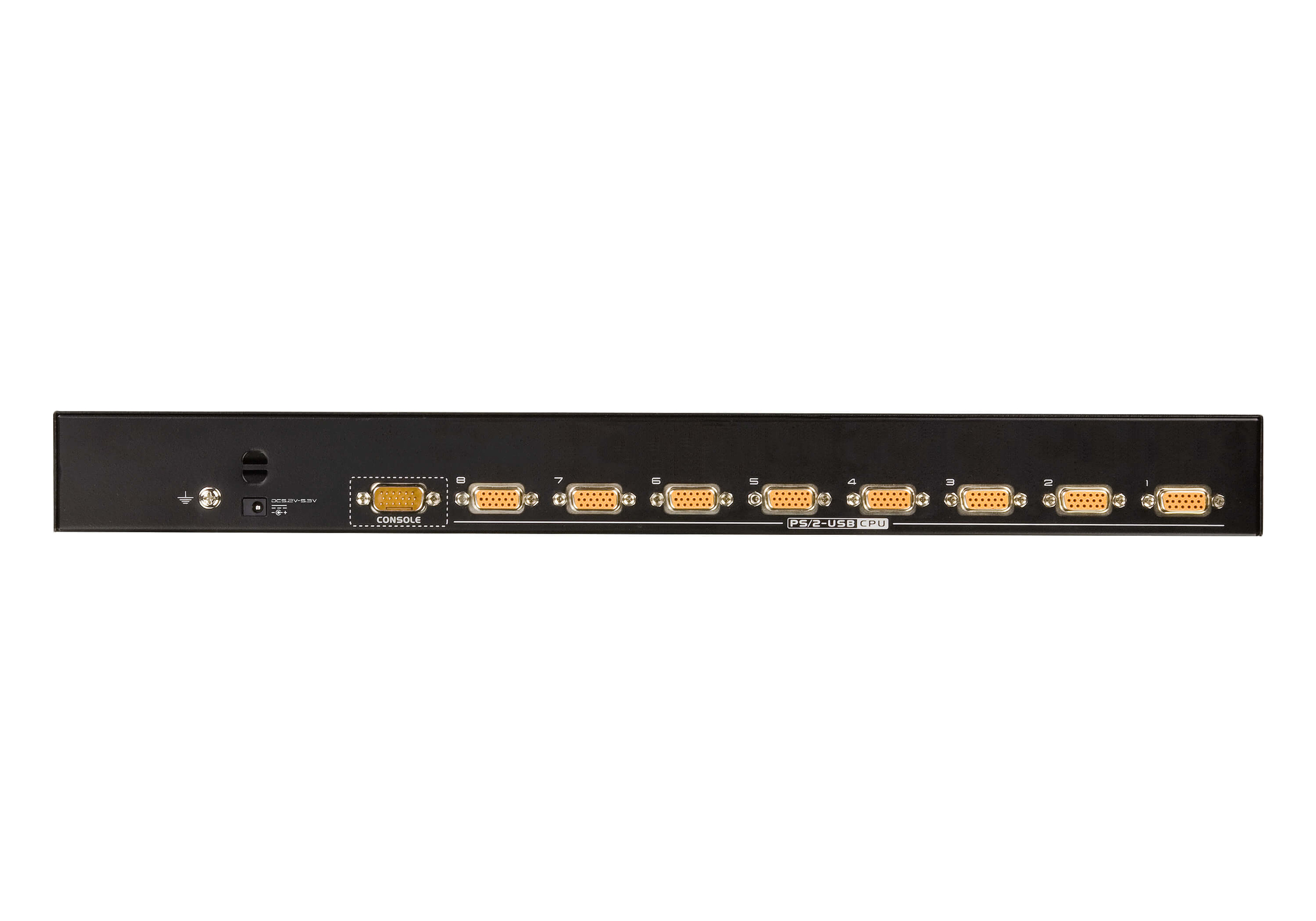

| Keyboard, Mouse, and Monitor | 1 x SPHD-18 Male (Yellow) |
| Flash ROM Upgrade | 1 x RJ-11 Female (Black) |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 8 x SPHD-15 Female (Yellow) |
| Connectors | |
| Power | 1 x DC Jack |
| Switches | |
| Port Selection | 8 x Pushbutton |
| F/W Upgrade | 1 x Slide |
| LEDs | |
| On Line | 8 (Orange) |
| Selected | 8 (Green) |
| Power On | 1 (Dark Green) |
| Emulation | |
| Keyboard | PS/2, USB |
| Mouse | PS/2, USB |
| Video Resolution | 2048 x 1536; DDC2B |
| Scan Interval | 1-255 Seconds |
| Power Consumption | DC 5.3 V; 5 W |
| Environment | |
| Operation Temperature | 32-122F (0-50C) |
| Storage Temperature | -4-140F(-20-60C) |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Unit Weight | 4.2 lb. |
| Housing | Metal |
| Case Qty | 3 |
| Case Dimension | 15.0x 11.0x 22.0 in. |
| Case Weight | 22.0 lb. |
| Unit Package Dimensions | 21.8x 4.8x 9.0 in. |
| Unit Weight with package | 6.4 lb. |
| Unit Dimension | 17.0x 6.3x 1.7 in. |
