Black Box EMD5004-R DESKVUE KVM-OVER-IP MULTISOURCE RX 4 MONITOR 4K HDMI AUDIO

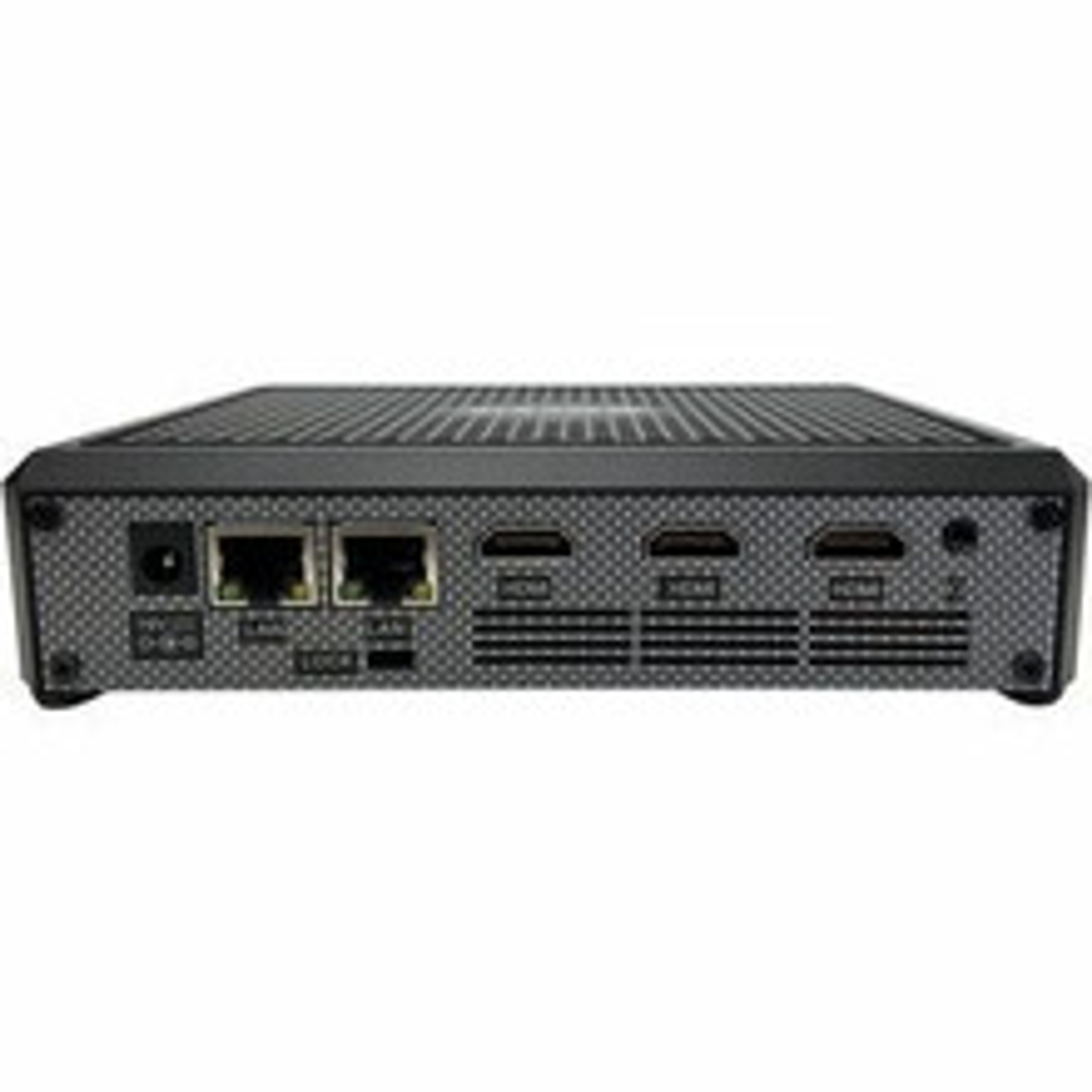

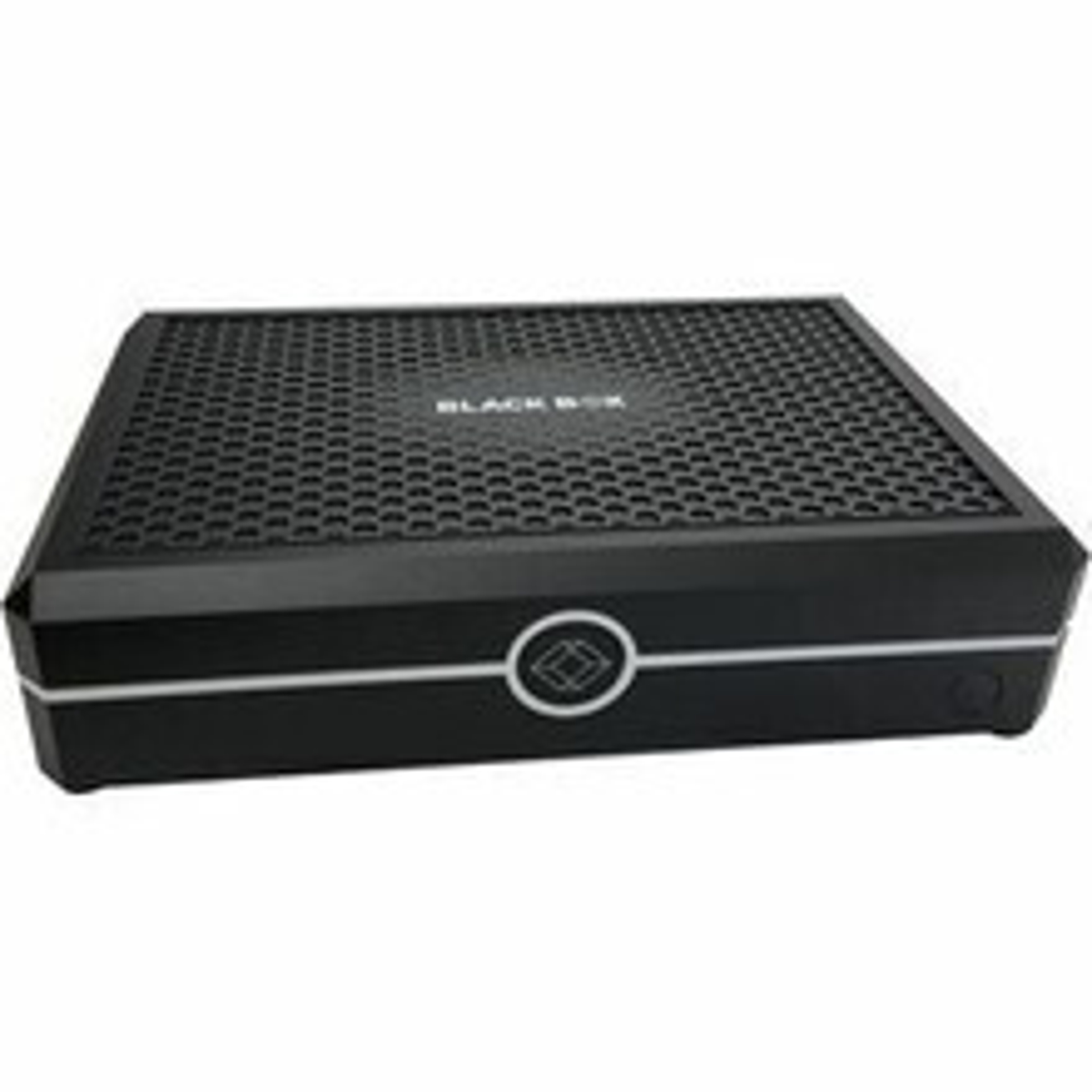

Black Box Emerald DeskVue KVM Receiver - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 5 x USB - 3 x HDMI - 12 V DC, 19 V DC Input Voltage - TAA Compliant

The award-winning Black Box® Emerald® DESKVUE, a completely new concept in KVM over IP, allows users to create a personalized workspace in which they can simultaneously monitor and interact with up to 16 systems - physical, virtual, and cloud-based - of their choice.

Ideal for control room environments, the Black Box receiver ensures instant, error-free switching between systems with a simple mouse click and enables free positioning of system windows across four 4K screens, including ultrawide curved monitors, while providing unique source information for each connected system.

Because the Emerald DESKVUE receiver does away with constant switching between systems, users no longer need to spend 40% to 50% of their time switching between systems and monitoring when tasks are complete or when a system requires interaction. With flexible, concurrent access to more than a dozen systems, all within view and easy reach, users maintain complete situational awareness that allows them to improve efficiency and productivity on a day-to-day basis and to take action instantly whenever needed.

Unlike solutions created out of complex and costly equipment integrations, DESKVUE is one small box that does it all, simply and securely over IP. Users tailor their workspace by connecting a single keyboard, mouse, USB 3/2 devices, audio, and up to four 4K monitors. Optionally, one of the four monitors can be 5K. DESKVUE connects to physical systems via Emerald transmitters; virtual machines using RDP, PCoIP, PCoIP ultra, H.264/265 sources; and VNC.

Features

• Supports 3840 X2160 on four monitors and one of these monitors can support 5120 X1440
• Supports ultra-wide monitors
• Customize the placement and size of individual screens to maximize efficiency
• Integrates with Emerald Unified KVM and the Boxilla KVM Manager for device configuration, monitoring, and authentication
• Connect a single keyboard, mouse, USB 3/2 devices, audio, and up to four 4k monitors
• Eliminates the need for multiple systems or an equipment integration
• Saves time and streamlines processes

Specifications:

Technical Information Connectivity Technology Wired Device Type KVM Extender Video Maximum Video Resolution 3840 x 2160 Graphic Mode 4K Miscellaneous Package Contents Emerald DeskVue KVM Receiver 1 x 19 VDC, 3A, Desktop Power Supply 1 x VESA Mount Kit 1 x Power Cord Screws And Jumper Environmentally Friendly Yes Environmental Certification RoHS TAA Compliant Yes Physical Characteristics Receiver Height 1.47" Receiver Width 6.61" Receiver Depth 4.52" Receiver Weight (Approximate) 1.21 lb Power Description Input Voltage 19 V DC   12 V DC Power Consumption 57 W Input Voltage Range 12-19VDC

Interfaces/Ports USB Yes HDMI Yes Number of HDMI Ports 3 Number of Network (RJ-45) Ports 2 Network (RJ-45) Yes Number of USB Ports 5 General Information Product Type KVM Extender Receiver Manufacturer Part Number EMD5004-R Manufacturer Website Address http://www.blackbox.com Packaged Quantity 1 Manufacturer Black Box Corporation Product Name Emerald DeskVue KVM Receiver Product Line Emerald DESKVUE Brand Name Black Box
