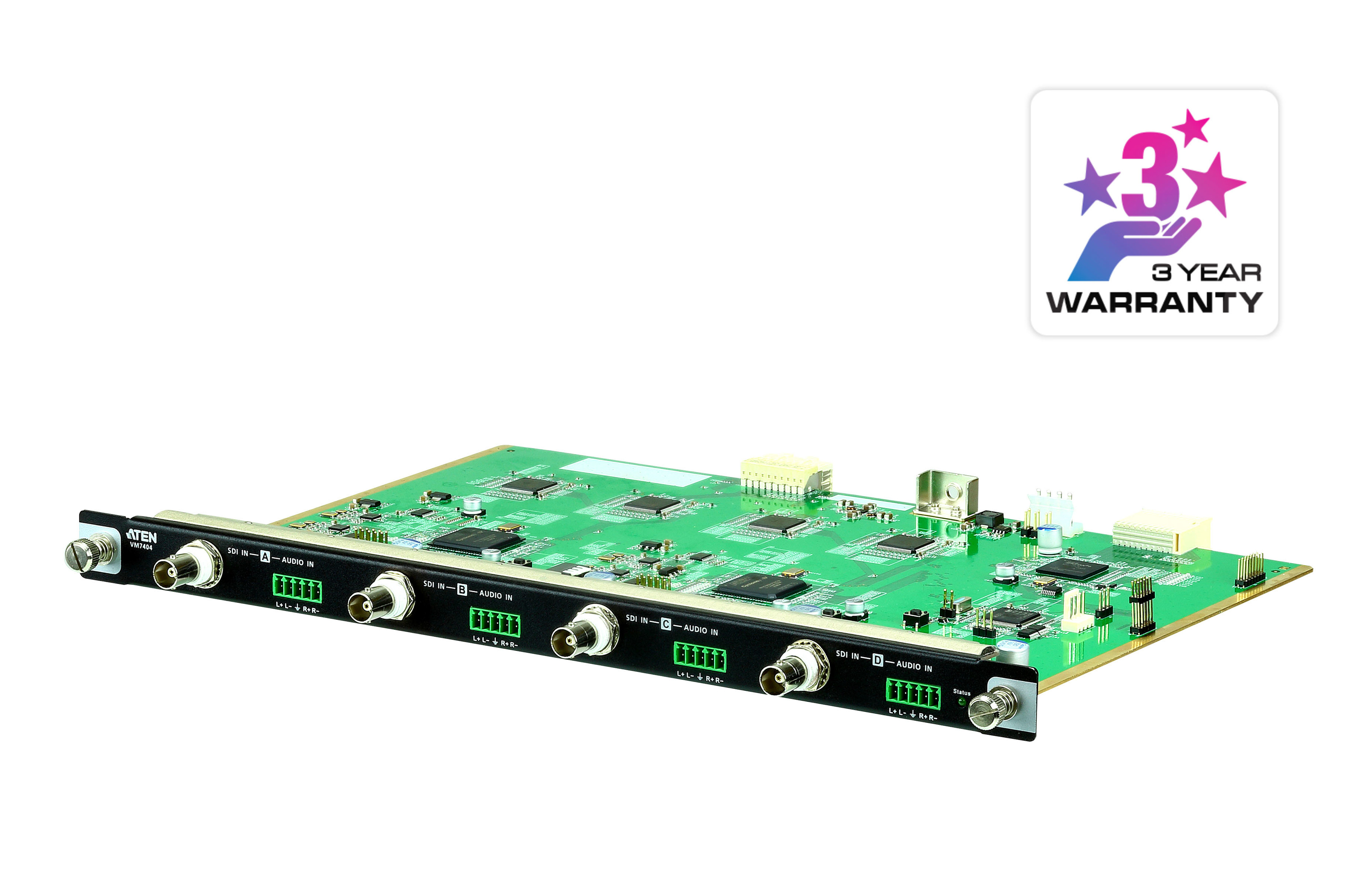

ATEN VM7404 4-Port 3G-SDI Input Board - The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI video and audio sources to multiple displays when used in combination with an ATEN Modular Matrix Switch. This input board provides the capability to connect to SDI sources, including 3G-SDI, HD-SDI and SD-SDI.
The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI video and audio sources to multiple displays when used in combination with an ATENModular Matrix Switch. This input board provides the capability to connect to SDI sources, including 3G-SDI, HD-SDI and SD-SDI, and supports high quality video resolutions up to 1080p @ 60 Hz. The VM7404 also supports separate analog stereo audio signals that can be routed independently. Furthermore, the board is based on a hot-swappable design, allowing the ATEN Modular Matrix Switch to remain on while the board is changed. Ideal for surveillance systems and numerous other broadcast-grade A/V applications, the VM7404 allows you to effectively centralize routing for all your 3G / HD / SD-SDI devices.
Features
- Connects up to 4 SDI inputs
- Supports SD-SDI, HD-SDI and 3G-SDI formats
- Hot-swappable design for easy integration of I/O boards

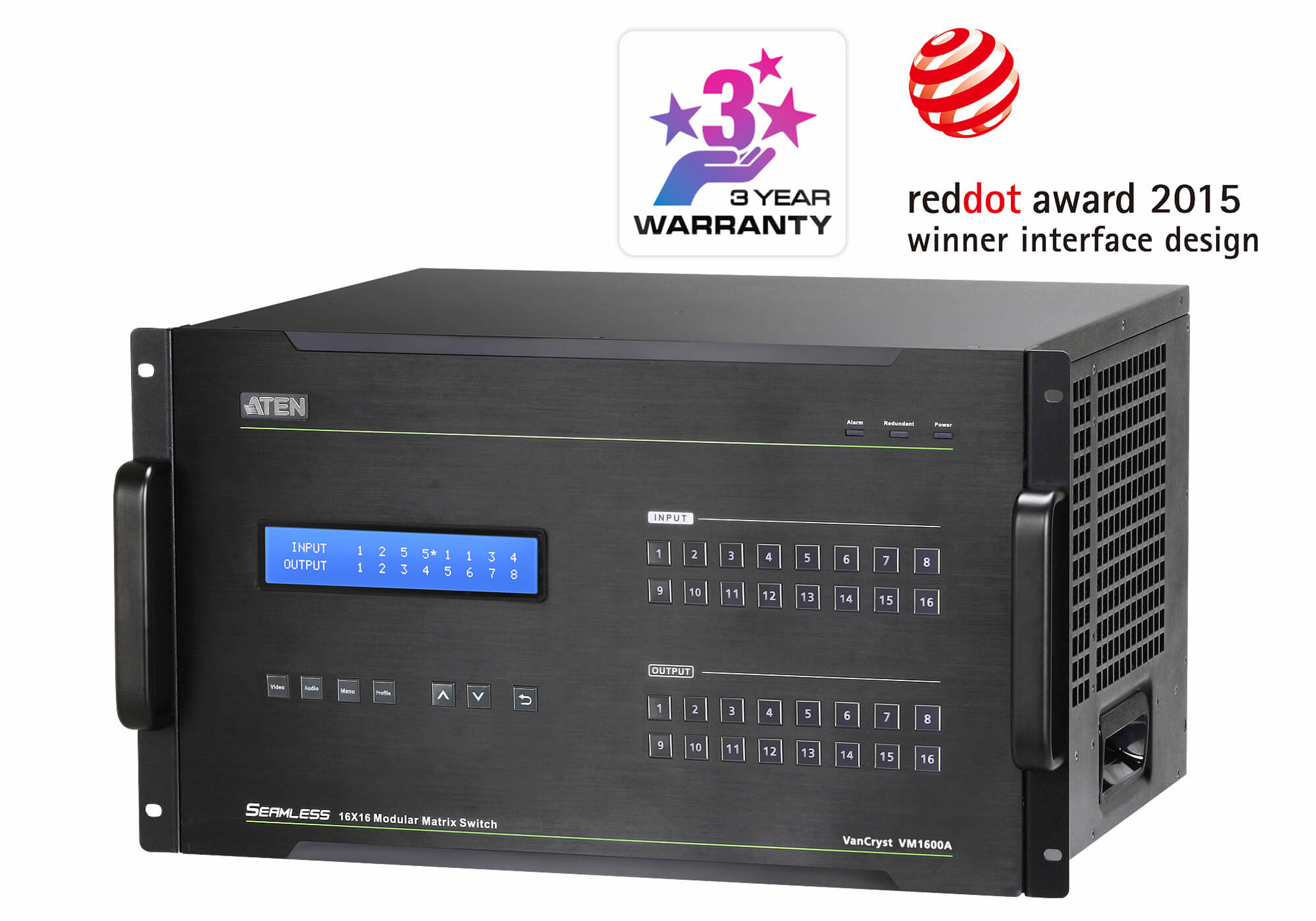

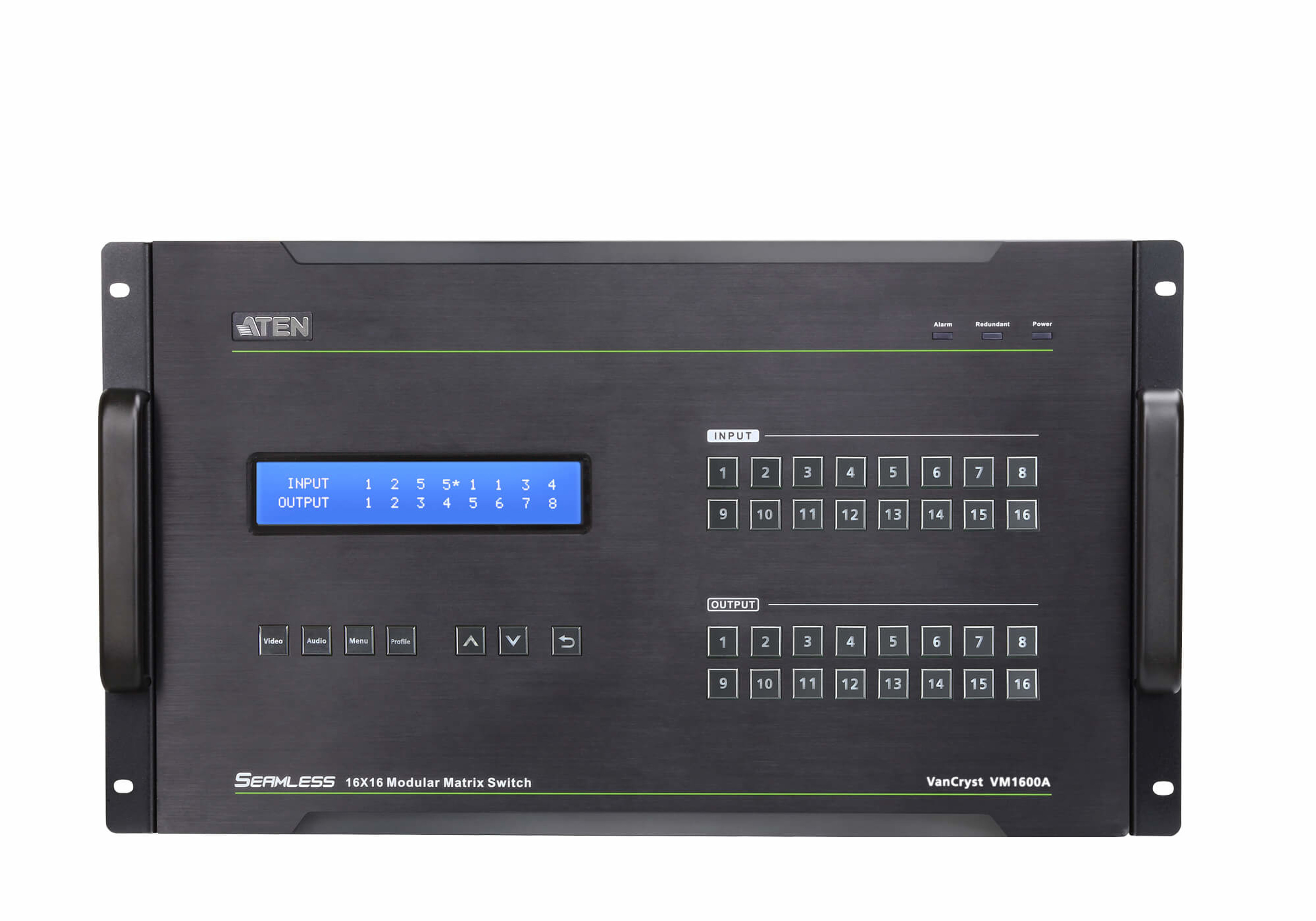

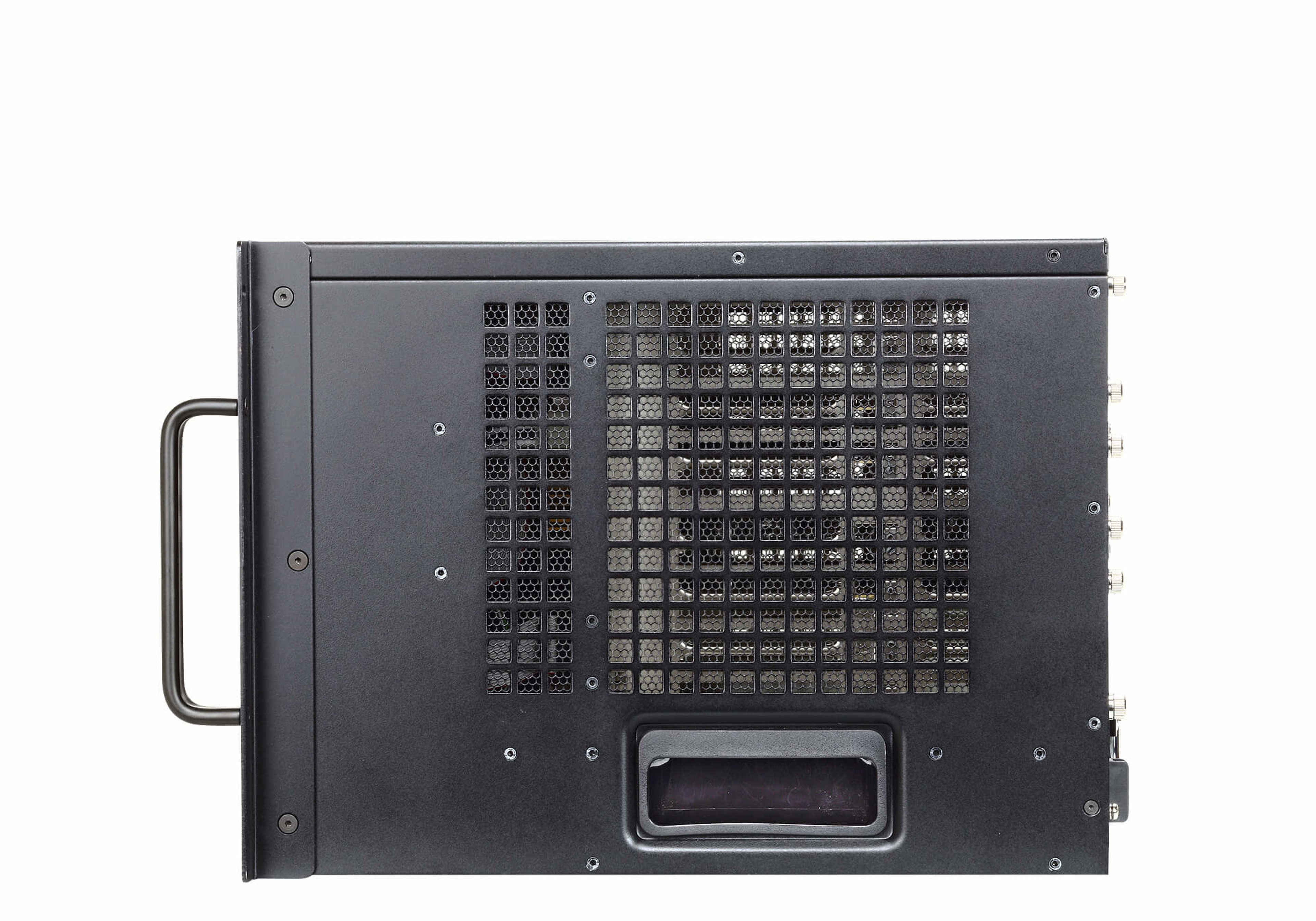

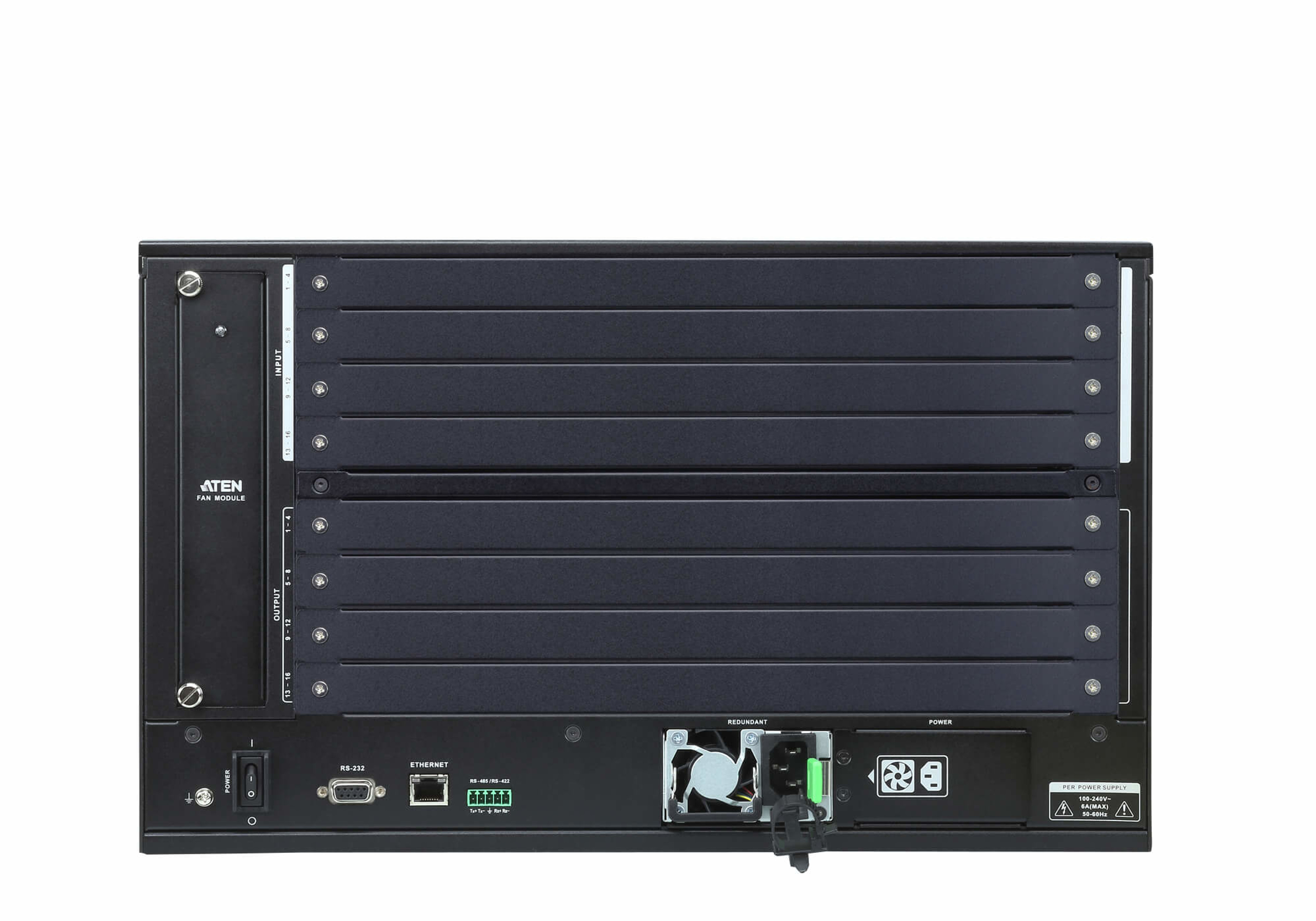

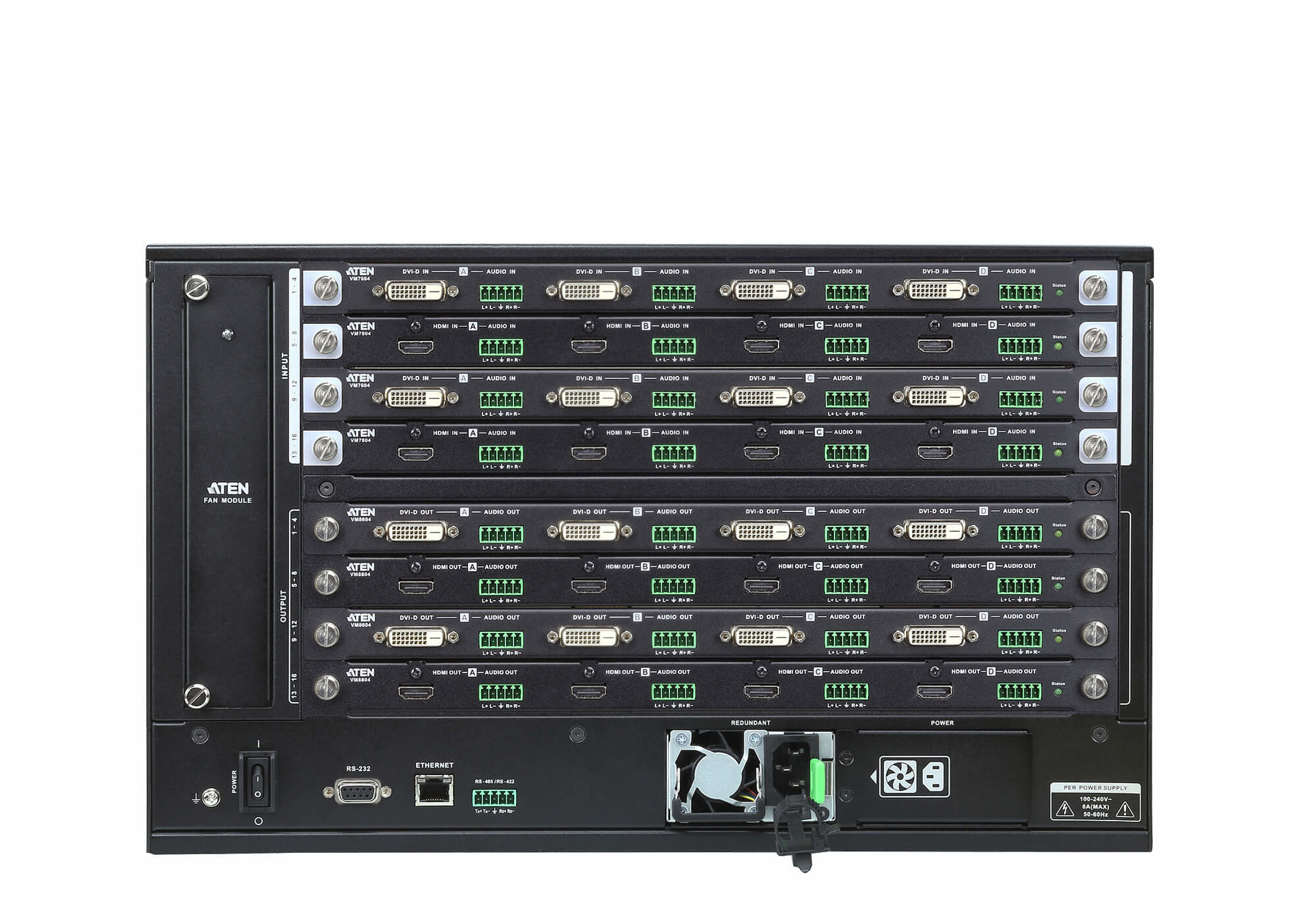

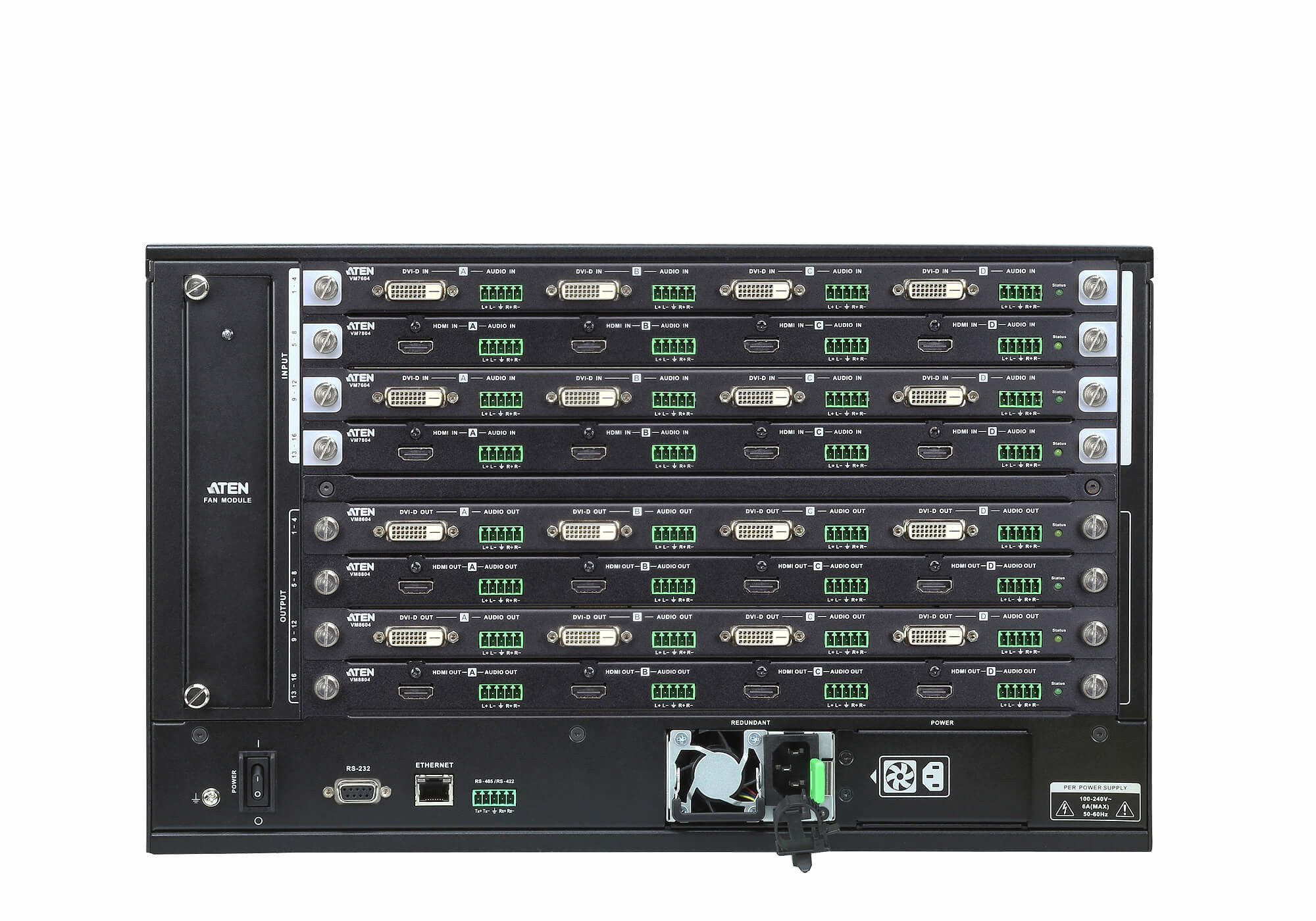

- Compatible with the VM1600 - mix and match modular I/O boards for optimal fl exibility
Specifications:
| Physical Characteristics |
| Weight (Approximate) |
2.32 lb |
| Length |
13.9" |
| Height |
0.9" |
| Width |
9.4" |
| Product Material |
Metal |
| Miscellaneous |
| Additional Information |
Video:
- Supported Resolutions PAL /50 PAL and NTSC/59.94
- 720p 25, 29.97, 30,50,59.94, 60
- 1080i50, 59.94, 60
- 1080PsF 25, 29.97,30
- 1080p 23.98, 24, 25, 29.97, 30,50,59.94, 60
- Max. Data Rate 2.97 Gpbs
- Max. Distance 100m (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
- SDI Formats 3G-SDI, SMPTE-259,292,424, 425 Level A & B-DL
Audio Inputs:
- Interfaces 4 x Captive Screw Connectors, 5 pole
- Audio signal type: stereo, balanced/unbalanced.
- Power Consumption 16W:75BTU
Environmental:
- Operating Temperature 0-40°C
- Storage Temperature -20-60°C
- Humidity 0 - 80% RH, Non-Condensing
- Physical PropertiesBalanced audio maximum input/output level: 0.5 Vrms (-6.02dBV@600 ohm )
- Unbalanced audio maximum input/output level: 1Vrms (0dBV@600ohm.)
Video Input:
- Interfaces 4 x BNC Female
- Impedance 75 Ώ
|
| Application/Usage |
Matrix Switcher |
| Package Contents |
- 4-Port 3G-SDI Input Board
- 4 x Terminal Block Connectors
- 1 x User Instructions
|
| Compatibility |
ATEN Modular Matrix Switches:
|
| Country of Origin |
Taiwan |
| Environmentally Friendly |
Yes |
|
| General Information |
| Product Type |
SDI Input Board |
| Manufacturer Part Number |
VM7404 |
| Manufacturer Website Address |
http://www.aten.com/us/en/ |
