Aten VS146 6-Port 3G/HD/SD-SDI Splitter-TAA Compliant


Regular Price $504.00
Discount Price: $357.00
Product Overview:

6-Port 3G/HD/SD-SDI Splitter-TAA Compliant

Adding to cart… The item has been added

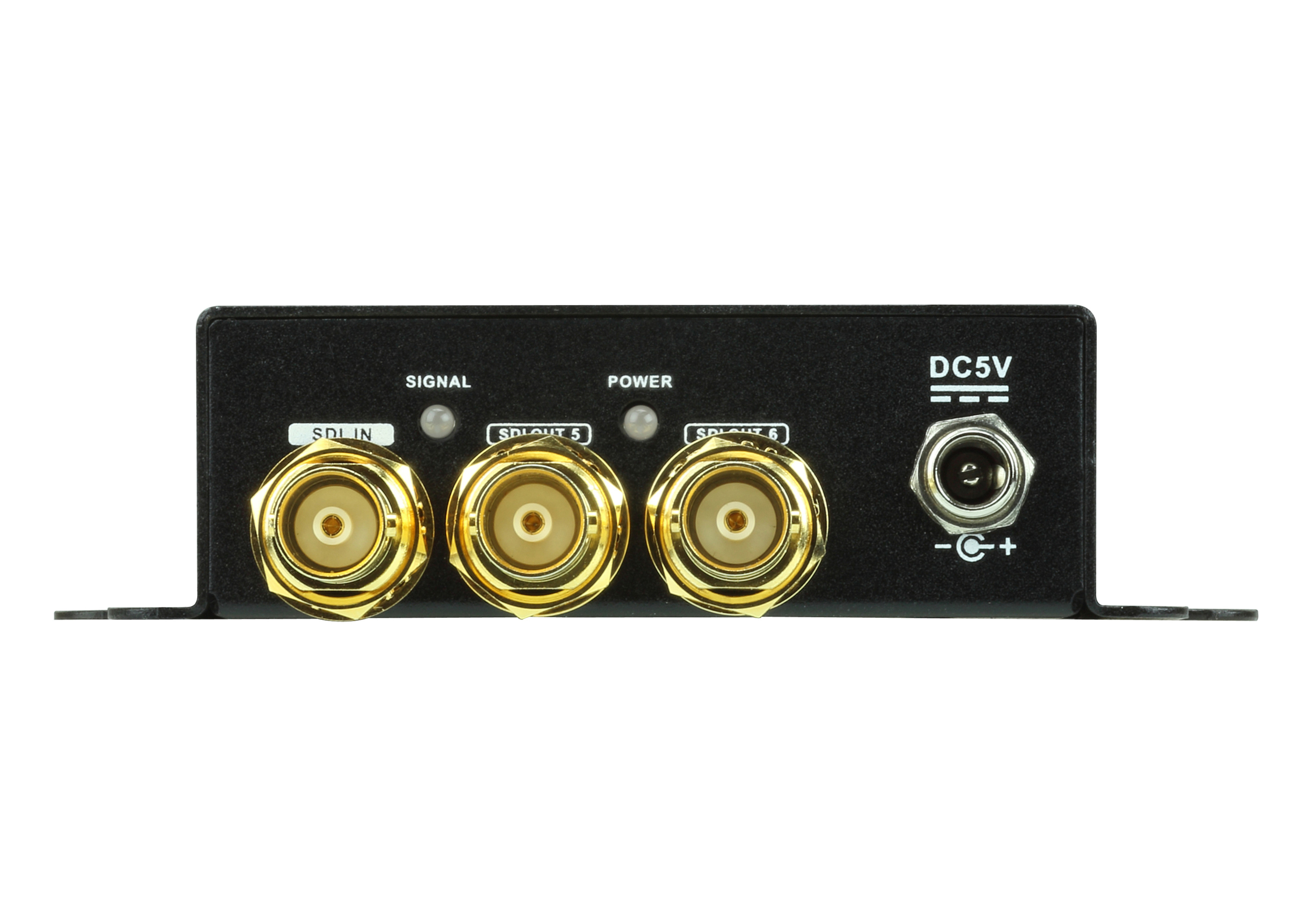

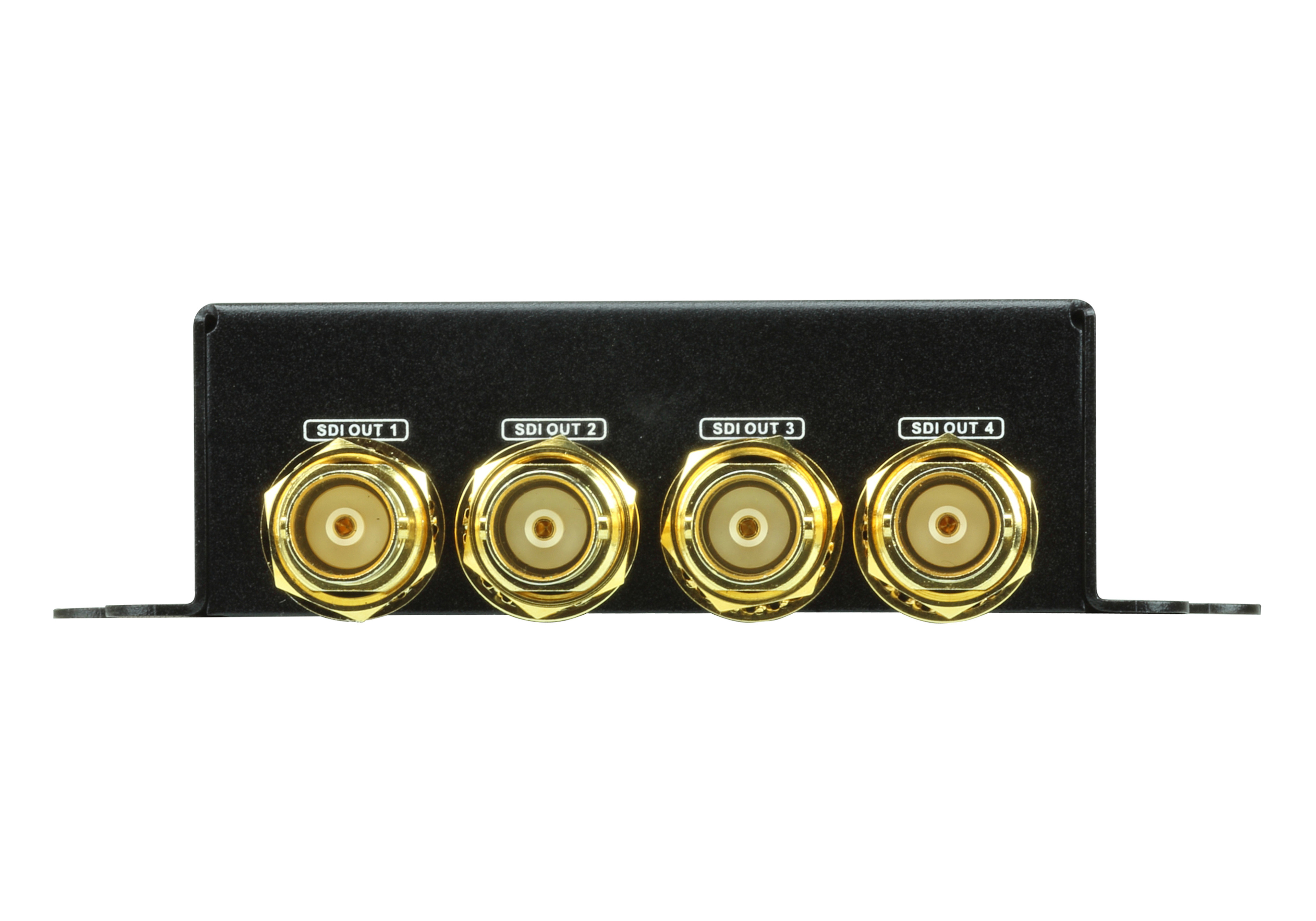

The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors.


Product Type: Signal Splitter
Brand Name: VanCryst
General Information
Product Type: Signal Splitter
Manufacturer Part Number: VS146
Manufacturer Website Address:
Packaged Quantity: 1
Manufacturer: ATEN Technology Inc
Product Model: VS146
Product Name: 6-Port 3G/HD/SD-SDI Splitter
Brand Name: VanCryst
Additional Information:
  • One video inputs to 6 video outputs
  • Supports an SDI distance of up to 90M (3G-SDI), 150M (HD-SDI) or 300M (SD-SDI) of RG6
  • Reclocking SDI signals for cascading and thus longer transmission
  • Supported SDI formats:
    SD-SDI (SMPTE 259M, up to 270Mbps)
    HD-SDI (SMPTE 292M, 296M up to 1.485 Gbps)
    3G-SDI (SMPTE 424M, 425M level A,B up to 2.97 Gbps)
  • Video bandwidth: 2.97Gpbs, 2.97/1.001Gbps
  • Features automatic detection of 3G/HD/SD-SDI signals
  • LED indication of power status and SDI signal
  • Locking power connector for secure communications
  • Passes all ancillary data
Package Contents:
  • 6-Port 3G/HD/SD-SDI Splitter
  • 1x Power Adapter
  • 1x User Instructions
Environmentally Friendly: Yes
Environmental Certification: RoHS
Physical Characteristics
Material: Metal
Weight (Approximate): 10.93 oz
Length: 5.7"
Height: 1"
Width: 3.1"
Power Description
Input Voltage: 5 V DC
